ZS-40 Series Gear Type Automatic Feed Drilling Machine

Product Introduction: ZS-40 Series Gear Automatic Feed Drilling Machine

ZS-40 series heavy-duty gear drill press is designed for mass drilling and tapping, equipped with gear-driven auto spindle feed system, divided into short base ZS-40B/BP and tall column table type ZS-40BHS/BPS. It supports optional multi-spindle attachment for simultaneous multi-hole machining.

Core Advantages

1. Hardened Gear Spindle Head for High Torque Cutting
   All transmission gears are precision hardened, output strong torque to support max tapping M32 on cast iron and M24 on steel. B1 upgraded version adopts dual-speed motor to realize two speed ranges (6 single / 12 dual gear speeds), wide spindle speed 95–3200rpm, covering heavy tapping and high-speed fine drilling.
2. Independent Automatic Spindle Feed System
   3 adjustable feed rates (0.12 / 0.18 / 0.25 mm/r) for different material cutting demands; spindle travel supports manual jog and automatic cycle feed (120mm manual stroke / 100mm auto stroke). Standard MT4/R8 spindle taper fits all standard drill chucks and tapping attachments.
3. Two Structure Versions for Different Workpieces

• ZS-40B/BP: Short base compact model, total height only 1400–1450mm, without cross worktable, suitable for short shaft and small block parts drilling.

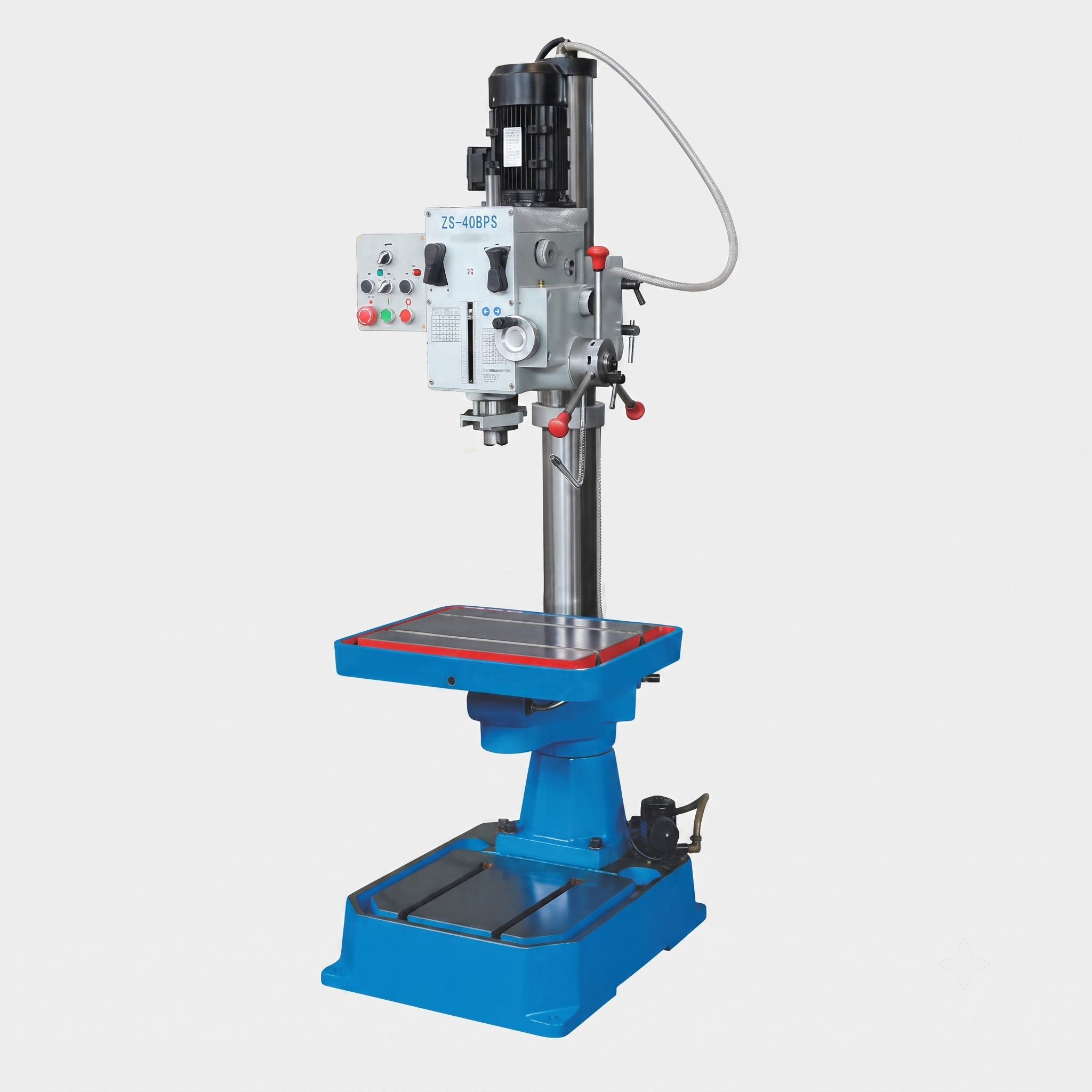

• ZS-40BHS/BPS: Tall column with large cross T-slot worktable (540×470mm, travel 515mm), larger vertical clearance 1245mm for tall long workpieces.
• Suffix H: Without coolant tank, low cost for dry cutting process.
• Suffix P: Equipped with 40W coolant motor & circulation tank, extend tool service life and improve hole surface finish.

1. Optional Multi-Spindle Accessory
   Custom multi-spindle fixture is available, realize multiple holes drilling in one single feed stroke, greatly improve batch production efficiency.
2. Flexible Power Option
   1100W single-phase motor for small workshops without industrial three-phase power; 1500W three-phase motor for continuous heavy-duty factory production.
