Characters:

Both spindle head, column and base using high quality cast iron, strong and everlasting.

High precision with excel lent feature,widel yuse at instrument and camera area.

Standard accessories

Drill chuck

Wrench

Special accessories

Safety guard

Vice

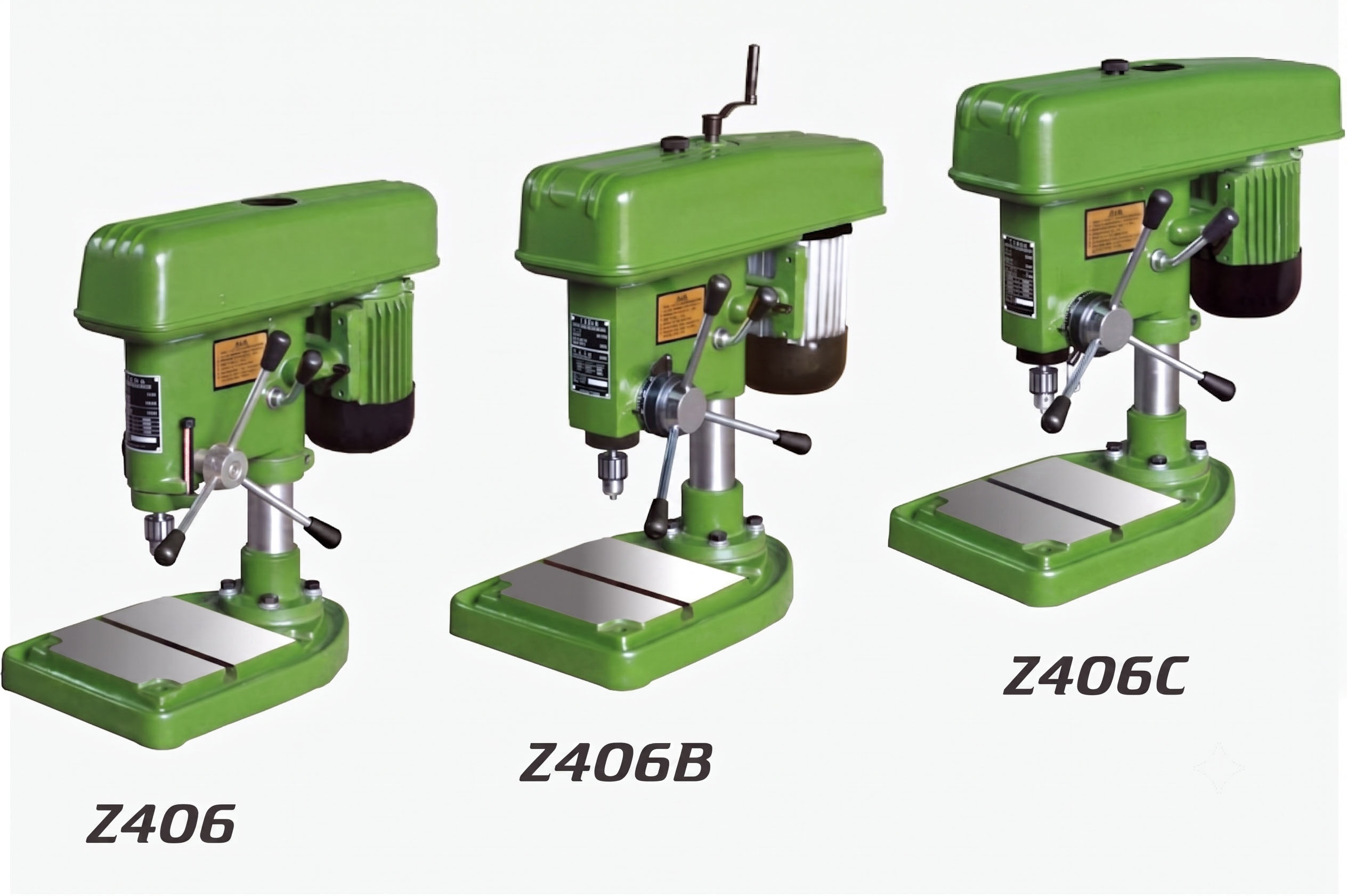

Model	Unit	Z406	Z406C	Z406B
Max. Drilling Capacity	mm	6	6	6
Diameter of Column	mm	50	50	50
Spindle Travel	mm	65	65	65
Distance from Spindle Axis to Column Generating Line	mm	140	140	140
Max. Distance from Spindle Nose to Worktable	mm	/	/	/
Max. Distance from Spindle Nose to Base	mm	225	225	225
Spindle Taper	-	B10	B10	B10
Spindle Speed Range	r/min	1400~5800	1400~5800	2000~12000
Number of Spindle Speed Stages	-	3	3	3
Dimension of Worktable Surface	mm	/	/	/
Dimension of Base	mm	380 × 258	380 × 258	380 × 258
Overall Height	mm	605	605	605
Motor Power	W	250	250	250/370
Gross Weight / Net Weight (G.W./N.W.)	kg	48/38	48/38	48/38
Packing Dimension	cm	61 × 30 × 54	61 × 30 × 54	61 × 30 × 54
