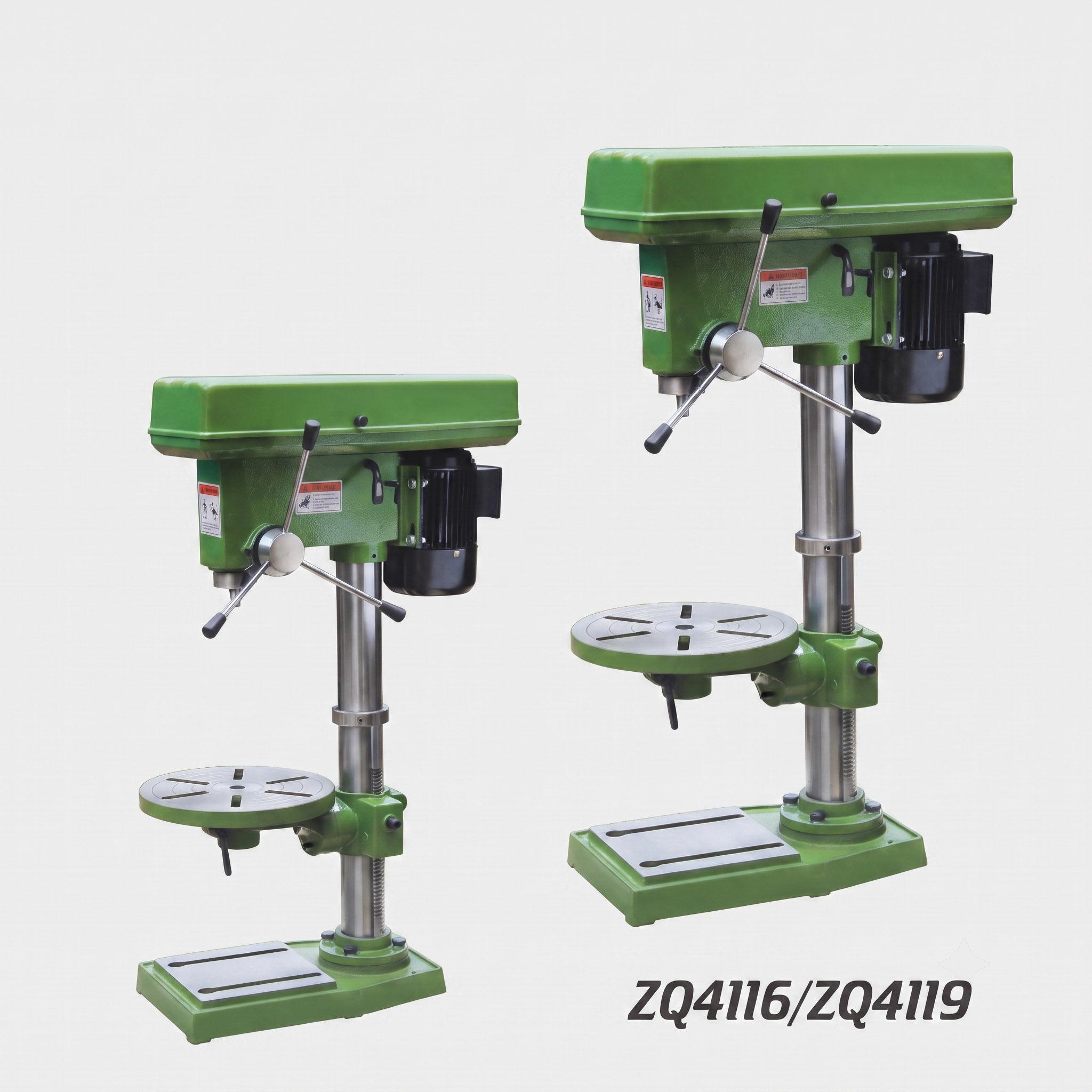

ZQ series light type drilling machine
ZQ SERIES LIGHT TYPE DRILL PRESS
ZQ SERIES LIGHT TYPE DRILL PRESS
Characters
- Light and flexible, it can be used not only on machine processing、repairing but also DIY repairing and daily use.
Standard accessories
- Drill chuck
- Taper sleeve ( only MT3 spindle )
- Arbor ( only taper hole spindle )
- Drift ( only taper hole spindle )
- Wrench
Special accessories
- Safety guard
- Vice
| Model | unit | ZQ4113 | ZQ4116/ZQ4119 | ZQ4125/ZQ4132 | ZQD4125 /ZQD4132 |
|---|---|---|---|---|---|
| max.drilling capacity | mm | 13 | 16/19 | 25/31.5 | 25/31.5 |
| diameter of column | mm | 70 | 70 | 85 | 85 |
| spindle travel | mm | 85 | 85 | 110 | 110 |
| distance spindle axis to column generating line | mm | 180 | 180 | 200 | 200 |
| max. distance spindle nose to table | mm | 390 | 410 | 480 | 390 |
| max. distance spindle nose to base | mm | 570 | 590 | 670 | 1140 |
| spindle taper | - | b16 | mt2 | mt3 | mt3 |
| spindle speeds range | r/min | 495~2565 | 270~2880 | 200~2280150~2270 | 200~2280150~2270 |
| spindle speeds series | - | 4 | 12 | 9/12 | 9/12 |
| dimension of table surface | mm | 240x240 or Φ300 | 240x240 or Φ300 | 280x280 or Φ360 | 280x280 or Φ360 |
| dimension of base | mm | 445 x 270 | 445 x 270 | 566 x 356 | 566 x 356 |
| overall height | mm | 960 | 960 | 1110 | 1680 |
| power of motor | w | 370 | 370/550 | 750/1100 | 750/1100 |
| g.w/n.w | kg | 68/65 | 68/65 | 105/98 | 115/108 |
| packing dimension | cm | 91 x 51.5 x 27 | 91 x 51.5 x 27 | 108 x 77 x 34 | 108 x 77 x 34 |
