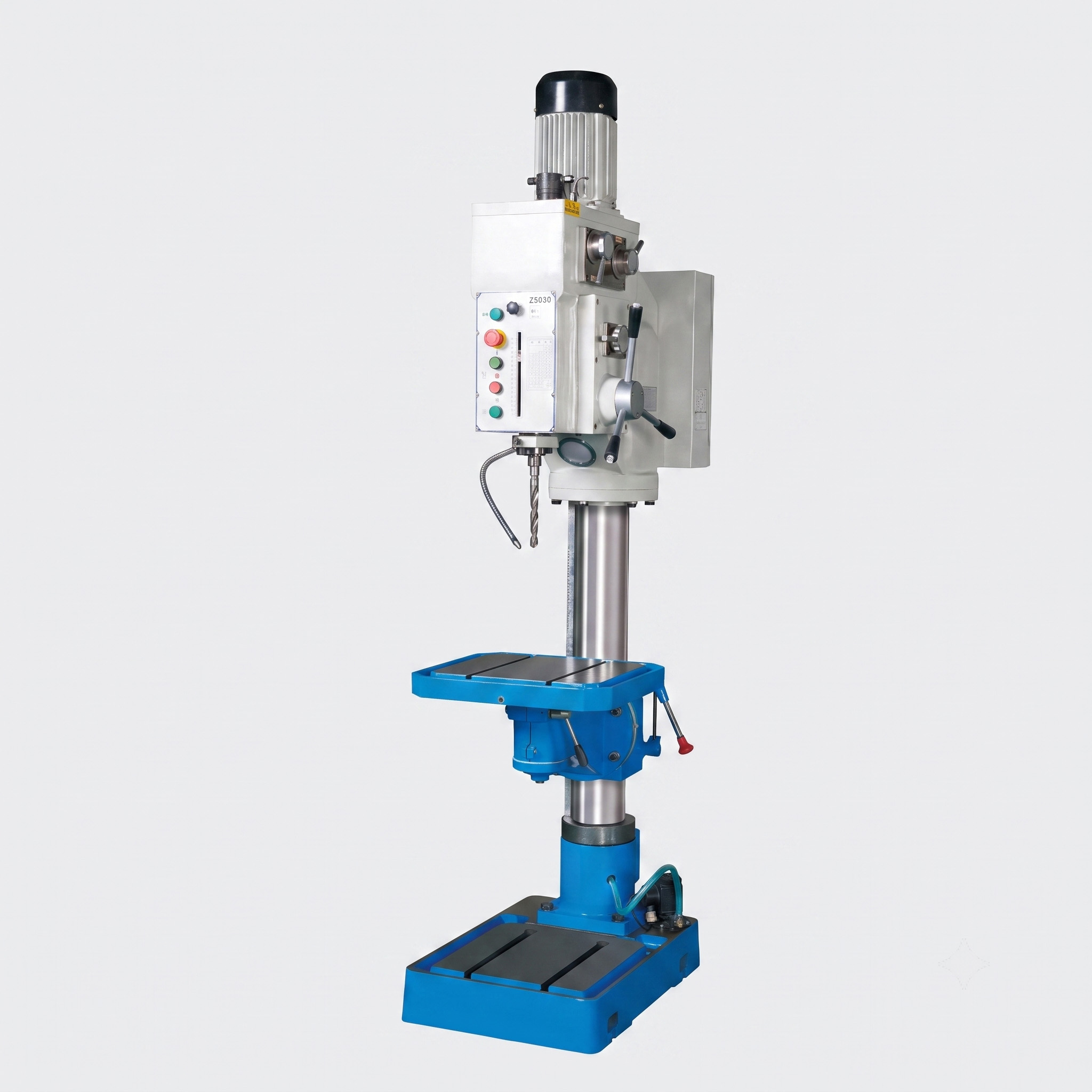

Z5035/Z5030 Pillar Type Vertical Drilling Machine

Product Overview: Pillar Type Vertical Drilling Machine Z5030 & Z5035

These two small-medium pillar vertical drill presses integrate drilling, counterboring, reaming and tapping functions, suitable for single-piece, small batch and mass hardware processing. Z5035 adopts electric table lifting, while Z5030 uses manual lifting for cost saving.

Core Advantages

1. Compact Body & Wide Speed Regulation
   Novel appearance with rigid compact structure, 12-level spindle speed from 65–2600 r/min, matching aluminum, cast iron, steel and other metal materials.
2. Multi-Angle Adjustable Worktable
   Workbench supports 180° horizontal rotation and ±45° tilt adjustment, flexible for inclined hole and complex workpiece machining. Z5035 is equipped with motorized table lifting for high-efficiency batch production; Z5030 uses manual lifting for light workload.
3. Complete Machining Auxiliary System
   Built-in tapping mechanism and 40W coolant pump, automatic feed function improves thread quality and reduces tool abrasion.
4. IEC Standard Safe Electrical System
   Electrical circuit complies with IEC international standard, with short-circuit and overload protection to prevent motor damage. Full spindle safety guard ensures operation safety.
5. Rich Optional Processing Accessories
   Standard package includes drill chuck, arbor, wrench and other parts; optional multi-spindle head, angle vice for multi-hole simultaneous drilling.

Model Differentiation

• Z5030: Light-duty bench vertical drill, max drilling φ30, max tapping M20, manual table lifting, small footprint for small workshop processing.
• Z5035: Medium universal model, max drilling φ35, max tapping M24, thicker column, electric table lifting motor, larger table travel for medium batch production.
