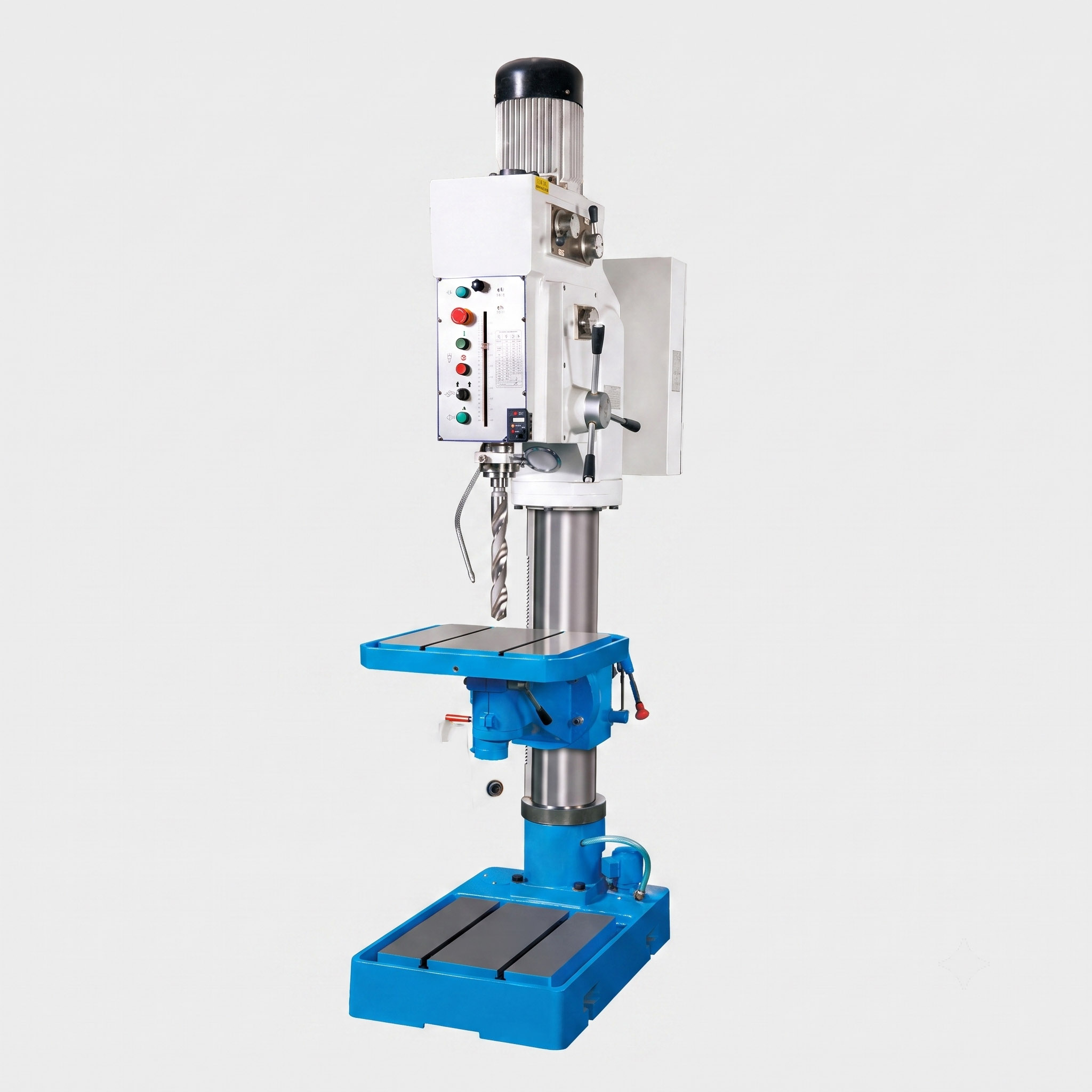

Z5040/Z5050 Pillar Type Vertical Drilling Machine

Product Overview: Pillar Type Vertical Drilling Machine Z50 Series

Z5040 & Z5050 are conventional pillar vertical drill presses integrating drilling, boring, reaming and tapping functions, widely used in single-piece and mass hardware processing.

Core Advantages

1. Stable Compact Structure & Wide Speed Range
   Novel streamlined appearance, rigid body, 12-stage variable spindle speed from 42 to 2050 r/min, compatible with steel, cast iron, aluminum and other metal materials.
2. Flexible Multi-Angle Worktable
   Unique workbench supports 180° horizontal rotation and ±45° tilt adjustment; equipped with electric + manual dual lifting mechanism for quick height positioning of workpieces.
3. Integrated Tapping & Cooling System
   Built-in tapping mechanism and coolant circulation pump, automatic feed for tapping and drilling to improve surface finish and extend tool life.
4. IEC Standard Electrical Safety System
   Electrical circuit complies with IEC international standard, built-in short-circuit and overload protection to prevent motor burnout; complete safety guard for spindle operation.
5. Rich Optional Accessories
   Standard parts include drill chuck, arbor, wrench etc. Optional multi-spindle head, angle vice and safety shield for multi-hole batch processing.

Model Differentiation

• Z5040: Medium universal model, max drill φ40, max tapping M27, lighter weight, suitable for small & medium batch processing.
• Z5050: Heavy-duty model, max drill φ50, max tapping M30, thicker column, larger work stroke, for thick plate and mold heavy cutting.
