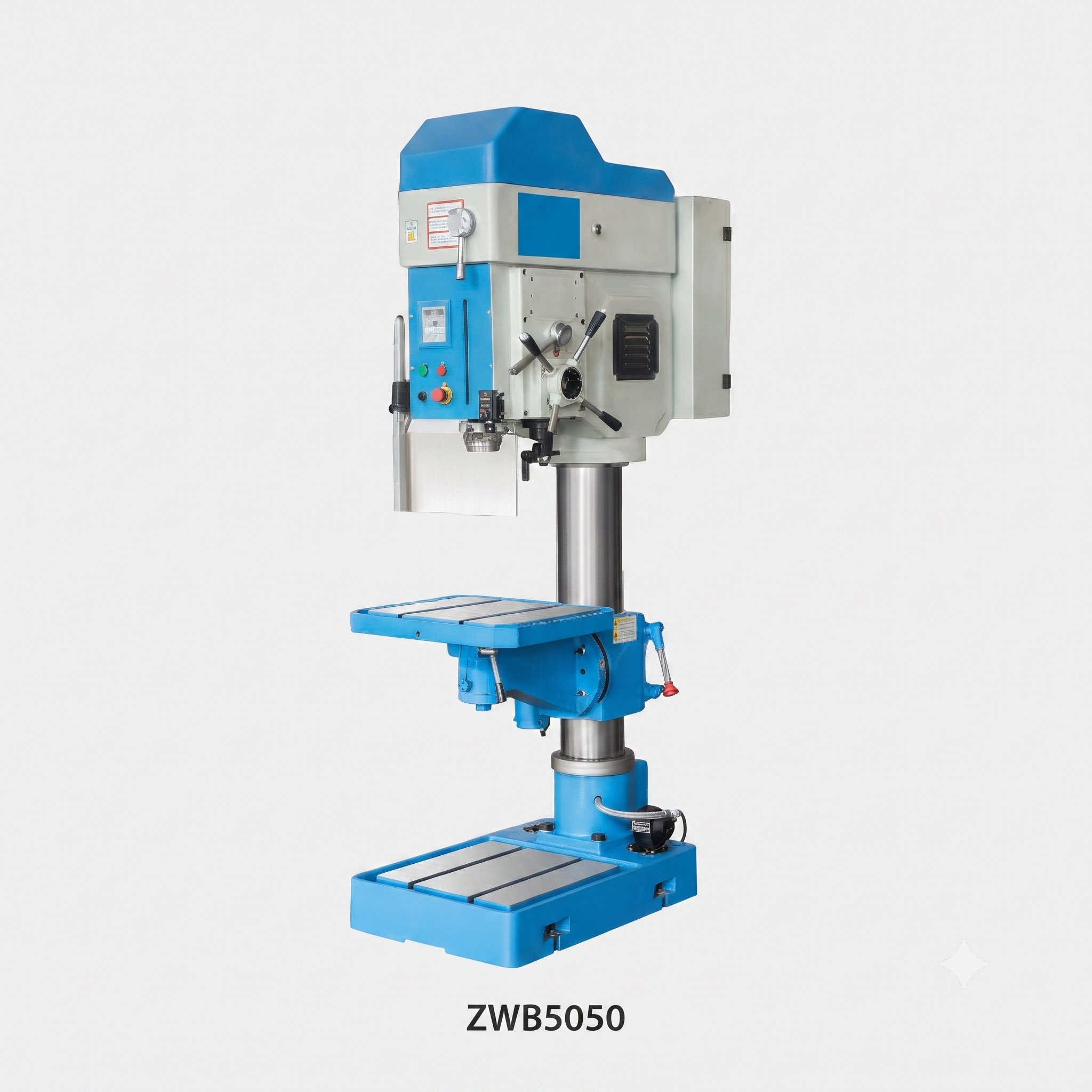

ZWB5050/40/30 Intelligent Vertical Drilling Machine
ZWB50 Series Intelligent Permanent Magnetic Infinitely Variable Speed Vertical Drilling Machine This vertical drill adopts permanent magnet variable speed drive technology, eliminating traditional gear shifting. It supports stepless speed regulation, integrated drilling & tapping functions, equipped with electromagnetic clutch automatic feed system, suitable for mold, auto parts, hardware processing. Three models cover drilling range φ30~φ50.
Product Overview
ZWB50 Series Intelligent Permanent Magnetic Infinitely Variable Speed Vertical Drilling Machine
This vertical drill adopts permanent magnet variable speed drive technology, eliminating traditional gear shifting. It supports stepless speed regulation, integrated drilling & tapping functions, equipped with electromagnetic clutch automatic feed system, suitable for mold, auto parts, hardware processing. Three models cover drilling range φ30~φ50.
Core Advantages
- Permanent magnet stepless speed regulation: Wide spindle speed range, separate low-speed heavy-cut and high-speed finishing zones, no gear shift vibration.
- Dual-function drilling & tapping: Matched tapping capacity up to M20-M30, large output torque for hard metal processing.
- Rotatable worktable: Workbench can rotate ±180° horizontally along column, flexible positioning for multi-side workpieces.
- Automatic electromagnetic feed: Independent feed motor with adjustable feed speed; electromagnetic clutch ensures stable, controllable feed and retraction.
- Complete cooling system: Built-in coolant pump to reduce tool wear and improve surface finish.
- Three model specifications for different processing demands:
| Item | Unit | ZWB5050 | ZWB5040 | ZWB5030 |
|---|---|---|---|---|
| Model | — | ZWB5050 | ZWB5040 | ZWB5030 |
| Max.drilling capacity | mm | 50 | 40 | 30 |
| Max.tapping capacity | mm | M30 | M27 | M20 |
| Max.spindle travel | mm | 240 | 180 | 135 |
| Spindle taper | — | MT5 | MT4 | MT3 |
| Diameter of column | mm | 180 | 160 | 120 |
| Spindle speed | r/min | 50–200, idle:200–2000 | 50–250, idle:250–2500 | 50–300, idle:300–2500 |
| Rotate angle of worktable along column | ° | ±180° | ±180° | ±180° |
| Worktable travel | mm | 550 | 550 | 480 |
| Distance spindle axis to column surface | mm | 360 | 360 | 320 |
| Availability working area of worktable | mm | 470×390 | 470×390 | 420×360 |
| Availability working area of base | mm | 450×460 | 450×460 | 400×390 |
| T-slot size of worktable | mm | 2-14 | 2-14 | 2-14 |
| T-slot size of base | mm | 2-18 | 2-18 | 2-18 |
| Max.distance spindle nose to table | mm | 540 | 570 | 540 |
| Max.distance spindle nose to base | mm | 1130 | 1160 | 1110 |
| Max.torque | N.m | 350 | 200 | 95 |
| Main motor power | kW | Max 4KW | Max 3KW | Max 2.2KW |
| Feed motor power | W | About 90W | About 90W | About 90W |
| Feed speed rate | mm/min | 20–204 | 18–183 | 21–213 |
| Coolant pump motor | W | 40W | 40W | 40W |
| Electromagnetic clutch power | W | 32W | 24W | 21W |
| N.W/G.W | kg | 845/905 | 690/745 | 510/560 |
| Max.external dimension | mm | 1055×665×2150 | 1045×665×2095 | 960×500×1950 |
| Packing dimension | mm | 1170×680×2390 | 1170×680×2330 | 1100×620×2260 |
