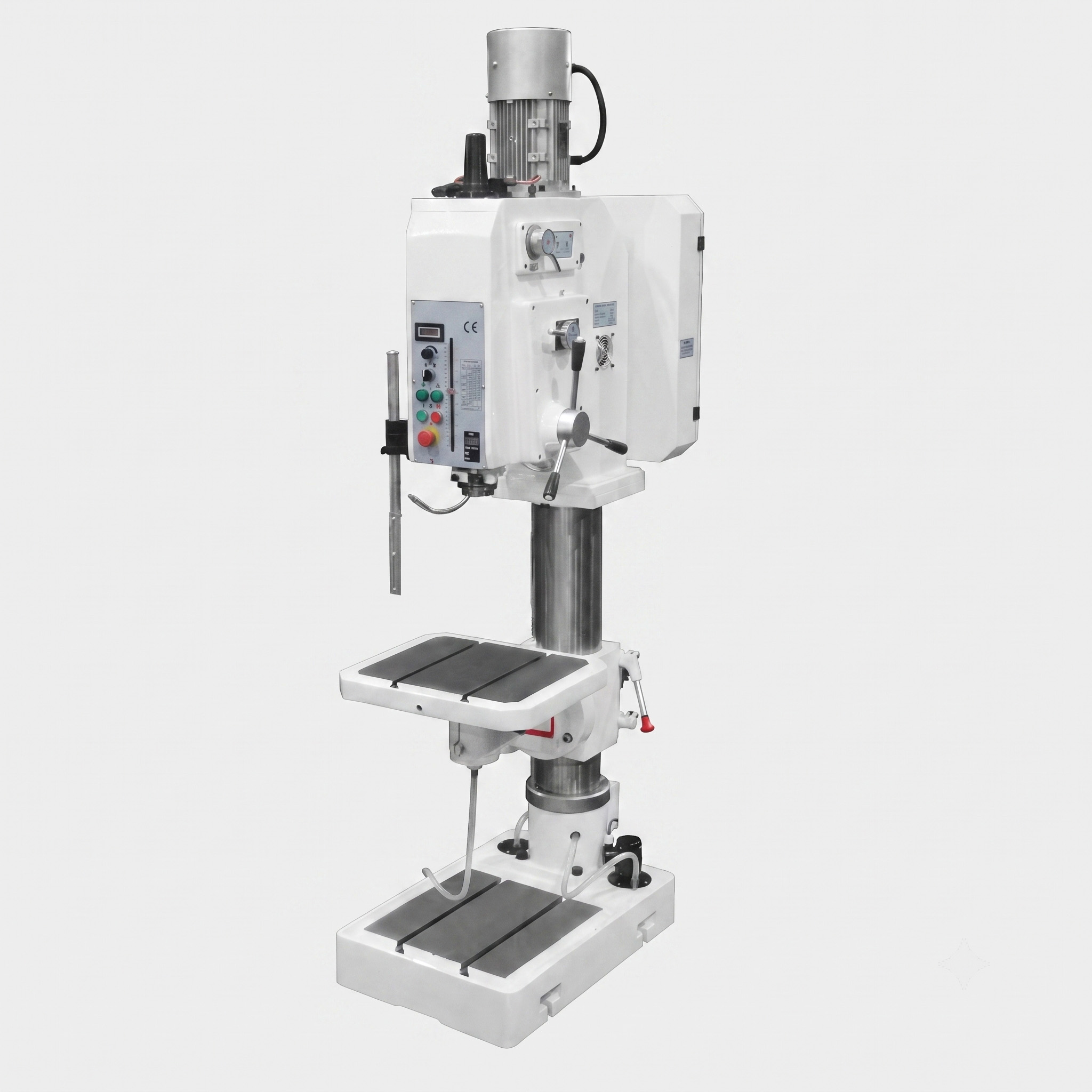

Z5050V Infinitely Variable Speed Cylindrical Vertical Drilling Machine

Product Introduction: Infinitely Variable Speed Cylindrical Vertical Drilling Machine Z5050 Series

This vertical drill conforms to European standard, integrates drilling and tapping function, equipped with U-type transparent safety shield, and supports optional multi-spindle heads and custom special fixtures. Two variants available: inverter stepless type Z5050V and two-speed AC motor type Z5050A.

Core Features

1. Digital speed display panel
   Rotary knob speed adjustment with real-time digital spindle speed readout, intuitive and easy operation.
2. Wide-range two-stage stepless speed regulation

• Z5050V adopts frequency converter to realize two-range stepless speed (50–2000rpm), freely adjustable for all metal materials.
• Z5050A uses traditional 12-speed two-stage belt pulley, stable torque for general batch processing.
  Upgraded structure eliminates frequent pulley cover opening for gear shifting, compatible with both high-torque large hole drilling and high-speed tiny hole machining.

1. High precision stable structure
   Centralized operation buttons layout; main drive gears adopt precision grinding, key components processed by imported CNC machine tools, low noise and long service life.
2. Flexible workpiece clamping system
   550×470 large worktable with T-slots, worktable & bracket can rotate horizontally ±45°; 550mm full table travel for large irregular workpieces.
3. Complete auxiliary configuration
   Built-in 40W cooling water pump, 32W electromagnetic clutch for stable automatic feed; 180W lifting motor for fast table height adjustment, max drilling capacity up to φ50, tapping capacity M30.
