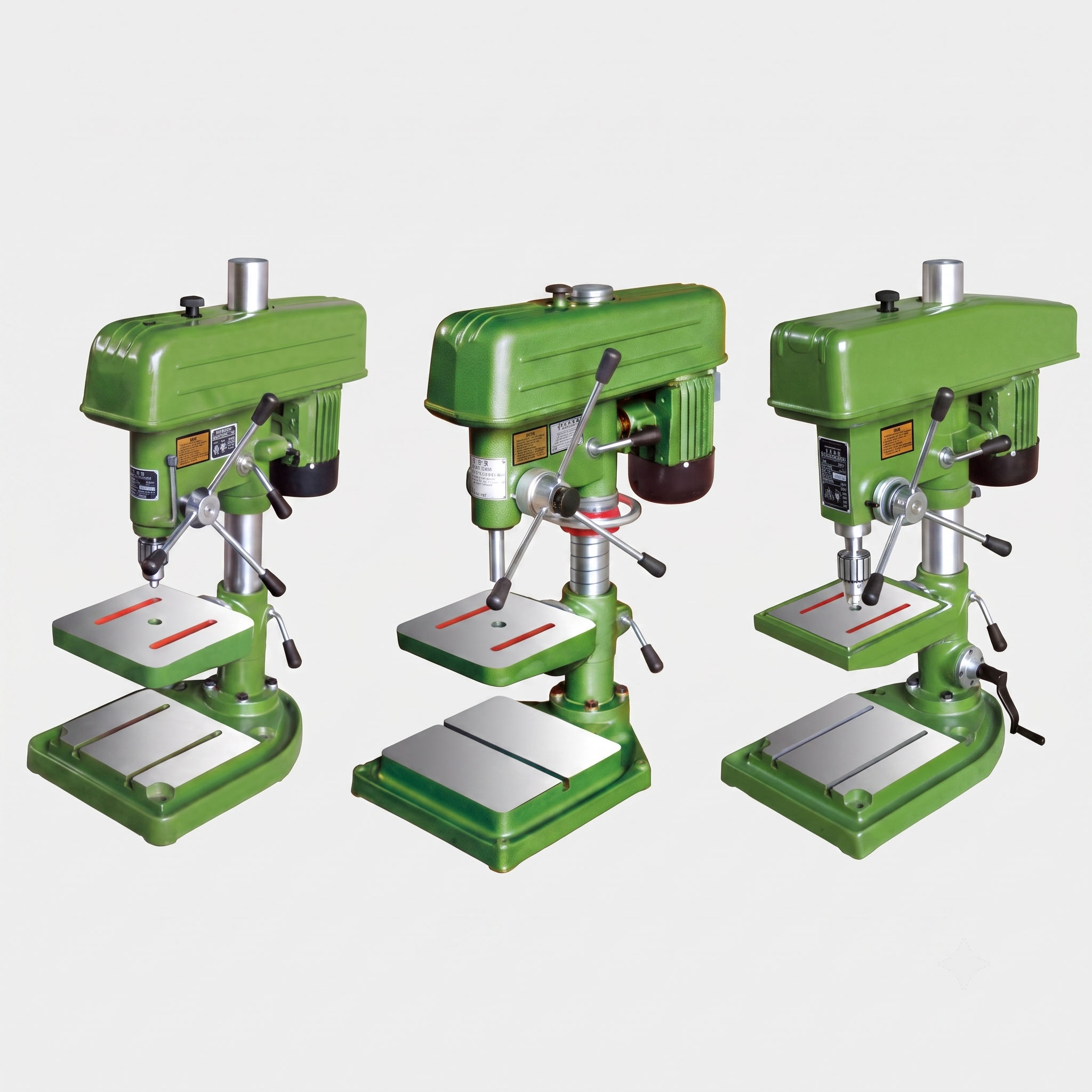

INDUSTRIAL TYPE BENCH DRILLING MACHINE

Characters

Both spindle head, column and base using high quality cast iron, strong and everlasting.
High precision with excellent feature, widely use at instrument and camera area.

standard accessories

Model	unit	Z512-2/Z516 Z512b/Z516b	Z4112a/Z4116a	Z4116	Z4120/Z4125
max.drilling capacity	mm	12.7/16	12.7/16	16	20/25
diameter of column	mm	70	70	85	85
spindle travel	mm	100	100	125	125
distance spindle axis to column generating line	mm	193	193	297	240
max. distance spindle nose to table	mm	332/326	315	308/254	367
max. distance spindle nose to base	mm	556/550	556	524/470	630
spindle taper	-	b16/b18	b16/mt2	b16/mt2	mt2/mt3
spindle speeds range	r/min	480~4100	480~4100	400~4090	365~3150
spindle speeds series	-	5	5	5	5
dimension of table surface	mm	265 x 265	200 x 230	250 x 250	280 x 300
dimension of base	mm	528 x 360	528 x 360	495 x 375	590 x 375
overall height	mm	1037	1037	850	1127
power of motor	w	550	550	550/750	1100
g.w/n.w	kg	108/90	108/90	120/102	165/140
packing dimension	cm	77 x 42 x 94	77 x 42 x 94	83 x 42 x 92	82 x 48 x 102
