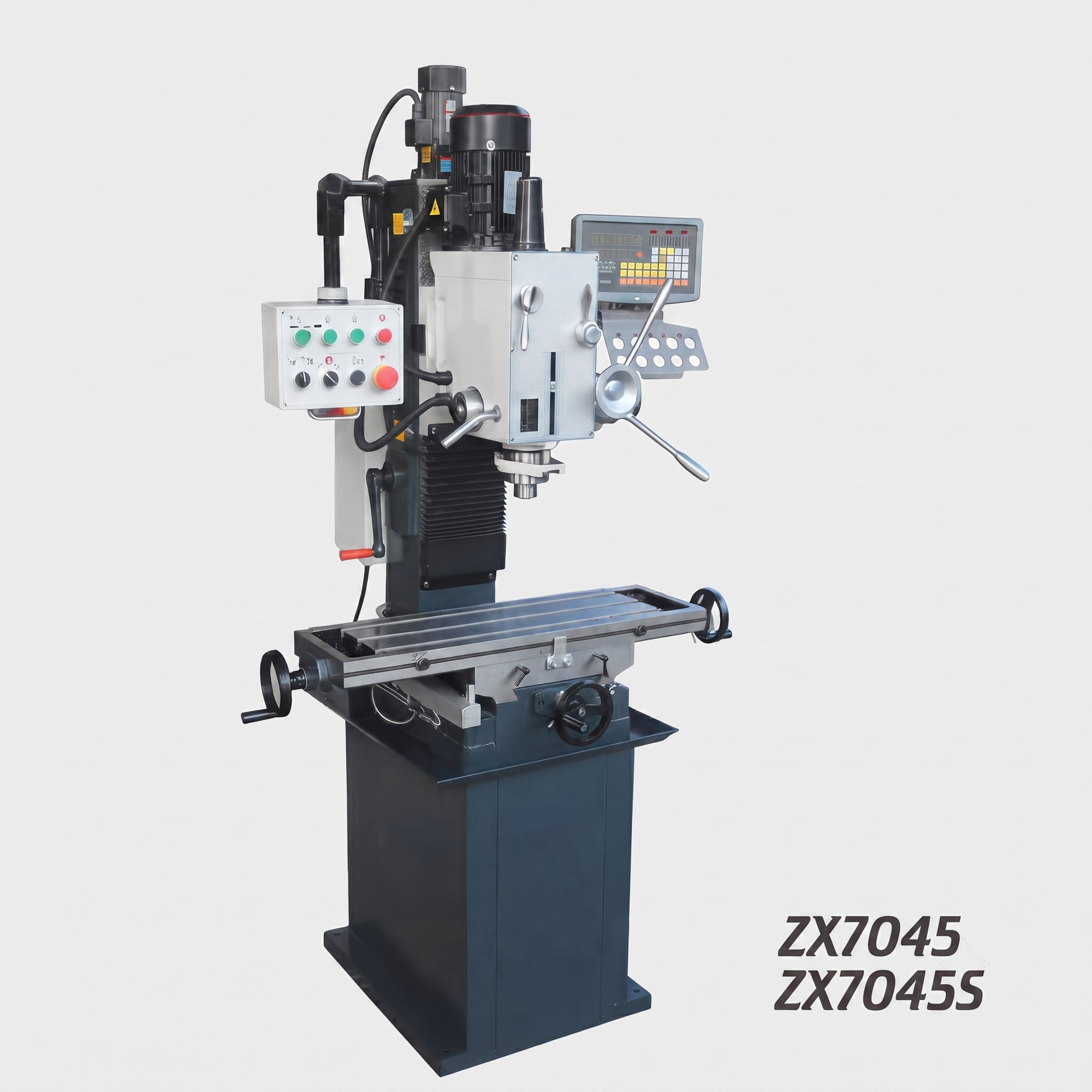

ZX7045 / ZX7045S Drilling & Milling Machine

ZX7045 & ZX7045S Gear Head Drilling Milling Machine

ZX7045 series multi-function drill mill integrates drilling, tapping, face milling and vertical milling. Two versions available: standard manual lifting ZX7045 and electric column lifting ZX7045S, widely used in mold, auto parts and general hardware batch processing.

Core Advantages

1. Powerful Cutting Performance
   Max drilling φ45 cast iron / φ32 steel, max tapping M24, vertical milling diameter up to φ28. 6-stage spindle speed 95–1600r/min covers heavy tapping and high-speed finish machining. Three automatic feed rates (0.12/0.18/0.25mm/r) for different metal materials.
2. Large T-slot Cross Worktable
   Standard 730×210 worktable with 500×190 travel; extended size 820×240 table and 560×190 travel are optional for larger workpieces clamping.
3. Two Lifting Structure Options

• ZX7045: Manual column lifting handle, cost-effective for small batch intermittent production.
• ZX7045S: Upgraded with independent electrical lift motor + cantilever control box, fast height adjustment for continuous mass production; reserved interface for optional three-axis digital grating readout system.

1. Stable & Compact Body
   Rigid casting frame, overall height only 1050mm, suitable for workshop limited space. Optional machine stand and 40W coolant pump for circulating cutting fluid.
2. Flexible Power Configuration
   1100W single-phase motor for small workshops without three-phase power; 1500W three-phase motor for factory continuous heavy cutting.

Model Difference

• ZX7045: Basic manual lifting model, lighter weight (305kg gross), economical entry version.
• ZX7045S: Electric vertical lifting upgraded model, equipped with cantilever operation box, heavier weight (360kg gross), more efficient for long-hour batch machining.
