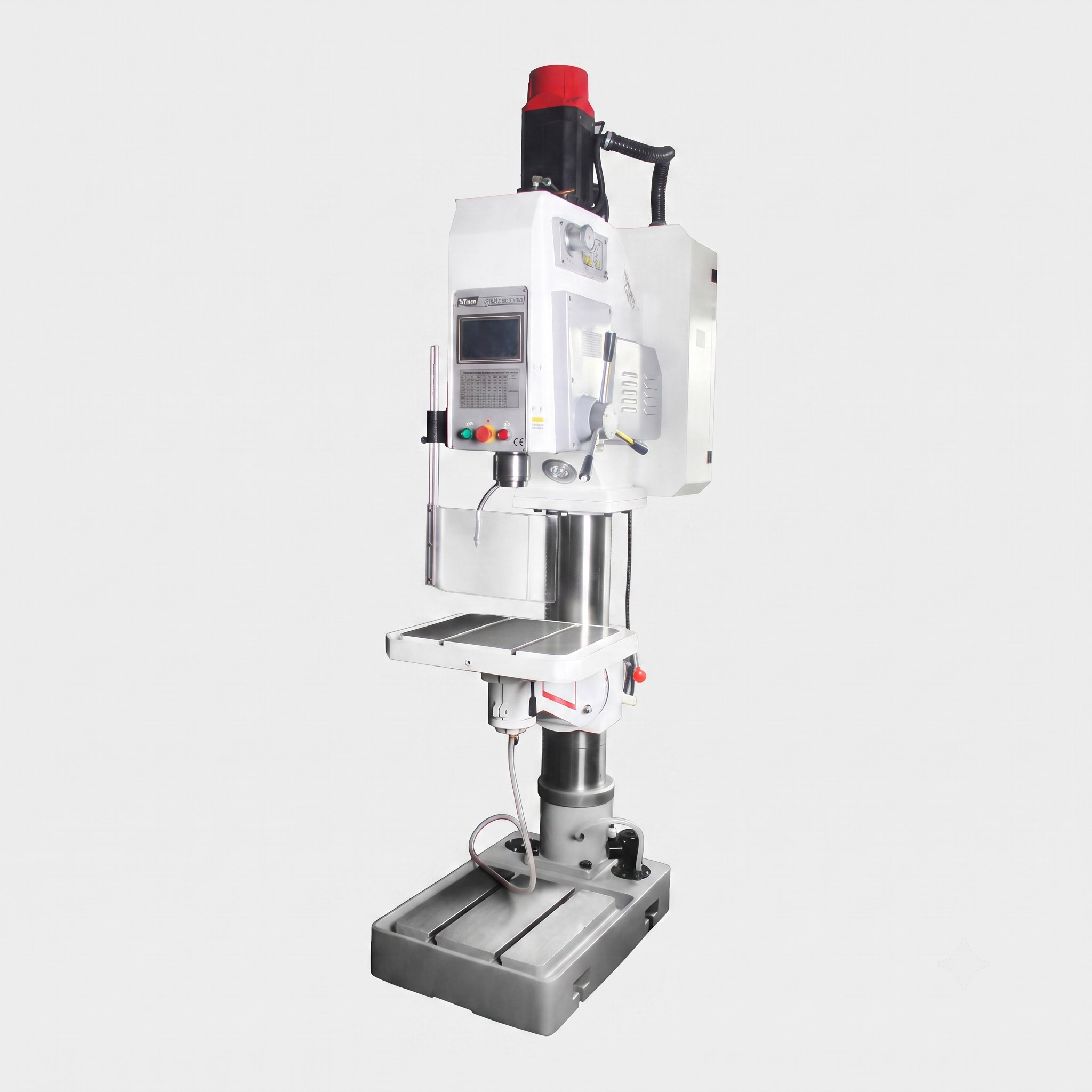

ZK5050 CNC Vertical Drilling Machine

Product Introduction: ZK5050 CNC Vertical Drilling Machine

This CNC vertical drill complies with European CE standards, integrating drilling and servo tapping functions, equipped with U-shaped safety shield, and supports optional multi-spindle heads and custom special fixtures.

Core Advantages

1. Dual Servo Drive System
   Main spindle and feed axes adopt independent servo motors, two-stage stepless speed adjustment with wide spindle speed range (50–2000rpm). Spindle speed and feed rate can be freely programmed to match various metal materials.
2. Industrial Touch Screen CNC Control
   Intelligent touch HMI displays drilling depth, spindle speed and machining data in real time. Supports one-operator multi-equipment operation, intuitive speed & efficiency data feedback. Manual jog retention function reserved for single-piece simple processing.
3. High Precision Machining Performance
   Positioning accuracy reaches 0.2mm, repeat positioning accuracy up to 0.02mm, stable precision for batch mold and hardware processing.
4. Flexible Worktable Design
   Worktable and bracket can horizontally rotate ±45°, large 550×470 work surface with T-slots for fixture mounting, 550mm full travel for large workpieces.
5. Complete Auxiliary Configuration
   Built-in 40W three-phase cooling water pump for cutting fluid circulation; 180W lifting motor for table height adjustment; heavy-duty MT5 spindle taper supports high torque tapping up to M30.
