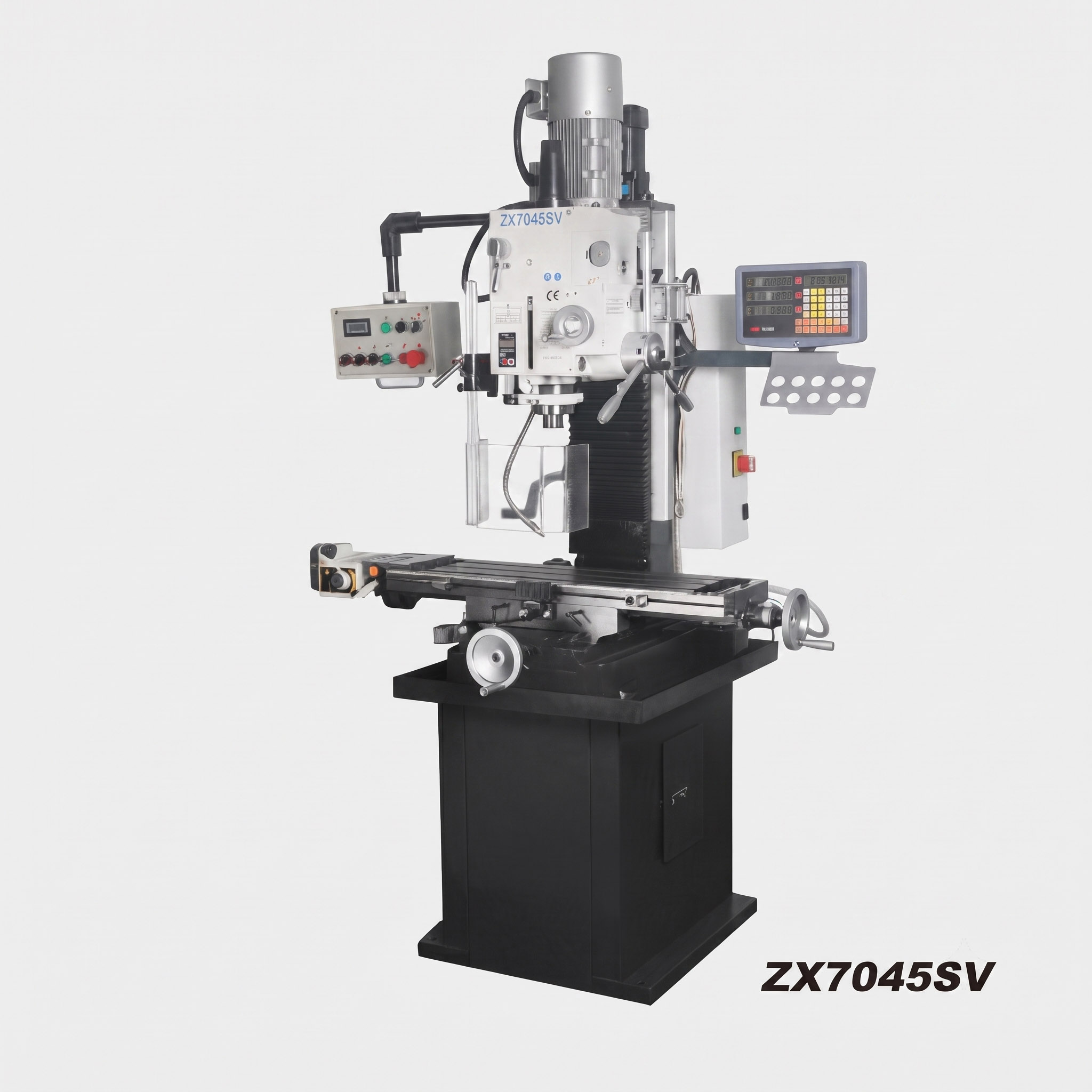

ZX7045SV CNC Drilling & Milling Machine

ZX7045SV CNC Drilling & Milling Machine

ZX7045SV is an upgraded intelligent CNC drill mill with electric column lifting and optional three-axis digital grating display, integrating drilling, tapping, vertical and face milling. It is widely used in mold manufacturing, auto spare parts and precision hardware batch processing.

Core Advantages

1. Low Noise & High Precision Structure
   Overall running noise controlled below 75dB(A). All transmission gears adopt precision grinding process, machining accuracy fully complies with international industrial standards. Uniform anti-rust paint coating provides exquisite appearance.
2. Electric Vertical Lifting Column
   Equipped with independent 90W lifting motor, fast height adjustment for tall workpieces; thickened reinforced column greatly improves machine rigidity and cutting stability.
3. Two-Stage Wide Range Spindle Speed
   Two segmented speed zones: low speed 75–438rpm for heavy tapping & large hole drilling; high speed 438–2500rpm for high-speed fine milling. Three adjustable automatic feed rates (0.12/0.18/0.25mm/min) meet different material cutting demands.
4. Multi-Angle Machining Function
   Spindle head can rotate ±90 degrees left and right, supports vertical, horizontal and inclined hole machining; standard MT4/R8 spindle taper compatible with all common tool holders. Max drilling capacity φ45 cast iron / φ32 steel, max tapping M24.
5. Rich Optional Upgraded Configurations
   Optional three-axis digital grating display, X-axis automatic power feed, U-type transparent safety guard, machine stand and 40W coolant pump for automatic cutting fluid circulation, to realize full automatic precision batch machining.
6. Large Cross Worktable
   Standard 730×210 T-slot worktable with 500×190 travel; extended size 820×240 table is optional for oversized workpieces clamping.

Model Feature Differentiation

Compared with standard ZX7045B mechanical model, ZX7045SV adds electric column lifting motor and reserved digital grating installation interface, belongs to intelligent upgraded version, more suitable for long-time continuous mass precision production.
