Z41 / Z5032GP / Z4006G Bench Strong Drilling Machine
G series drill press includes bench small models Z4116G/Z4120G/Z4132G, floor standing heavy model Z5032GP and high-speed bench drill Z4006G. All adopt heat-treated gear & spindle structure with high rigidity, equipped with complete industrial safety and tapping functions.
Product Introduction: G Series Heavy Duty Bench & Floor Drill Press
G series drill press includes bench small models Z4116G/Z4120G/Z4132G, floor standing heavy model Z5032GP and high-speed bench drill Z4006G. All adopt heat-treated gear & spindle structure with high rigidity, equipped with complete industrial safety and tapping functions.
Core Advantages
- High Rigidity Cast Iron Full Structure
Headstock, column, cross table and base are all high-grade cast iron; spindle, spline sleeve and transmission gears go through precision heat treatment, strong torque, long service life, stable vibration-free cutting. - Flexible Adjustable Worktable
Cross worktable can vertically lift and rotate 360°, easy clamping of irregular workpieces, greatly expand processing range and reduce operation labor. - Complete EU Standard Safety & Functional Configuration
- Built-in automatic tapping cycle function for threaded hole batch processing
- U-type transparent safety guard blocks flying chips
- Power-off interlock when opening belt cover to prevent accidental startup
- Built-in LED work light for dark workshop operation
- Optional multi-spindle fixture for simultaneous multi-hole drilling
- Multiple Models Cover Full Processing Demand
- Z4116G / Z4120G: Mini & medium bench drill, light load for small hardware, repair shop prototype.
- Z4132G: Heavy bench drill, max drill Φ31.75 cast iron, powerful tapping M20, widely used in mold and metal processing workshops.

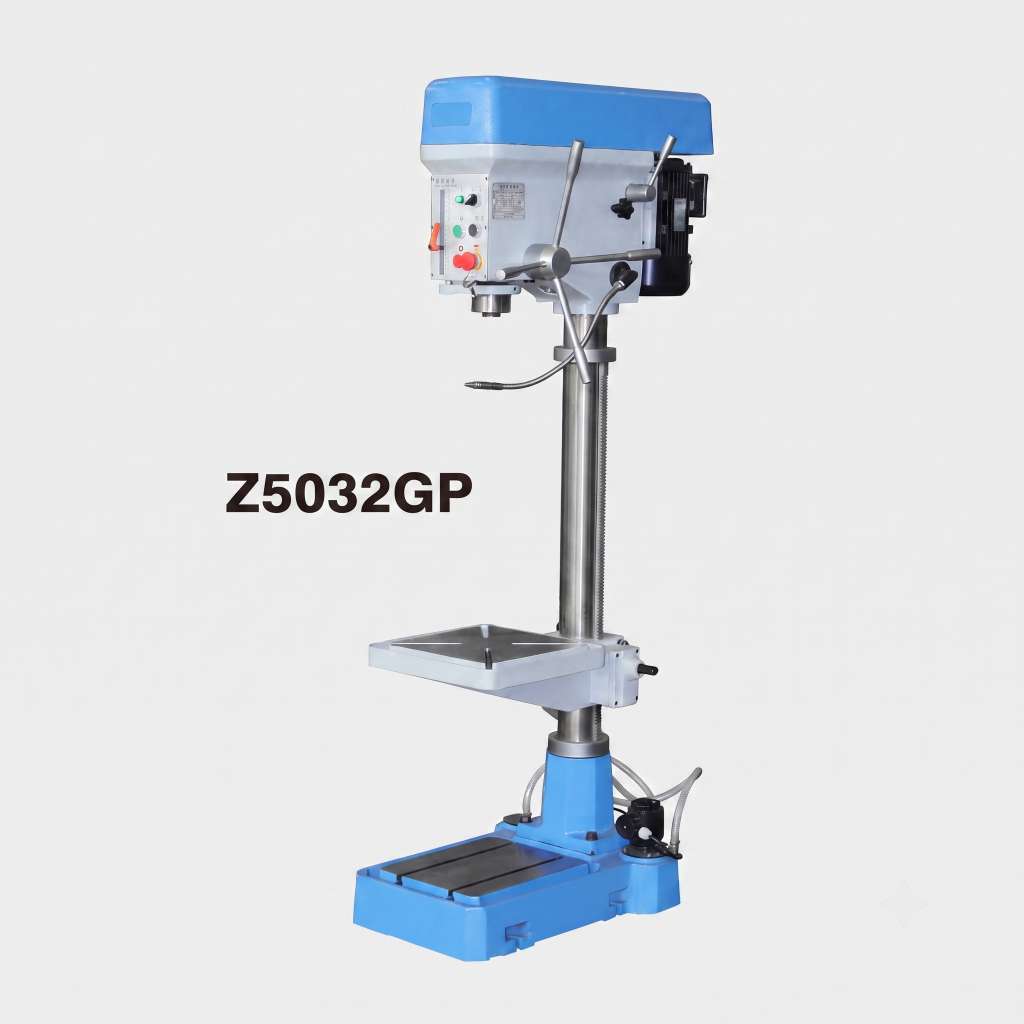

- Z5032GP: Floor standing tall column drill, extra vertical clearance 1235mm for long shaft, tall casting workpieces.
- Z4006G: High-speed precision bench drill, spindle speed up to 12000rpm, ideal for tiny precise hole drilling on aluminum, copper and thin steel.
- Humanized Operation Design
Independent control panel with large emergency stop button; external belt tension adjustment mechanism for easy speed shifting; compact packaging size for low ocean freight cost.
Model Suffix Explanation
- Z41: Bench type vertical drill press
- Z50: Floor standing vertical drill press
- GP / G: Heavy duty reinforced gear head version
- Z4006G: High-speed precision micro drill press
| Item | Unit | Z4132G | Z4120G | Z4116G | Z5032GP | Z4006G |
|---|---|---|---|---|---|---|
| Model | — | Z4132G | Z4120G | Z4116G | Z5032GP | Z4006G |
| Max.Drilling capacity | mm | Φ31.75 | Φ20(Steel) | Φ16 | Φ31.75 | Φ6(Steel) |
| Max.Tapping capacity | mm | M20(Cast Iron)/M16(Steel) | M20(Cast Iron)/M16(Steel) | M12(Cast Iron)/M10(Steel) | M20(Cast Iron) | / |
| Distance spindle axis to column generating line | mm | 265 | 240 | 193 | 265 | 140 |
| Max.Distance spindle nose to table | mm | 390 | 365 | 330 | 820 | 65 |
| Max.Distance spindle nose to base | mm | 745 | 675 | 610 | 1235 | 215 |
| Diameter of column | mm | 100 | 85 | 70 | 100 | 55 |
| Spindle speeds range | r/min | 320–1820 | 340–2180 | 320–2180 | 320–1820 | 2000–12000 |
| Spindle taper | — | MT3 | MT3 | MT2 | MT3 | B10 |
| Worktable dimension | mm | 380×400 | 300×320 | 265×285 | 380×400/330×330 | / |
| Motor power | KW | 1.5 (6P) | 1.1(6P) | 0.75(6P) | 1.5(6P) | 0.37(2P) |
| Net weight | Kg | 225 | 170 | 145 | 310 | 55 |
| Standard packing size | mm | 1040×640×1500 | 850×540×1260 | / | 1040×620×2030 | 640×350×580 |
| Distribution box packing | mm | 990×650×1380 | / | / | / | / |
