ZX7040/45 Gear Head Auto-Feed Drilling & Milling Machine
This series gear-driven drill mill integrates drilling, tapping and face milling, equipped with automatic spindle feed system, divided into ZX7040B/B1, ZX7045B/B1 and tall-column ZX7045SB/SB1 three models, widely used in mold, hardware, automotive parts batch processing.

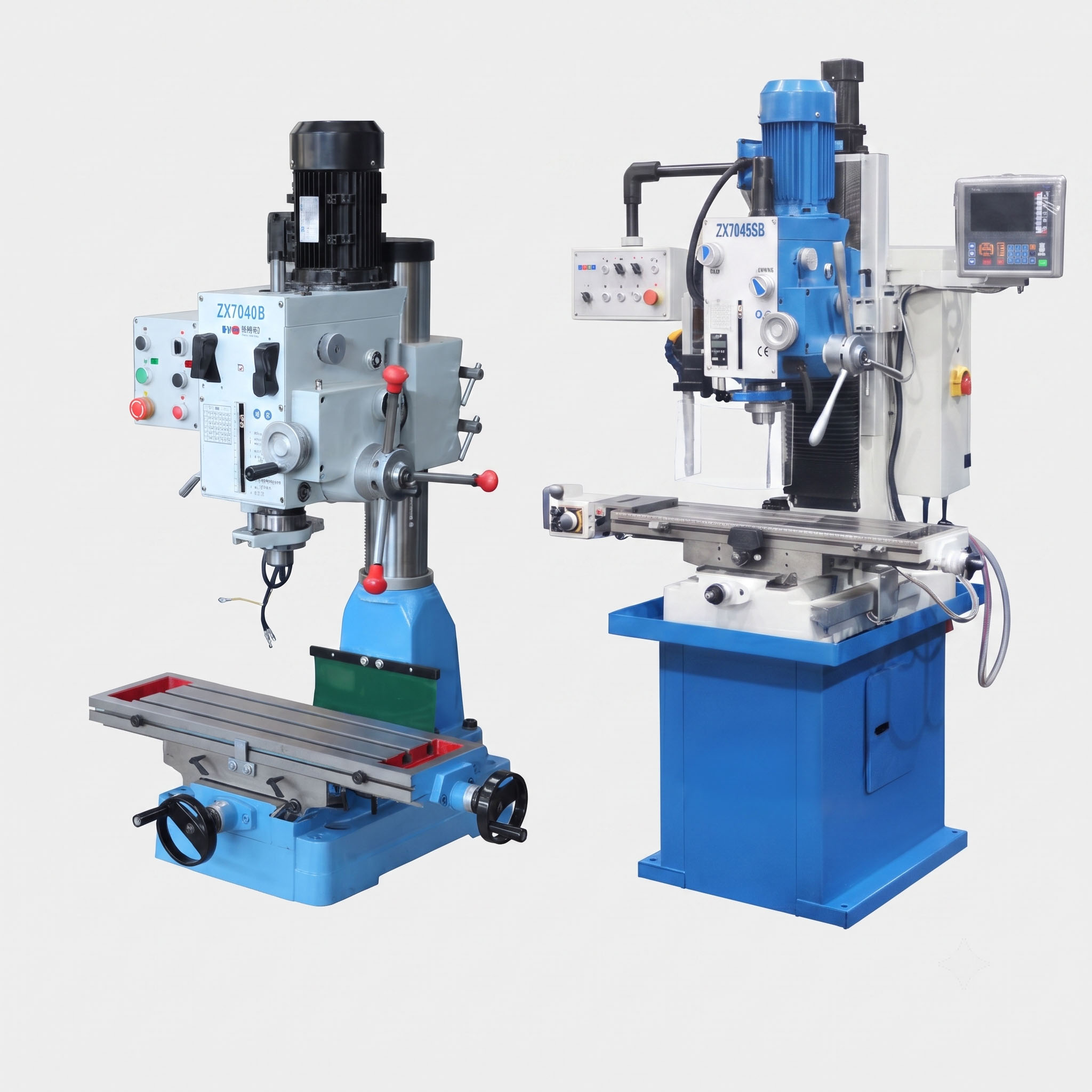

ZX7040/ZX7045 Series Gear Head Auto-Feed Drilling & Milling Machine
This series gear-driven drill mill integrates drilling, tapping and face milling, equipped with automatic spindle feed system, divided into ZX7040B/B1, ZX7045B/B1 and tall-column ZX7045SB/SB1 three models, widely used in mold, hardware, automotive parts batch processing.
Core Features
- Low Noise & High Precision Structure
Total machine noise controlled below 75dB(A), all transmission gears are precision ground, machining accuracy complies with international industrial standards. Smooth paint finish for corrosion resistance and elegant appearance. - Thickened Column & Large Cross Worktable
Upgraded thick column improves rigidity; large T-slot cross slide table supports multiple fixture mounting, extended table travel option available for large-size workpieces. - Gear Automatic Feed Spindle Head
Independent 300W feed motor realizes auto spindle down-feed with 3 adjustable feed rates (0.12/0.18/0.25mm/r). Spindle travel supports manual jog and automatic cycle, two speed gear sets (6 single /12 dual speed) cover wide rotation range 95–3200r/min. - Powerful Integrated Machining Capacity
Max drilling φ45 cast iron / φ32 steel, max tapping M24, vertical milling diameter up to φ28, standard MT4/R8 spindle taper fits all common tool holders. - Optional Auxiliary Configuration
40W coolant pump can be equipped for cutting fluid circulation; single-phase 1100W or three-phase 1500W main motor for different factory power supply.
Model Differentiation
- ZX7040B/B1: Standard column universal model, compact overall height 1100mm, light weight 340kg, cost-effective for general small batch processing.
- ZX7045B/B1: Enhanced milling model, larger vertical milling diameter φ28, stable heavy cutting performance.
- ZX7045SB/SB1: Extra tall column version, total height 1310mm, larger vertical machining space for tall workpieces, heavier weight 405kg for higher rigidity.
| Item | Unit | ZX7040B/B1 | ZX7045B/B1 | ZX7045SB/SB1 |
|---|---|---|---|---|
| Model | — | ZX7040B/B1 | ZX7045B/B1 | ZX7045SB/SB1 |
| Max.Drilling capacity | mm | Iron:45 / Steel:32 | Iron:45 / Steel:32 | Iron:45 / Steel:32 |
| Max.Tapping capacity | mm | M24 | M24 | M24 |
| Max.face Mill Capacity | mm | 80 | 80 | 80 |
| Diameter of vertical milling | mm | 22 | 28 | 28 |
| Diameter of column | mm | 115 | / | / |
| Spindle travel | mm | Manual:120 Auto:100 | / | Manual:120 Auto:100 |
| Distance spindle axis to column generating line | mm | 272 | 260 | 260 |
| Max. Distance spindle nose to table | mm | 450 | 445 | 445 |
| Max. Distance spindle nose to base | mm | / | / | / |
| Spindle taper | — | MT4 or R8 | MT4 or R8 | MT4 or R8 |
| Spindle speeds range (Single speed) | r/min | 95,170,280,540,960,1600 | 95,170,280,540,960,1600 | 95,170,280,540,960,1600 |
| Spindle speeds range (Dual speed) | r/min | 190,340,570,1100,1850,3200 | 190,340,570,1100,1850,3200 | 190,340,570,1100,1850,3200 |
| Spindle speeds series | — | 6/12 | 6/12 | 6/12 |
| Spindle feeds | mm/r | 0.12 0.18 0.25 | 0.12 0.18 0.25 | 0.12 0.18 0.25 |
| Worktable surface size(Standard) | mm | 730×210 | 730×210 | 730×210 |
| Worktable surface size(Opt.A) | mm | 820×240 | 820×240 | 820×240 |
| Worktable surface size(Opt.B) | mm | 540×170 | 540×170 | 540×170 |
| Table travel(Standard) | mm | 500×190 | 500×190 | 500×190 |
| Table travel(Opt.B) | mm | 560×190 | 560×190 | 560×190 |
| Base dimension (No coolant) | mm | 595×400 | 595×400 | 595×400 |
| Base dimension (With coolant) | mm | 605×558 | 605×558 | 605×558 |
| Overall height | mm | 1100 | 1100 | 1310 |
| Main motor | W | Single phase 1100 / Three phase 1500 | Single phase 1100 / Three phase 1500 | Single phase 1100 / Three phase 1500 |
| Coolant motor | W | / — 40 (Optional) | / — 40 (Optional) | / — 40 (Optional) |
| Feed motor power | W | 300 | 300 | 300 |
| N.W/G.W | kg | 340/300 | 375/330 | 405/360 |
| Packing dimension (Standard carton) | cm | 96×77×124 | 96×77×124 | 109×97×124 |
| Packing dimension (Opt. carton A) | cm | 108×77×124 | 108×77×124 | — |
| Packing dimension (Opt. carton B) | cm | 96×77×116 | 96×77×116 | — |
