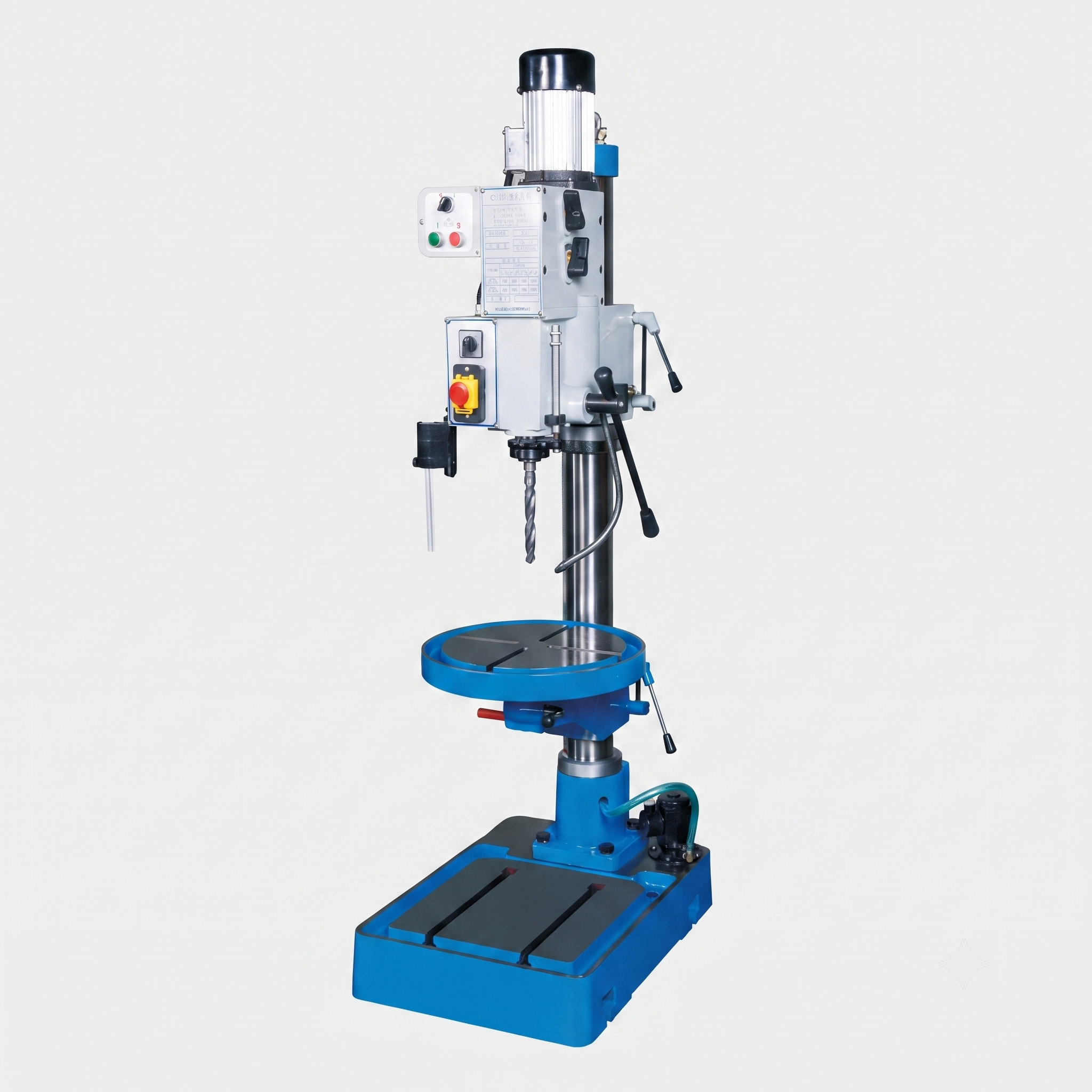

Z5025B(BENCH)/Z5025 Pillar Type Vertical Drilling Machine

Product Overview: Pillar Type Vertical Drilling Machine Z5025 & Z5025B Bench Model

This series small vertical drill presses are divided into bench type Z5025B and floor-standing Z5025, max drilling diameter 25mm, designed for small hardware, mold and metal part drilling, reaming, tapping processing.

Core Features

1. Gear shifting speed regulation
   8-speed gear transmission, spindle speed range 100–2900 r/min, high rotational speed, wide adjustable range, easy gear shift operation.
2. Built-in automatic tool release mechanism
   Unique auto tool eject design, greatly simplify drill bit replacement and improve work efficiency.
3. Complete auxiliary configuration
   Equipped with cooling liquid circulation system and machine work lamp, ensure clear sight and good workpiece surface finish during processing.
4. Two structural options for different workshop layouts

• Z5025B: Compact bench version, small overall height, can be placed on workbench, light weight for small batch production.
• Z5025: Floor-standing vertical model, round rotatable worktable with 385mm travel, larger vertical processing space for long workpieces.

1. Standard & optional accessories
   Standard package includes drill chuck, arbor, drift and wrench; optional angle vice and transparent safety guard for safer batch machining.

Application Scope

Suitable for single-piece, small-batch and mass production processes including drilling, counterboring, reaming, tapping and spot facing.
