X6036 Series Universal Horizontal Milling Machine

X6036 Series Universal Horizontal Milling Machine – High Rigidity, Versatile CNC & Manual Milling Solution

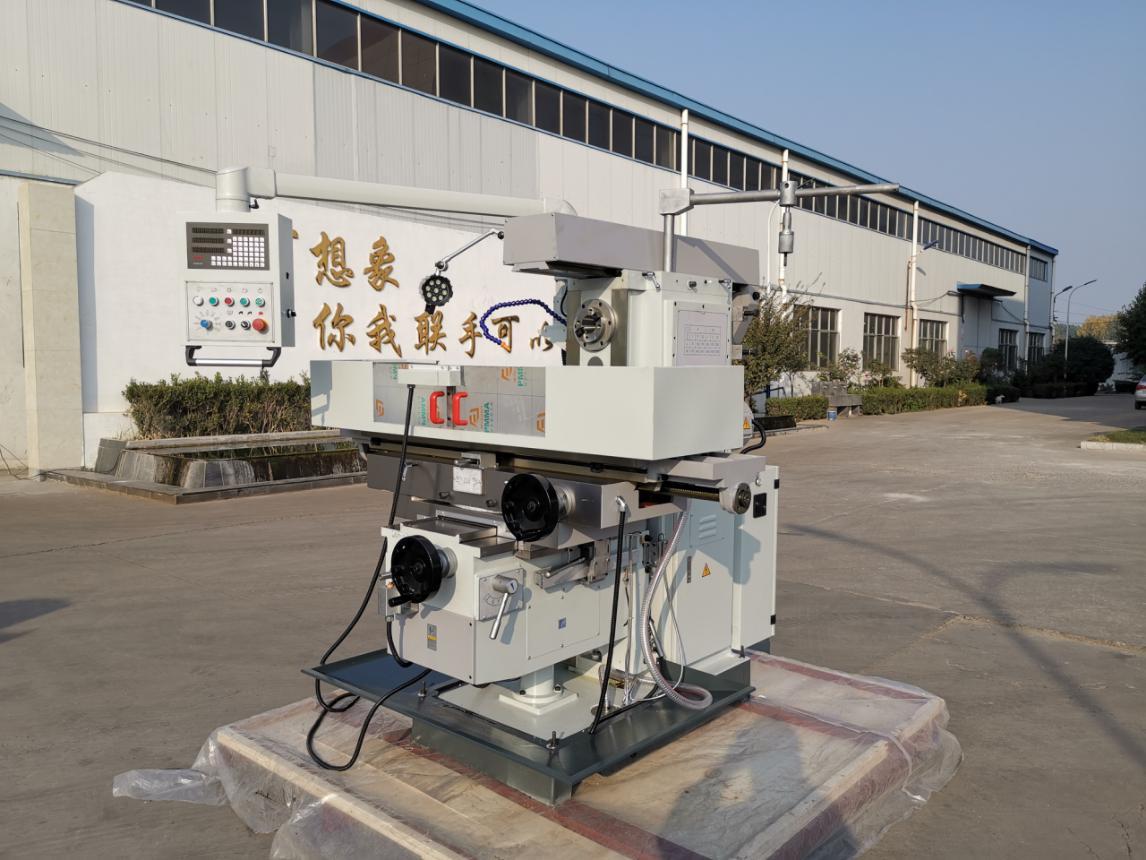

The X6036 Series (X6036C / X6036CL) Universal Horizontal Milling Machine is a heavy-duty, high-precision milling machine engineered for industrial workshops, tool rooms, and production lines. Built for reliability, rigidity, and versatility, it excels at face milling, slotting, drilling, boring, and tapping operations on metal workpieces, making it ideal for both one-off jobs and small-batch production.

Key Advantages for Your Machining Needs

✅ Ultra-Rigid Cast Iron Construction

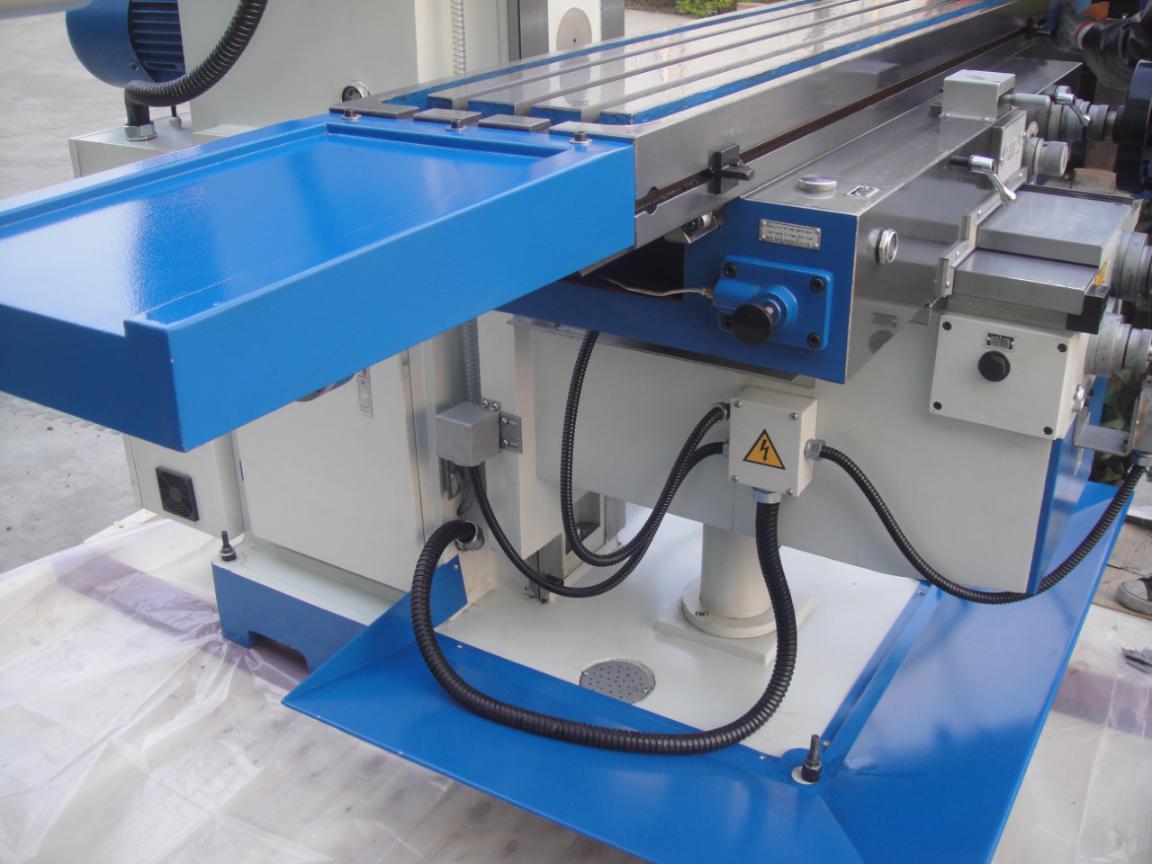

The machine bed is cast from high-strength HT-250 cast iron with heavy internal ribbing, delivering exceptional structural stability and vibration damping. Precision-ground, hardened guide ways ensure long-term accuracy and wear resistance, even under continuous heavy use.

✅ Large Work Envelope & High Load Capacity

Choose between two models to match your workspace needs:

• X6036C: 1325×360mm table size, 1100×300×450mm travel range (X/Y/Z)
• X6036CL: 1600×360mm table size, 1300×300×450mm travel range (X/Y/Z)Both models feature 3 T-slots (18mm width, 80mm pitch) and support up to 450kg workpieces, with rapid traverse speeds of 1200/800/600mm/min (X/Y/Z) for fast positioning.

• ✅ Powerful, High-Torque Performance

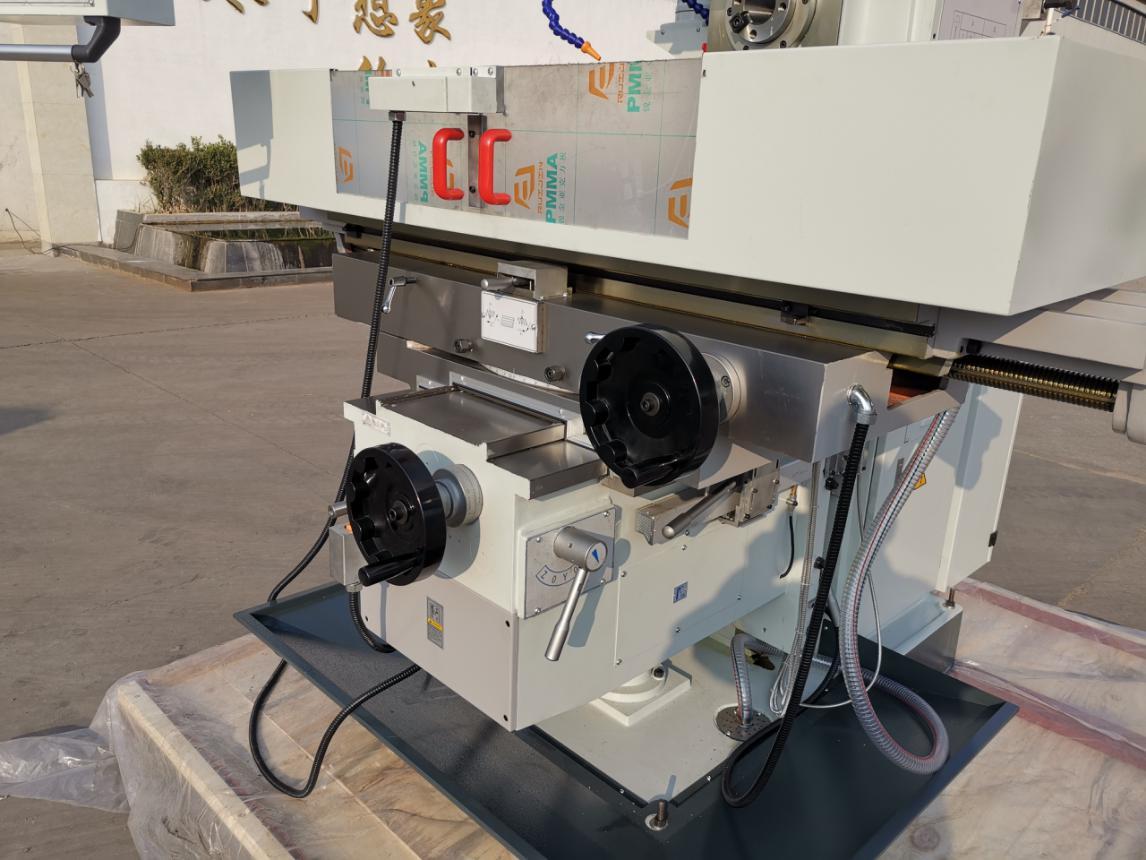

• Equipped with a 5.5kW main motor, the machine delivers consistent power across a 12-step spindle speed range (60–1800 rpm). The hardened and ground headstock gears ensure quiet, smooth operation and reliable torque transfer, while the 7:24 ISO50 spindle taper accommodates standard tooling for maximum versatility.
• ✅ Precision-Controlled Feeds & Motion
• All three axes (X/Y/Z) are driven by 10Nm AC servo motors, enabling infinitely adjustable feed rates with 8-step feed control:
• X-axis: 30–750 mm/min
• Y-axis: 20–500 mm/min
• Z-axis: 15–375 mm/minThe arm travel of 500mm and spindle-to-column guide rail distance of 175mm provide ample flexibility for complex setups.

• ✅ User-Friendly, Low-Maintenance Design
• Integrated coolant system and chip tray keep work areas clean and prevent overheating during machining.
• Spindle nose-to-table distance ranges from 20–420mm, supporting a wide variety of workpiece heights and tool lengths.
• Compact footprint (2520×2100×1870mm) fits easily in most workshops, with net weights of 2500kg (X6036C) and 2600kg (X6036CL) for stable operation.
• Built for durability and precision, the X6036 Series is your reliable partner for general-purpose milling, tool making, and small-batch production. Whether you’re working with steel, cast iron, or aluminum, this horizontal milling machine delivers consistent results and long-term performance.
