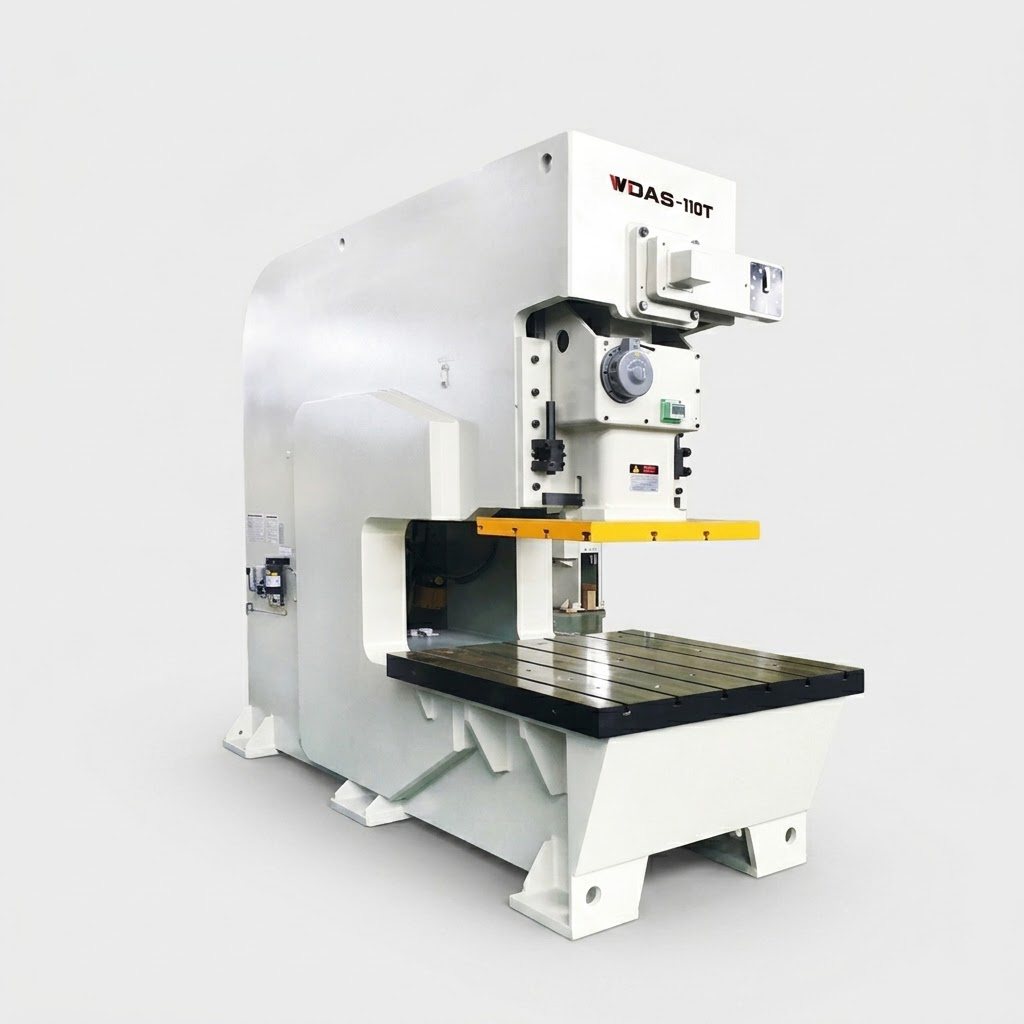

WDAS Deep Throat Pneumatic Precision Stamping Machine by MFG

Standard Configuration
Inverter
Touch screen
Preset counter
Pre-stop counter
Electronic cam
Hydraulic over-load protector
Manual slider adjustment device
Automatic slide adjust device
Mechanical die height indicator
Automatic die height indicator
Balance device
Crank angle indicator
Electrical stroke counter
Air source receptacle
Against over-run safety device
Power supply
Maintenance tools and toolbox
Operation manual

Optional Accessories
Electrical grease lubrication device
Pneumatic die cushion device
Foot switch
Fast mold change device (die lifter, clamp and die arm series)
Slider knock-out device
Die room light
Anti-vibration pad
Photo-electric safety device
Feeder (air, mechanical & NC types)
Uncoiler
Straightener
Robot hand

Specifications	Unit	WDA-25 (V)	WDA-25 (H)	WDA-25 (S)	WDA-35 (V)	WDA-35 (H)	WDA-45 (V)	WDA-45 (H)	WDA-60 (V)	WDA-60 (H)	WDA-80 (V)	WDA-80 (H)	WDA-110 (V)	WDA-110 (H)	WDA-160 (V)	WDA-160 (H)	WDA-200 (V)	WDA-200 (H)	WDA-260 (V)	WDA-260 (H)	WDA-300 (V)	WDA-300 (H)	WDA-400 (V)	WDA-400 (H)
Form (Model)		WDAS	WDAS	WDAS	WDAS	WDAS	WDAS	WDAS	WDAS	WDAS	WDAS	WDAS	WDAS	WDAS	WDAS	WDAS	WDAS	WDAS	WDAS	WDAS	WDAS	WDAS	WDAS	WDAS
Tonnage	Ton	25	25	25	35	35	45	45	60	60	80	80	110	110	160	160	200	200	260	260	300	300	400	400
Capability occurrence point	mm	3.2	1.6	3.2	3.2	1.6	3.2	1.6	4	2	4	2	6	3	6	3	6	3	7	3.5	8	4	8	4
Constant speed (Travel speed per minute)	s.p.m	110	110	110	85	85	75	75	65	65	65	65	50	50	35	35	35	35	30	30	30	30	30	30
Variable speed (Travel speed per minute)	s.p.m	60-140	130-200	60-120	40-120	110-180	40-100	110-150	35-90	80-120	35-80	80-120	30-60	60-90	20-50	40-70	20-50	50-70	20-40	40-50	20-40	30-50	20-40	30-50
Trip (Stroke)	mm	70	30	80	70	40	80	50	120	60	150	70	180	80	200	90	200	100	250	150	250	150	250	150
Slide Adjustment	mm	50	50	50	55	55	60	60	75	75	80	80	80	80	100	100	110	110	120	120	120	120	120	120
Maximum closing height	mm	195	215	195	220	235	250	265	310	340	340	380	360	410	460	510	460	510	500	550	500	550	550	600
Upper table size	mm	300×230×50	300×230×50	300×230×50	360×250×50	360×250×50	400×300×60	400×300×60	500×360×70	500×360×70	560×420×70	560×420×70	650×470×80	650×470×80	700×550×90	700×550×90	850×630×90	850×630×90	950×700×100	950×700×100	1250×750×100	1250×750×100	1350×800×100	1350×800×100
Lower table size	mm	680×300×70	680×300×70	680×300×70	800×400×65	800×400×65	850×440×80	850×440×80	900×500×80	900×500×80	1000×550×90	1000×550×90	1150×600×110	1150×600×110	1250×800×140	1250×800×140	1400×820×160	1400×820×160	1500×840×180	1500×840×180	1600×860×190	1600×860×190	1650×900×200	1650×900×200
Die shank hole	mm	Φ38.1	Φ38.1	Φ38.1	Φ38.1	Φ38.1	Φ38.1	Φ38.1	Φ50	Φ50	Φ50	Φ50	Φ50	Φ50	Φ65	Φ65	Φ65	Φ65	Φ65	Φ65	Φ65	Φ65	Φ65	Φ65
Main motor	KW.P	3.7×4	3.7×4	3.7×4	3.7×4	3.7×4	5.5×4	5.5×4	5.5×4	5.5×4	7.5×4	7.5×4	11×4	11×4	15×4	15×4	18.5×4	18.5×4	22×4	22×4	30×4	30×4	37×4	37×4
Slider adjustment		Manual adjustment (with digital display)	Manual adjustment (with digital display)	Manual adjustment (with digital display)	Manual adjustment (with digital display)	Manual adjustment (with digital display)	Manual adjustment (with digital display)	Manual adjustment (with digital display)	Manual adjustment (with digital display)	Manual adjustment (with digital display)	Manual adjustment (with digital display)	Manual adjustment (with digital display)	Electric adjustment with limitation and display function	Electric adjustment with limitation and display function	Electric adjustment with limitation and display function	Electric adjustment with limitation and display function	Electric adjustment with limitation and display function	Electric adjustment with limitation and display function	Electric adjustment with limitation and display function	Electric adjustment with limitation and display function	Electric adjustment with limitation and display function	Electric adjustment with limitation and display function	Electric adjustment with limitation and display function	Electric adjustment with limitation and display function
Air pressure	kg/cm²	6	6	6	6	6	6	6	6	6	6	6	6	6	6	6	6	6	6	6	6	6	6	6

You may also need

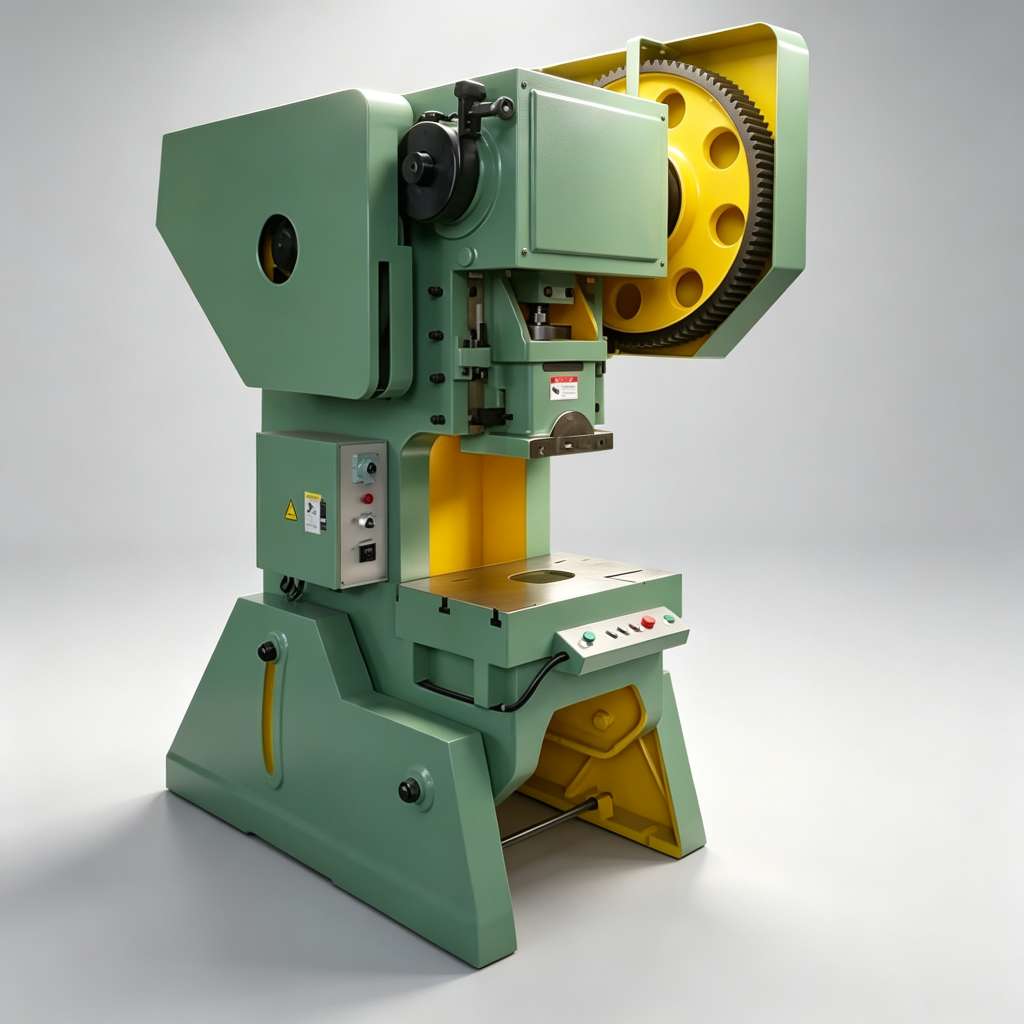

Mechanical Punching Machine

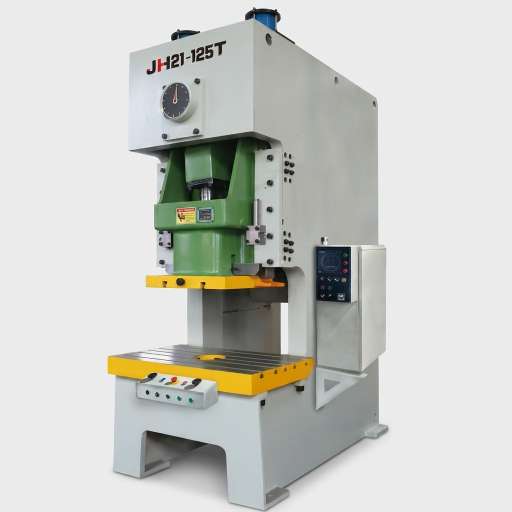

JH21 Series Open Single-Point Pneumatic Punch Press

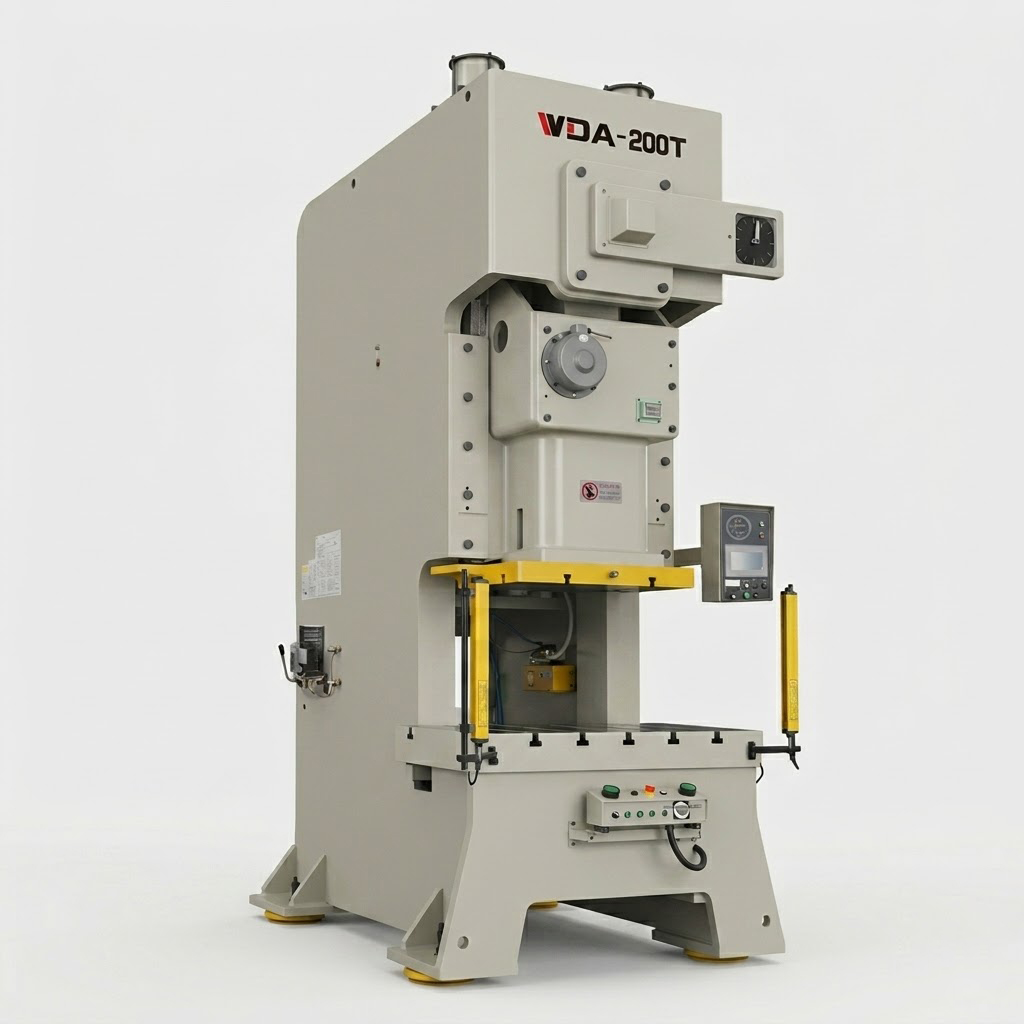

WDA Series Open Single-Point Pneumatic Punch Press for Stamping
