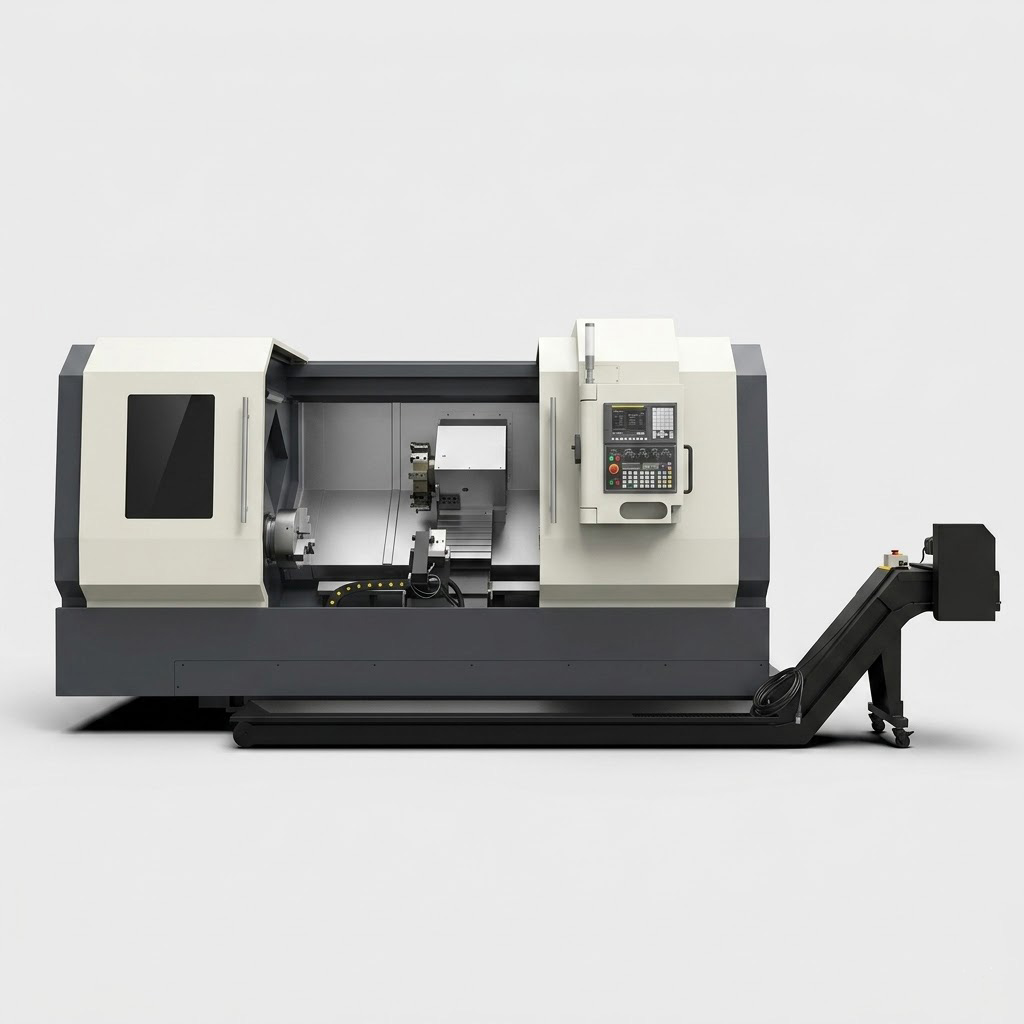

MFG Machinery TCK66A Slant Bed CNC Turning Center

Multi-Axis Turn-Mill Capability, 45° Slant Bed & Live Tooling for Complex Part Machining

Product Overview
The MFG Machinery TCK66A is an elite, export-proven slant bed CNC turning center designed for the highly efficient, single-setup machining of complex components. Engineered with true multi-axis servo control (X, Y, Z, and C axes), this compact yet powerful machine bridges the gap between precision turning and advanced radial/axial milling and drilling.

Built upon a highly rigid 45° true slant bed and governed by the premium GSK 988T CNC system, the TCK66A utilizes a dynamically balanced cartridge spindle and premium Taiwan linear rolling guides.

Whether processing intricate disc or shaft components, this machine guarantees flawless precision retention, exceptional structural rigidity, and drastically reduced cycle times for your production floor.

Key Features & Advanced Engineering

• Multi-Axis Turn-Mill Operations: Fully equipped with C-axis spindle indexing and Y-axis servo control. When paired with an optional live tooling turret (power tools), the machine seamlessly executes advanced off-center milling, drilling, and tapping, allowing you to complete intricate parts in a single setup.
• Rigid 45° Slant Bed Architecture: The machine bed and major components are cast from premium high-strength materials. The 45° overall inclined structure naturally lowers the center of gravity to absorb heavy cutting vibrations while promoting extremely smooth, gravity-assisted chip evacuation.
• High-Speed Cartridge Servo Spindle: Features a high-precision, high-rigidity cartridge-type (shell-type) spindle unit. Exclusively assembled and dynamically balanced to exact tolerances, the servo-driven spindle delivers immense torque, low noise, and uncompromised rotational accuracy.
• Rapid High-Precision Tool Turret: Choose between a highly reliable hydraulic or servo-driven tool turret. Engineered for lightning-fast indexing and massive locking torque, it delivers superior positioning accuracy for heavy roughing and fine finishing alike.
• Taiwan Linear Guides with Stainless Protection: Utilizes high-precision, preloaded Taiwan linear rolling guides for rapid, friction-free axis movement. The guideways are fully protected by heavy-duty stainless steel telescoping covers, completely preventing corrosive coolants and abrasive metal chips (swarf) from damaging the rails.
• Wedge-Style Hydraulic Chuck: Comes standard with a heavy-duty, wedge-style through-hole hydraulic chuck. It provides ultra-fast clamping and unclamping capabilities with immense holding force and high concentricity under hydraulic pressure.
• RBCLB-3ZK Volumetric Auto-Lubrication: Powered by an industrial-grade RBCLB-3ZK positive displacement (volumetric) lubrication pump. It delivers continuous, metered oil supply directly to the carriage dovetail surfaces and ball screw assemblies, drastically extending machine life.
• Heavy-Duty Hydraulic Tailstock: Designed to securely hold long workpieces. The tailstock features easy manual or hydraulic position adjustment, secure locking, and a hydraulic piston that firmly advances the quill to support the workpiece during heavy cuts.
