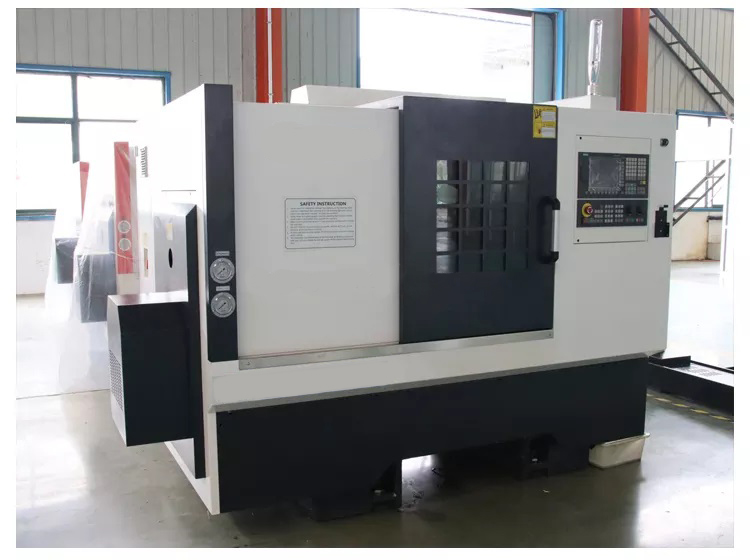

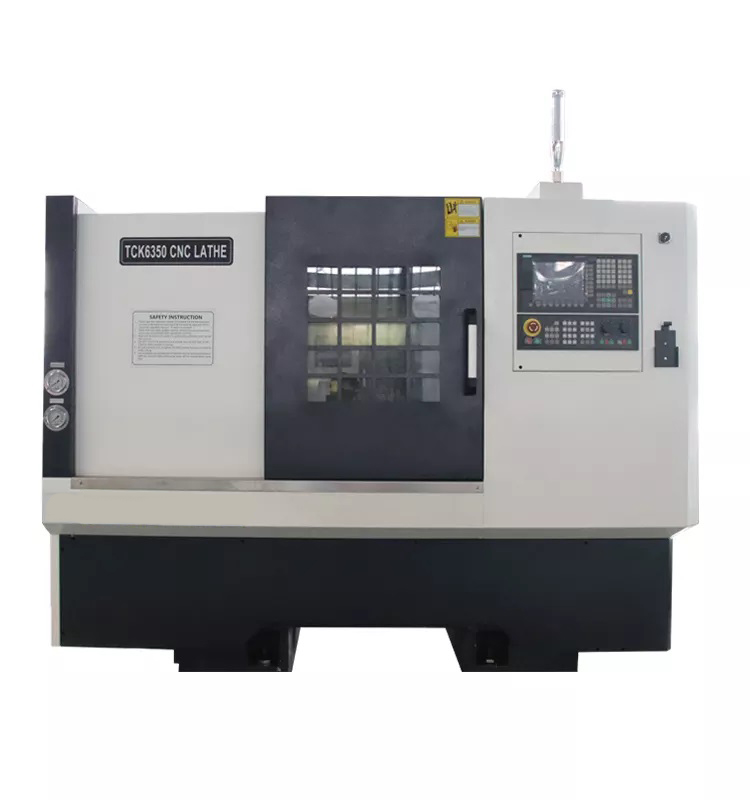

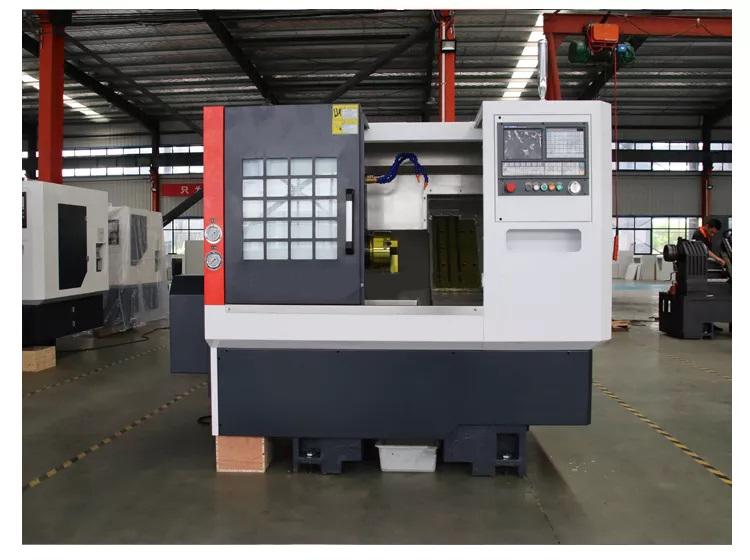

MFG Machinery TCK6350 Slant Bed CNC Lathe

45° True Slant Bed, Constant-Temp Cartridge Spindle & Pre-Tensioned Transmission for High-Speed Precision

Product Overview
The MFG Machinery TCK6350 is an elite, high-speed, and high-precision slant bed CNC lathe engineered for the rigorous demands of modern industrial manufacturing. Built upon a high-strength cast iron foundation featuring a true 45° overall slant bed structure, this machine ensures unparalleled structural stability, exceptional vibration damping, and effortless chip evacuation. Equipped with premium Taiwan linear rolling guides, a dynamically balanced cartridge spindle, and a high-torque tool turret, the TCK6350 is designed to deliver rapid cycle times and flawless surface finishes. With critical components assembled and tested in a strict constant-temperature environment, this machine guarantees absolute repeat positioning accuracy for your most demanding high-volume turning applications.

Key Features & Advanced Engineering

• Rigid 45° Slant Bed Architecture: The machine base, bed, and headstock are cast from high-strength materials. The 45° inclined bed design not only provides a low center of gravity for heavy cutting stability but also ensures smooth, gravity-assisted chip removal and excellent operator ergonomics.
• Constant-Temperature Cartridge Spindle: The high-speed, high-rigidity cartridge-type spindle unit is driven by a powerful servo motor. To guarantee uncompromised precision, the spindle is assembled in a constant-temperature room, subjected to a 72-hour constant-temperature run-in process, and undergoes an additional 72 hours of continuous on-machine trial operation.
• Pre-Tensioned Precision Transmission: The X and Z axes feature direct-drive servo motors connected to the ball screws via high-torque, low-inertia elastic couplings. The ball screws utilize a pre-tensioned (pre-stretched) support structure, effectively eliminating transmission backlash and compensating for thermal expansion during continuous long-term operations.
• Heavy-Duty Taiwan Linear Guides: Equipped with premium Taiwan preloaded linear rolling guides featuring a 4-row roller type with a 45° contact angle. This high-rigidity section design delivers immense load-bearing capacity, minimal friction, and exceptionally low noise for high-speed feeds.
• Rapid High-Precision Turret: Features a compact, servo or hydraulically driven tool turret capable of heavy cutting. Utilizing bi-directional shortest-path indexing, it delivers rapid tool changes and secure locking with an outstanding repeat positioning accuracy of up to 0.003 mm.

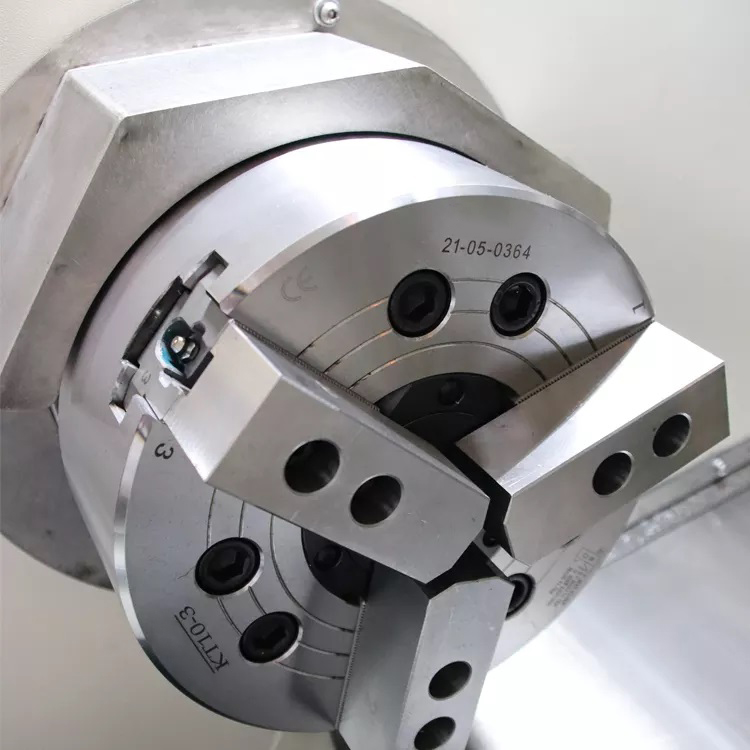

• Wedge-Style Open-Center Chuck: Comes standard with a highly rigid wedge-shaped through-hole hydraulic chuck built to Japanese/Taiwanese industry standards. All sliding surfaces are hardened and precision-ground, ensuring maximum clamping force and high concentricity.
• Intelligent Auto-Lubrication & Full Enclosure: A forced automatic lubricating device delivers metered, fixed-point oil directly to the ball screws and guideways, complete with a low-oil warning alarm. The machine is wrapped in a fully enclosed, waterproof, and chip-proof safeguard design for ultimate operational safety and easy maintenance.
