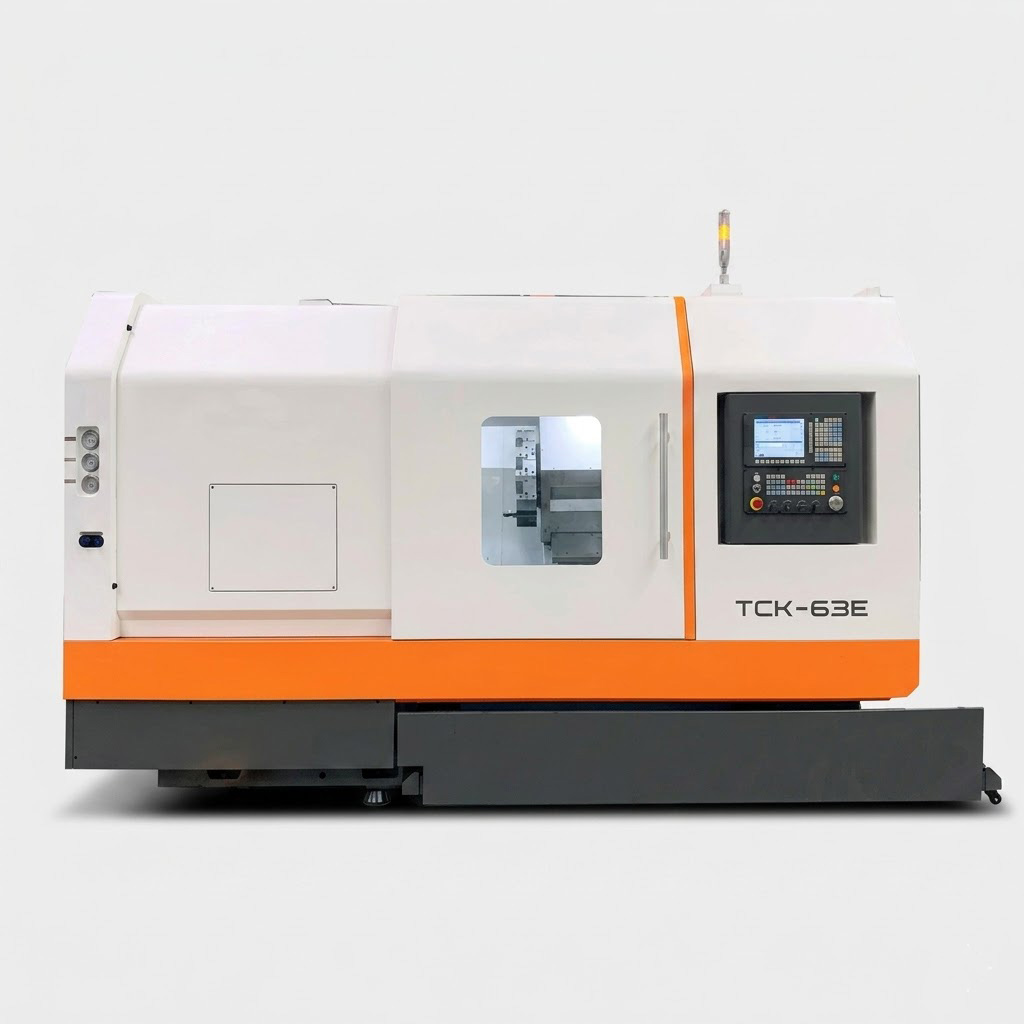

MFG Machinery TCK63E Heavy-Duty Slant Bed CNC Lathe

630mm Swing, Hard Box Ways & 3-Speed Auto Gearbox for Oil, Gas & Mining Machining

Product Overview
The MFG Machinery TCK63E is a formidable, heavy-duty slant bed CNC lathe engineered specifically to tackle the extreme machining demands of the petroleum, coal, and mining machinery sectors. Built upon a massive 45° true slant bed featuring high-precision hardened box ways (hard rails), this machine delivers uncompromising structural rigidity and superior vibration damping for heavy material removal.

Its optimized headstock is powered by a robust 15/18.5kW motor paired with a 3-speed automatic gearbox, generating massive cutting torque at low speeds. With a large 105mm spindle bore, constant-temperature assembled transmissions, and a high-speed servo turret, the TCK63E guarantees flawless precision retention and relentless productivity for heavy shaft, disc, and oil pipeline turning.

Key Features & Advanced Engineering

• Rigid 45° Slant Bed & Box Guideways: The machine frame is cast from premium high-strength iron. Unlike standard linear guides, the TCK63E utilizes high-precision hardened box ways. This configuration lowers the center of gravity, massively increases load-bearing capacity, and provides the ultimate rigidity required for aggressive heavy cutting while ensuring smooth chip evacuation.
• 3-Speed Auto Gearbox & High-Torque Spindle: The optimized headstock features an external three-speed automatic gearbox. This allows the spindle to generate tremendous cutting torque at low RPMs, making it perfectly suited for machining tough alloys used in oil pipelines and mining equipment.
• Constant-Temperature Precision Transmission: To combat thermal expansion during heavy-duty shifts, the precision ball screws and nuts are processed, ground, assembled, and rigorously quality-controlled inside a dedicated constant-temperature workshop, ensuring unwavering positioning stability.
• Rapid Servo Tool Turret: Equipped with a high-speed 8-station or 12-station servo-driven tool turret. It delivers rapid indexing and extremely high positioning accuracy. For complex multi-process parts, the machine can also be configured with an optional live tooling (power tool) turret.
• Heavy-Duty Wedge-Style Chuck: Comes standard with a highly rigid wedge-style through-hole hydraulic chuck. It provides rapid clamping and unclamping capabilities under hydraulic pressure, securely gripping massive workpieces with exceptionally high concentricity.
• Industrial Volumetric Auto-Lubrication: Powered by a premium RBCLB-3ZK positive displacement lubrication pump. It provides continuous, automatic, and metered oil supply directly to the box guideways, carriage dovetail surfaces, and ball screws, drastically extending the machine's service life.
• Robust Hydraulic Tailstock: Engineered to securely support massive and long workpieces, the MT5 tailstock utilizes a powerful hydraulic piston to firmly advance and lock the quill, eliminating deflection during heavy shaft turning.
