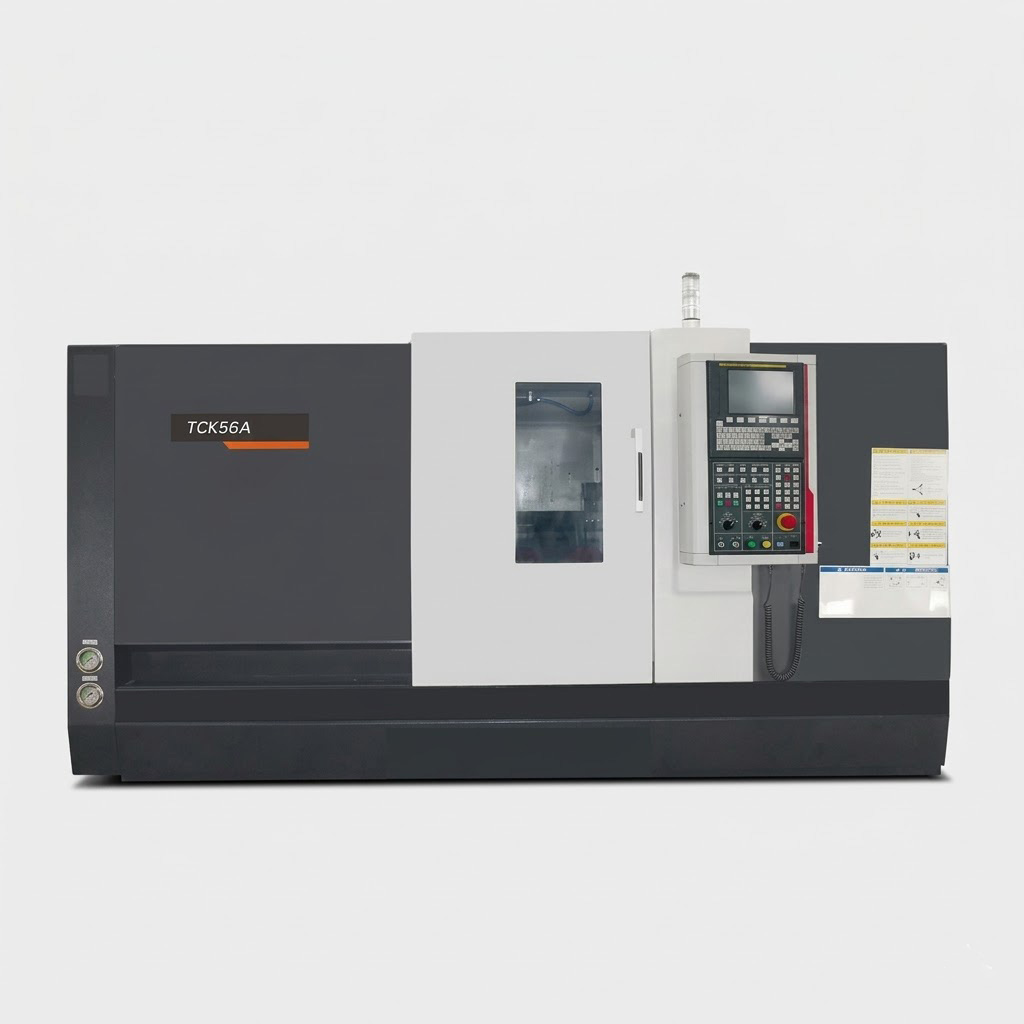

MFG Machinery TCK56A Slant Bed CNC Turning Center

Multi-Axis Turn-Mill Capability, 45° Slant Bed & GSK 988T Control for Complex Machining

Product Overview
The MFG Machinery TCK56A is a highly advanced, export-proven slant bed CNC turning center engineered for the efficient, single-setup machining of complex components. Moving beyond traditional turning, this compact yet formidable machine features multi-axis servo control (X, Y, Z, and C axes). Driven by a high-speed cartridge-type servo spindle, it seamlessly transitions from precision turning to radial and axial surface milling and drilling. Built upon a highly rigid 45° true slant bed equipped with Taiwan linear rolling guides and governed by the premium GSK 988T CNC system, the TCK56A guarantees unwavering precision, flawless chip evacuation, and exceptional productivity for demanding industrial applications.

Key Features & Advanced Engineering

• Multi-Axis Turn-Mill Capability: Fully equipped with C-axis spindle indexing and Y-axis servo control. This allows the machine to perform complex off-center milling, drilling, and tapping operations on shafts and discs in a single setup, drastically reducing part handling and cycle times.
• Rigid 45° Slant Bed Architecture: The machine bed is cast from premium high-strength materials with a 45° overall inclined structure. This design naturally lowers the center of gravity to absorb heavy cutting vibrations while promoting smooth, gravity-assisted chip evacuation.
• High-Speed Cartridge Servo Spindle: Features a high-precision, high-rigidity cartridge-type (shell-type) spindle unit. Exclusively assembled and dynamically balanced to exact tolerances, the servo-driven spindle delivers immense torque at low speeds and remarkably low noise at high speeds.
• Advanced GSK 988T CNC Control: Powered by the sophisticated GSK 988T numerical control system, paired with famous domestic high-quality ball screws and precision screw bearings. This combination ensures lightning-fast processing, perfect multi-axis synchronization, and superior surface finishes.
• Taiwan Linear Guides with Stainless Protection: Utilizes high-precision, preloaded Taiwan linear rolling guides for rapid, friction-free axis movement. The guideways are fully protected by heavy-duty stainless steel telescoping covers, completely preventing corrosive coolants and abrasive metal chips from damaging the rails.
• Rapid Hydraulic Workholding: Comes standard with a heavy-duty domestic 3-jaw self-centering hydraulic chuck. This provides rapid clamping and unclamping capabilities with immense holding force, perfect for high-speed automated production.
• Intelligent Auto-Lubrication System: A forced automatic device delivers metered, fixed-point quantitative lubrication directly to the ball screws and guideways. An integrated alarm system instantly triggers a warning signal if oil levels drop, ensuring fail-safe continuous operations.
