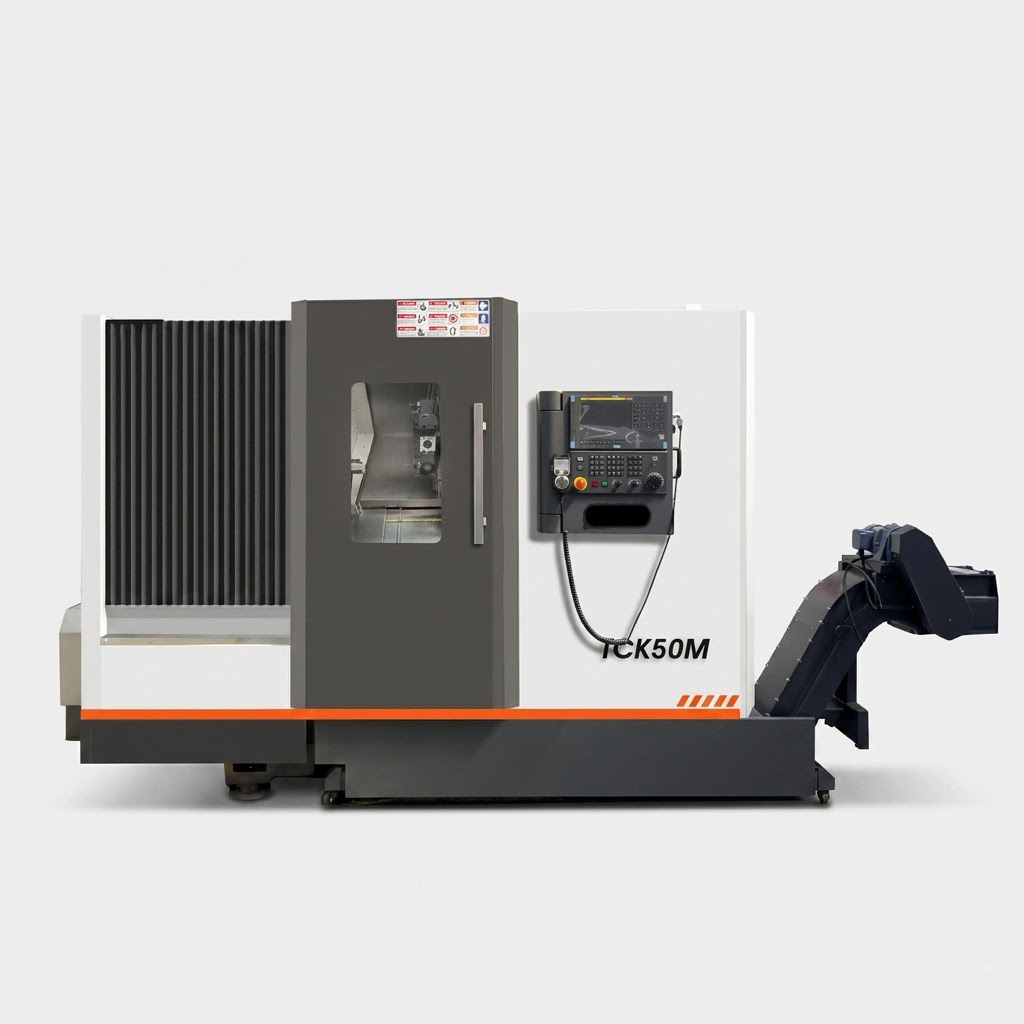

MFG Machinery TCK50M Slant Bed CNC Turning Center

Compact X/Z/C-Axis Turn-Mill Center for High-Efficiency Part Machining

Product Overview
The MFG Machinery TCK50M is a high-precision, space-saving slant bed CNC turning center engineered to maximize your shop's productivity. Equipped with advanced X, Z, and C-axis servo control, this machine transcends traditional turning by integrating live tooling capabilities.

Driven by a high-response servo motor, the C-axis spindle allows for precise radial and axial surface milling, drilling, and tapping, seamlessly executing multi-process machining in a single setup.

Designed with an optimized slant-bed architecture, the TCK50M naturally counteracts gravitational deflection, drastically improving structural stability and chip evacuation while occupying a minimal footprint on your production floor.

Key Features & Engineering Advantages

• Integrated Turn-Mill C-Axis Capability: Equipped with full C-axis spindle indexing and X/Z-axis servo control. When paired with a live tooling turret, it effortlessly transitions from high-speed turning of shafts and discs to intricate radial and axial milling/drilling, drastically reducing part handling and secondary setups.
• Optimized Slant Bed Architecture: The highly rigid inclined guideway structure is specifically engineered to counteract gravitational deflection. This structural advantage absorbs cutting vibrations, resulting in superior surface finishes and unwavering machining precision compared to traditional flat-bed designs.
• Gravity-Assisted Chip Evacuation: The steep incline of the machine bed ensures that abrasive metal chips (swarf) and coolant naturally fall directly onto the chip conveyor below. This prevents heat buildup in the cutting zone and enables automated, hands-free chip removal.
• Ultra-Compact, Space-Saving Footprint: The machine's intelligent, semi-closed mechatronic design effectively utilizes vertical space. This drastically reduces the total floor space occupied by the machine tool, allowing you to scale up your production capacity without expanding your facility.
• High-Efficiency Servo Spindle: The main spindle doubles as a highly precise C-axis, driven by a powerful servo motor that delivers massive torque for heavy roughing and exceptional control for fine indexing and tapping.
