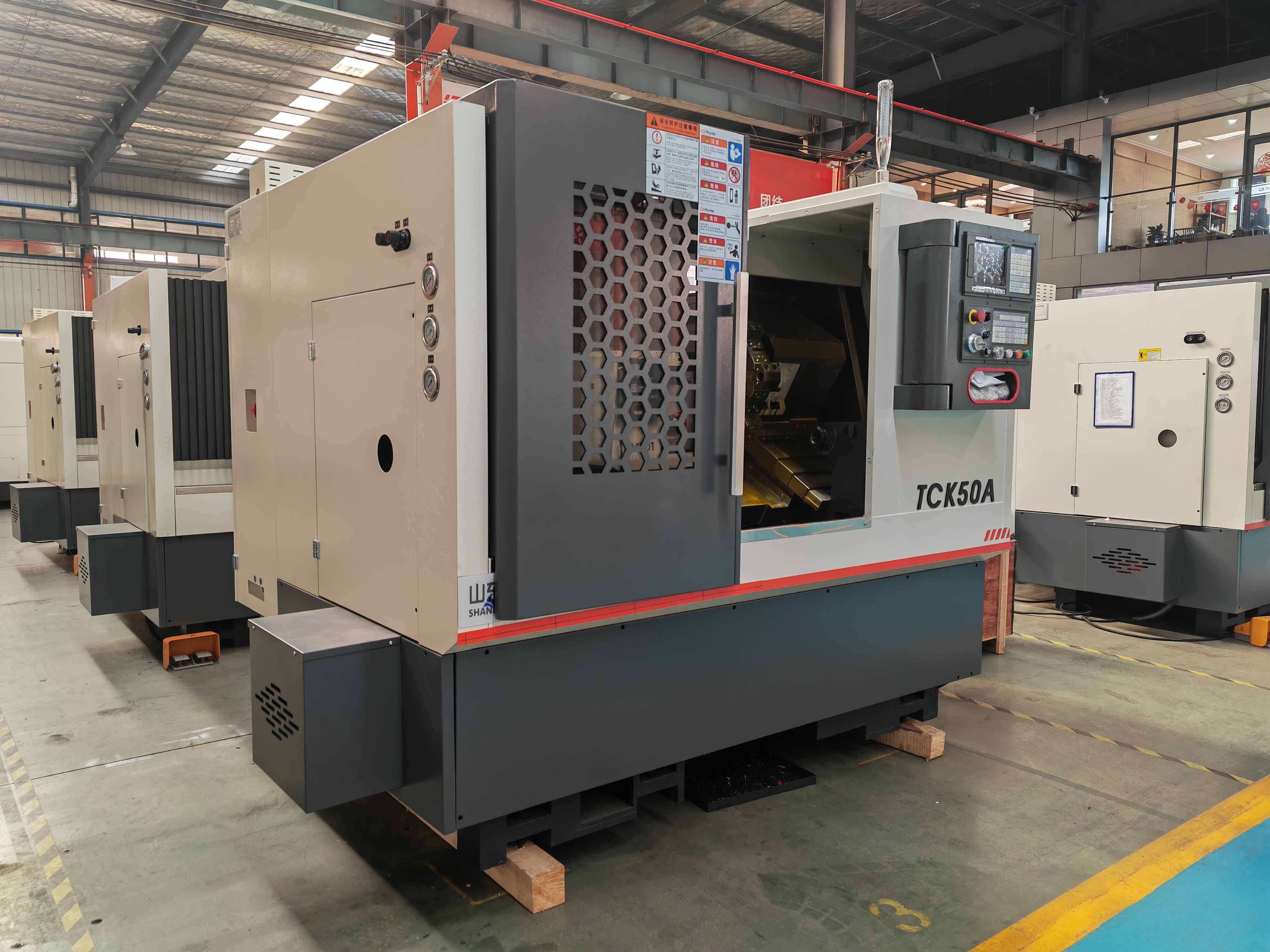

MFG Machinery TCK50A Slant Bed CNC Turning Center

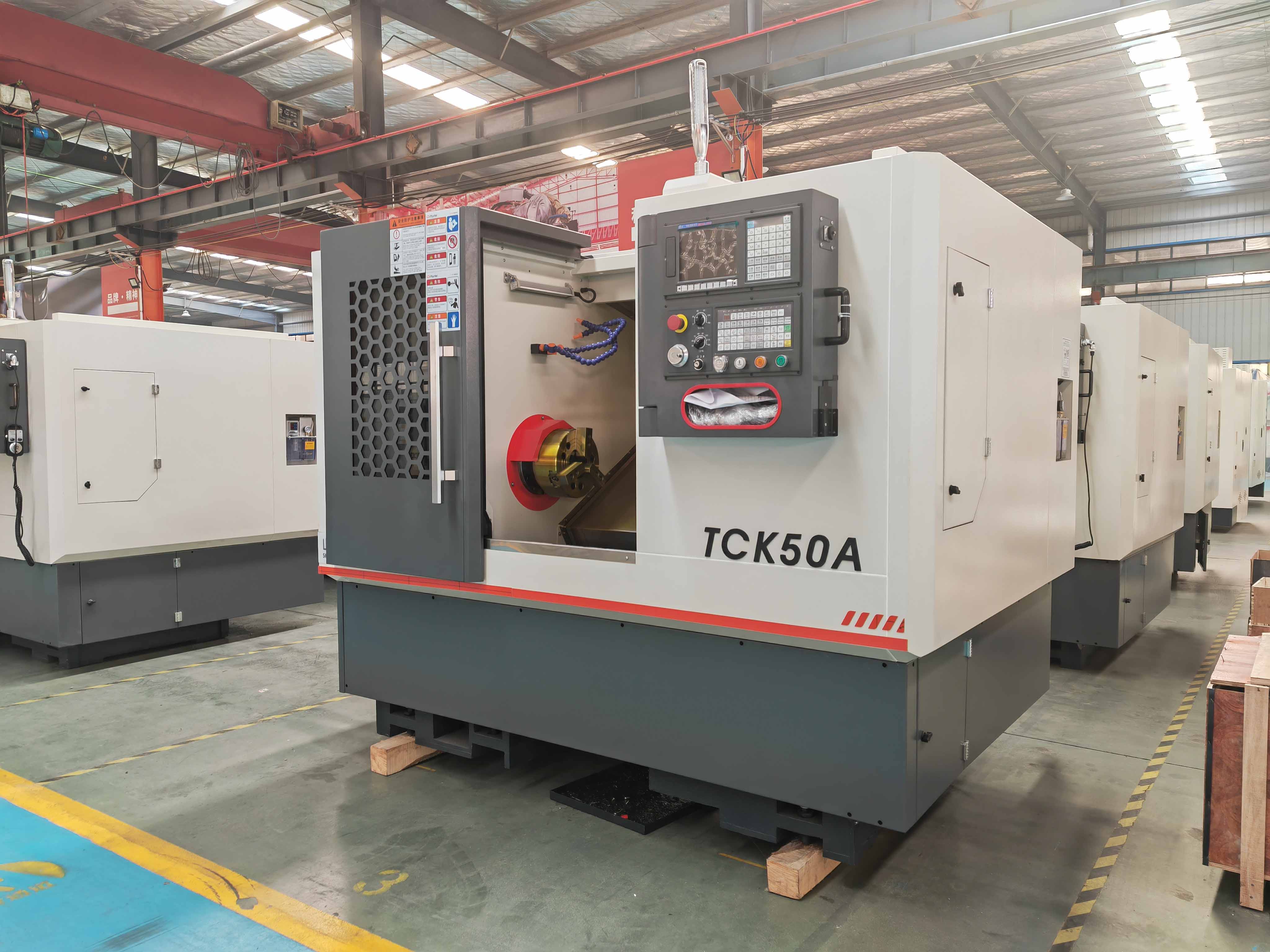

500mm Swing, 3500 RPM Spindle & Multi-Axis Turning/Milling Capabilities

Product Overview
The MFG Machinery TCK50A is a compact, high-precision slant bed CNC turning center engineered for the highly efficient, single-setup machining of complex small to medium-sized parts. Far exceeding the capabilities of a standard lathe, the TCK50A supports multi-axis servo control (X, Z, C, and optional Y-axis). Driven by a high-torque 3500 RPM servo spindle, it effortlessly executes advanced turning, radial/axial drilling, and surface milling on various shaft and disc materials. Designed with an ergonomic semi-closed slant bed, this machine maximizes structural stability and chip evacuation while drastically reducing its overall footprint on your shop floor.

Key Features & Engineering Advantages

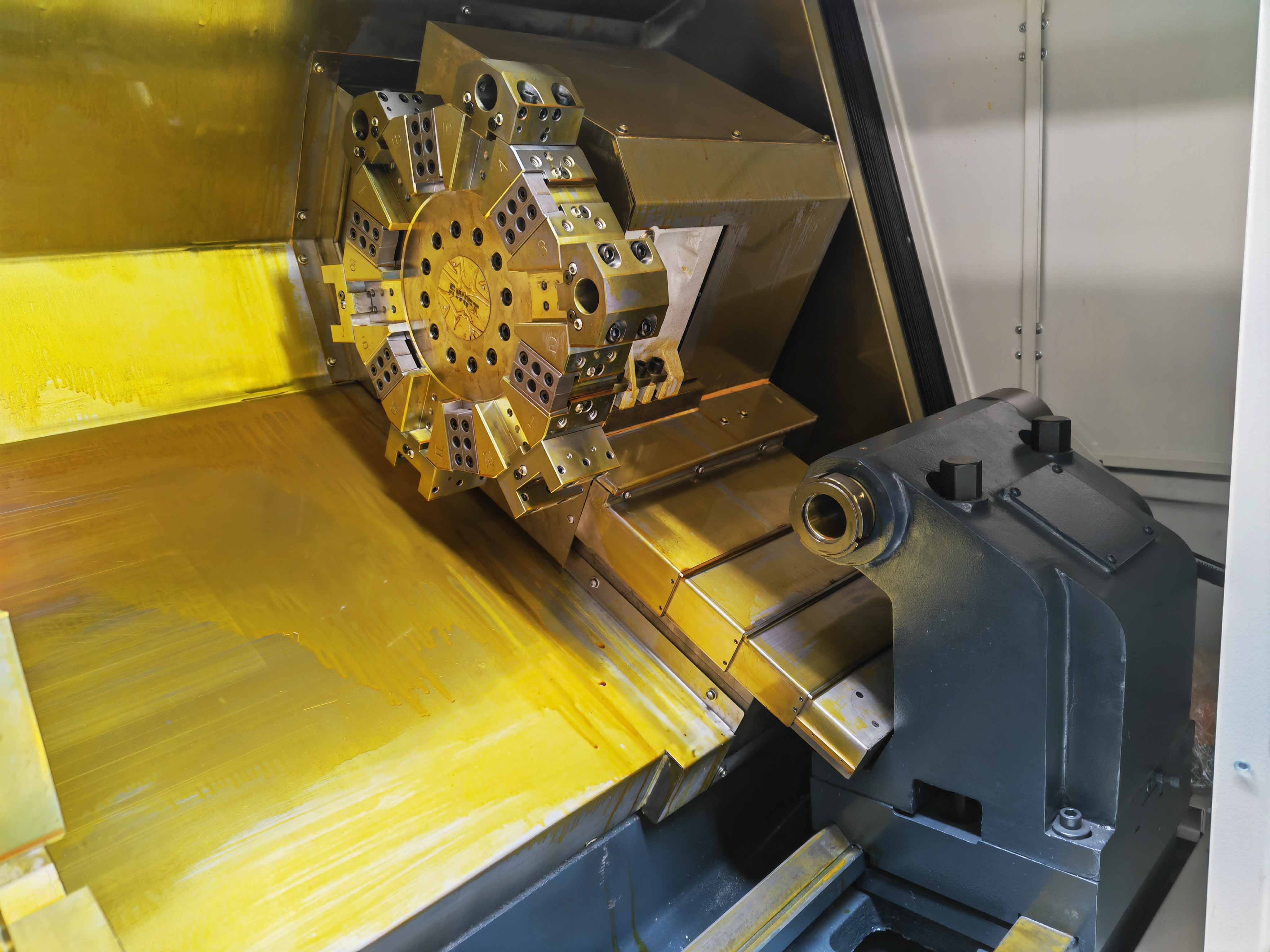

• Advanced Multi-Axis Turning & Milling: Equipped with full C-axis spindle indexing and optional Y-axis servo control. When paired with a 12-station live tooling turret, the TCK50A transitions seamlessly from heavy turning to complex face and radial milling/drilling, allowing you to complete intricate parts in a single setup.
• Optimized Slant Bed Architecture: The highly rigid inclined bed structure naturally counteracts gravitational deflection. This structural advantage drastically improves vibration damping, resulting in superior surface finishes and uncompromising machining precision compared to traditional flat-bed designs.
• Rapid 24 m/min Traverse Rates: Time is money. The X and Z axes are equipped with premium linear guideways that deliver lightning-fast rapid traverse rates of 24 m/min. This significantly minimizes non-cutting idle time and maximizes batch production throughput.
• Gravity-Assisted Chip Evacuation: The steep incline of the guideways ensures that iron chips and coolant naturally fall directly onto the chip conveyor below. This facilitates smooth, automated chip removal, preventing heat buildup and maintaining a clean work envelope without manual intervention.
• Ultra-Compact, Space-Saving Footprint: The machine's intelligent mechatronic design effectively utilizes vertical space. This drastically reduces the plane occupied by the machine tool, allowing shop owners to maximize their floor space without sacrificing heavy-duty machining capacity.

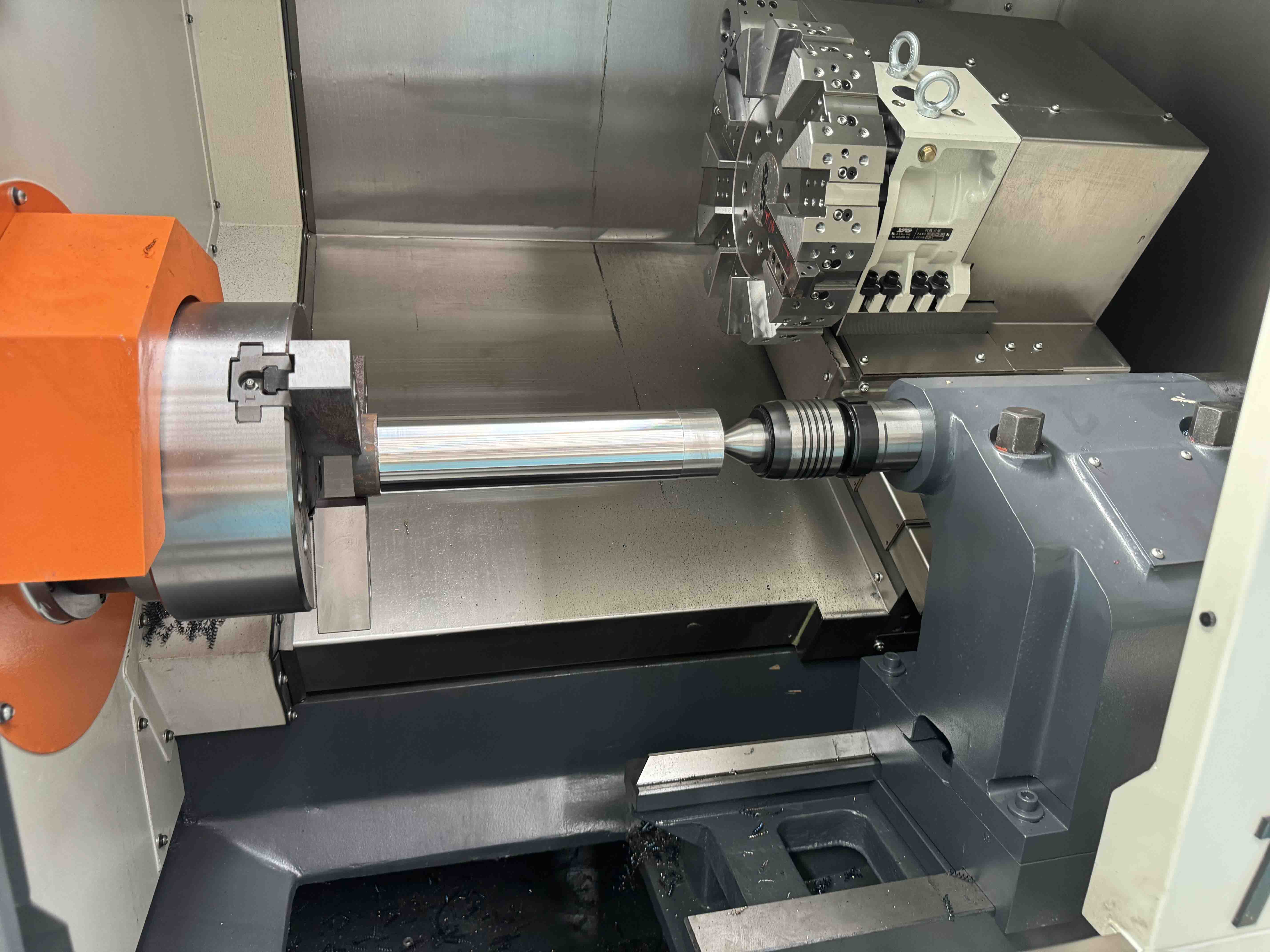

• High-Speed A2-6 Spindle: Features a robust Φ66 mm spindle bore and an 8-inch hydraulic chuck. Driven by a powerful 7.5 kW (optional 11 kW) main servo motor, it maintains massive torque across its wide 45–3500 rpm speed range.
