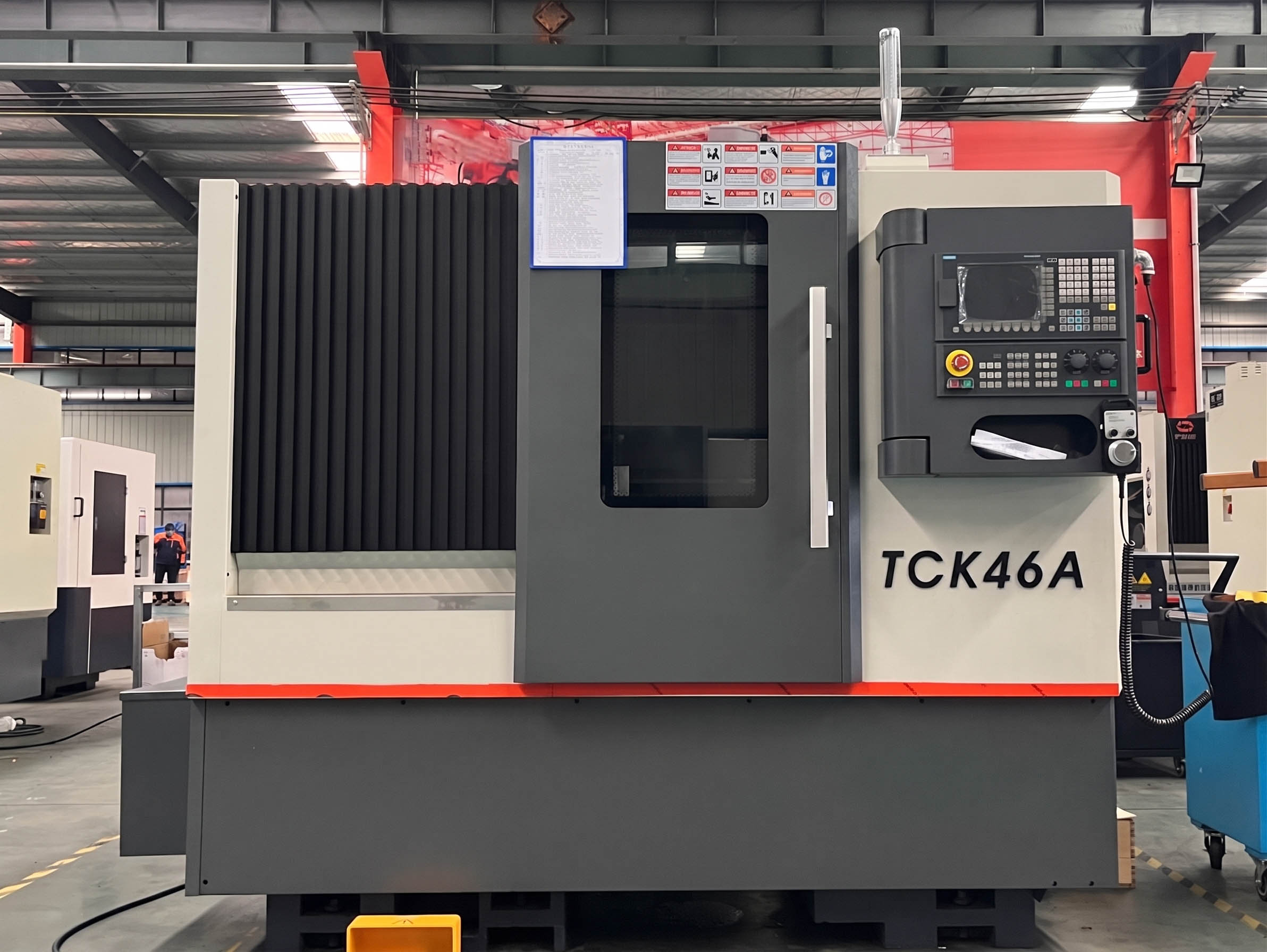

MFG Machinery TCK46A Slant Bed CNC Lathe

True Slant Bed, 8-Station Servo Turret & Constant-Temp Assembly for Precision High-Speed Turning

Product Overview

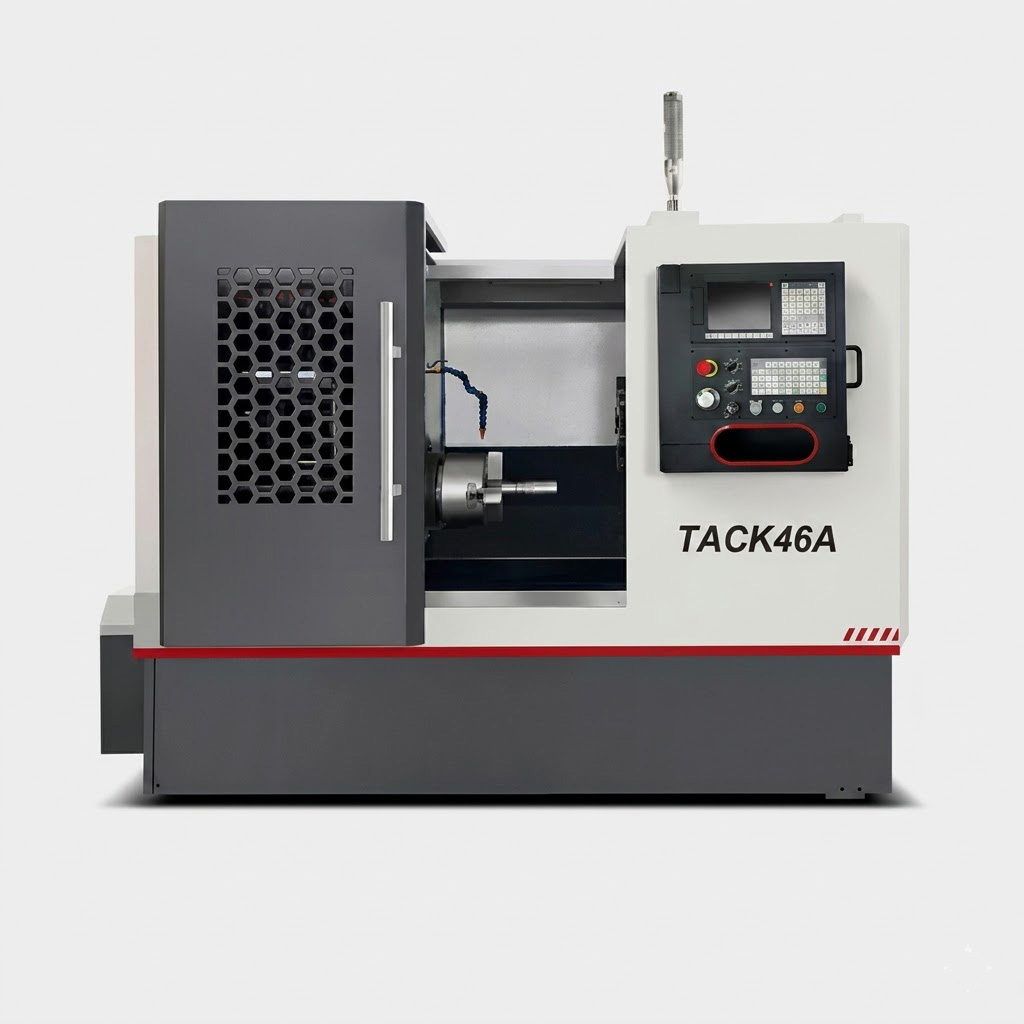

The MFG Machinery TCK46A is a mature, export-proven slant bed CNC lathe engineered for high-speed, high-precision metalworking. Built upon a robust cast-iron foundation with a true inclined bed structure (available in 30° or 45° configurations), it features premium Taiwan linear roller guideways to deliver exceptional positioning accuracy and effortless chip evacuation. Designed for stability and excellent precision retention, the TCK46A is equipped with a dynamically balanced high-torque spindle, a rapid 8-station servo turret, and climate-controlled assembled ball screws. Whether you are executing heavy roughing or high-speed finishing, this machine guarantees reliable, continuous production with superior surface finishes.

Key Features & Advanced Engineering

• Rigid Slant Bed Architecture: The machine bed and major components are cast from high-strength materials in an optimized 30° or 45° overall inclined structure. This lowers the center of gravity to absorb cutting vibrations, ensures outstanding structural rigidity, and provides smooth, gravity-assisted chip evacuation.
• Dynamically Balanced Spindle Unit: Features a high-precision spindle unit paired with premium bearing groups. Through meticulous precision assembly and rigorous dynamic balance testing, the spindle delivers massive torque, strong rigidity, and exceptionally low noise during high-speed operations.

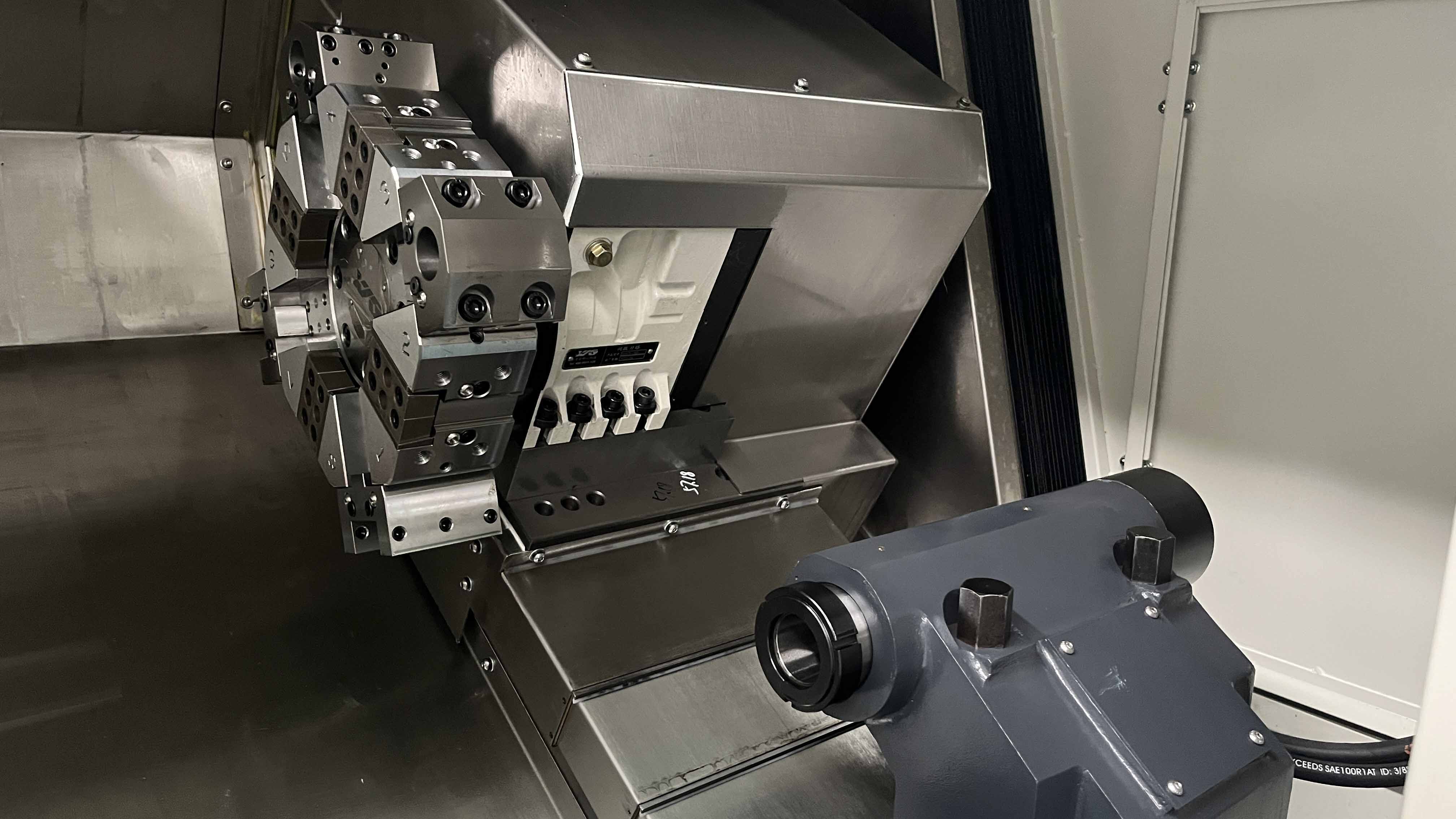

• Rapid 8-Station Servo Turret: Comes standard with an advanced 8-station servo-driven tool turret (hydraulic options also available). It boasts lightning-fast tool indexing and high positioning accuracy. For complex multi-tasking, the machine can also be configured with an optional live tooling (power) turret.
• Taiwan Linear Roller Guides: Equipped with high-precision, preloaded Taiwan linear roller guideways. This setup minimizes friction, prevents stick-slip, and handles heavy loads, making the machine highly suitable for high-speed feeds and precision machining.
• Constant-Temperature Transmission: To eliminate thermal expansion errors during manufacturing, the precision ball screws and nuts are processed, ground, assembled, and strictly quality-controlled inside a dedicated constant-temperature workshop, ensuring unwavering transmission stability.

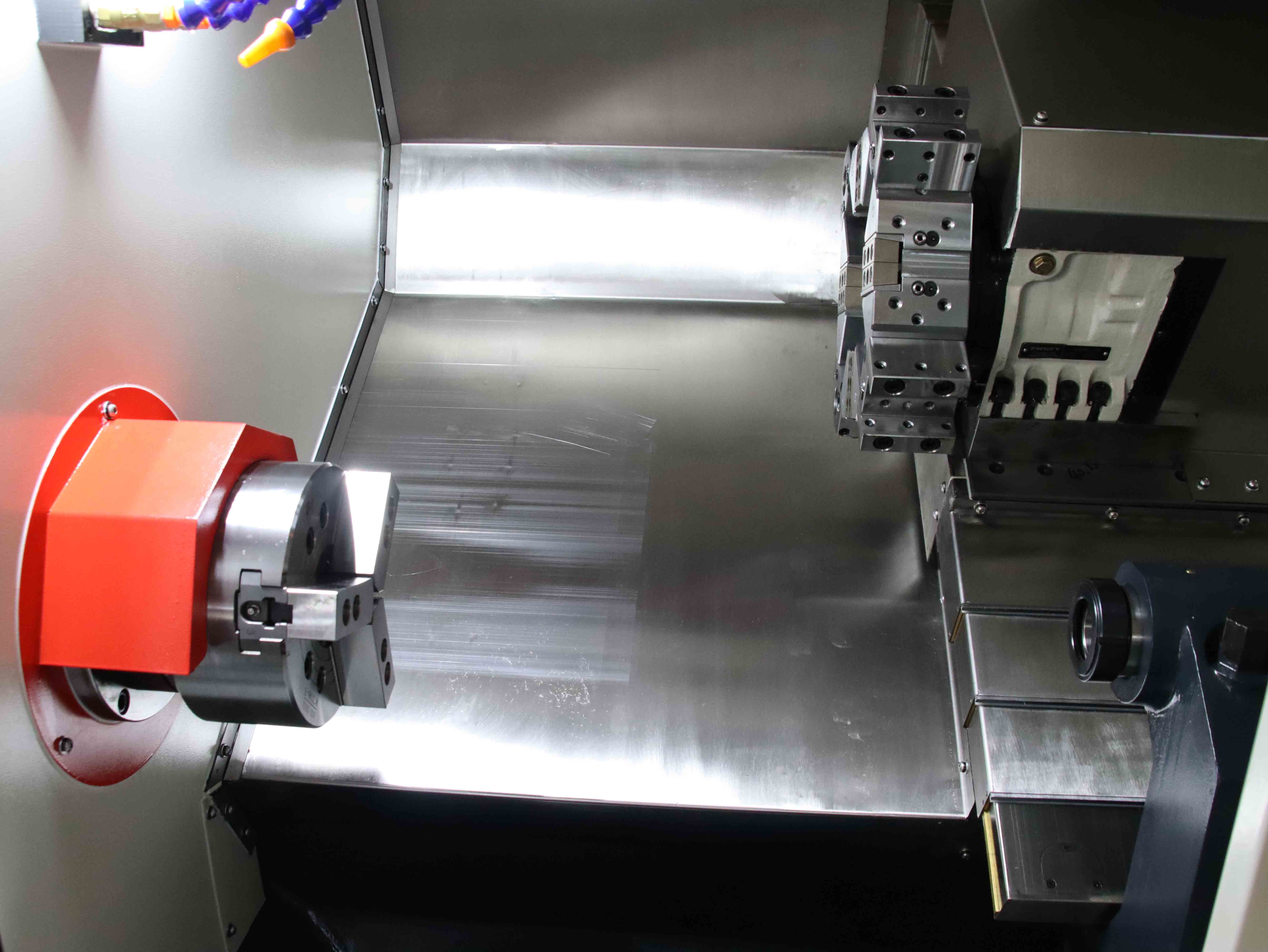

• Wedge-Style Hydraulic Chuck: Equipped with a high-precision wedge-style through-hole hydraulic chuck. It provides rapid clamping and unclamping speeds under hydraulic pressure, securely gripping workpieces with immense force and high concentricity.
• Advanced Auto-Lubrication System: Powered by an industrial-grade RBCLB-3ZK positive displacement (volumetric) lubrication pump. It provides uninterrupted, automatic oil supply directly to the bed guideways, carriage dovetail surfaces, and ball screw assemblies to prevent wear and tear.

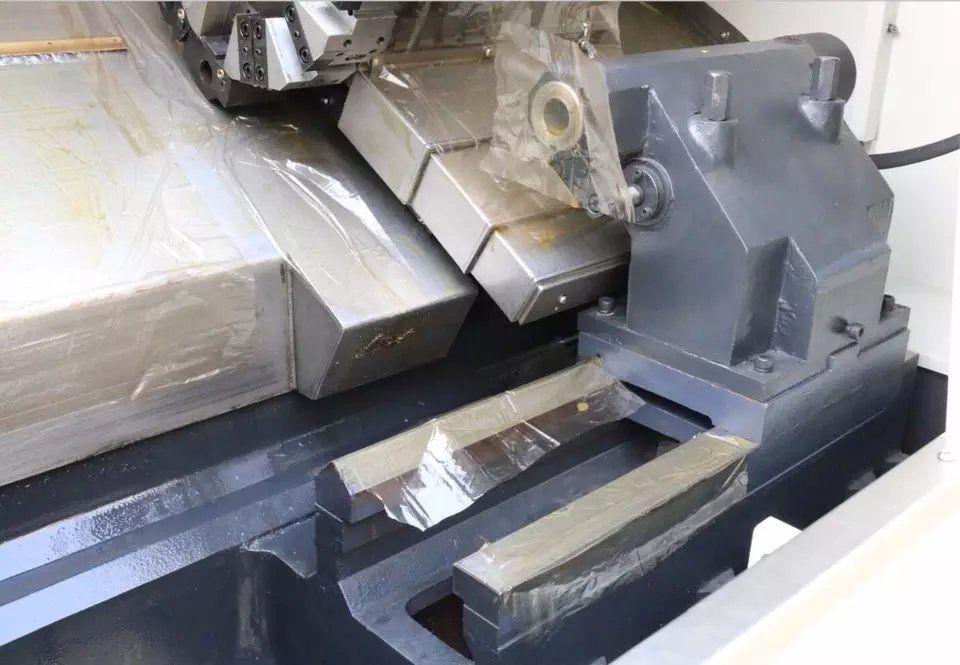

• Versatile Hydraulic Tailstock: Features a robust tailstock designed for easy manual or hydraulic adjustment and locking. The hydraulic piston firmly presses against the workpiece, providing rigid support for long shaft turning.
