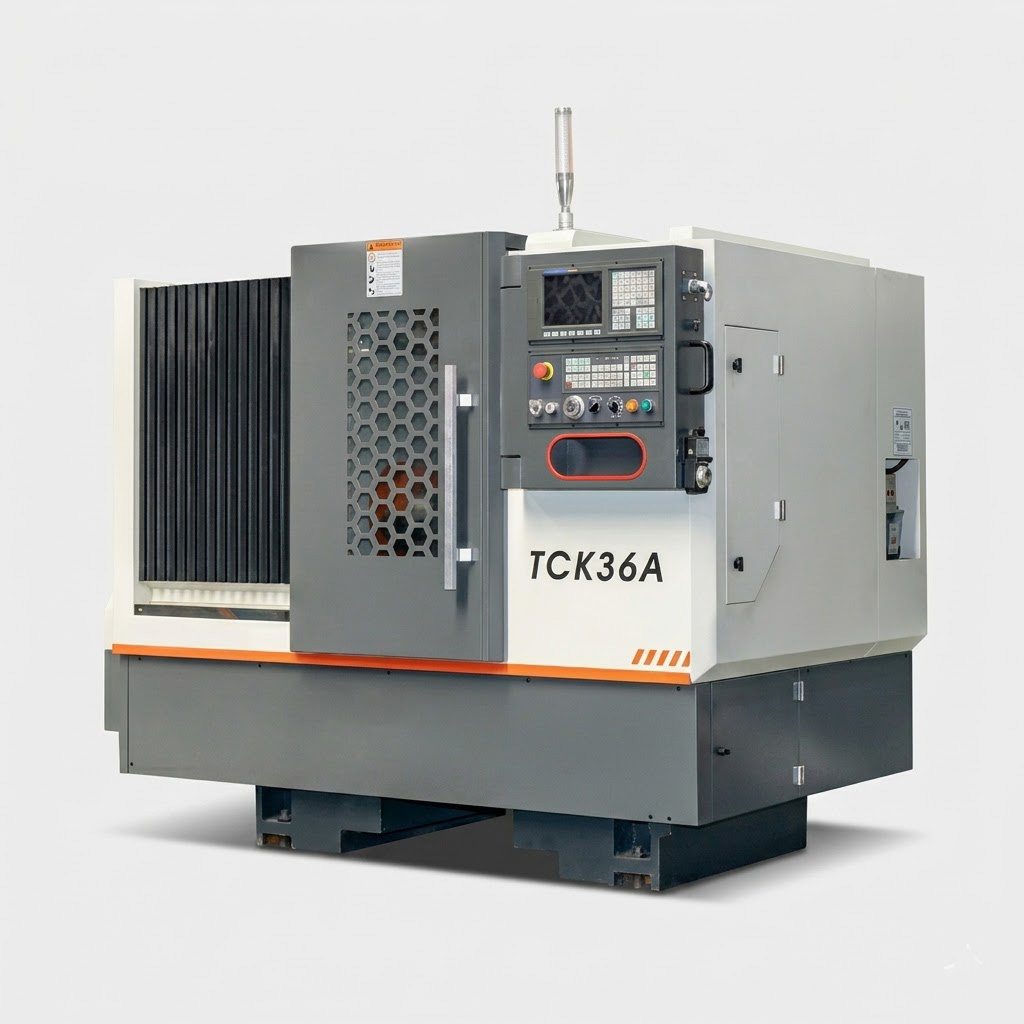

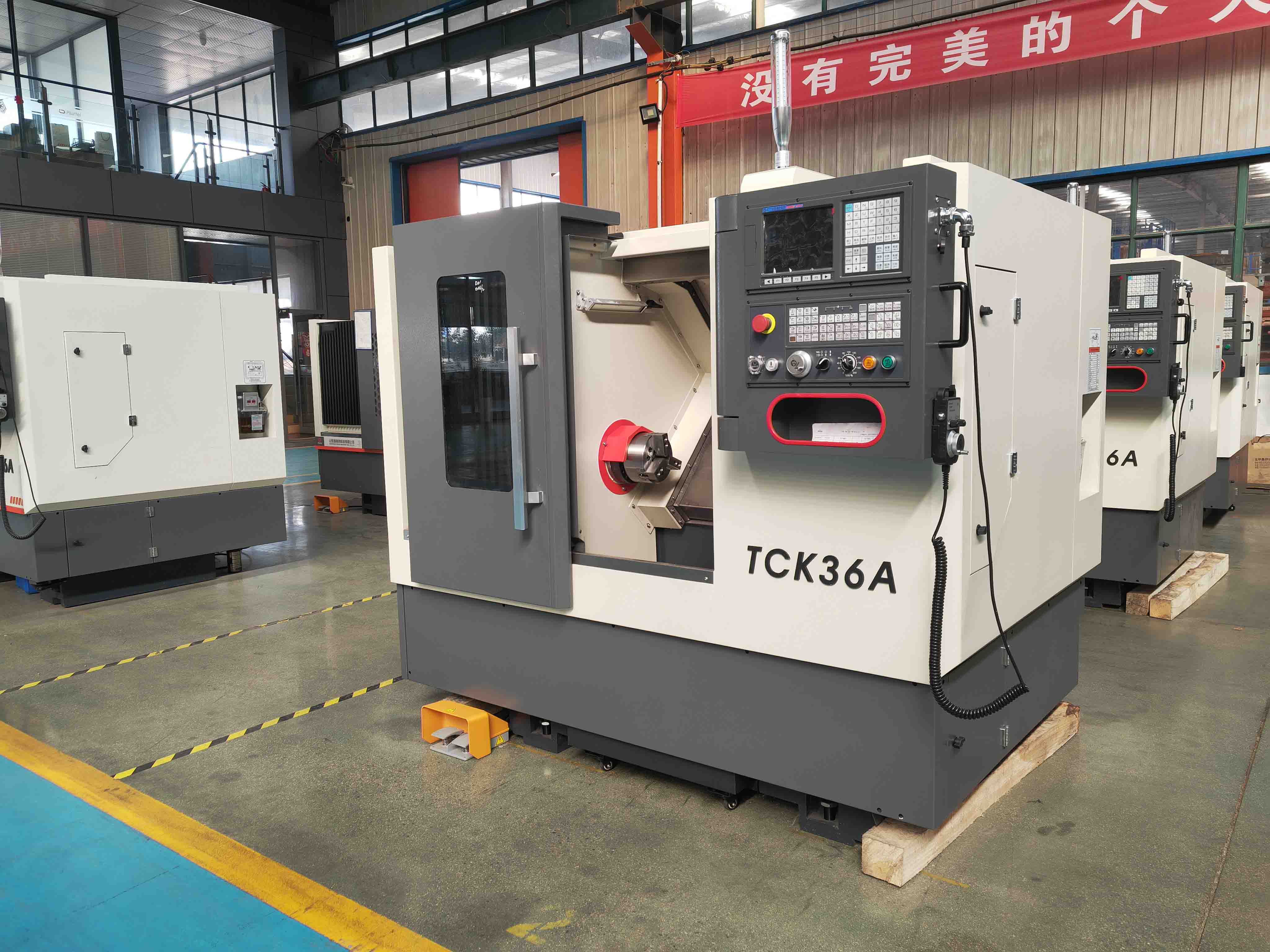

MFG Machinery TCK36A Slant Bed CNC Lathe

45° True Slant Bed, Pre-Tensioned Transmission & Constant-Temp Spindle for High-Speed Precision

Product Overview
The MFG Machinery TCK36A is a high-speed, high-precision slant bed CNC lathe engineered to deliver exceptional reliability and accuracy in demanding industrial environments. Built upon a rugged 45° true slant bed cast from premium high-strength iron, this machine guarantees maximum long-term stability and effortless gravity-assisted chip evacuation. Equipped with a dynamically balanced, constant-temperature assembled cartridge spindle and premium Taiwan linear rolling guides, it easily handles high-speed machining with whisper-quiet operation. By utilizing pre-tensioned ball screws to proactively counteract thermal deformation, the TCK36A ensures flawless repeat positioning accuracy for high-volume, precision-critical part production.

Key Features & Advanced Engineering

• Rigid 45° Slant Bed Architecture: The machine base, bed body, and headstock are cast from high-strength materials. The 45° inclined structure lowers the center of gravity, effectively absorbing heavy cutting vibrations while providing optimal operator ergonomics and smooth chip removal.
• Constant-Temperature Cartridge Spindle: Powered by a high-rigidity cartridge-type spindle unit and a premium servo motor. To ensure zero-defect performance, the spindle is exclusively assembled in a constant-temperature room, subjected to a rigorous 72-hour constant-temperature run-in test, and further validated by 72 hours of continuous on-machine trial operations.
• Pre-Tensioned Precision Transmission: Direct-drive servo motors are linked to the lead screws via high-torque, low-inertia elastic couplings. The ball screws utilize an advanced pre-tensioned (pre-stretched) support structure. Ground and assembled in a climate-controlled workshop, this system proactively compensates for thermal expansion and completely eliminates transmission backlash.

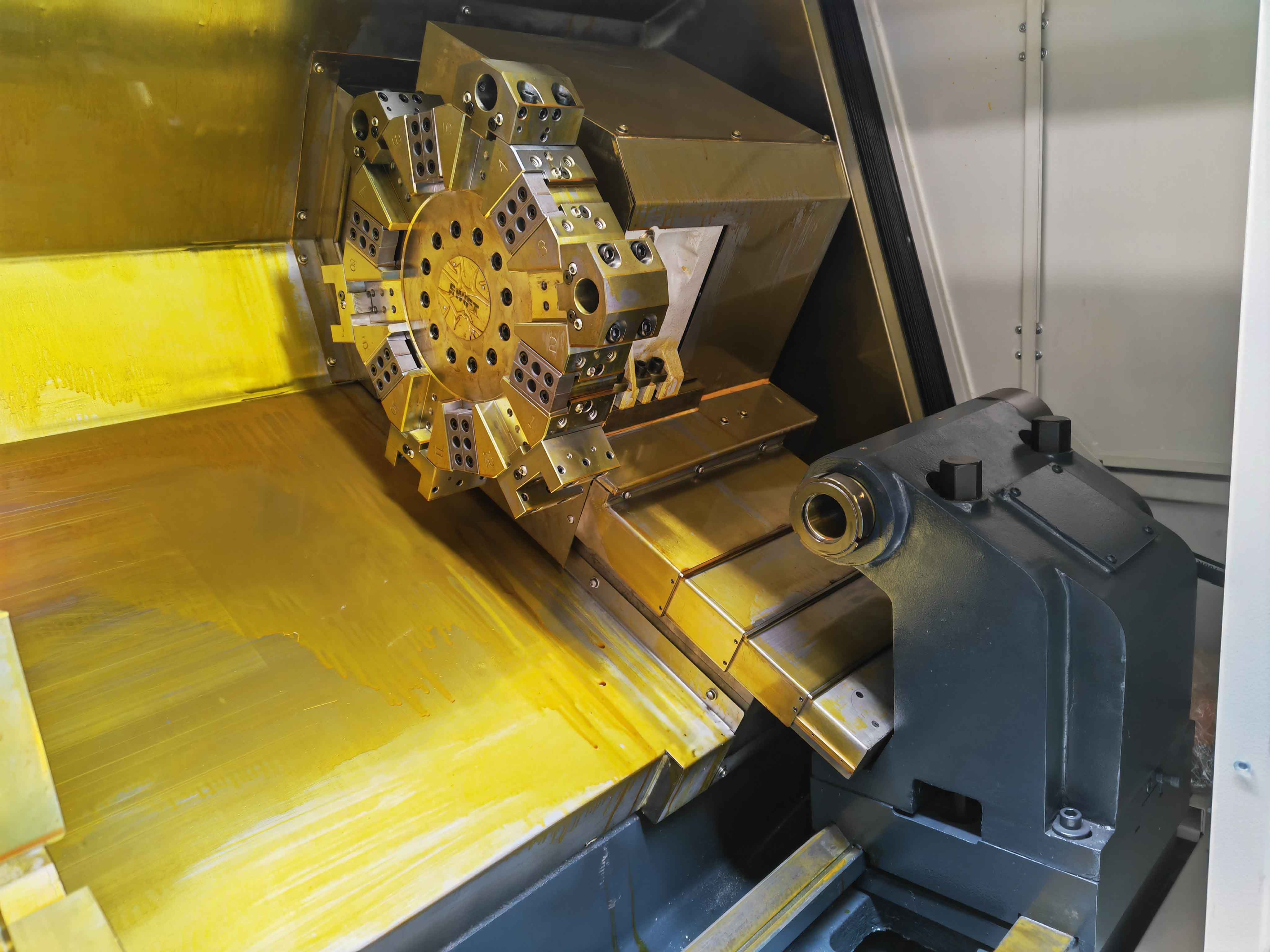

• Heavy-Duty Taiwan Linear Guides: Utilizes premium preloaded Taiwan linear rolling guides featuring a 4-row roller design with a 45° contact angle. This high-rigidity section design delivers immense load-bearing capacity, minimal friction, and exceptionally smooth high-speed feeds.
• Rapid High-Precision Tool Turret: Engineered for speed and heavy cutting. The compact hydraulic or servo-driven turret features bi-directional (shortest-path) indexing for lightning-fast tool changes. It delivers massive locking torque and achieves an outstanding repeat positioning accuracy of 0.003 mm.

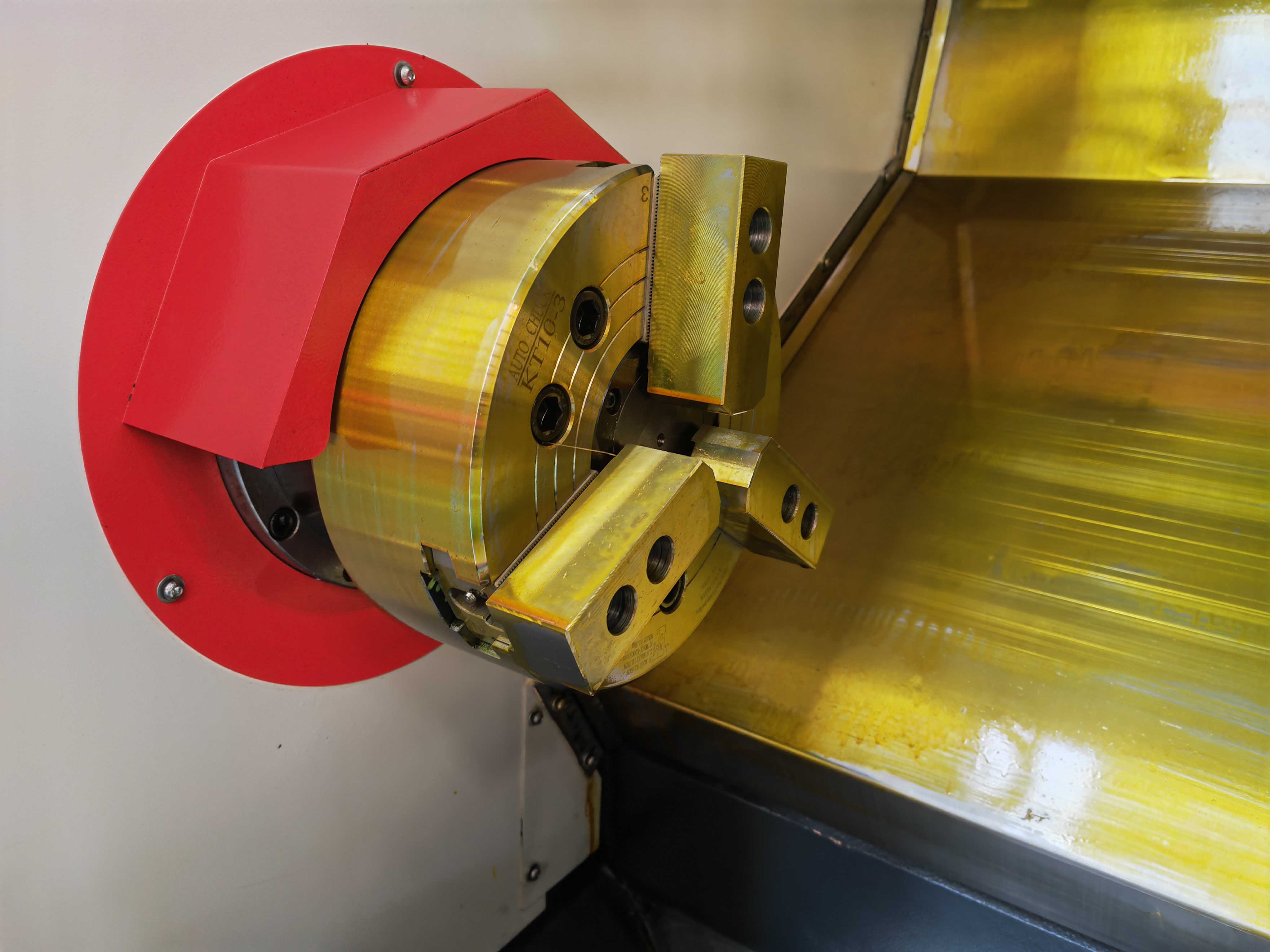

• Wedge-Style Through-Hole Chuck: Comes standard with a highly rigid wedge-shaped through-hole chuck built to strict Japanese and Taiwanese industry standards. All sliding surfaces are hardened and precision-ground to ensure maximum clamping force and superior concentricity.
• Versatile Tailstock Options: Designed to securely hold long workpieces. Operators can choose a manual tailstock (featuring a handwheel-operated sleeve and manual locking) or a fully hydraulic tailstock, where adjustment, locking, and the piston-driven quill advancing are completely automated.
• Intelligent Auto-Lubrication & Full Enclosure: A forced automatic device delivers metered, fixed-point quantitative lubrication directly to the ball screws and guideways, complete with a low-oil warning alarm. The machine is protected by an ergonomic, fully enclosed, waterproof, and chip-proof safeguard design for ultimate operational safety.
