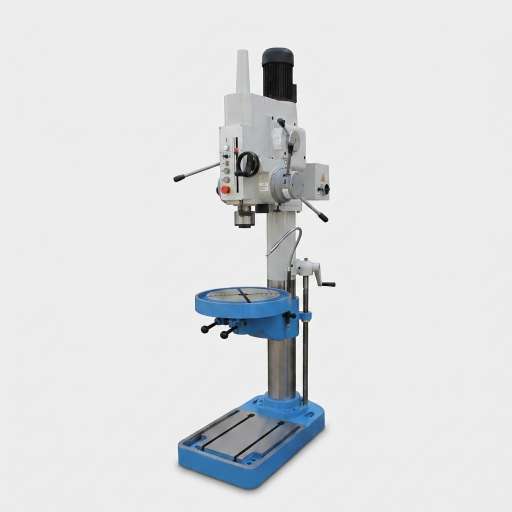

T-50 & T-50E vertical drilling machine

Industrial Heavy-Duty Vertical Drilling Machine T-50 & T-50E – High-Precision 50mm Capacity Drill Press with Auto-Feed

Product Overview:
The T-50 and T-50E series are engineered for the most demanding industrial metalworking environments. Capable of drilling up to 50mm in steel and M30 tapping, these machines offer a robust solution for large-scale fabrication. Featuring a powerful 3HP motor and a high-torque MT4 spindle, they provide 12 speed steps to handle various materials. The T-50E model offers an expanded 400mm swing span and a larger rectangular worktable, catering to oversized workpieces with professional-grade stability.

Key Features:

• Massive Drilling Capacity: Robust performance with up to 50mm drilling in steel and 58mm in cast iron.
• Dual-Mode Spindle Stroke: Features 180mm automatic feed and 220mm manual stroke for versatile operational control.
• Advanced Gear Box: 12 spindle speed steps (up to 1525 RPM at 60Hz) and 3 levels of automatic feed rates for optimal cutting conditions.
• Reinforced Construction: Built with a heavy cast iron base and column to eliminate vibration and ensure long-term accuracy.
• Specialized Worktables: Choose between the classic 510mm circular table (T-50) or the upgraded 600x550mm rectangular table (T-50E) for varied job requirements.

Why Choose the T-50 Series?
Ideal for heavy machinery manufacturing and precision engineering workshops, this series provides the torque and rigidity needed for continuous tapping and deep-hole drilling. With a net weight of up to 860kg, these machines are built to last in high-intensity production lines.
