MFG P-75 High-Speed CNC Metal Circular Saw Machine

75mm Capacity, Zero-Backlash Gearbox & Mitsubishi PLC for Fully Automated Precision Cutting

Product Overview

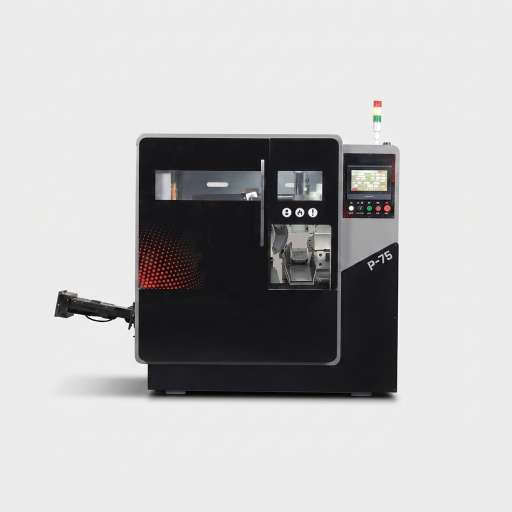

The MFG P-75 is a state-of-the-art, fully automated high-speed circular sawing machine engineered for the rapid, high-precision cutting of ferrous and non-ferrous metals.

Designed to handle round bars up to Φ75mm and square profiles up to 60x60mm, it is powered by a robust 11kW spindle motor.

Built upon a vibration-absorbing, high-strength cast-iron bed, the P-75 utilizes a zero-backlash transmission and an advanced 30-degree oblique servo feeding system.

Controlled by a premium Japan Mitsubishi PLC, this machine executes a fully unmanned cycle—from automatic bar feeding and simultaneous clamping to high-speed sawing and automatic head/tail remnant separation.

It is the ultimate turnkey cutting solution for automotive, aerospace, and high-volume machining facilities demanding flawless dimensional accuracy and extended saw blade life.

Key Features & Advanced Engineering

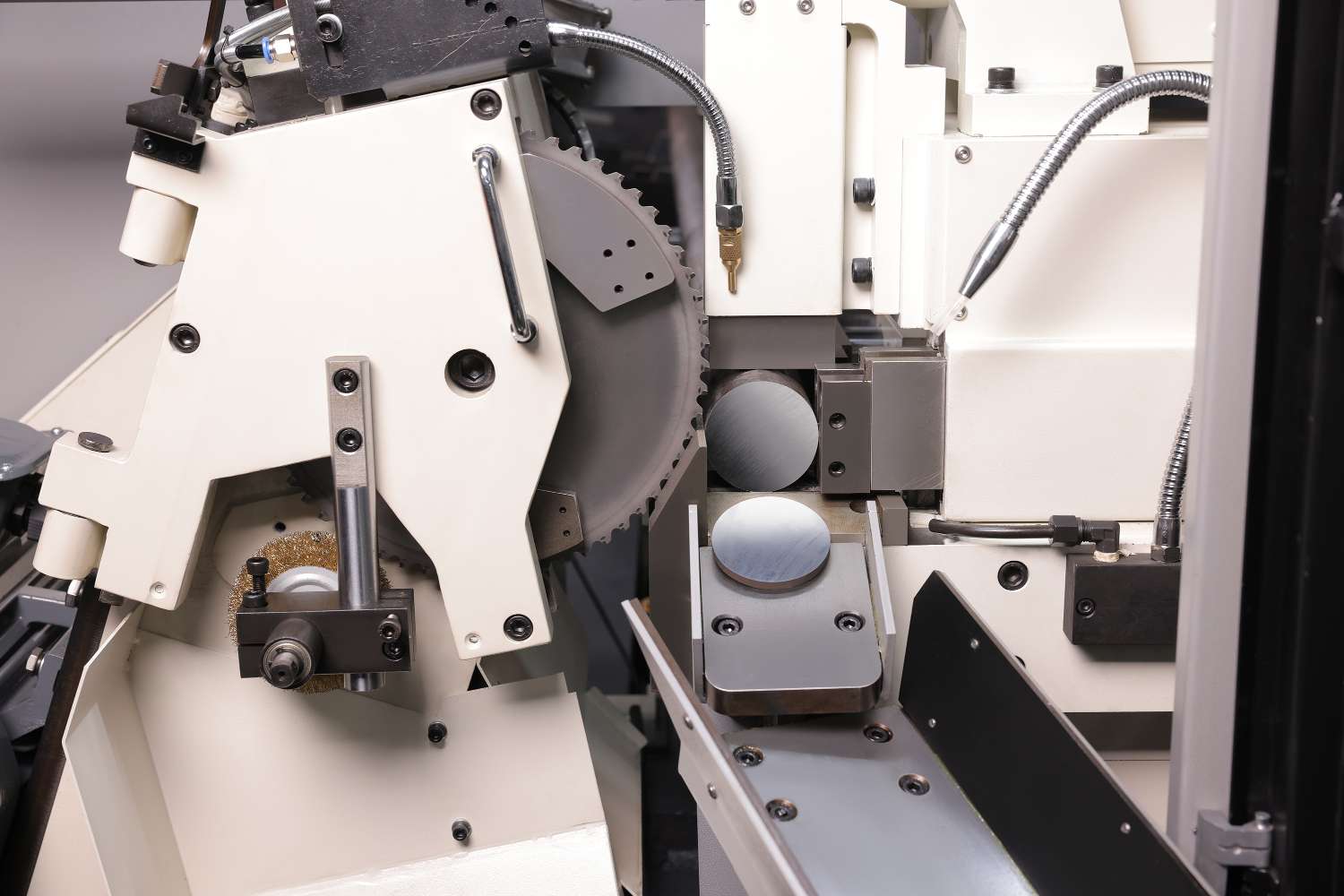

• Zero-Backlash Gearbox & Blade Stabilization: The integrally cast power head features a specialized anti-backlash gear mechanism, ensuring absolutely zero transmission play. Combined with imported high-precision bearings and a unique blade stabilization system, it drastically reduces vibration and deflection, maximizing blade life and delivering mirror-like cut finishes.

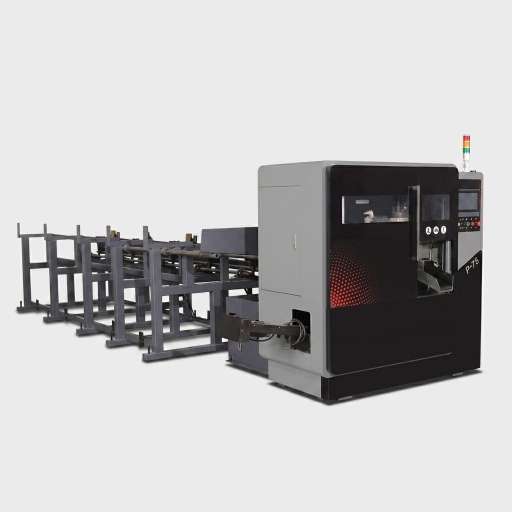

• 30° Oblique Servo Feed Architecture: The cutting feed is driven by a precise servo motor and ball screw along a high-rigidity 30-degree oblique roller linear guide. This configuration offers significantly higher load-bearing capacity and deformation resistance compared to traditional optical axes, ensuring rapid, flawlessly straight cuts.
• Advanced Material Handling & Clamping: Features a highly accurate servo-driven ball screw for material feeding, utilizing an innovative local vise deflection method to optimize stability. The dual front-and-rear clamping devices engage simultaneously, rigidly securing the workpiece to eliminate chatter during high-speed cuts.

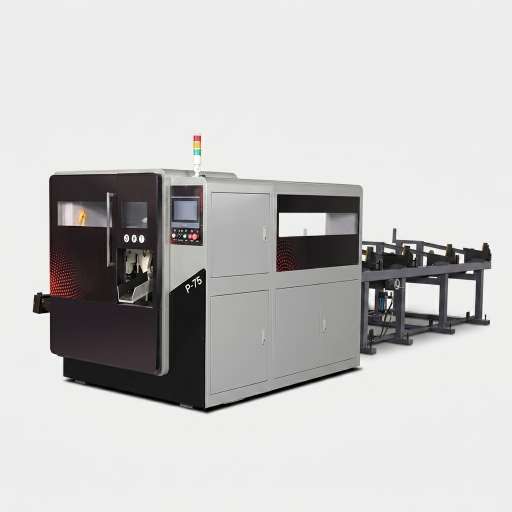

• Intelligent Mitsubishi PLC Automation: Driven by a highly reliable Japanese Mitsubishi PLC system. Once the material rack is manually loaded, the machine handles the entire sequence automatically—including precise feeding, cutting, and the automatic sorting/separation of material heads and tails from the finished products.
• Eco-Friendly MQL Cooling System: Replaces messy flood coolant with an advanced Minimum Quantity Lubrication (MQL) spray system. Specially designed nozzles deliver precisely metered, eco-friendly cutting oil directly to the saw teeth and blade sides, vastly reducing cutting heat and production costs while keeping your shop clean.
• Comprehensive Industrial Safeguards: Equipped with automated screw guide lubrication, an integrated chain-plate chip conveyor (with continuous/intermittent modes), LED working lights, 3-color status beacons, and an intelligent alarm system that automatically shuts the machine down after 3 minutes of material depletion.
