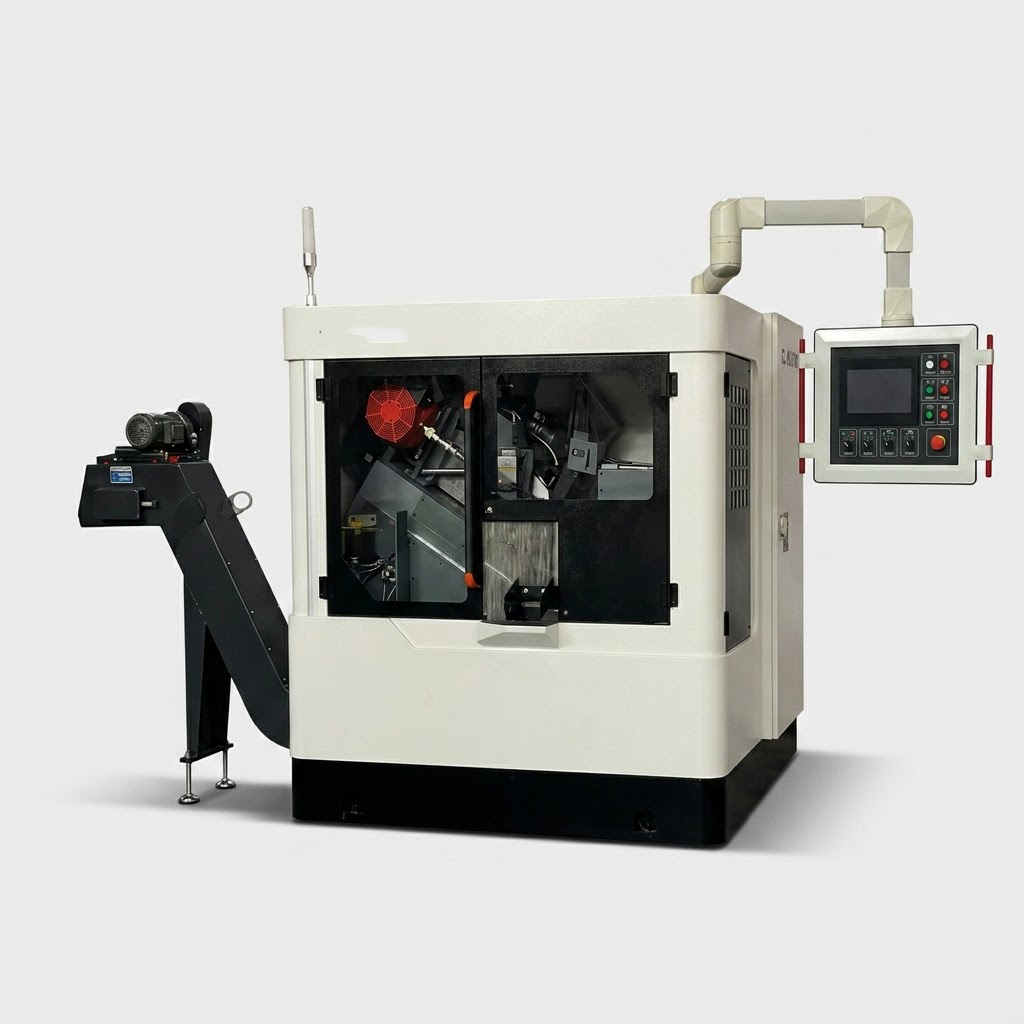

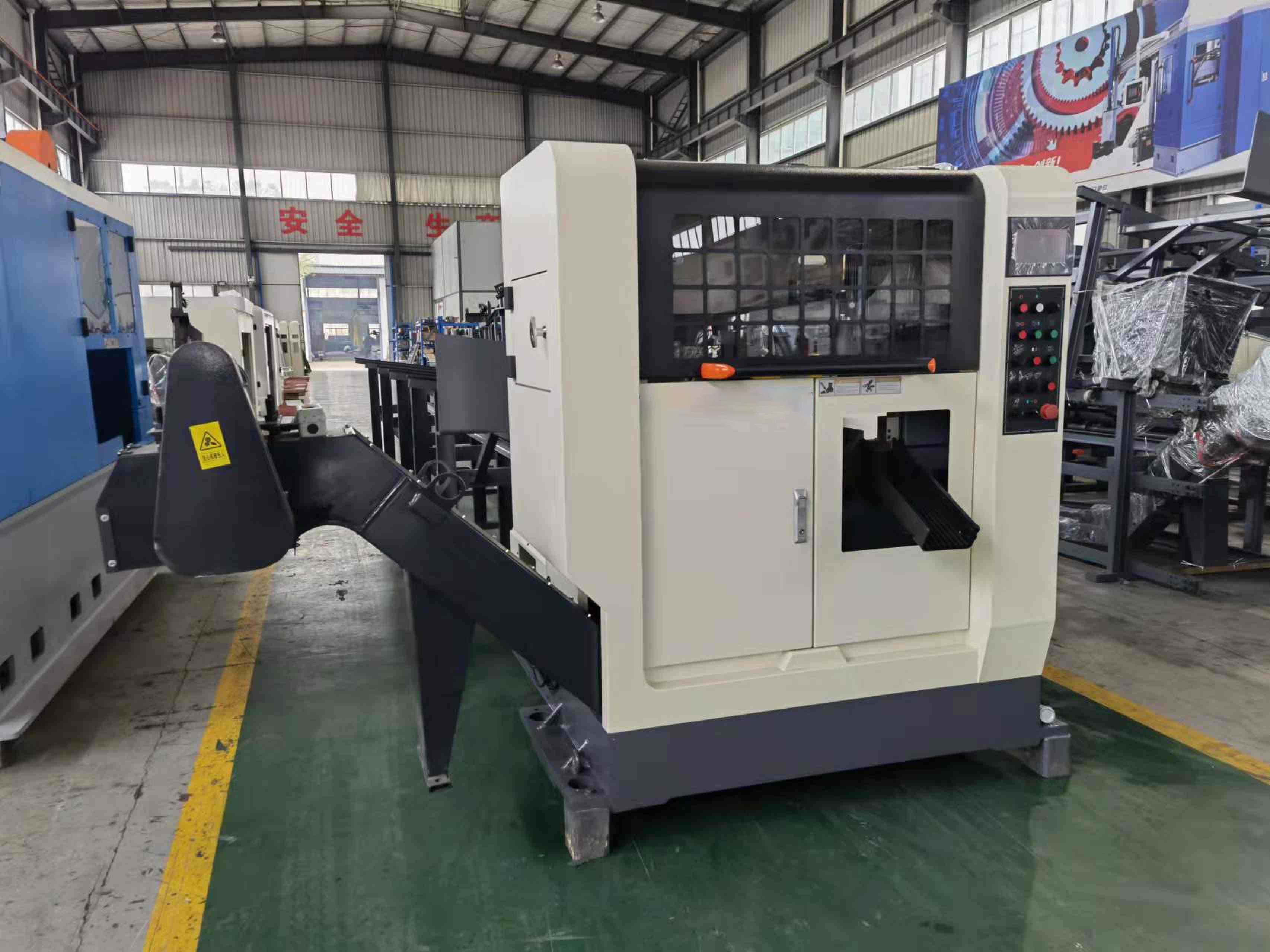

MFG HY-85NC Fully Automatic High-Speed CNC Circular Saw

Formidable 9.5kW Power & Burr-Free Precision for up to 85mm Materials

Product Overview

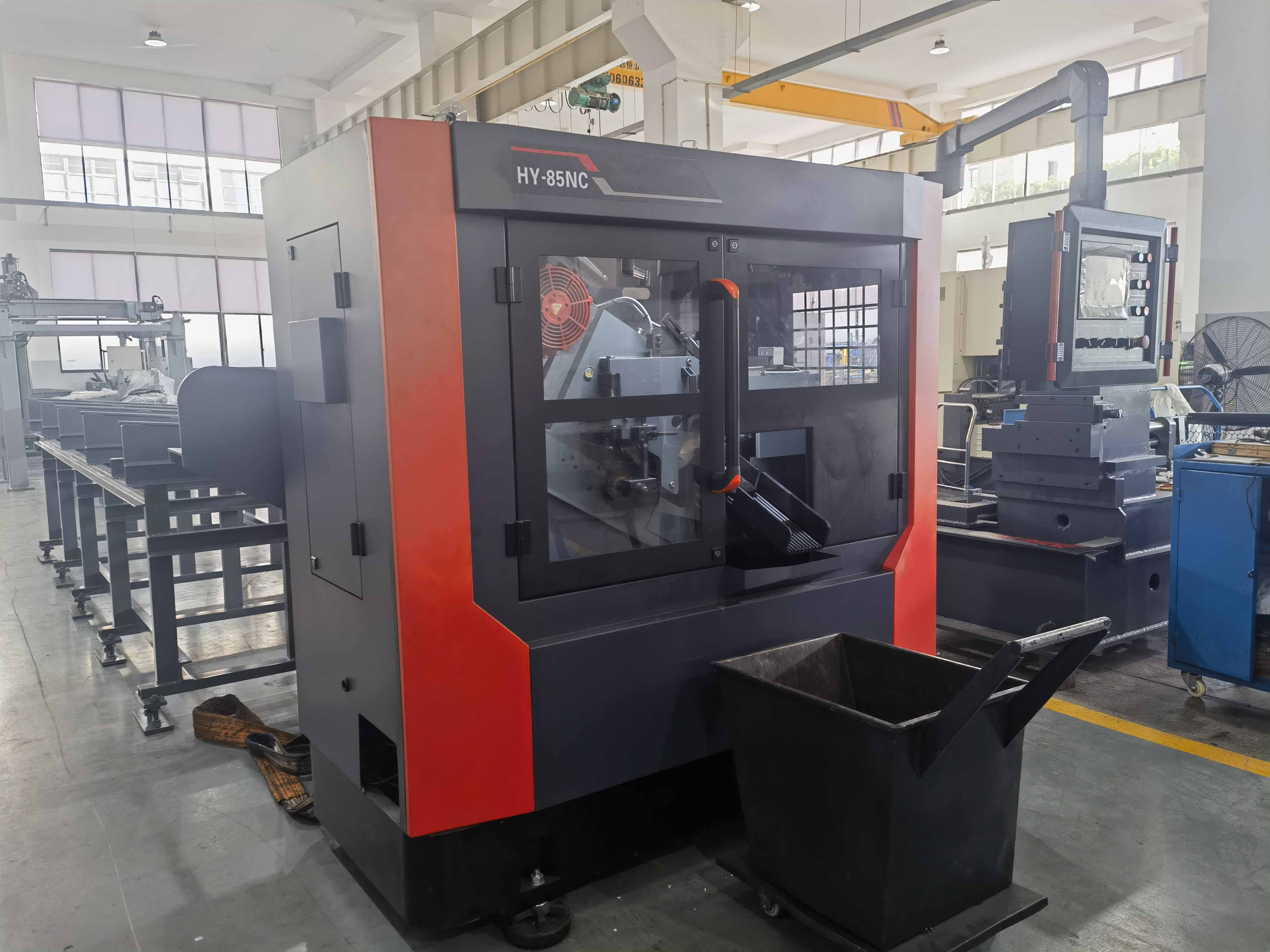

The MFG HY-85NC is an elite, heavy-duty fully automatic high-speed metal circular saw engineered for top-tier industrial fabrication. Upgraded to tackle more demanding applications, this machine features a massive 9.5 kW inverter-driven main motor and accepts up to a 285 mm blade, effortlessly slicing through solid bars and round tubes up to 85 mm in diameter. Renowned for delivering impeccably smooth, burr-free surface finishes, the HY-85NC completely eliminates the need for secondary deburring. Governed by an intuitive CNC touchscreen and anchored by a rugged 2750 kg vibration-dampening steel frame, it automates the entire feeding, clamping, and cutting process, ensuring maximum throughput and pinpoint accuracy for continuous batch production.

Key Features & Benefits

• Massive 9.5 kW Cutting Power: Driven by a formidable 9.5 kW (3-Phase) main motor. This immense power guarantees non-stop, high-speed cutting through tough metals and thick-walled tubes without the blade stalling or bogging down.
• High-Speed, Burr-Free Performance: The ultra-rigid 2750 kg steel base eliminates cutting vibrations. Combined with high-speed rotation, it produces a perfect, mirror-like burr-free finish, saving your facility countless hours of secondary machining.
• Intelligent Touchscreen Automation: Set it and forget it. The user-friendly CNC touchscreen allows operators to easily program cut lengths, batch quantities, and monitor operations. The machine will automatically feed material from the roller rack until the exact number of pieces is achieved.
• Stepless Inverter Speed Control: Features an infinitely adjustable variable speed system (20–180 RPM). This allows operators to fine-tune the exact blade speed to perfectly match specific material hardness, significantly maximizing blade life.

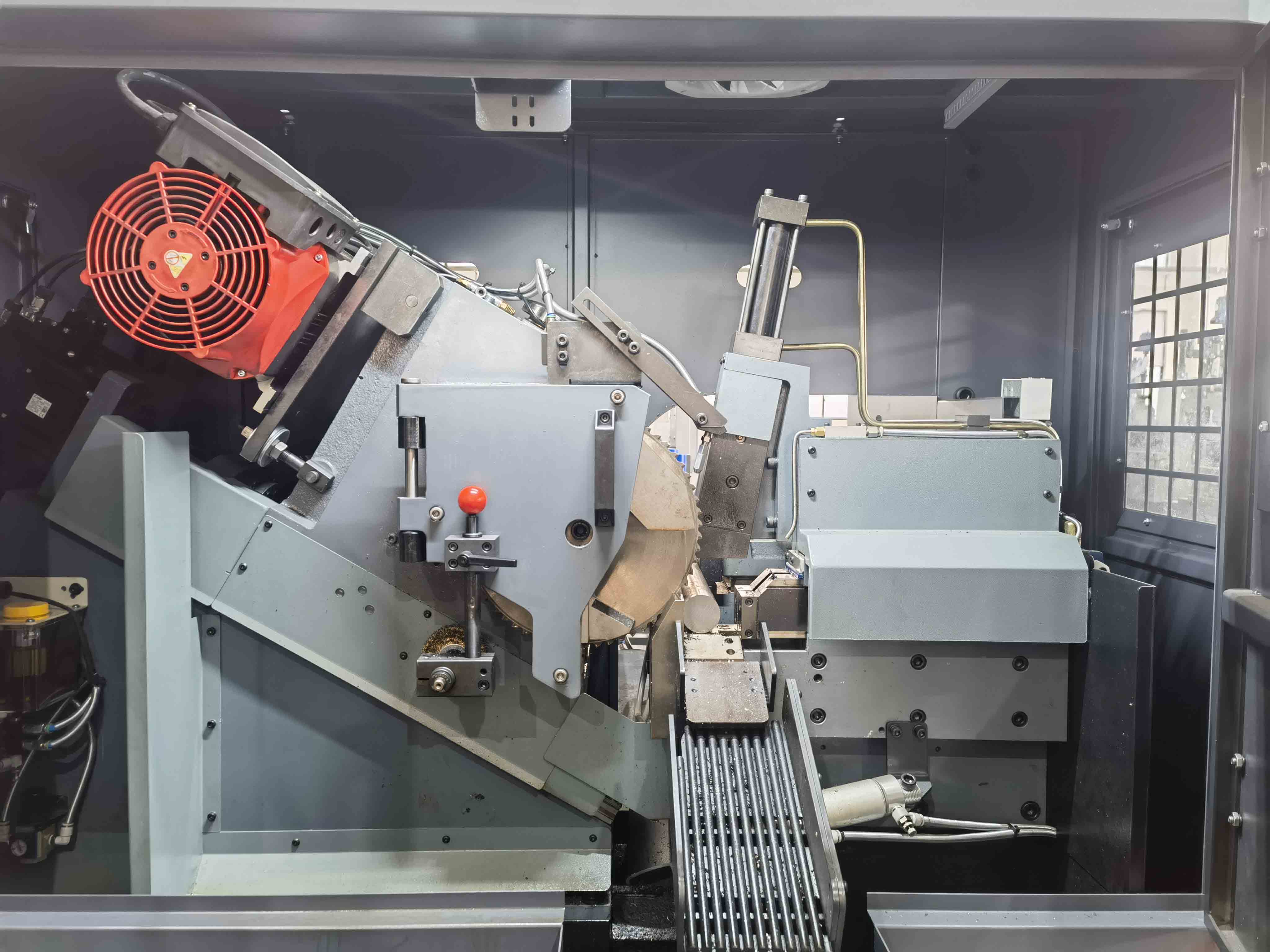

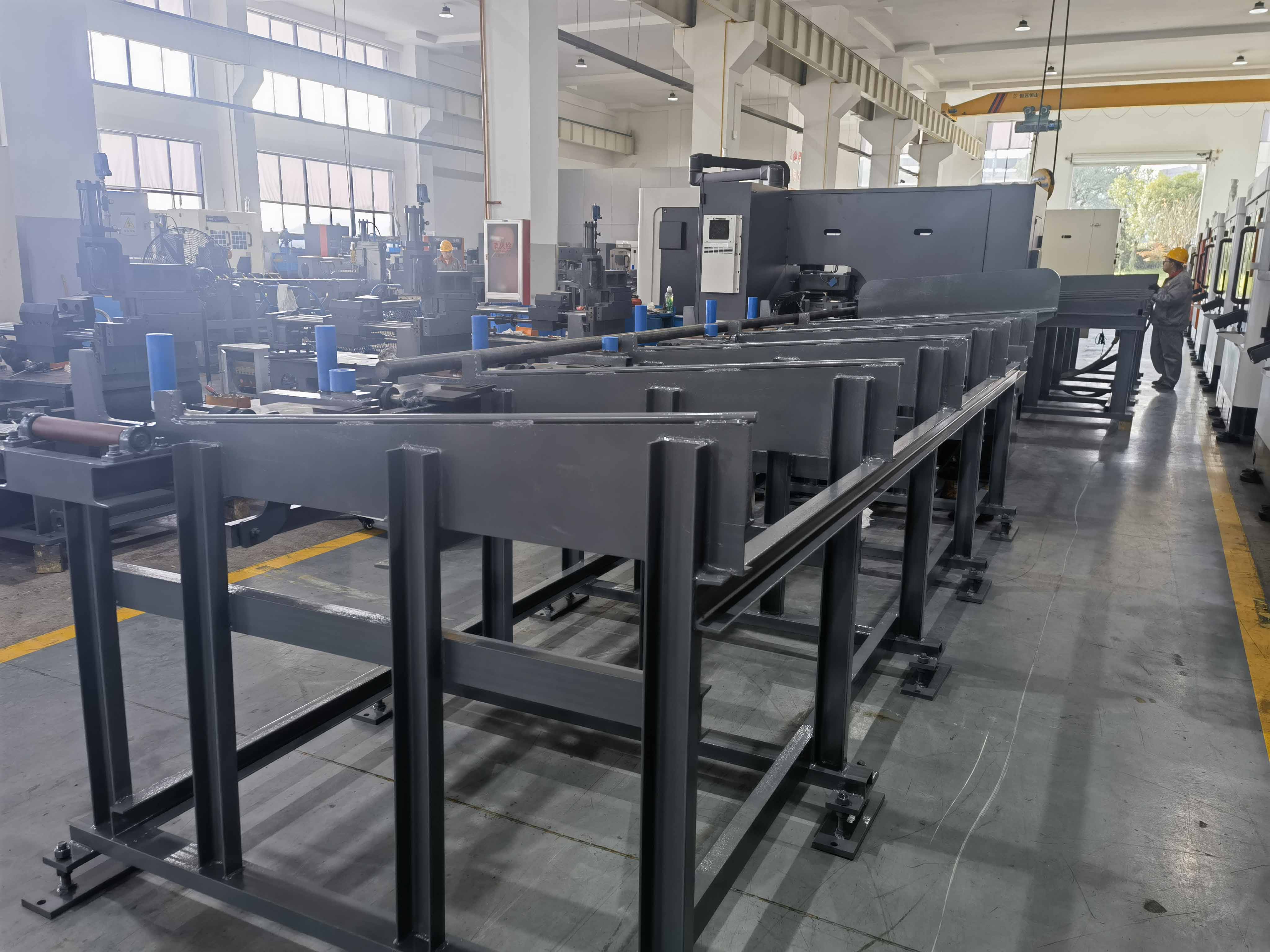

• Precision Hydraulic Clamping & Feeding: Equipped with an independent 2.25 kW hydraulic motor and an adjustable floating vise. Operators can check and adjust clamping pressure and speed via clear dial indicators, ensuring material is securely held without crushing. The multiple-feed system allows for maximum cut lengths up to 9,999 mm.
• Advanced Oil Mist Coolant: Upgraded with an efficient oil mist lubrication system that delivers cooling directly to the cutting teeth. This improves the cut quality and drastically extends the lifespan of the circular blade and machine components.
• Uncompromising Safety Standards: Features a large protective safety guard to shield operators from flying metal debris, alongside an emergency flashing light system that instantly alerts the shop floor to any operational anomalies.
• Reliable Support & Easy Maintenance: Designed for convenient, low-downtime maintenance. MFG backs this high-speed saw with a 1-year parts warranty, fast-shipping replacement parts in stock, and lifetime technical phone support from our hands-on machinery experts.
