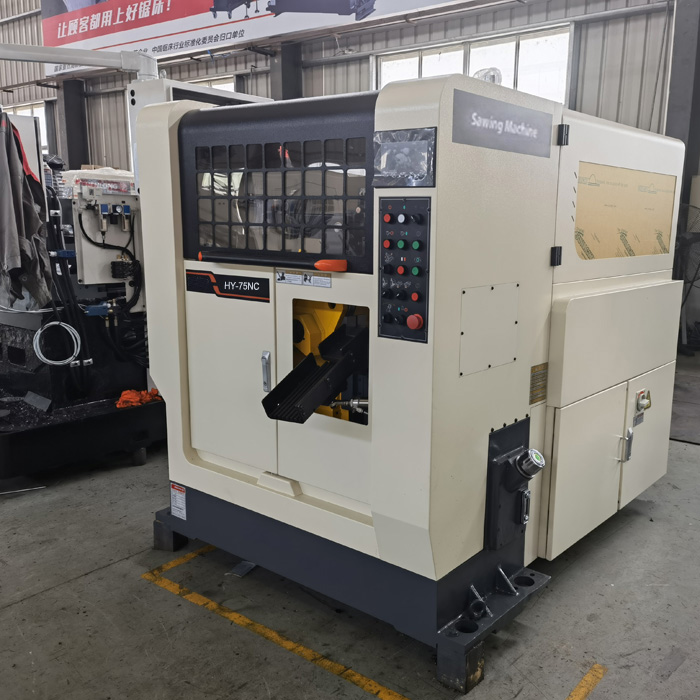

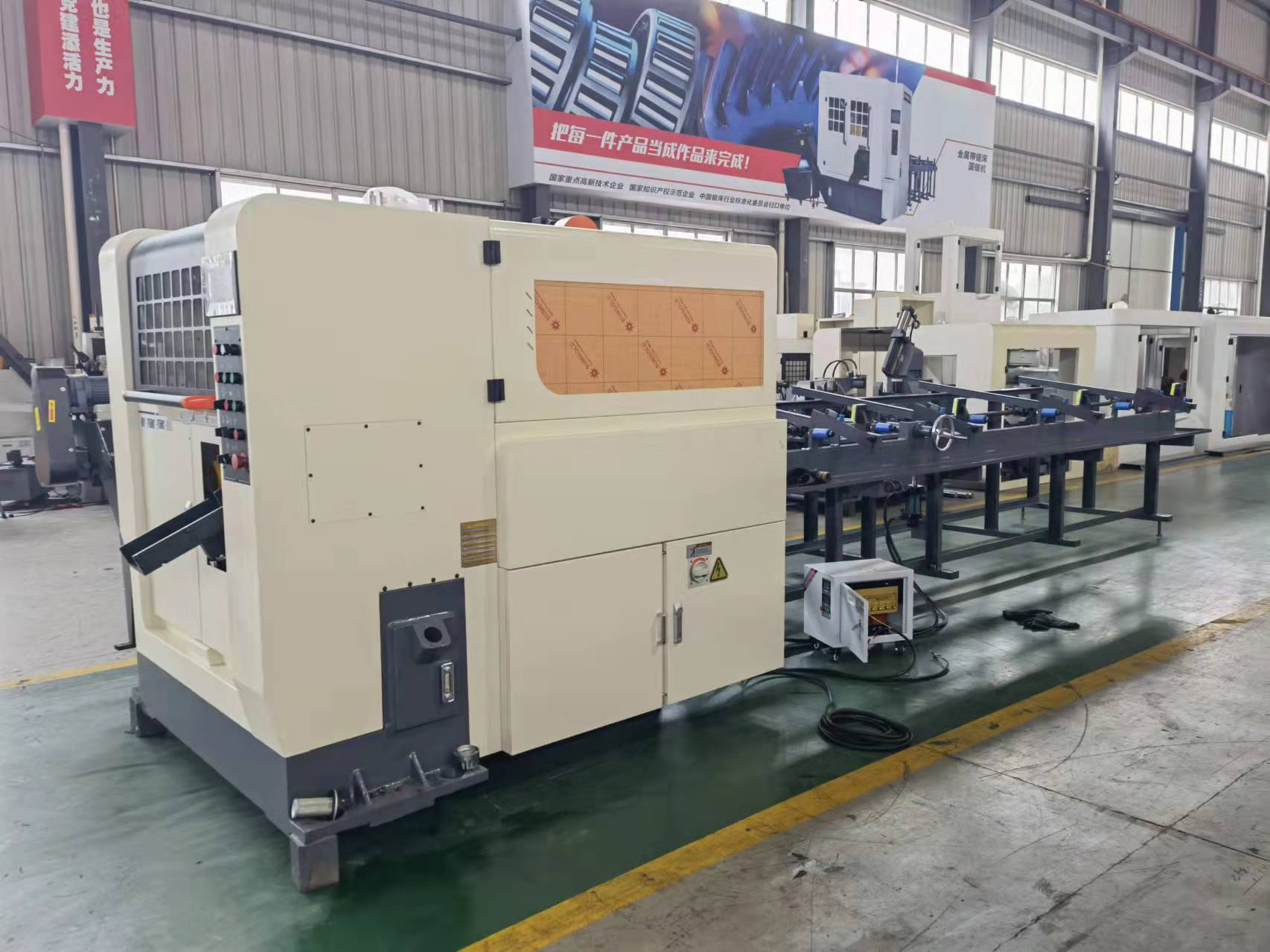

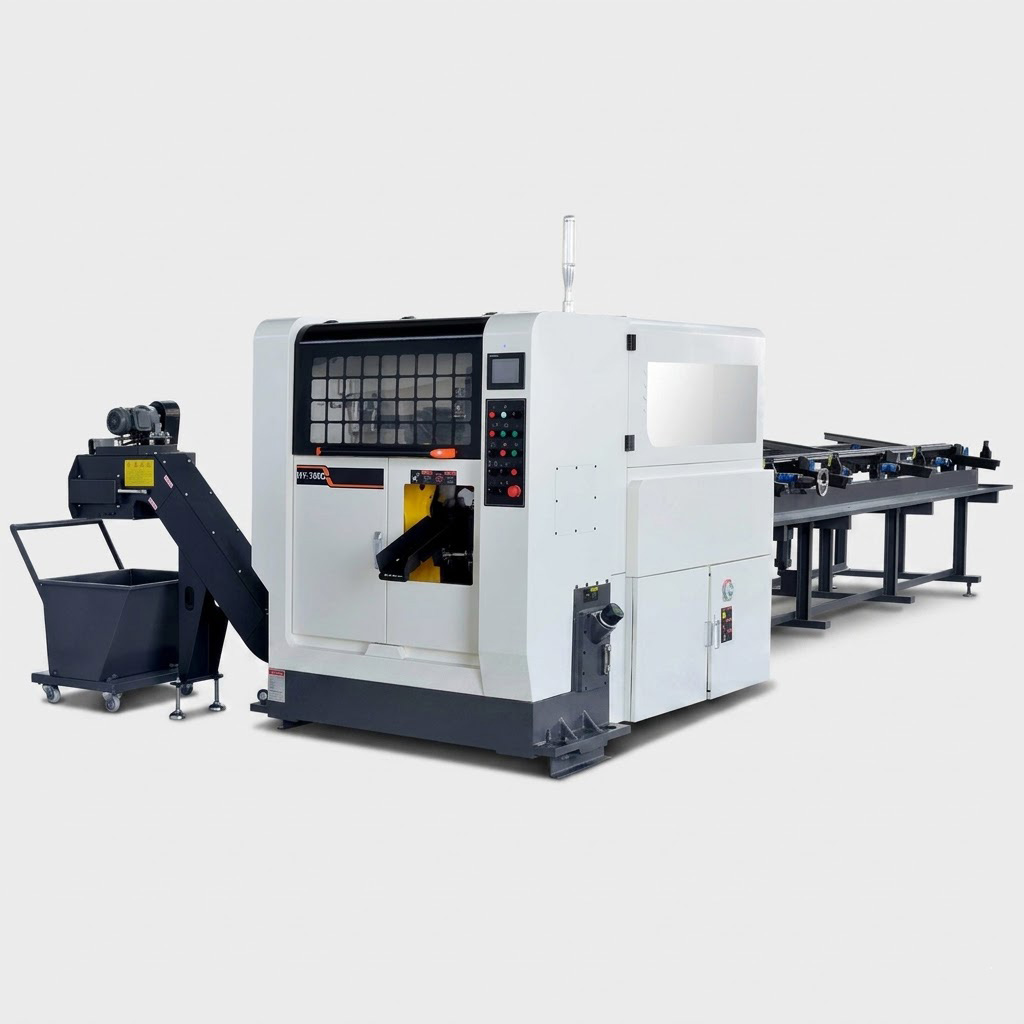

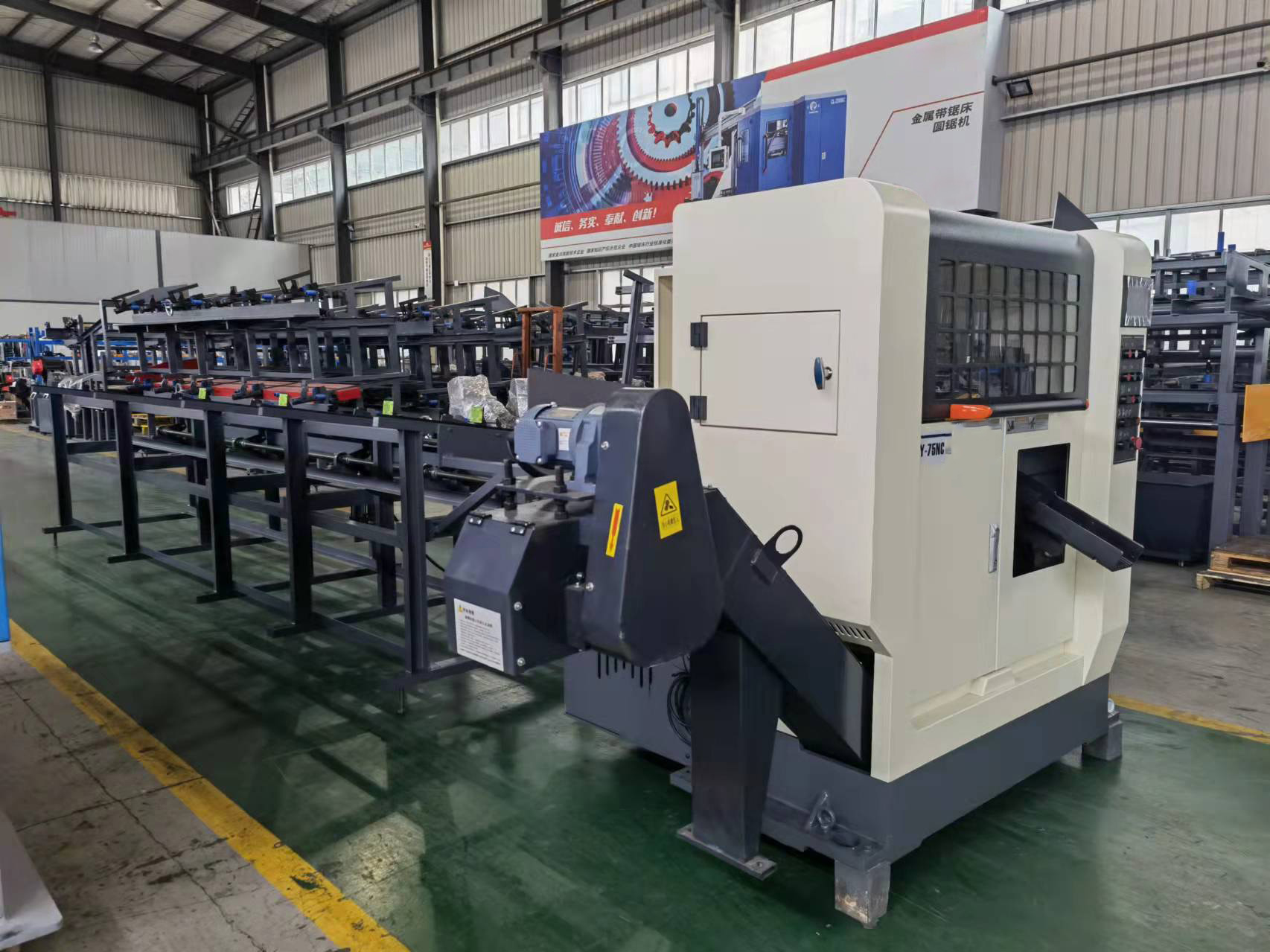

MFG HY-75NC Fully Automatic High-Speed Circular Saw

CNC Precision, Burr-Free Cutting up to 75mm with Intelligent Touchscreen Control

Product Overview
The MFG HY-75NC is a state-of-the-art, fully automatic high-speed metal circular saw engineered for high-volume, precision manufacturing. Designed to cut solid bars and round tubes up to 75 mm in diameter, this machine delivers impeccably smooth, burr-free surface finishes that eliminate the need for secondary machining. Weighing a massive 2750 kg, the rugged steel construction naturally minimizes vibrations, ensuring decades of accuracy. Powered by a formidable 7.5 kW inverter-driven motor and commanded by an intuitive touchscreen interface, the HY-75NC fully automates material feeding, clamping, and cutting, making it the ultimate high-efficiency solution for modern fabrication facilities.

Key Features & Benefits

• Intelligent Fully Automatic System: The user-friendly touchscreen interface allows operators to easily program cut lengths, batch quantities, and monitor real-time operations. The machine handles the rest—automatically feeding and clamping material from the roller rack until the entire batch is complete.
• High-Speed, Burr-Free Performance: Driven by a robust 7.5 kW (3-Phase) main motor, the saw accepts up to a 250 mm blade. Combined with the ultra-rigid 2750 kg steel base, it guarantees vibration-free operation, resulting in perfectly clean, burr-free cuts every time.
• Stepless Inverter-Driven Speed: Features an infinitely adjustable variable speed system (20–160 RPM). This allows operators to fine-tune the exact blade speed to perfectly match the hardness of specific metals, maximizing both cut quality and blade lifespan.
• Advanced Material Feed & Hydraulic Clamping: Equipped with a 2.25 kW hydraulic motor and a floating vise system. Operators can easily dial in specific clamping pressures and speeds—displayed clearly on dial indicators—ensuring materials are held rigidly without deformation. The multiple-feed system supports maximum cut lengths up to 9,999 mm.
• Premium Oil Mist Coolant System: Upgraded with an advanced oil mist lubrication system. This provides superior cooling directly to the cutting teeth, improving the surface finish and significantly extending the life of both the circular blade and the machine.
• Uncompromising Safety Standards: Built with maximum operator safety in mind. Features include a large protective safety guard to deflect flying metal debris and an emergency flashing light system that instantly alerts the operator to any operational anomalies.
• Dependable Support & Warranty: Designed for convenient, low-downtime maintenance. MFG backs this high-speed circular saw with a 1-year parts warranty, an extensive inventory of fast-shipping replacement parts, and lifetime technical support by phone from our experienced machinery experts.
