MFG Machinery HYX-180NC Fully Automatic High-Speed CNC Circular Saw

Ultra-Precision Solid Bar Cutting with Fully Automated Bundle Loading System

Product Overview

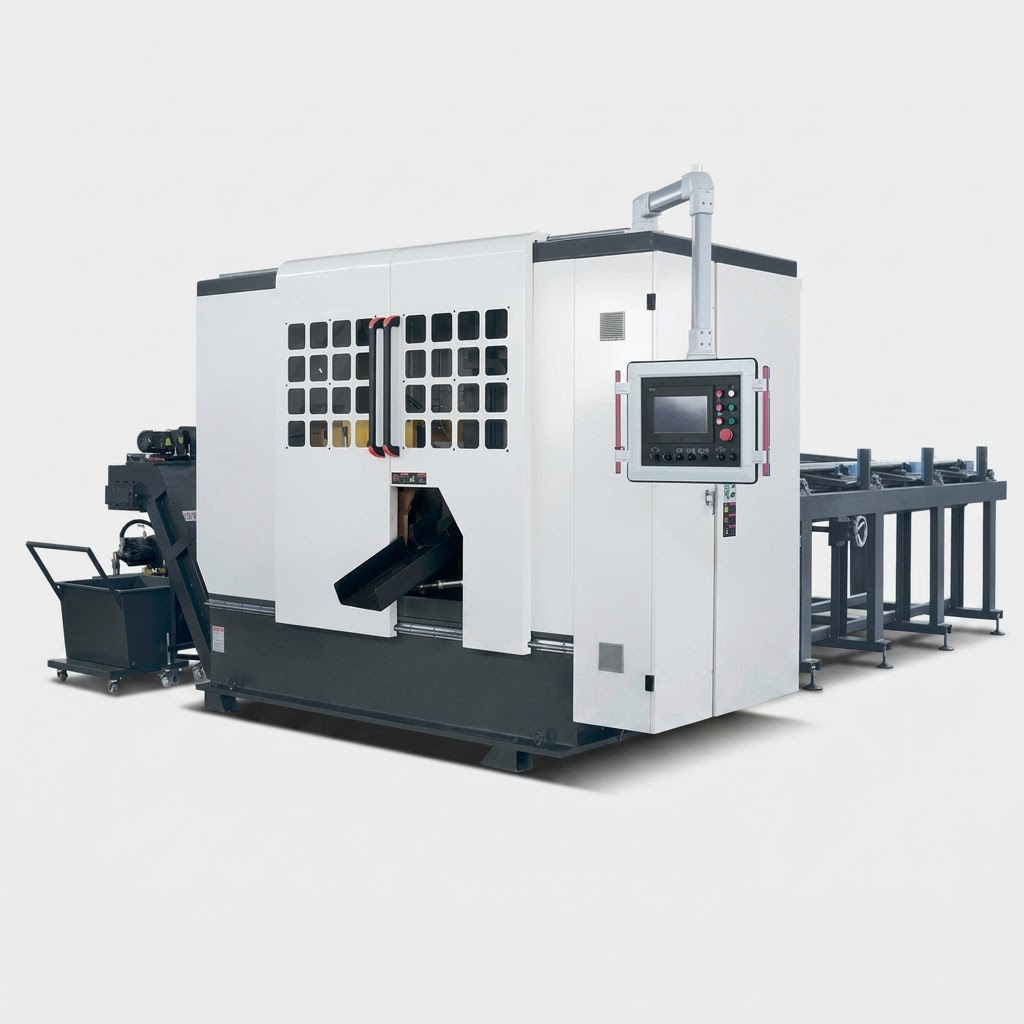

The MFG Machinery HY-180NC is a premium, fully automated high-speed metal circular saw engineered for ultra-precise, high-volume production.

Designed with a high-strength integrally cast machine bed, this industrial powerhouse guarantees exceptional rigidity and vibration absorption. It is capable of achieving near-mirror surface finishes (Ra ~3.2) and extreme verticality (0.2/100mm), eliminating the need for secondary facing.

What sets the HY-180NC apart is its complete "unmanned" operation capability—from the automated 6-meter bar magazine loading and servo-driven feeding to the final precision cut, the entire process is seamlessly governed by an advanced CNC touchscreen interface.

Key Features & Benefits

• Ultra-Rigid Cast Machine Bed: The main body is integrally cast from high-strength special materials and subjected to high-temperature tempering and aging treatments. This eliminates internal defects and ensures massive structural rigidity, impact resistance, and zero deformation under heavy loads.
• Zero-Gap Precision Gearbox & Spindle: The power head features precision-ground gears and imported high-strength bearings for ultra-low noise and high transmission efficiency. Equipped with a Taiwan-imported magnetic powder brake, it achieves zero-gap transmission, preventing blade chatter and significantly extending the blade's service life.
• Scissor-Type Servo Saw Feed: Driven by a premium servo motor and ball screw, the saw box performs a powerful, scissor-type strong feed. This ensures the blade slices through clamped heavy workpieces with unparalleled speed and accuracy.
• Dual-Direction Hydraulic Clamping: Features two sets of horizontal and vertical hydraulic clamping devices with quenched alloy steel jaws. Both front and rear clamps operate simultaneously and can be finely adjusted to provide the exact pressure needed to secure materials without distortion.
• Fully Automated CNC & Touchscreen: Command the entire operation via an intuitive PLC touchscreen. Once the bundle is unpacked, the machine autonomously handles material transferring, auto-feeding, precision sawing, and separating the head/tail ends without any manual intervention.
• High-Precision AC Servo Auto-Feeding: Material feeding is driven by an AC servo-controlled high-precision ball screw mechanism built on a shock-resistant gray iron casting raceway. It guarantees slip-free, pinpoint accurate feeding and features an automatic blank counting system.
• Automatic Bundle Loading System (Turning Rack): Includes a heavy-duty material rack capable of storing 4-7 meter long bars. Driven by hydraulic linkage mechanisms, it automatically separates and feeds single bars from a bundle into the main machine. An integrated photoelectric sensor automatically detects the front position of the material (tolerating up to 200mm of unevenness), drastically reducing labor intensity.

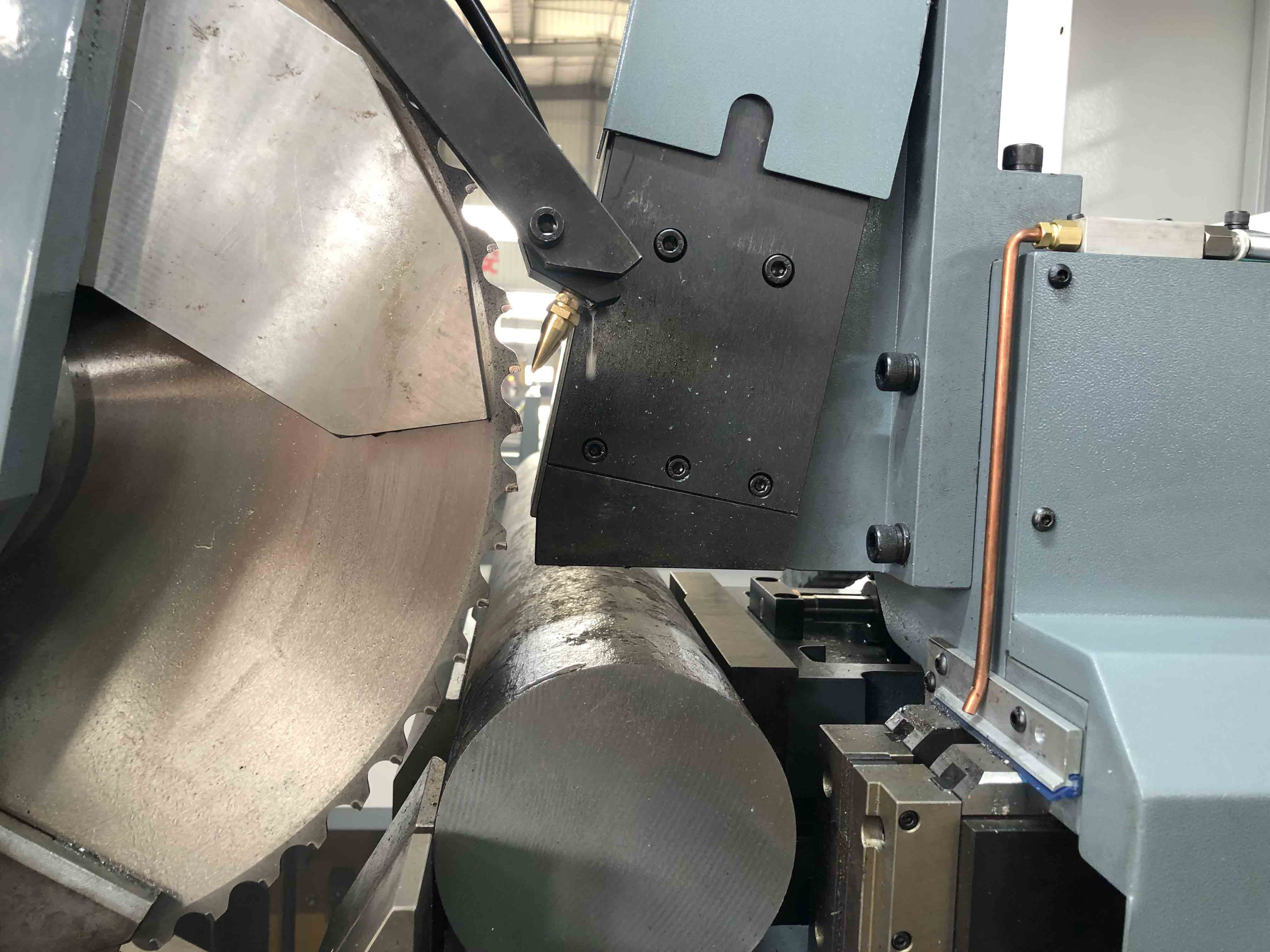

• Dual Cooling Options (MQL & Flood): Can be equipped with an advanced Micro-Quantity Lubrication (MQL) spray system to accurately measure and apply cutting oil directly to the teeth, or a traditional cutting fluid cooling device, ensuring optimal thermal management for any material type.
• Automatic Lubrication Station: An independent, closed-loop automatic lubrication system routinely greases bearings, slides, and mechanical transmission parts, triggering an alarm if maintenance is required.
