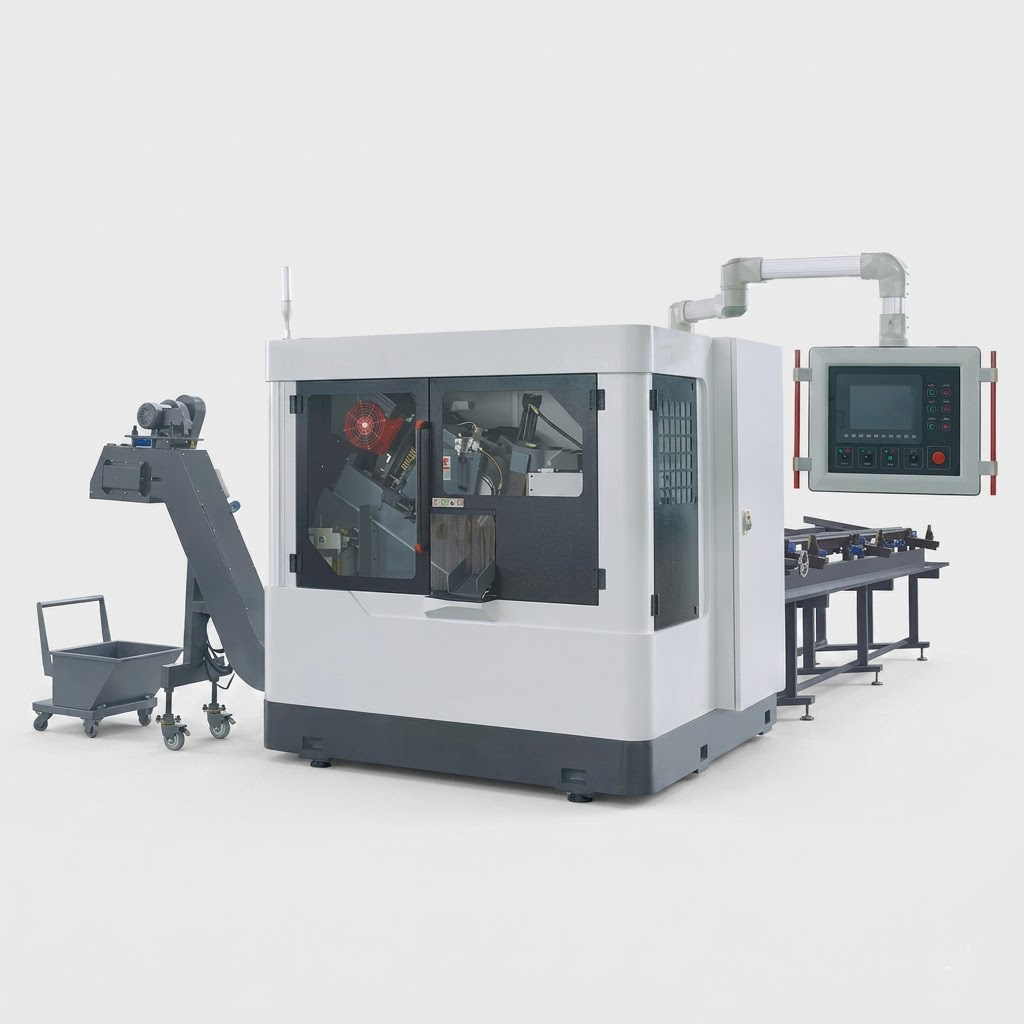

MFG HY-120NC Fully Automatic High-Speed CNC Cold Saw

Colossal 15kW Power & 4.8-Ton Rigidity for Burr-Free Cutting up to 120mm

Product Overview

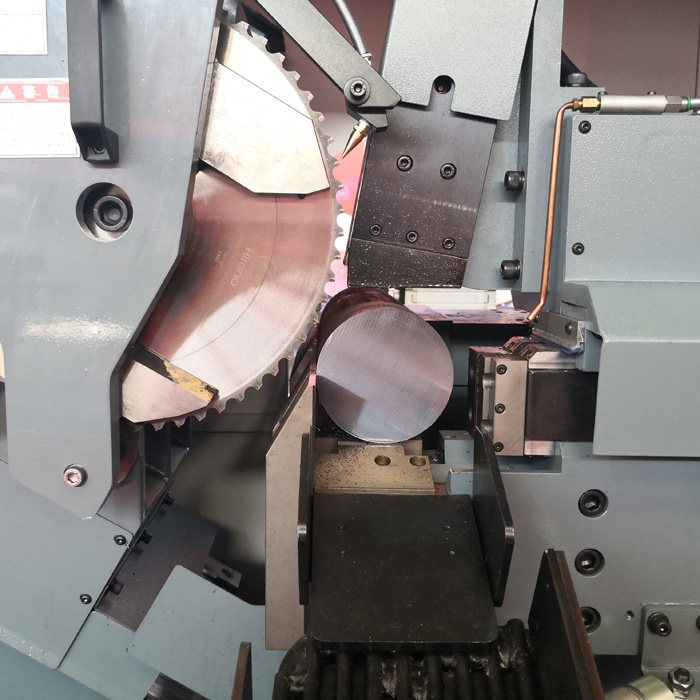

The MFG HY-120NC stands at the absolute pinnacle of our high-speed circular cold saw lineup. Purpose-built to conquer the most extreme high-volume metal fabrication demands, this 4.8-ton (4800 kg) industrial behemoth guarantees zero cutting vibration. Driven by a colossal 15 kW inverter-controlled main motor, it effortlessly powers a 360 mm blade through solid heavy bars and round tubes up to 120 mm in diameter. Renowned for delivering impeccably smooth, burr-free surface finishes, the HY-120NC completely eliminates costly secondary deburring processes. Governed by an intuitive CNC touchscreen, it fully automates material feeding, hydraulic clamping, and precision cutting, making it the ultimate powerhouse for continuous, heavy-duty batch production.

Key Features & Benefits

• Colossal 15 kW Cutting Power: At the heart of the machine is a massive 15 kW (3-Phase) main motor. This immense industrial torque guarantees non-stop, high-speed cutting through the toughest, thick-walled metals and solid 120mm stock without the blade ever stalling or bogging down.
• Ultra-Rigid 4.8-Ton Construction: Weighing an astonishing 4800 kg, the rugged steel architecture provides unmatched structural strength. This immense mass naturally absorbs all mechanical vibrations, ensuring a perfect, mirror-like burr-free finish that saves your facility countless hours of secondary machining.

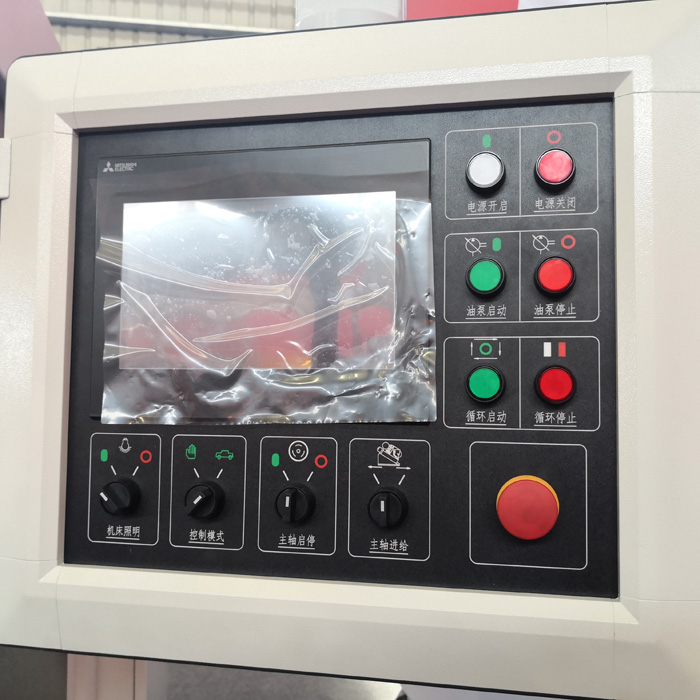

• Intelligent Touchscreen Automation: Set it and forget it. The user-friendly CNC touchscreen allows operators to easily program cut lengths, batch quantities, and monitor real-time operations. The machine will automatically feed material from the roller rack until the exact batch is complete.
• Stepless Inverter Speed Control: Features an infinitely adjustable variable speed system (40–160 RPM). This allows operators to fine-tune the exact blade speed to perfectly match specific material hardness, maximizing both cut quality and the lifespan of your circular blades.
• Precision Hydraulic Clamping & Auto-Feeding: Equipped with a dedicated 2.25 kW hydraulic motor and an adjustable floating vise. Operators can check and adjust clamping pressure and speed via clear dial indicators, ensuring heavy materials are securely held without deformation. The multiple-feed system allows for maximum cut lengths up to 9,999 mm.
• Advanced Oil Mist Coolant System: Integrated with a premium oil mist lubrication system that delivers cooling directly to the cutting teeth. This drastically improves the cut quality and extends the life of both the blade and the machine's internal components.

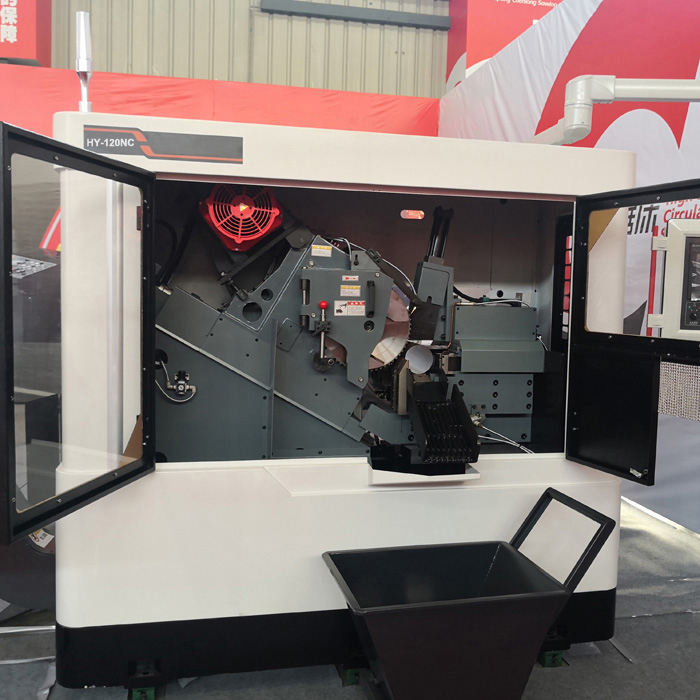

• Uncompromising Operator Safety: Built with a large protective safety guard to shield operators from flying metal debris, alongside an emergency flashing light system that instantly alerts the shop floor if the machine detects any operational anomalies.

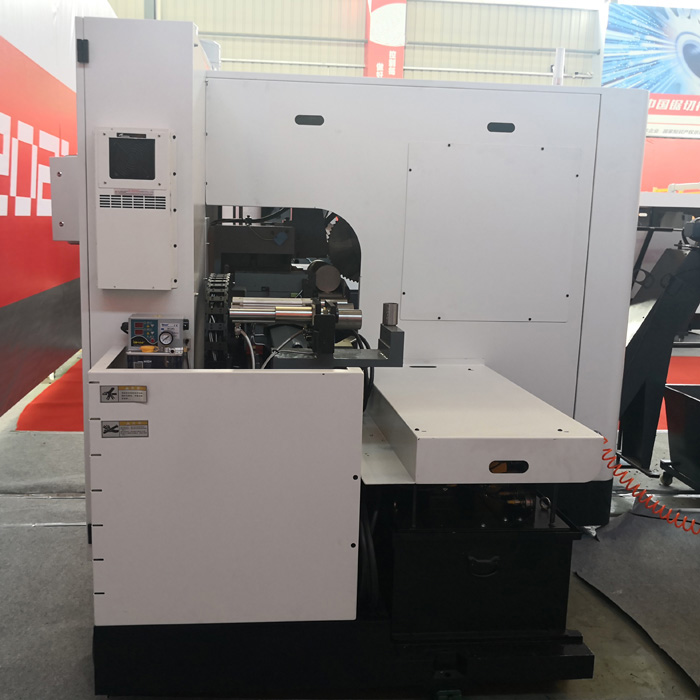

• Reliable Support & Easy Maintenance: Designed for convenient maintenance to minimize downtime. MFG backs this circular cold saw with a 1-year parts warranty, an extensive stock of fast-shipping replacement parts, and lifetime technical phone support from our hands-on machinery experts.
