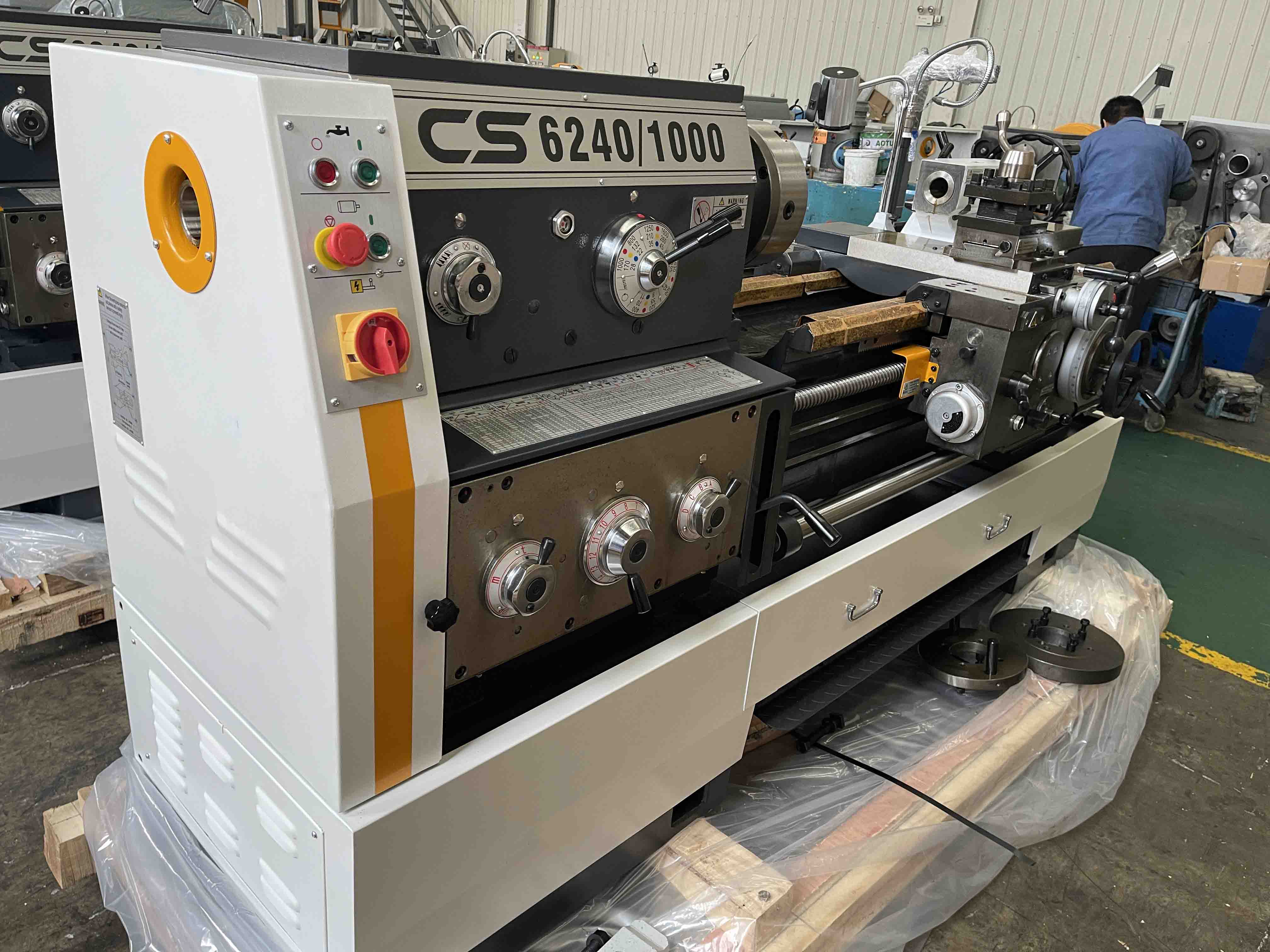

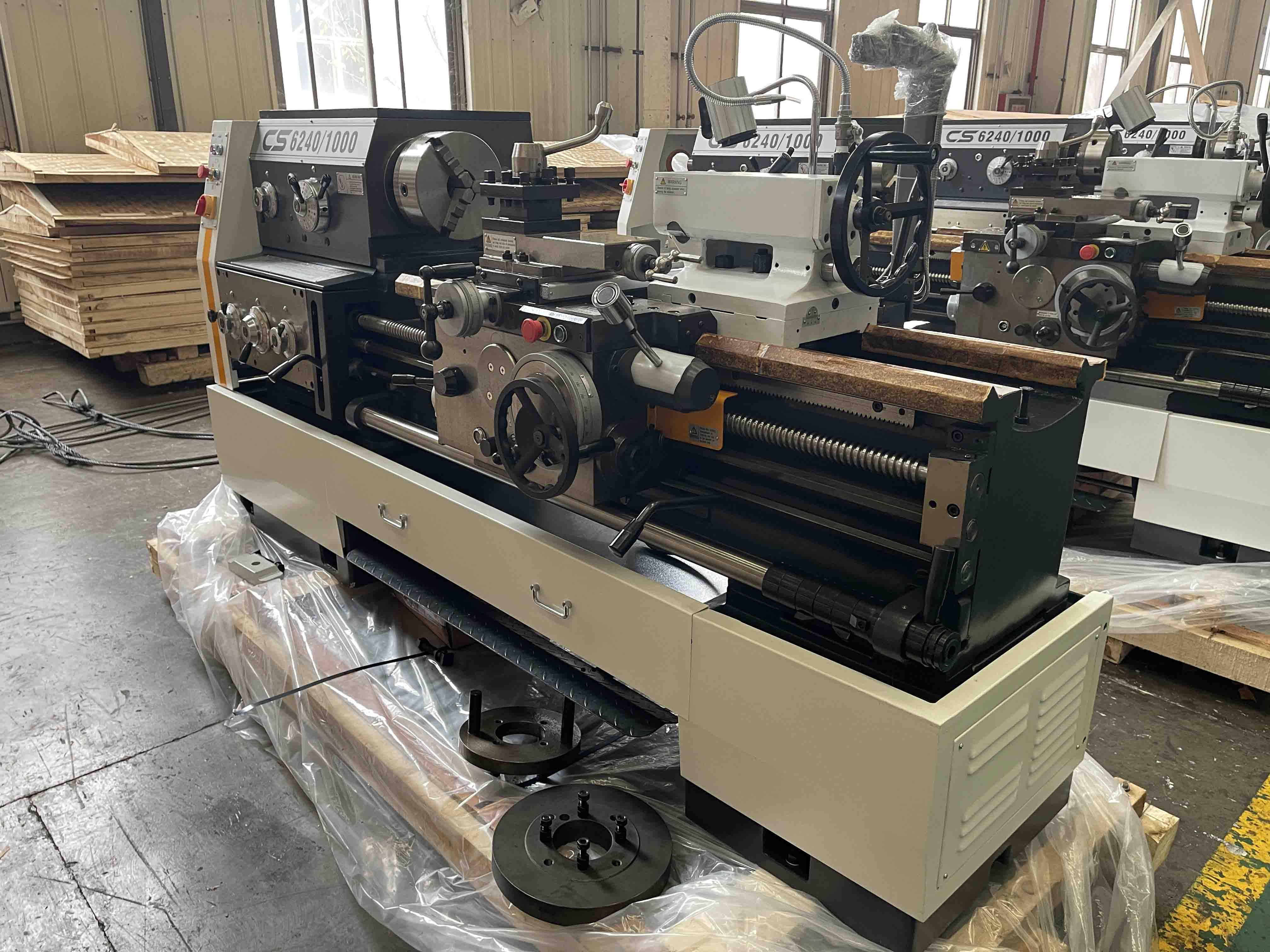

MFG Machinery CS Series Precision Conventional Lathe

Versatile Heavy-Duty Manual Lathe (CS6140 / CS6240 / CS6150 / CS6250) for Industrial Metalworking

Product Overview
The MFG Machinery CS series represents a robust and highly versatile solution for precision manual turning. Engineered for a wide array of rotary machining tasks, these lathes excel in internal/external turning, taper turning, and end facing. With swing capacities over the bed up to 500mm and centers extending up to 2000mm, the CS series is built to handle medium to large-scale workpieces with ease. Whether you are performing complex threading, heavy-duty boring, or groove broaching, the combination of a high-rigidity 390mm wide bed and a powerful 7.5kW motor ensures reliable accuracy and superior performance in any professional workshop.

Key Features & Benefits

• Multi-Functional Machining Excellence: Beyond standard turning and end facing, this series is capable of taper turning, drilling, boring, and groove broaching, making it a truly multi-purpose workstation for complex rotary parts.
• Universal Threading Capabilities: Fully equipped to handle Metric, Inch, Module, and D.P. threading. This comprehensive range allows workshops to seamlessly pivot between international projects without additional equipment.
• Large Spindle Bore Options: Comes standard with a 52mm spindle bore, with optional 82mm and 105mm large-bore configurations. This flexibility allows for the processing of significantly larger diameter bar stocks.
• Dual Measuring Systems (Metric & Inch): Integrated scales for both Metric and Inch systems make these lathes user-friendly for operators in different countries, eliminating the need for complex conversions.
• Superior Structural Rigidity: Features a 390mm wide bed integrally cast for maximum stability. This heavy-duty build dampens vibrations during high-load operations, ensuring a superior surface finish.
• Flexible Safety & Power Configurations: Operators can choose between hand or foot braking systems based on their workflow. Furthermore, the machine is designed for global compatibility, supporting various voltages (220V, 380V, 420V) and frequencies (50Hz/60Hz) tailored to your local power grid.
• Precision Speed Control: A 12-step spindle speed range (up to 1400 or 1600 RPM) allows for optimal cutting conditions across a wide variety of metal materials.
