2M9120 Multi-Purpose Grinding Machine

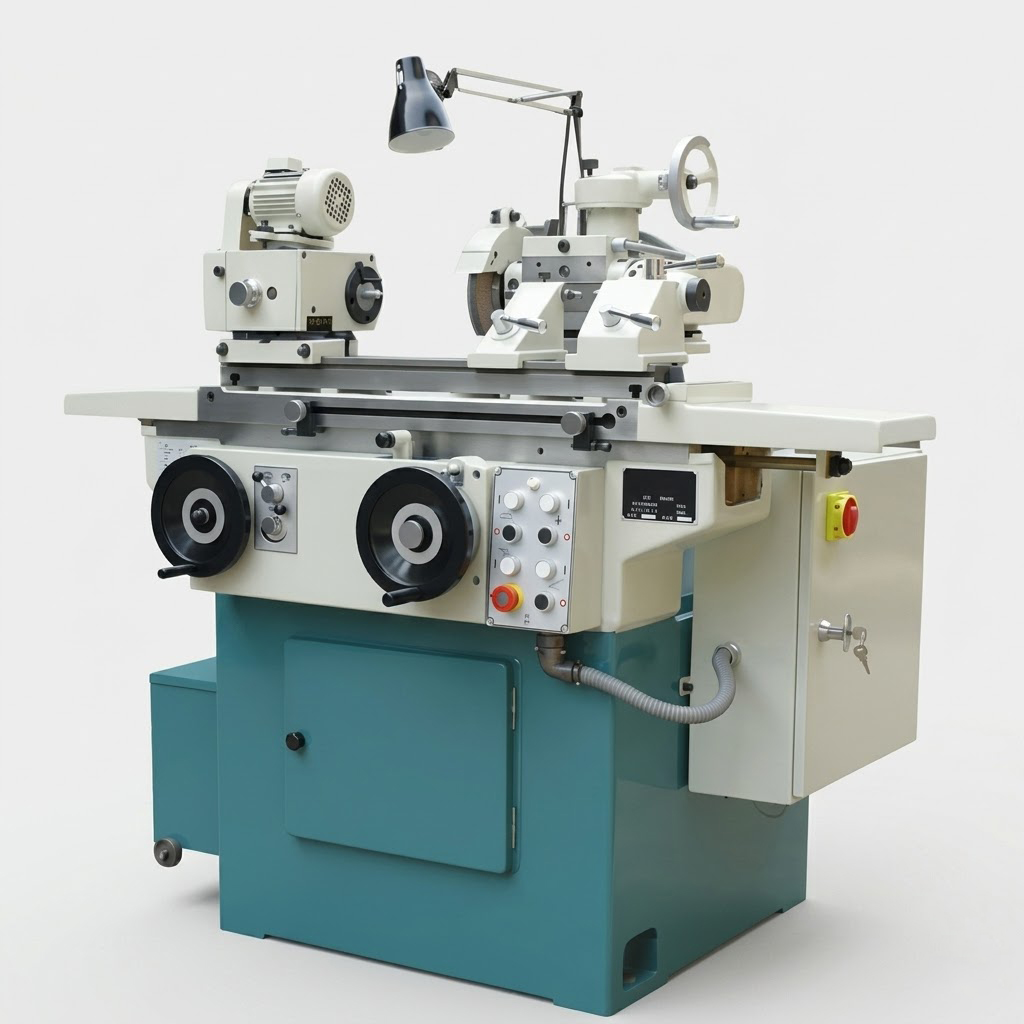

The 2M9120 multi-purpose grinding machine integrates the performance of universal cylindrical grinding machine and universal tool grinding machine in one unit.
2M9120 Multi-Purpose Grinding Machine
The 2M9120 multi-purpose grinding machine integrates the performance of universal cylindrical grinding machine and universal tool grinding machine in one unit.
It achieves high-precision grinding for internal/external cylindrical parts, conical workpieces, planes, vertical surfaces, inclined surfaces and grooves. The machine is widely applicable for sharpening various standard cutting tools including milling cutters, reamers, gear shaper cutters, turning tools and planer tools. Equipped with professional special accessories, it can also process straight groove gear hobs, drills and other complex workpieces.
Ideal for tool workshops, equipment maintenance workshops, scientific research institutions as well as small and medium-sized machinery factories. The grinding wheel spindle features stable operation and convenient adjustment. The worktable supports hydraulic automatic reciprocating movement, and adopts innovative manual hydraulic follow-up control structure, ensuring flexible, labor-saving and lightweight operation experience.
Standard Equipment List
- Complete machine (optional 9125 head and tail frame)
- 1 set of cooling device
- 1 set of 160mm three-jaw chuck with base
- 1 set of internal grinding tool
- 5 sets of chucks
- 1 set of grinding wheel dresser device
- 1 set of grinding wheel balancing device
- 3 pcs of special grinding wheel removal wrench
- 2 pcs of V-belt
- 2 sets of grinding wheel guard
- 3 pcs of grinding wheel flange
- 3 pcs of machine tool pad iron
| Specification Item | Technical Parameter |
|---|---|
| Model | 2M9120 |
| Max.workpiece rotation diameter & length on worktable | φ200×500mm（8＂×20＂） |
| Cylindrical grinding diameter range | φ5—50mm（0.2＂—2＂） |
| Internal grinding diameter range | φ10—50mm（0.4＂—2＂） |
| Knives grinding diameter | φ200mm（8＂） |
| Max. length of cylindrical grinding workpiece | 400mm(16＂) |
| Max. length of inner circle grinding workpiece | 75mm（3＂） |
| Grinding plane size (D×b) | 200×50mm（8＂×2＂） |
| Max. grinding workpiece weight | 10kg |
| Center height | 100mm（4＂） |
| Center distance between head and tail frame | 430mm（17＂） |
| Center distance between left and right tail-stocks | 500mm（20＂） |
| Spindle bore taper | Mohs 2 |
| Spindle speed (3 levels) | 110,200,300r/min (220V 60HZ:130,240,360r/min) |
| Head-stock rotation angle | 90° |
| Chuck diameter | φ100mm（φ4＂） |
| Grinding wheel frame vertical max movement | 200mm（8＂） |
| Grinding wheel frame horizontal max movement | 200mm（8＂） |
| Wheel-head vertical feed per hand-wheel revolution | 2mm（0.008＂） |
| Wheel-head vertical feed per hand wheel grid | 0.001mm（0.0004＂） |
| Grinding wheel frame lateral feed per revolution(fine/coarse) | 1/4mm（0.04＂/0.157＂） |
| Grinding wheel frame lateral feed per grid(fine/coarse) | 0.005/0.02mm（0.0002＂/0.0008＂） |
| Wheel-head horizontal rotation angle | ±90° |
| Wheel speed | 2500r/min（220V 60HZ:2950r/min） |
| Flat grinding wheel (outer circle) | P φ200×20×φ75mm |
| Flat general grinding wheel | P φ200×13×φ32mm |
| Butterfly grinding wheel | D1 φ150×16×φ32mm |
| Bowl grinding wheel | BW φ125×35×φ32mm |
| Internal grinding head speed | 135000r/min（220V 60HZ:16000r/min） |
| Internal grinding wheel 1 | P φ25×20×φ6mm |
| Internal grinding wheel 2 | P φ10×10×φ3mm |
| Max. linear speed of grinding wheel | 35m/s |
| Max. longitudinal movement of table | 480mm（19＂） |
| Hydraulic longitudinal moving speed | 0.1—6m/min（0.33—20ft/min） |
| Follow up moving speed | ≤7m/min（23ft/min） |
| Worktable movement per hand wheel rotation | 17mm（0.67＂） |
| Upper table max rotation angle | +45°，-30° |
| Tail-stock top hole taper | Mohs 2 |
| Tail-stock sleeve movement | 14mm(0.55＂) |
| Hydraulic work pressure | 0.8—1.2Mpa |
| Hydraulic auxiliary pressure | 0.5—0.6Mpa |
| Lubrication pressure | 0.08—0.15Mpa |
| Cooling pump flow | 22L/min |
| Total motor capacity | 2.905Kw |
| Grinding wheel motor power | 1.1Kw |
| Head frame motor power | 0.18Kw |
| Hydraulic pump motor power | 0.75Kw |
| Cooling pump motor power | 0.125Kw |
| Vacuum cleaner motor power | 0.75Kw |
| Machine dimension (L×W×H) | 1520×1142×1338mm |
| Packing dimension (L×W×H) | 1860×1360×1590mm |
| Gross/Net weight | 1700KG/1350KG |
