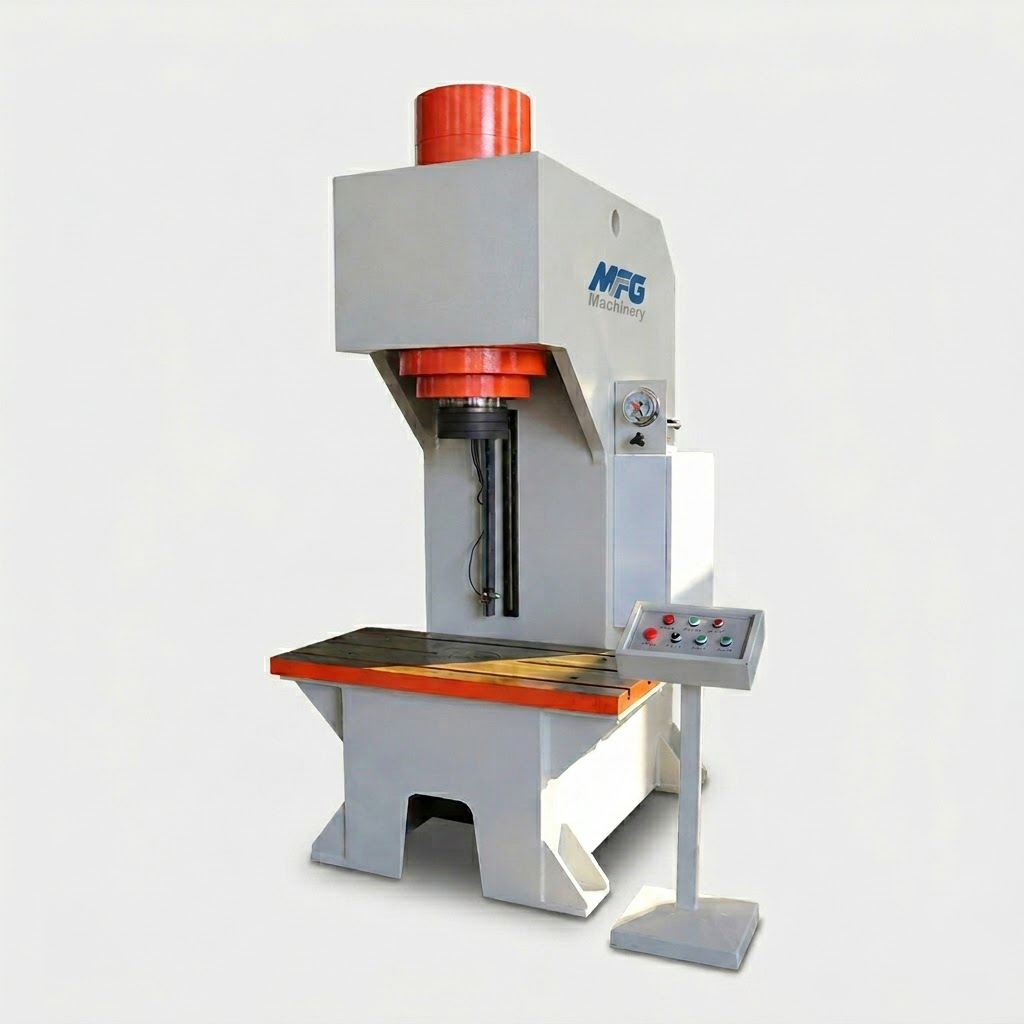

200 Ton Single Column Hydraulic Press

The 200 Ton Single Column Hydraulic Press, also known as  C type Hydraulic Press, is a high-performance industrial equipment produced by Shanghai MFG Machinery Equipment Co., Ltd with the model YQ41-200T. It adopts a C-type single arm structure, where both the machine body and workbench are made of steel plate welded structure, followed by aging treatment to effectively eliminate internal stress. The frame design is optimized through finite element analysis, ensuring high rigidity and high precision, which can meet the strict requirements of various industrial processing scenarios.

Product Details

The 200 Ton Single Column Hydraulic Press ( C type Hydraulic Press) is independently developed and produced by Shanghai MFG Machinery Equipment Co., Ltd, with the model YQ41-200T. Its core structural design focuses on stability and operability: the C-type single arm structure provides a wide operating space, making it convenient for loading and unloading workpieces; the machine body and workbench are made of high-quality steel plate through welding, and after aging treatment, the internal stress generated during welding is completely eliminated, avoiding deformation during long-term use. The frame is designed by finite element analysis, which greatly improves the rigidity and precision of the equipment, ensuring stable operation and accurate processing effect.

Application Scope

The 200 Ton Single Column Hydraulic Press is widely used in various industries due to its strong adaptability, mainly including:

• Calibration of shaft parts and profiles, and press-fitting of sleeve parts;
• Bending, embossing, and sleeve forming of sheet metal parts;
• Stretching of simple parts and processing of plastic products;
• Assembly lines of machine tools, internal combustion engines, textile machinery, shafts, bearings, washing machines, automotive motors, air conditioning motors, electrical appliances, military enterprises and foreign-invested enterprises.

Product Features

1. Excellent structural rigidity, good guiding performance and fast running speed, which can improve processing efficiency and ensure processing quality.
2. Convenient manual adjustment mechanism: the pressure head or upper workbench can be pressed at any position in the stroke, and the length of fast forward and working stroke can be adjusted arbitrarily within the designed stroke, adapting to different processing needs.
3. Integrally welded solid open structure: while maintaining sufficient rigidity of the machine body, it provides the most convenient operating space, facilitating the operation of workers and improving work efficiency.
4. Hydraulic control system: adopts two-way cartridge valve integrated system, which has stable action, long service life, small hydraulic impact, and reduces connecting pipes and leakage points, reducing maintenance costs.
5. Independent electrical control system: stable work, intuitive action and convenient maintenance, which can effectively reduce the failure rate and ensure the continuous operation of the equipment.
6. Button centralized control: equipped with three operation modes of adjustment, manual and semi-automatic, which is simple and easy to operate, and can meet the needs of different operators and processing scenarios.

Installation and Commissioning

Before leaving the factory, the 200 Ton Single Column Hydraulic Press is assembled and commissioned in accordance with the assembly procedure. The hydraulic, electrical and other control systems are carefully inspected, and no-load test run and overload test run are carried out in accordance with the regulations to ensure that the equipment can reach the standard performance and be put into use directly after delivery.

Shanghai MFG Machinery Equipment Co., Ltd is committed to providing high-quality hydraulic equipment and perfect after-sales service. If you have any questions about the 200 Ton Single Column Hydraulic Press (YQ41-200T), please contact our consultation hotline, and we will provide you with professional answers and solutions.
