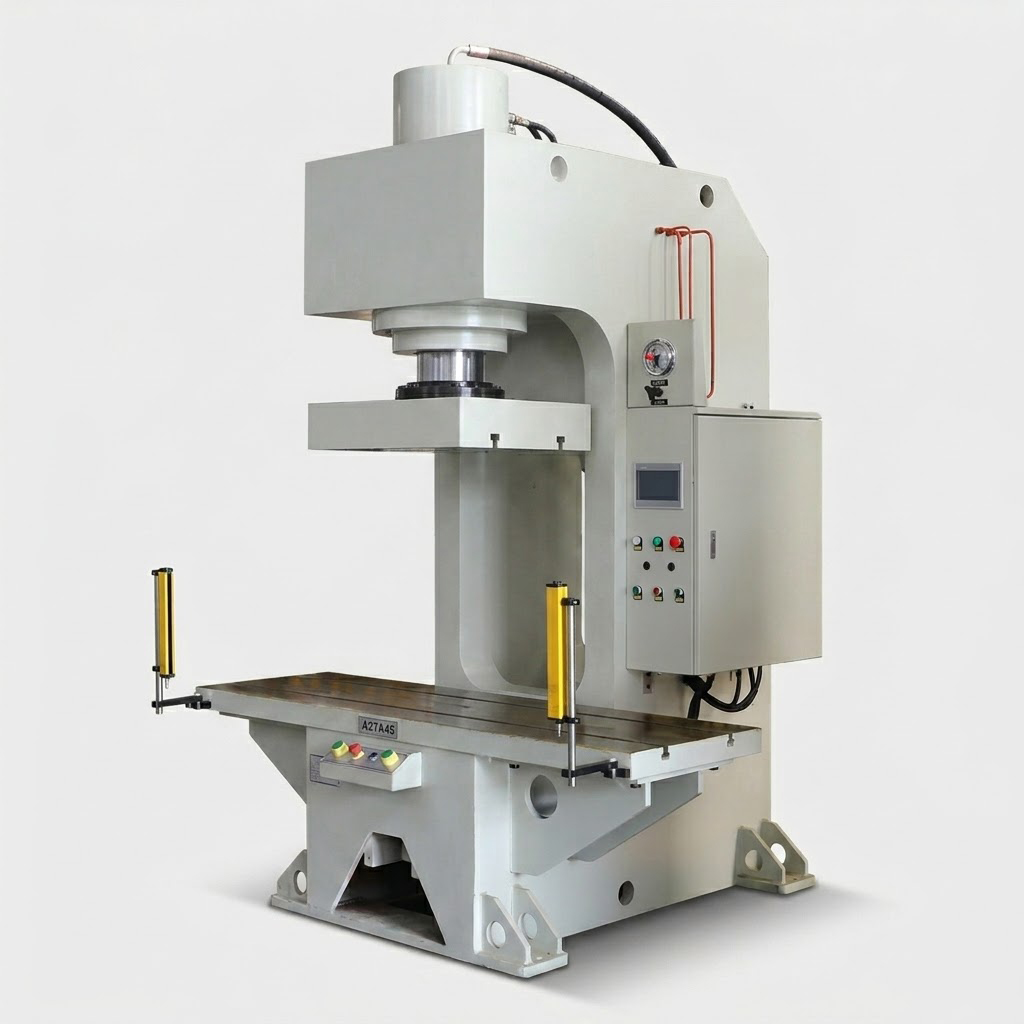

200 Ton Single-Arm Hydraulic Straightening Press (C-Frame Press)

The 200-ton single-arm straightening press, also known as a C-frame hydraulic press, is a high-performance machine specifically engineered for the precision correction, press-fitting, and forming of shafts, sleeves, and round steel components. With its heavy-duty design and flexible operation, it is a core asset for automotive, aerospace, and heavy machinery industries.

Key Applications:

• Precision Straightening: Ideal for axle shafts, gear shafts, rotors, piston rods, crankshafts, camshafts, and steering racks.
• Versatile Processing: Efficiently handles press-fitting, metal forming, blanking, and embossing.
• Broad Industry Use: Extensively used in machine tools, internal combustion engines, textile machinery, bearings, automotive motors, and military enterprises.

Core Technical Features:

• High-Rigidity C-Frame Structure: The body is designed using Finite Element Analysis (FEA) and constructed from high-quality welded steel plates. Post-weld high-frequency vibration treatment eliminates internal stress, ensuring the machine remains deformation-free under high loads.
• Advanced Hydraulic System: Utilizes an integrated cartridge valve system for compact structure, sensitive response, and minimal noise.
• Stability & Control: Independent electrical control system ensures stable operation and easy maintenance.
• Customizable Options: Available with PLC control, grating protection devices (light curtains), and a movable worktable to allow straightening at any point along the workpiece length.
