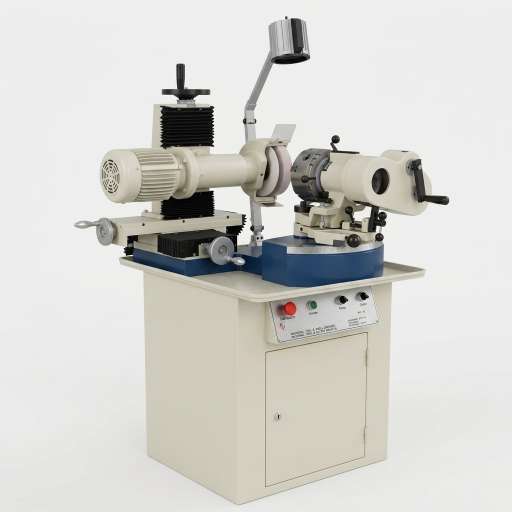

PP80N drill grinding machine is specially designed for manufacturing and resharpening HSS and carbide tools, including twist drills, step drills, center drills, taps, end mills and other similar cutting tools.

It finishes point angle, relief angle, main cutting edges and chisel edge in one clamping, no professional skilled operator needed. Fully adjustable point and relief angles ensure high grinding accuracy and excellent repeatability.

Easy operation with high precision makes it ideal for machinery manufacturing, mold making, wind power, boiler, steel structure, pressure vessel, heavy equipment, construction machinery, vehicle and shipbuilding industries. It effectively cuts tool cost and improves workshop production efficiency.

Standard Equipment

Main machine: 1 unit
Precision 6-jaw chuck assembly: 1 set
Aluminum oxide grinding wheels: 2 pcs
Diamond wheel dresser: 1 pc
LED work lamp: 1 pc
Tool kit: 1 set
Taper shank Morse sleeves: MT3 / MT4 / MT5, 1 pc each
Profile cam plates:
Integrated coolant system
Auto grinding attachment included

Item	Description	Specification
1	Tool Types	Twist drills, step drills, chamfer cutters, taps, end-mill ends, round bars, etc.
2	Clamping Capacity	Ø 6 – 80 mm (cylindrical & taper shanks)
3	Table Longitudinal Travel (X)	180 mm
4	Table Cross Travel (Y)	160 mm
5	Wheel-head Vertical Travel (Z)	160 mm
6	Wheel-head Swivel Range	360°
7	Drill Back-taper (Relief) Angle	0° – 18°
8	Drill Point Angle	40° – 180°
9	Grinding-wheel Size	180 × 50 × 31.75 mmAlternative: 180 × 19 × 31.75 mm
10	Grinding-wheel Speed	3600 r.p.m.
11	Motor	1 HP, 380 V, 3-phase
12	Net / Gross Weight	350 kg / 390 kg
13	Packing Dimensions (L×W×H)	1120 × 1000 × 1530 mm

Standard Equipment
