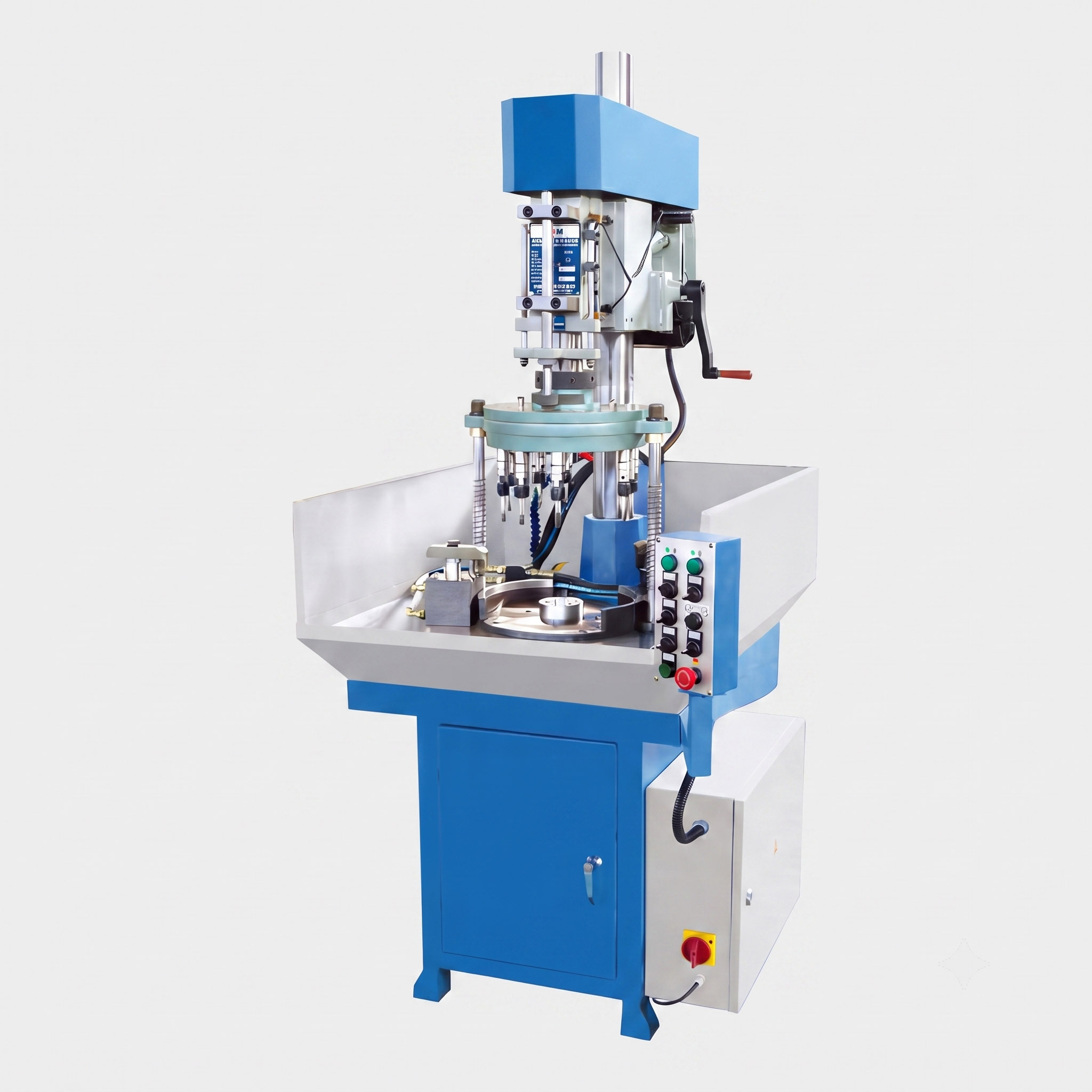

SB8030 Lead-Screw Automatic Tapping Machine

Machine Features

1. Feeding is driven by lead screw, which ensures ideal precision and smooth surface finish of tapped holes.
2. Emergency return & stop button is installed at the most convenient operating position.
3. The electrical control system supports automatic continuous spindle feed cycle and single-jog cycle for mass production.
4. One rotation corresponds to one thread pitch, with mechanically synchronized tapping forward and retraction. Perfect threads can be processed on all common workpiece materials.
5. Inch thread and fine pitch tapping require special custom order.

Standard Accessories

• Tapping chuck (M10–M30)
• One matched lead screw
• Wrench

Special Optional Accessories

• Multi-spindle head
• Bench vice
• Machine stand
