MFG HX-40S Semi-Automatic Rotary Angle Cutting Metal Band Saw

0-45° Hydraulic Miter Cutting, PLC Auto-Feeding & Bevel Helical Gear Drive

Product Overview

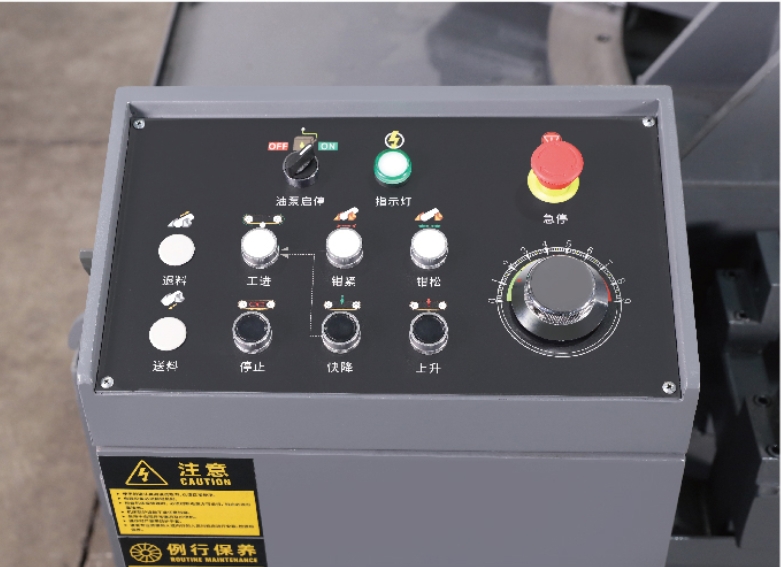

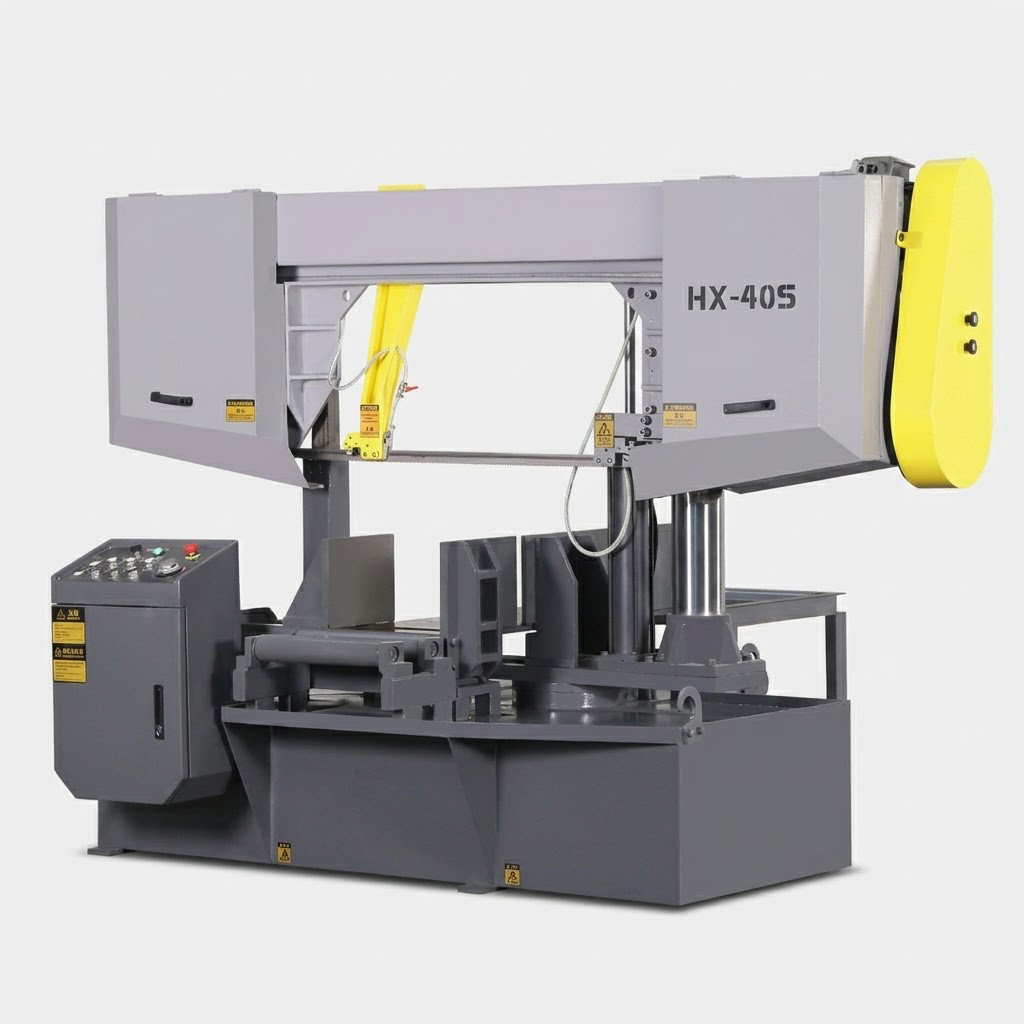

The MFG HX-40S is an advanced semi-automatic horizontal metal band saw specifically engineered for the high-precision sawing of small to medium-sized round pipes, square steel tubes, and complex profiles.

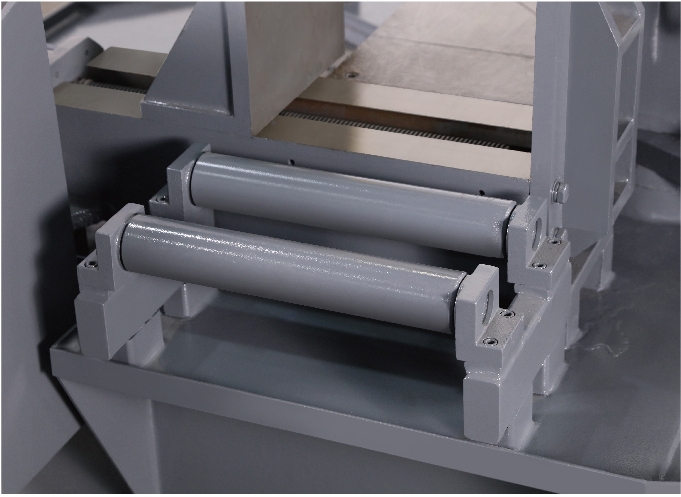

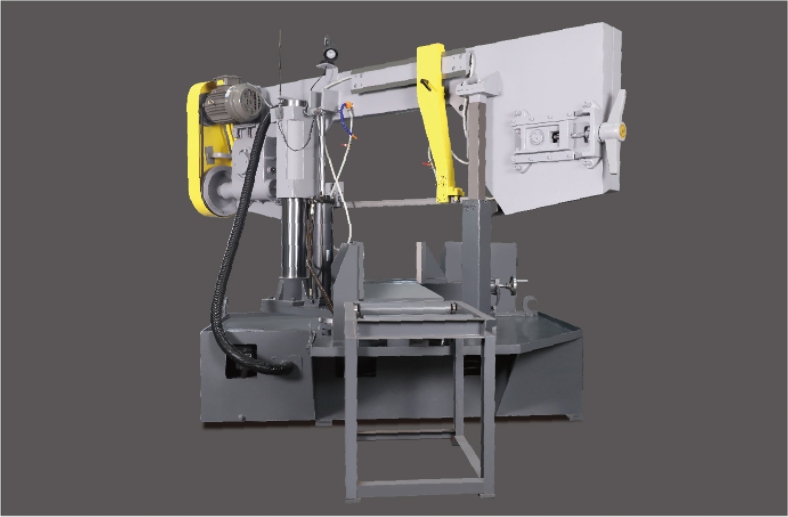

Beyond standard 0° straight cuts, the HX-40S features a highly accurate 0-45° rotary sawing capability driven by a hydraulic system and rotary encoder. Equipped with an intelligent PLC touch screen, hydraulic automatic feeding with a precision linear scale (grating ruler), and a stepless Variable Frequency Drive (VFD), this machine delivers exceptionally narrow kerfs, substantial material savings, and high production efficiency for modern fabrication facilities.

Key Features & Engineering Details

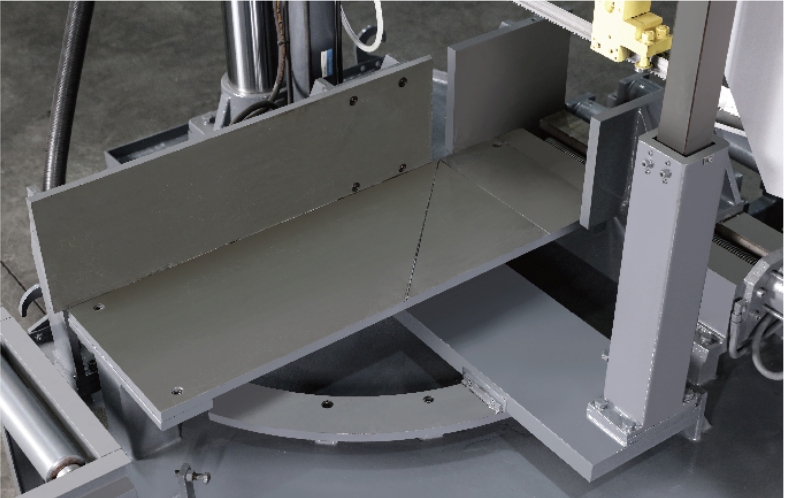

• 0-45° Precision Rotary Cutting System: The machine's angle rotation is driven by a dedicated hydraulic cylinder, with exact angles continuously calculated by a high-precision rotary encoder and displayed on the touch screen. Once the target angle is reached, a hydraulic T-slot cylinder firmly locks the rotary seat to the heavy-duty welded base, completely preventing displacement and angular deviation during heavy cuts.
• Intelligent Auto-Feeding & PLC Control: Moving beyond traditional button panels, all machine actions are controlled via a centralized PLC touch screen. The automatic hydraulic feeding vise moves along a circular guide rail with a single stroke of 400 mm. Length is detected by a precise linear scale (grating ruler), guaranteeing a feeding tolerance within ±0.2 mm. Operators can pre-set up to 5 groups of feeding times and lengths simultaneously.
• Stable Double-Column Architecture: The saw frame's vertical lifting is powered directly by a cylinder piston rod acting as the main column. To maximize cutting stability and eliminate vibration, a secondary small-cylinder auxiliary column is integrated at the left end of the bow-shaped saw frame.
• Stepless VFD & Bevel Helical Drive: The main transmission features a premium bevel helical gear reducer that delivers smooth, impact-free torque. Coupled with a Variable Frequency Drive (VFD), the speed of the driving wheel is steplessly adjustable to perfectly match different metal hardness levels.
• Automatic Feed Overload Protection: An intelligent throttle valve mechanism is installed above the fixed guide head. If the downward feed rate causes excessive blade thrust, a mandrel pushes the guide head upward, automatically reducing the throttle valve opening. This instantly slows the descending speed, preventing tooth stripping and dramatically extending blade life.
• Precision Guiding & Manual Tensioning: The blade is secured by fixed and movable guide arms mounted on a dovetail crossbeam, complete with a pre-guide system. Blade tensioning is precisely controlled via a lead screw mechanism and set using a manual torque wrench to ensure optimal operating tension.
• Independent Hydraulics & Chip Management: An independent hydraulic station (with fan-cooled return oil) isolates heat from the main machine. A built-in helical (spiral) chip conveyor automatically extracts metal shavings, significantly reducing operator labor.
