SB4516 Gear Type Teeth Distance Tapping Machine

Product Type: Gear Type Teeth Distance Automatic Tapping Machine

Core Features

1. Equipped with a counter to record the number of processed threads.
2. Adopts lead screw feeding structure, which ensures high precision of tapped threads and clean inner surface of machined holes.
3. Emergency return & stop button is arranged at the most accessible position for safe operation.
4. The electrical control system supports automatic spindle feed cycle and single-jog cycle, suitable for mass production.
5. Mechanical synchronous tapping/retracting with one rotation for one thread pitch, capable of producing standard perfect threads on common materials including steel and cast iron.

Model Classification

1. SB6532 Series: Heavy-duty model, max tapping capacity M32, spindle travel 65mm, spindle taper MT3. Includes floor type SB6532E with stand and compact bench type SB6532AE.

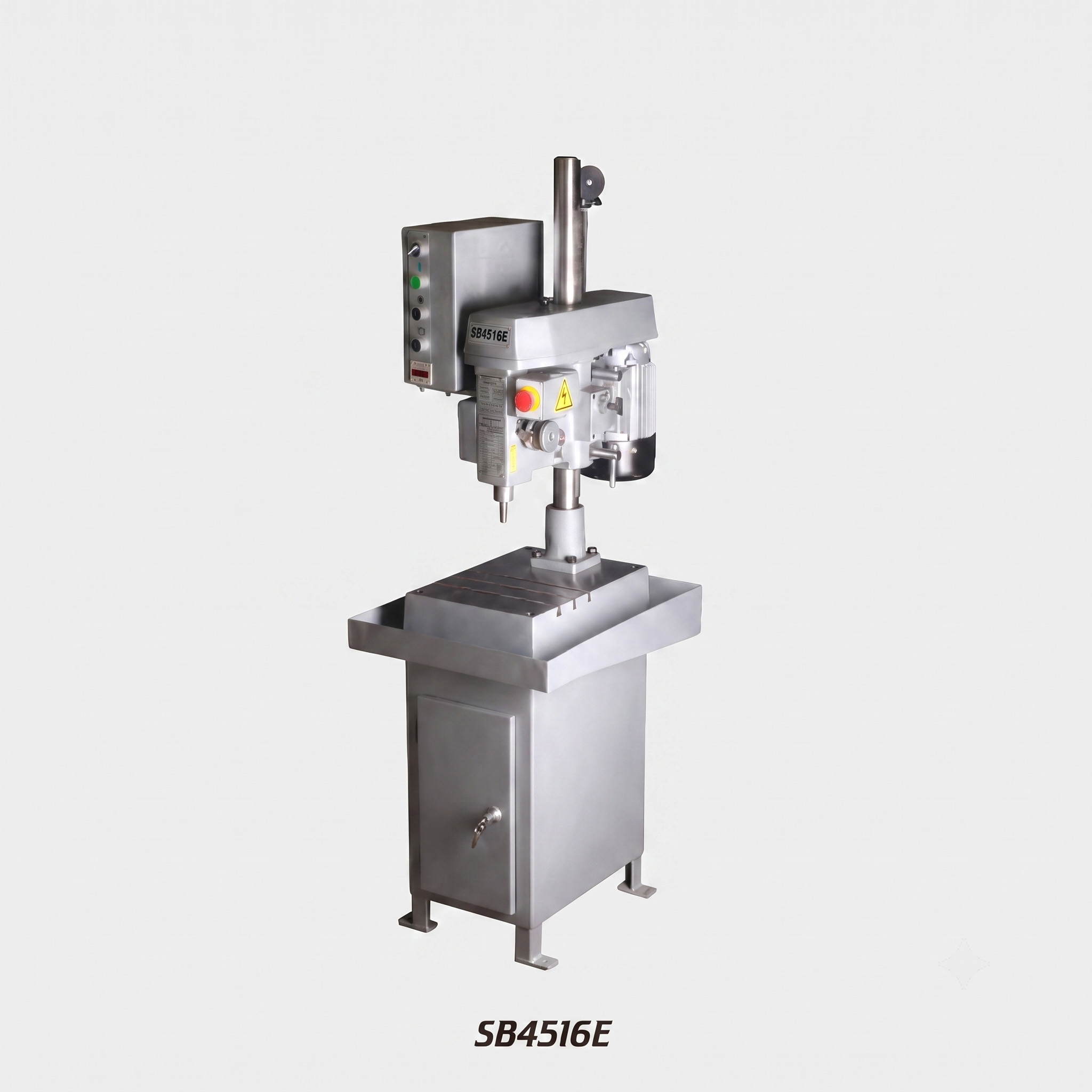

2. SB4516 Series: Medium universal model, max tapping M16 for cast iron & M12 for steel, spindle travel 45mm, spindle taper B16. Includes floor type SB4516E and bench type SB4516AE.
3. SB408E: Compact precision model, max tapping capacity M8, designed for precision thread machining of small workpieces.
4. All models support optional 4P / 6P motors, corresponding to two sets of high & low speed ranges to adapt to workpieces of different hardness.
