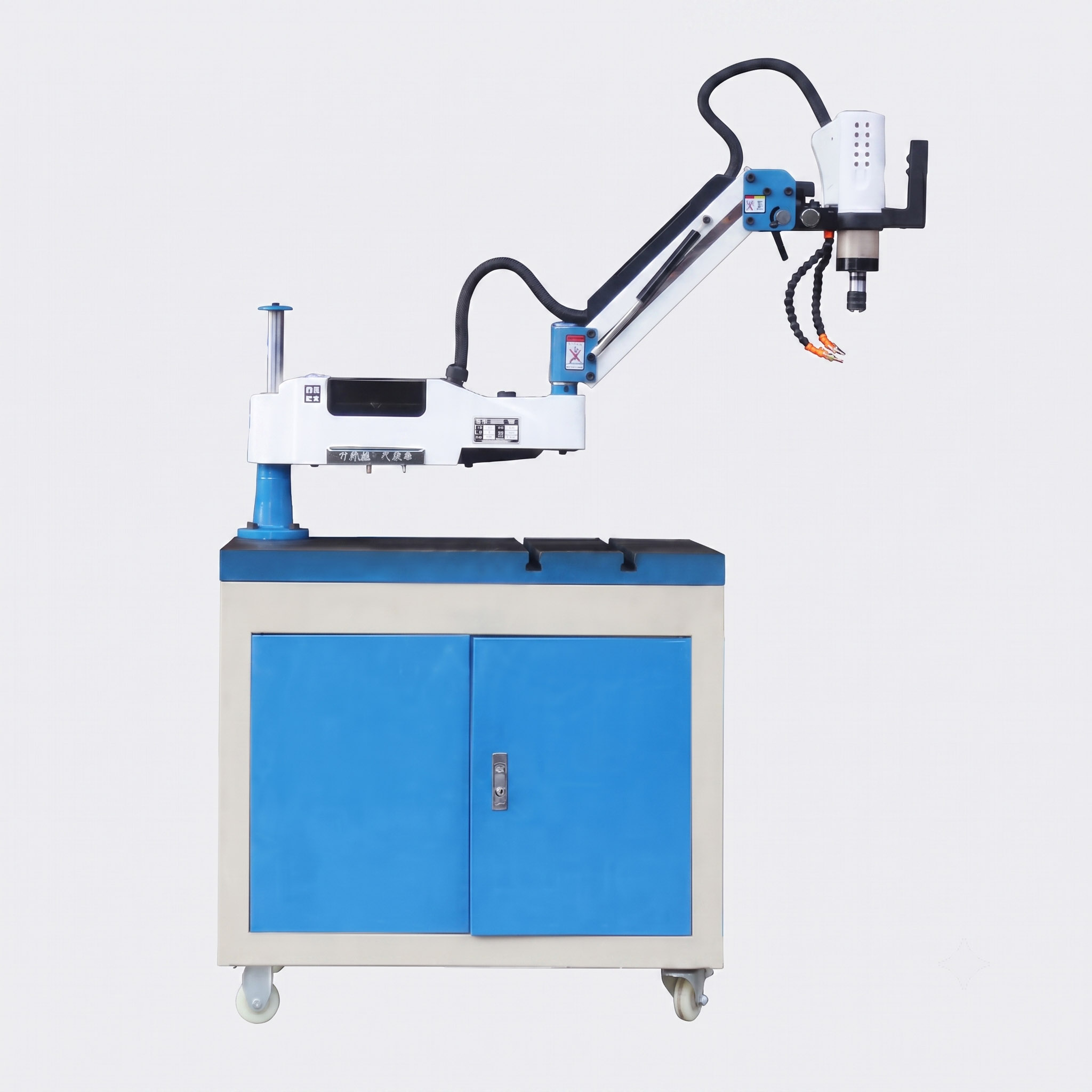

SRM Electric Threading Machine
Tapping Chuck Optional
Tapping Chuck
Optional
| Item | Unit | SRM-M16/M16W | SRM-M24/M24W | SRM-M36/M36W | SRM-M42/M42W |
|---|---|---|---|---|---|
| Max Tapping Range | mm | M3–M16 | M6–M24 | M6–M36 | M16–M42 |
| Spindle Speeds | r/min | 0–300 (adjustable) | 0–200 (adjustable) | 0–150 (adjustable) | 0–200 / 0–50 (adjustable) |
| Power | W | 600 | 1000 | 1200 | 1200 |
| Voltage | V | 220 | 220 | 220 | 220 |
| Working Radius | mm | 1000 | 1200 | 1200 | 1300 |
| Standard Accessories | — | Tapping Chuck M3–M16 (Optional) | Tapping Chuck M6–M24 (Optional) | Tapping Chuck M6–M36 (Optional) | Tapping Chuck M16–M42 (Optional) |
| Work Direction | — | Down / Any | Down / Any | Down / Any | Down / Any |
| Weight | kg | 25 | 50 | 50 | 110 |
