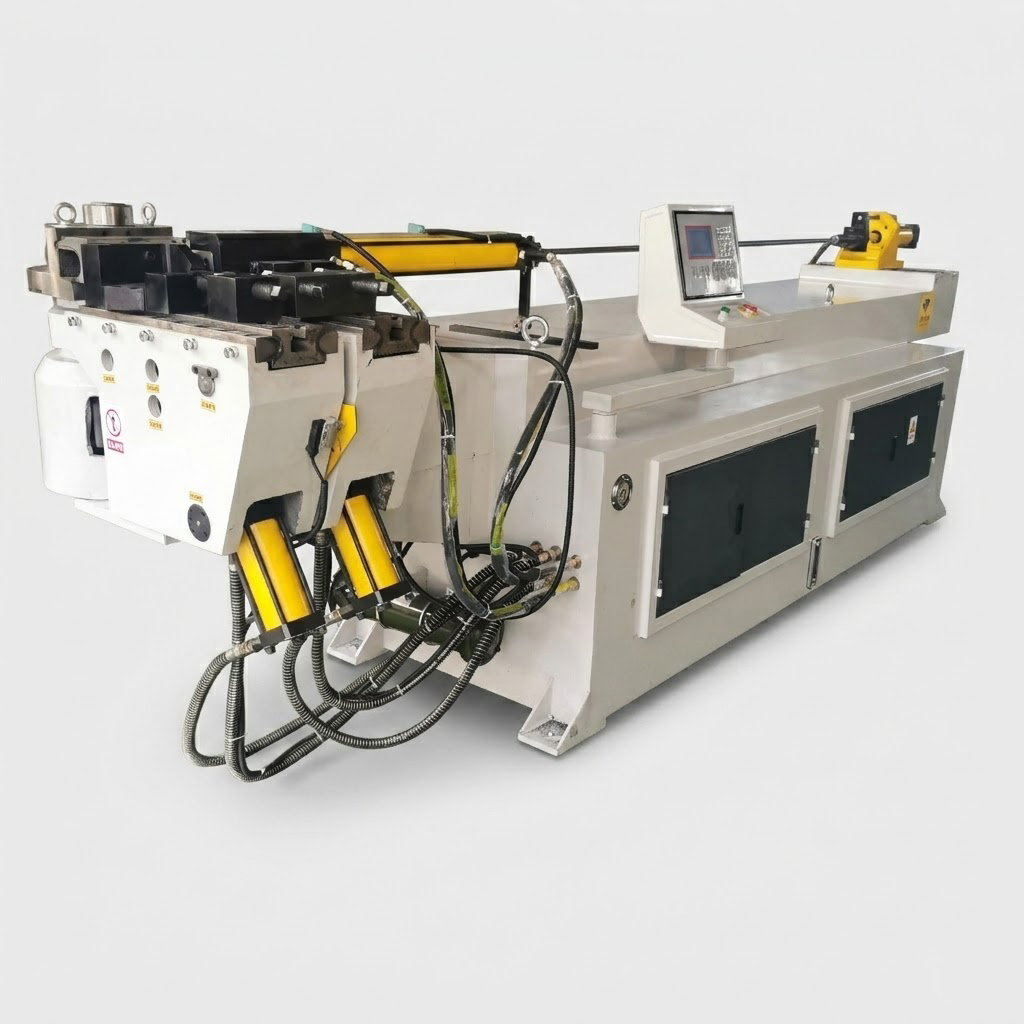

DW75NC Single Head Hydraulic Pipe Bending Machine
The DW75NC single-head hydraulic pipe bending machine is a heavy-duty, high-precision NC tube bending solution tailored for large-diameter and thick-wall metal pipe processing. Featuring professional microcomputer control, this industrial pipe bender supports multi-group program storage and free multi-angle parameter setting, greatly simplifying complex pipe forming workflows and significantly boosting production efficiency for pipe fitting manufacturing enterprises.
DW75NC Single Head Hydraulic Pipe Bending Machine | Heavy Duty Industrial Tube Bending Equipment
The DW75NC single-head hydraulic pipe bending machine is a heavy-duty, high-precision NC tube bending solution tailored for large-diameter and thick-wall metal pipe processing. Featuring professional microcomputer control, this industrial pipe bender supports multi-group program storage and free multi-angle parameter setting, greatly simplifying complex pipe forming workflows and significantly boosting production efficiency for pipe fitting manufacturing enterprises.
This heavy-duty bending machine adopts high-performance imported hydraulic valves and premium electrical components, ensuring stable, low-failure and long-lasting hydraulic operation during continuous high-load production. Equipped with a large-capacity cooling system, it effectively controls the working temperature of the hydraulic system, avoiding overheating problems and maintaining consistent high bending accuracy. The intuitive Chinese subtitle display and human-machine dialogue system support three flexible operation modes: manual, half-cycle, and full-cycle, meeting different production operation habits.
Configured with a movable foot switch with start and stop dual functions, the equipment realizes convenient and safe on-site operation. It supports 16 elbow angle settings for a single pipe fitting and 16×16 groups of storable processing programs, fully adapting to diversified batch processing demands. Customization services are available for maximum bending radius and maximum core penetration length, while the minimum bending radius complies with standard pipe diameter specifications. With the advantages of simple operation, stable mechanical performance, high working efficiency and high safety coefficient, the DW75NC hydraulic pipe bending machine is a reliable ideal device for various pipe fitting processing industries.
Custom Specification Instructions
1. The minimum bending radius is based on the pipe diameter standard;
2. The maximum bending radius can be customized according to customer actual requirements;
3. The maximum length of core penetration is adjustable per customer production demands.
| Main specifications | Unit | DW75NC | Remark |
|---|---|---|---|
| Max. bending diameter × Wall thickness | mm | Φ75×6 | 1. The minimum bending radius is based on the pipe diameter2. The maximum bending radius can be determined according to customer requirements3. The maximum length of core penetration can be according to customer requirements |
| Max. bending radius | mm | R350 | - |
| Mini. bending radius | mm | R≥1.5D | - |
| Max. bending Angle | Degree | 190 | - |
| Standard core length | mm | 2800 | - |
| Control system | / | Microcomputer control | - |
| Number of elbow allowed for pipe fitting | Unit | 16 | - |
| Number of parts that can be stored | Unit | 16×16 | - |
| Oil motor power | KW | 7.5 | - |
| Max system pressure | Mpa | 12 | - |
| Hydraulic system control | / | Solenoid valve | - |
| Tank volume | L | 250 | - |
| Machine dimensions | mm | 4300×900×1300 | - |
| Machine weight | Kg | 1900 | - |
