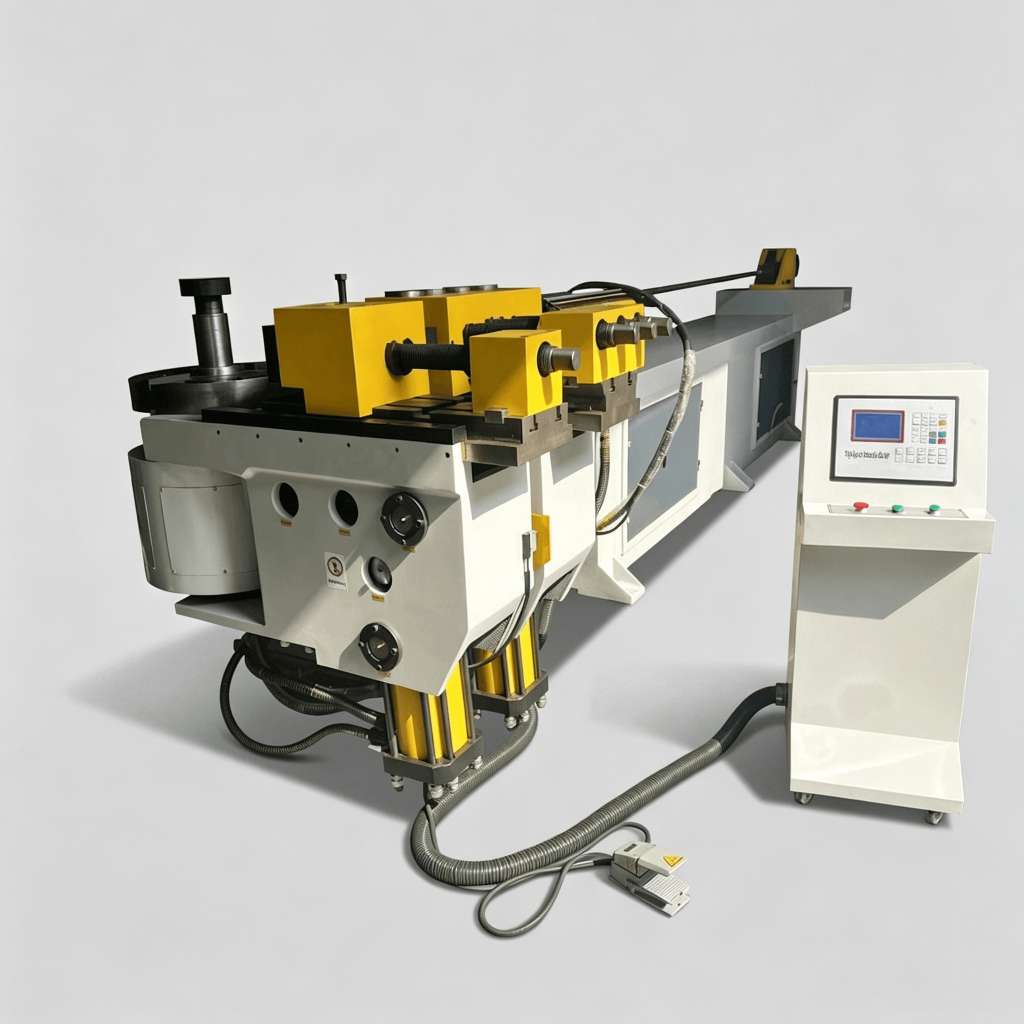

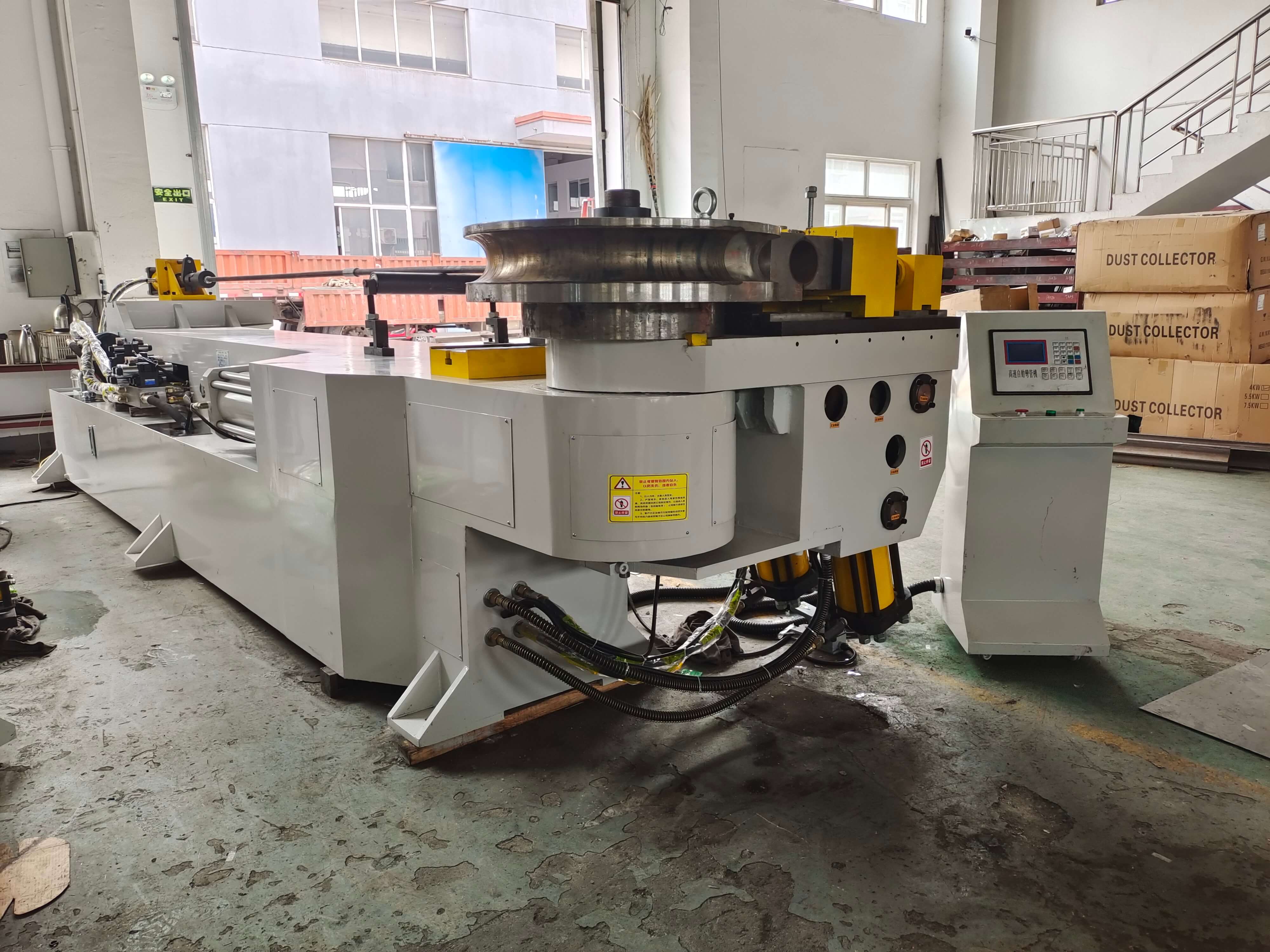

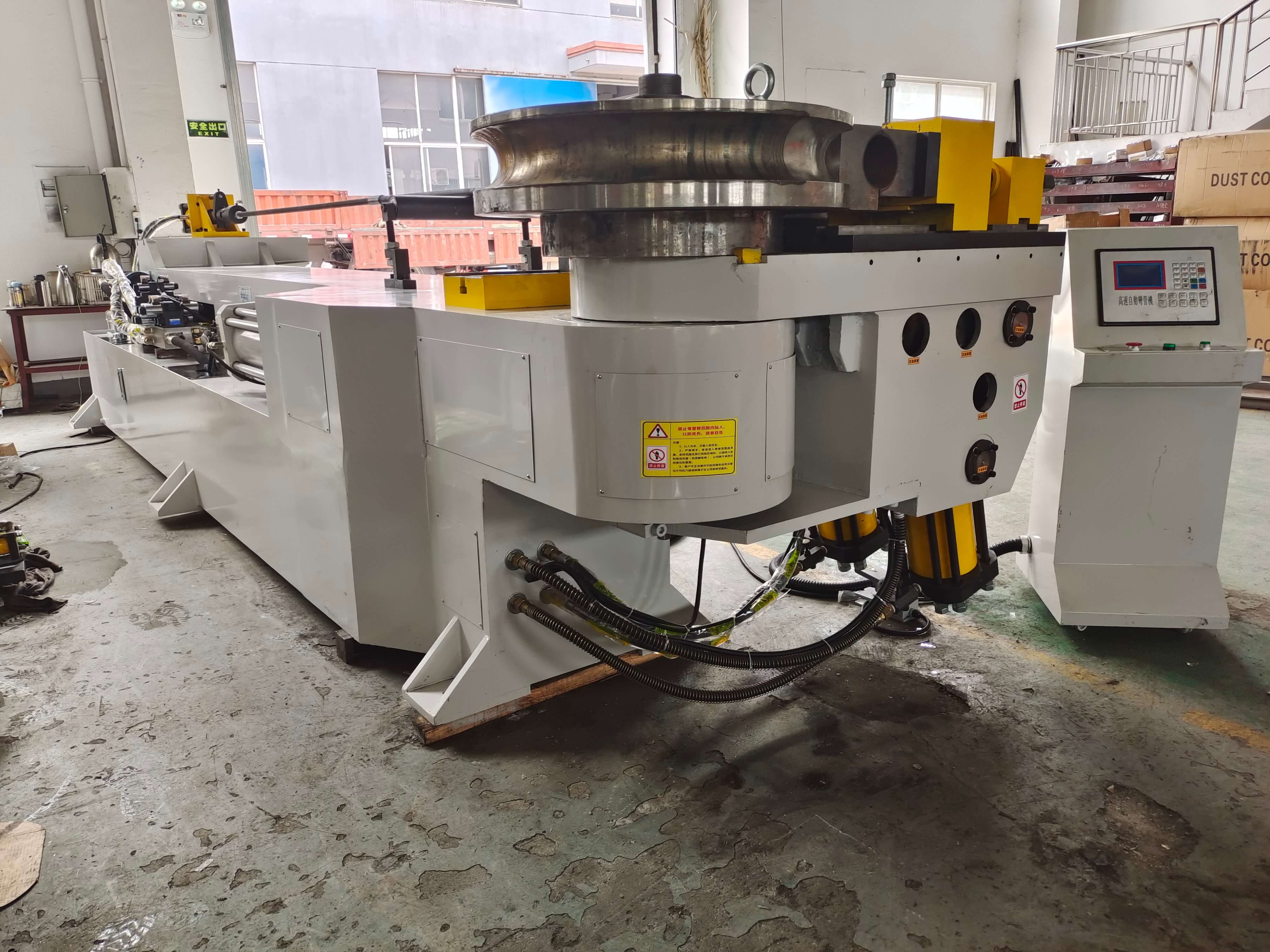

DW130NC Single Head Hydraulic Pipe Bending Machine

DW130NC Single Head Hydraulic Pipe Bending Machine | Ultra Heavy Duty Industrial Tube Bending Equipment

The DW130NC single-head hydraulic pipe bending machine is an ultra-heavy-duty NC bending solution specially developed for super-large-diameter and thick-wall metal pipe processing. Equipped with professional microcomputer intelligent control technology, this industrial tube bender supports multi-group program storage and free multi-angle bending parameter settings. It greatly optimizes complex heavy pipe forming workflows, delivers stable and high-precision bending results, and meets the high-standard production demands of large-scale pipe fitting manufacturing.

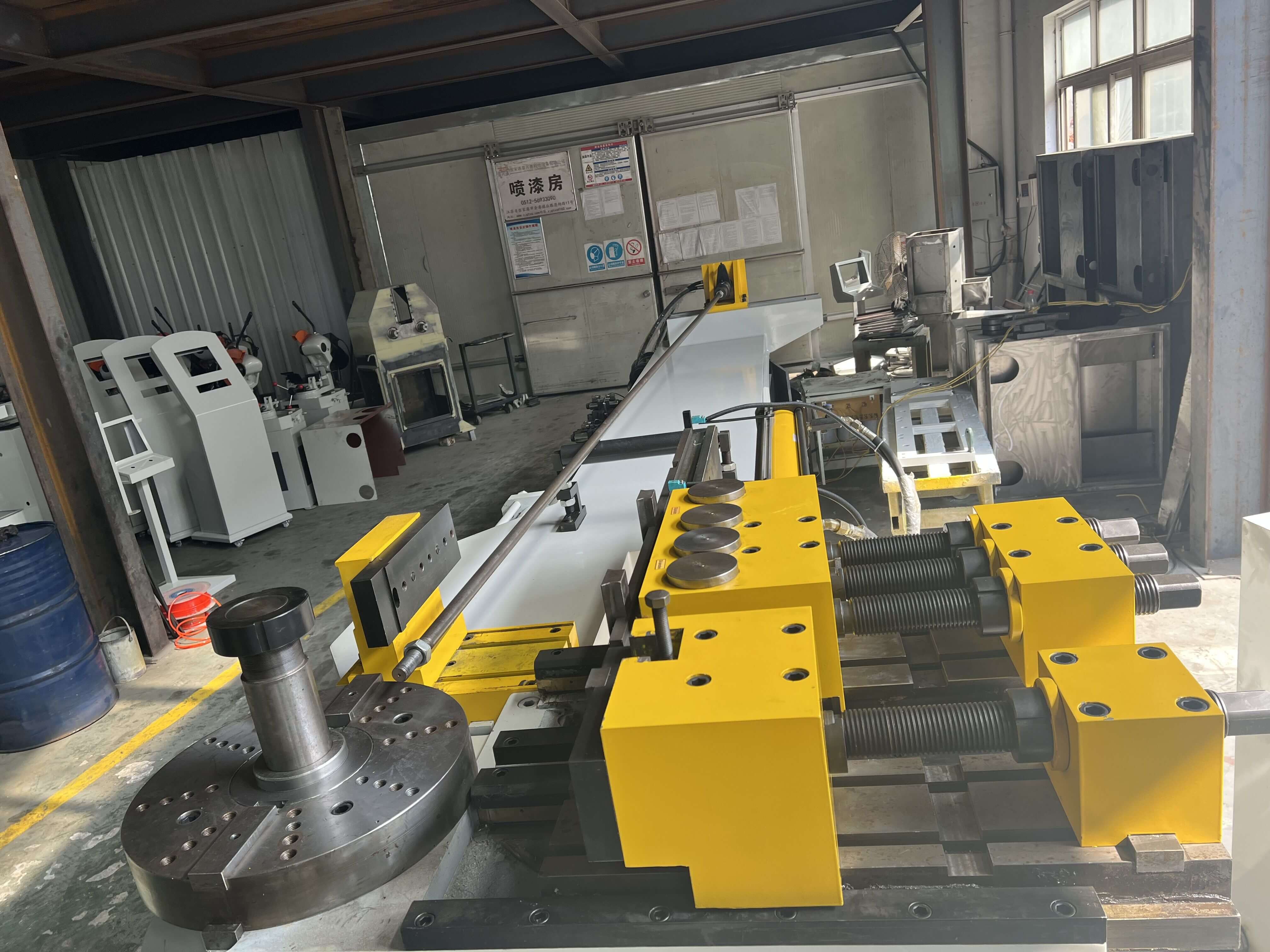

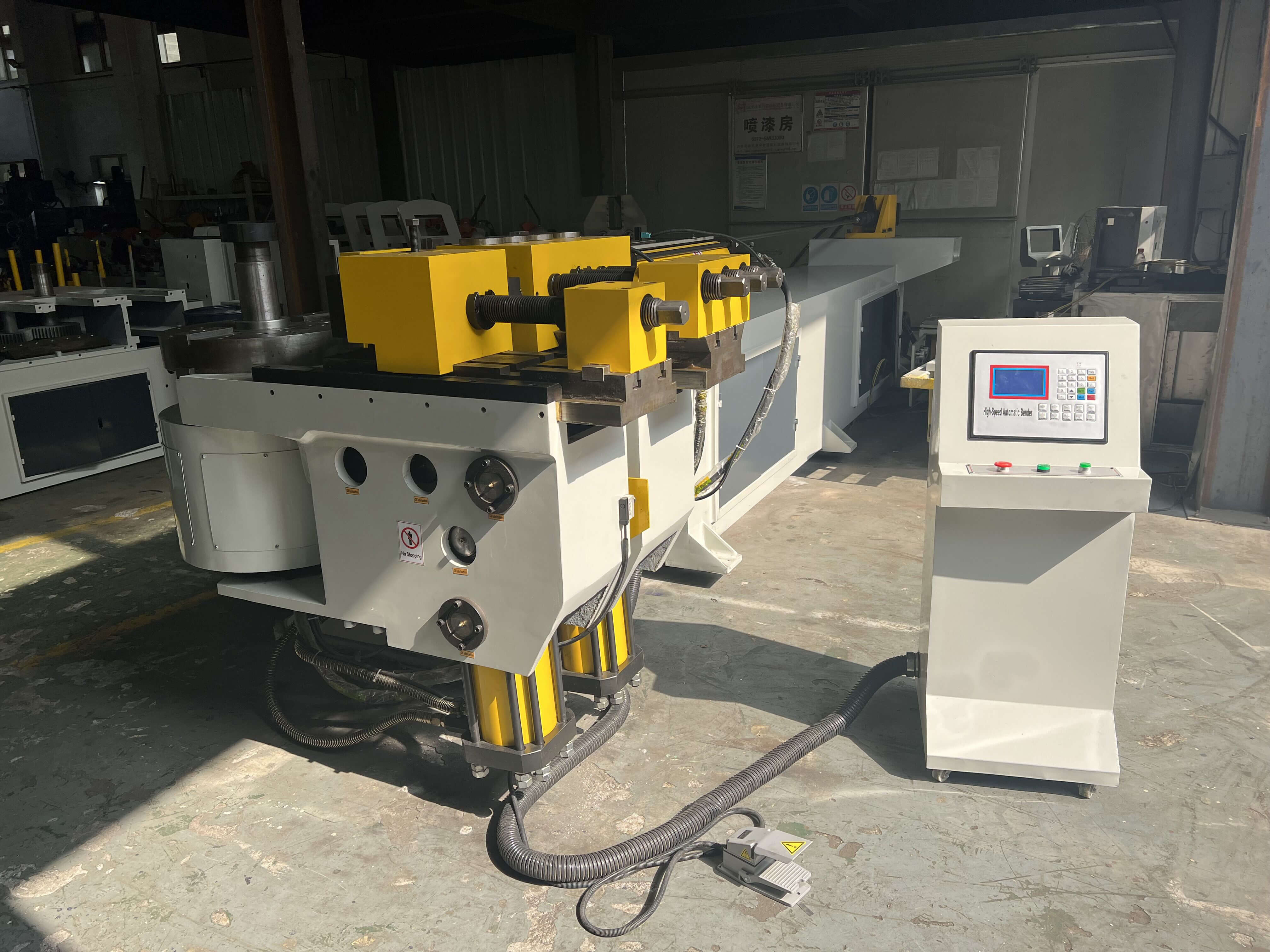

This ultra-heavy pipe bending machine adopts premium imported high-performance hydraulic valves and durable electrical components, matched with a 22KW high-power oil motor and 14Mpa maximum system pressure. It provides ultra-strong bending force, perfectly adapting to 130mm diameter and 10mm thick wall pipe processing. The large-capacity 400L oil tank and supporting high-efficiency cooling system effectively stabilize hydraulic system temperature during long-time high-load continuous operation, avoiding overheating failure and ensuring long-term stable and consistent working performance. The intuitive Chinese subtitle human-machine dialogue system supports three flexible operation modes: manual, half-cycle and full-cycle, covering various complex production scenarios.

Featured with a movable foot switch with dual start and stop functions, the equipment realizes convenient and safe on-site operation. It supports 16 elbow angle settings for a single pipe fitting and 16×16 groups of storable processing programs, fully satisfying large-batch and diversified pipe bending production. Customization is available for maximum bending radius and core penetration length, while the minimum bending radius follows standard pipe diameter specifications. With the advantages of simple operation, ultra-stable mechanical performance, high production efficiency and high safety coefficient, the DW130NC hydraulic pipe bending machine is the ideal professional equipment for heavy-duty pipe fitting processing industries.

Custom Specification Instructions

1. The minimum bending radius is based on the pipe diameter standard;
2. The maximum bending radius can be customized according to customer actual requirements;
3. The maximum length of core penetration is adjustable per customer production demands.
