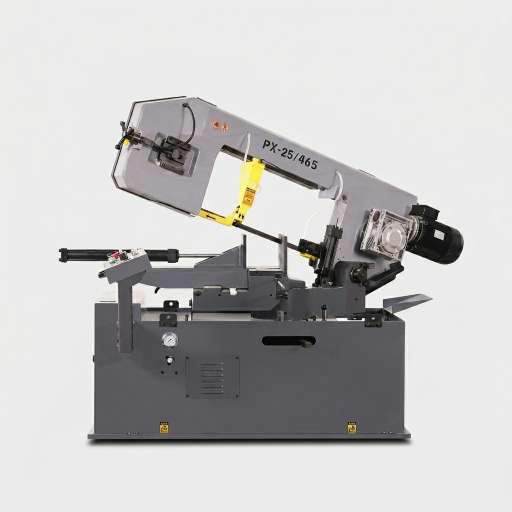

MFG PX-25-46S Semi-Automatic Scissor-Type Rotary Miter Metal Band Saw

Reliable Pivot Frame, Rotary Miter Cutting & Cost-Effective Precision for Tubes and Profiles

Product Overview
The MFG PX-25-46S is a highly reliable, semi-automatic scissor-type (pivot-style) horizontal band saw engineered for the efficient cutting of small to medium-sized bars, tubes, and steel plates.

Designed with an emphasis on simplicity, durability, and cost-effectiveness, this machine is perfect for structural fabrication shops that require versatile rotary miter cutting without the complexity of full CNC systems.

Built on a robust, vibration-relieved steel base, it features a direct-drive worm gear transmission, heavy-duty manual vise clamping, and premium carbide blade guides.

The PX-25-46S delivers exceptionally narrow kerfs, significant material savings, and trouble-free operation for all your ferrous metal cutting needs.

Key Features & Advanced Engineering

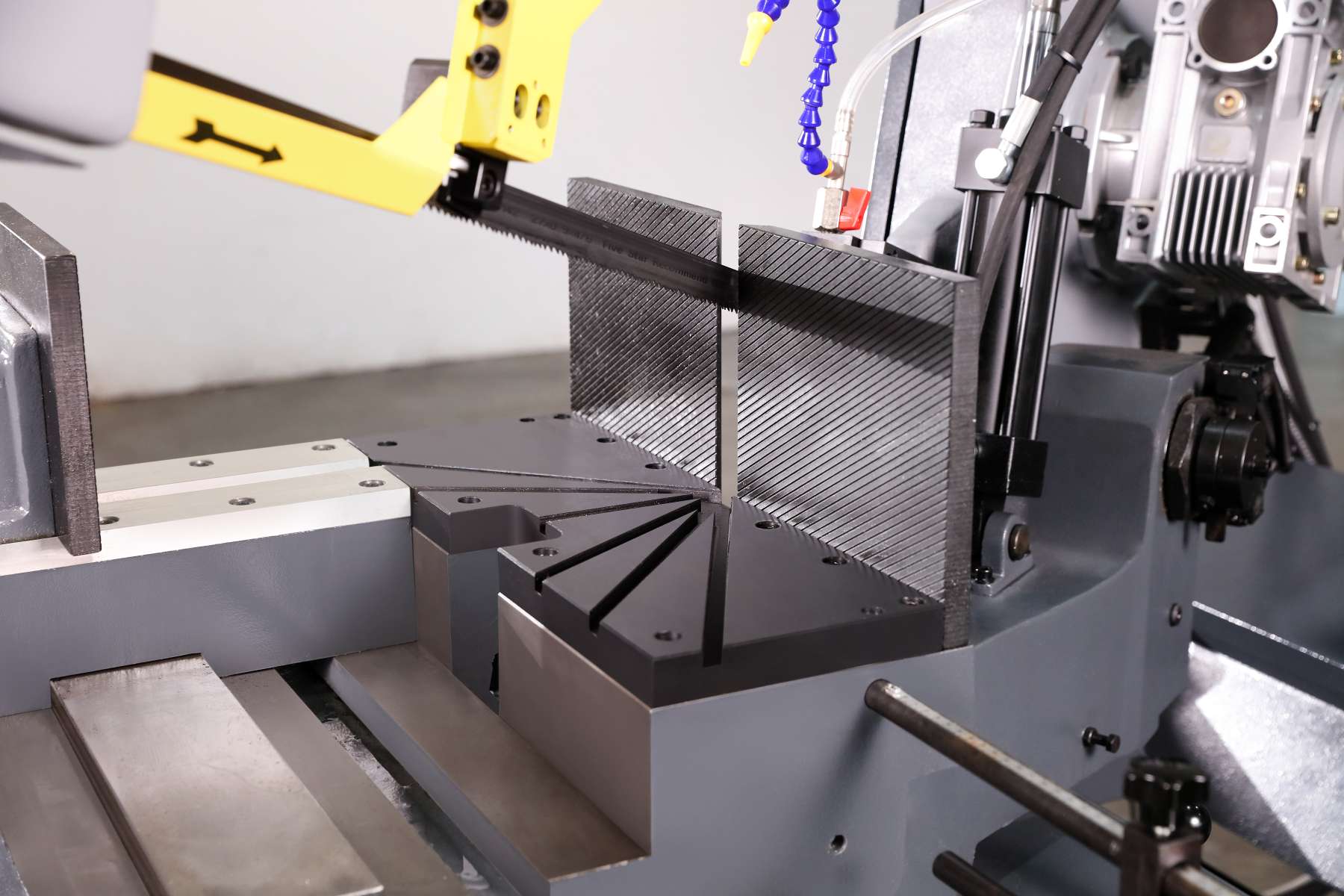

• Rigid Scissor-Type (Pivot) Architecture: The bow-shaped saw frame and base are constructed from high-quality welded steel plates subjected to rigorous Vibrational Stress Relief (VSR). This eliminates internal welding stresses, ensuring the pivot hinge mechanism maintains absolute structural stability and perfect alignment during the saw frame's descent.
• Rotary Miter Cutting Capability: Designed to adapt to diverse shop floor needs, the rotary cutting feature allows operators to execute precise angled (miter) cuts on profiles and tubes easily, making it highly versatile for structural steel fabrication.
• Heavy-Duty Manual Vise Clamping: To maximize reliability and minimize maintenance, the machine utilizes a robust manual clamping system. The movable vise is securely driven by a handwheel and screw mechanism, providing unyielding clamping force on your workpieces during heavy cuts.

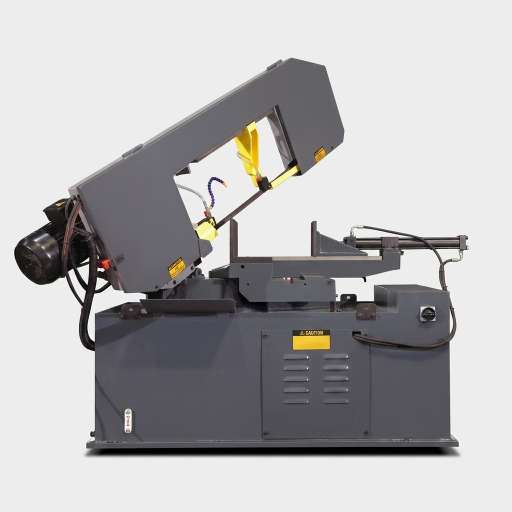

• Direct-Drive Worm Gear Transmission: The main drive system consists of a heavy-duty worm gear box directly connected to the driving wheel, ensuring smooth, impact-free power transfer. The blade speed is easily adjustable via a belt-drive system, allowing operators to select the optimal cutting speed for different ferrous materials.

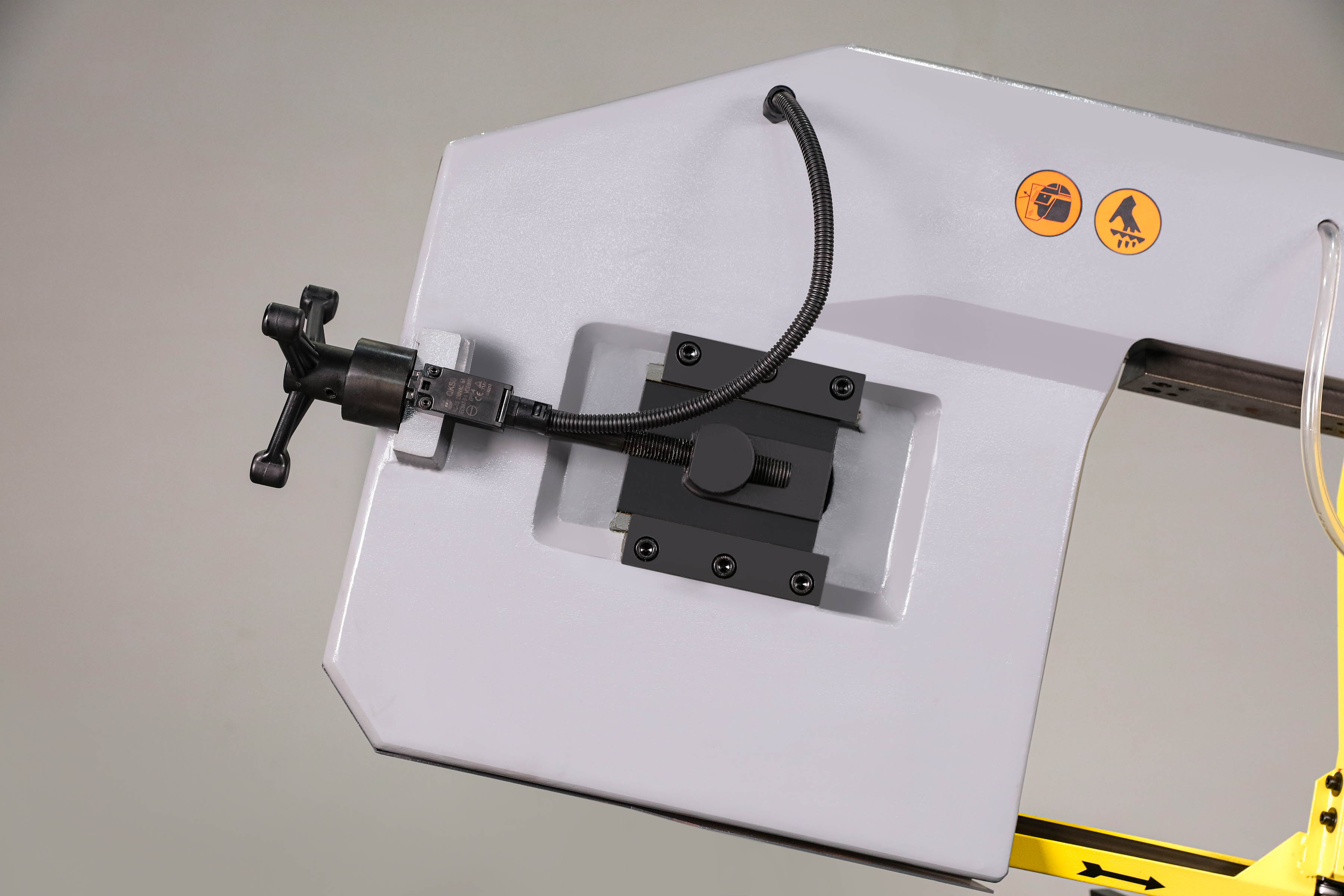

• Premium Carbide Blade Guiding: The saw blade is supported by both a fixed and a manually adjustable guide arm. The top and sides of the guide seats are fitted with wear-resistant carbide inserts and a pre-guide device. This eliminates blade wandering, ensures perfect cutting straightness, and significantly prolongs blade life.

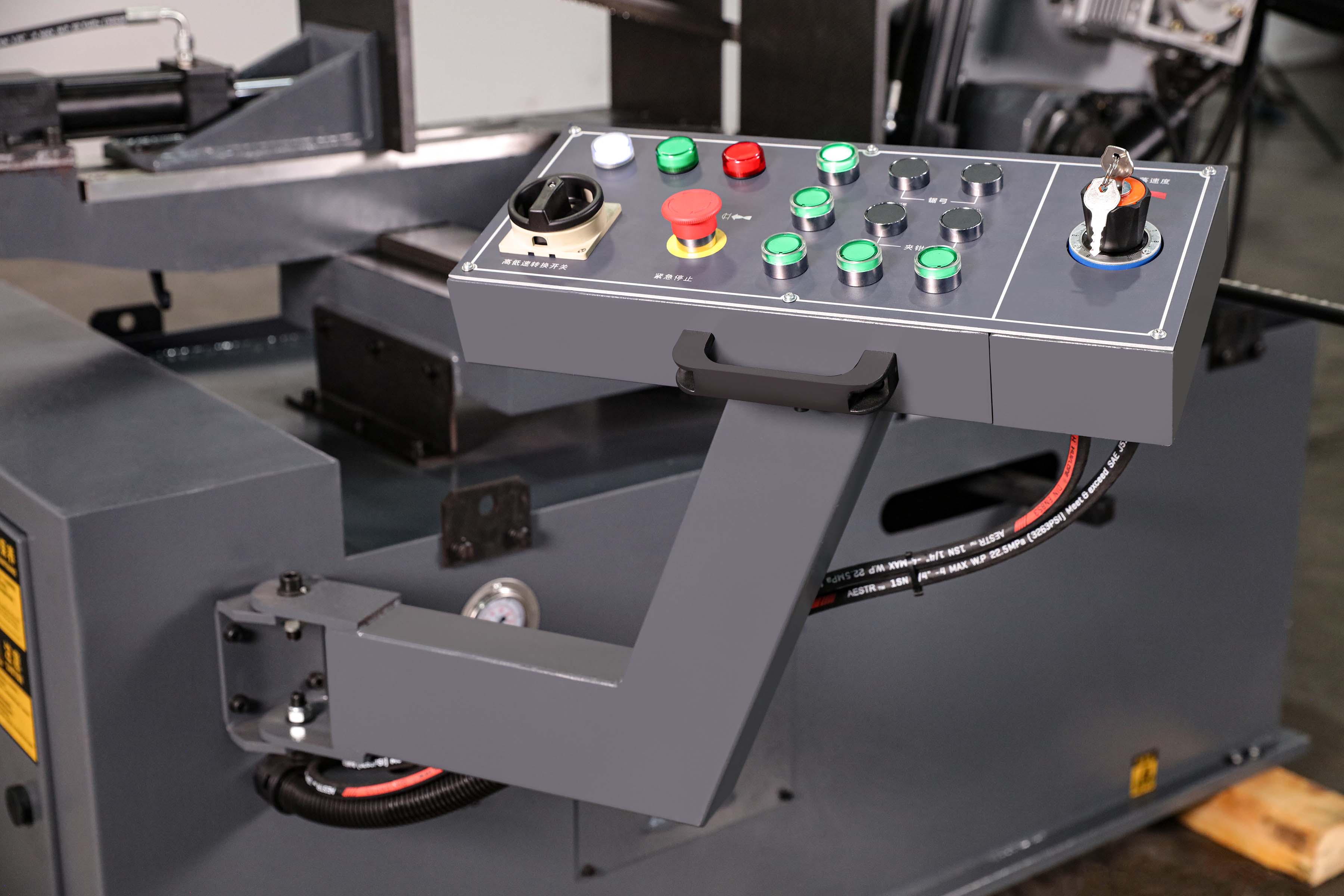

• Simplified Relay-Based Electrical Control: Built for harsh workshop environments, the separate electrical control cabinet uses a traditional, highly reliable relay circuit system operated via heavy-duty push buttons. Safety interlocks are integrated throughout to protect the operator.
• Integrated Cooling & Chip Sweeping: A centralized coolant pump continuously circulates water-soluble coolant to the guide arms, preventing blade overheating and workpiece rust. A built-in passive wire brush chip sweeper automatically cleans sawdust from the blade teeth, maintaining optimal cutting efficiency.
