MFG LM-35-35-150 Precision Vertical Band Saw

Servo-Driven Feed, Heavy-Duty Bow Frame & Pneumatic Air Cooling for Dry Graphite Cutting

Product Overview
The MFG LM-35-35-150 is a state-of-the-art, high-precision Vertical Band Saw engineered specifically for the highly demanding process of cutting graphite plates, specialized bars, and non-ferrous materials.

Designed with a massive, vibration-relieved welded base and driven by a robust inverter-controlled main motor, it delivers exceptionally stable, stepless blade speeds.

By replacing messy liquid coolant with a dedicated pneumatic air-cooling system, this machine is the ultimate turnkey solution for dry-cutting abrasive materials like graphite.

Combining a servo-driven ball screw feed system with heavy-duty linear guideways, the LM-35-35-150 guarantees ultra-narrow kerf cutting, maximizing your expensive material yield while drastically reducing energy consumption and operational noise (≤85 dBA).

Key Features & Advanced Engineering

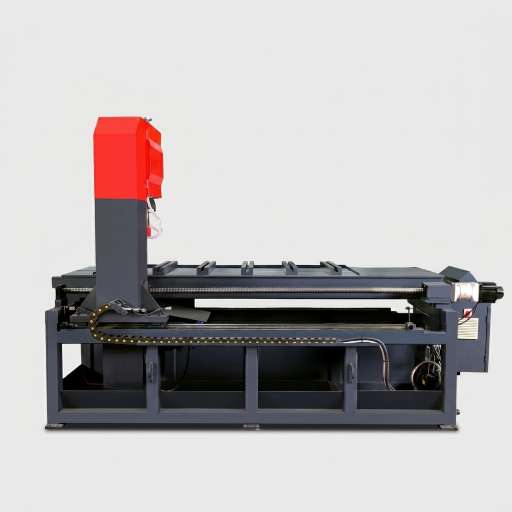

• Vibration-Relieved Welded Base: The rectangular box-type base is constructed from fully welded steel plates and subjected to advanced Vibrational Stress Relief (VSR) treatments. This ensures maximum static stiffness and completely eliminates internal stresses, providing a rock-solid foundation that absorbs high-frequency cutting vibrations.

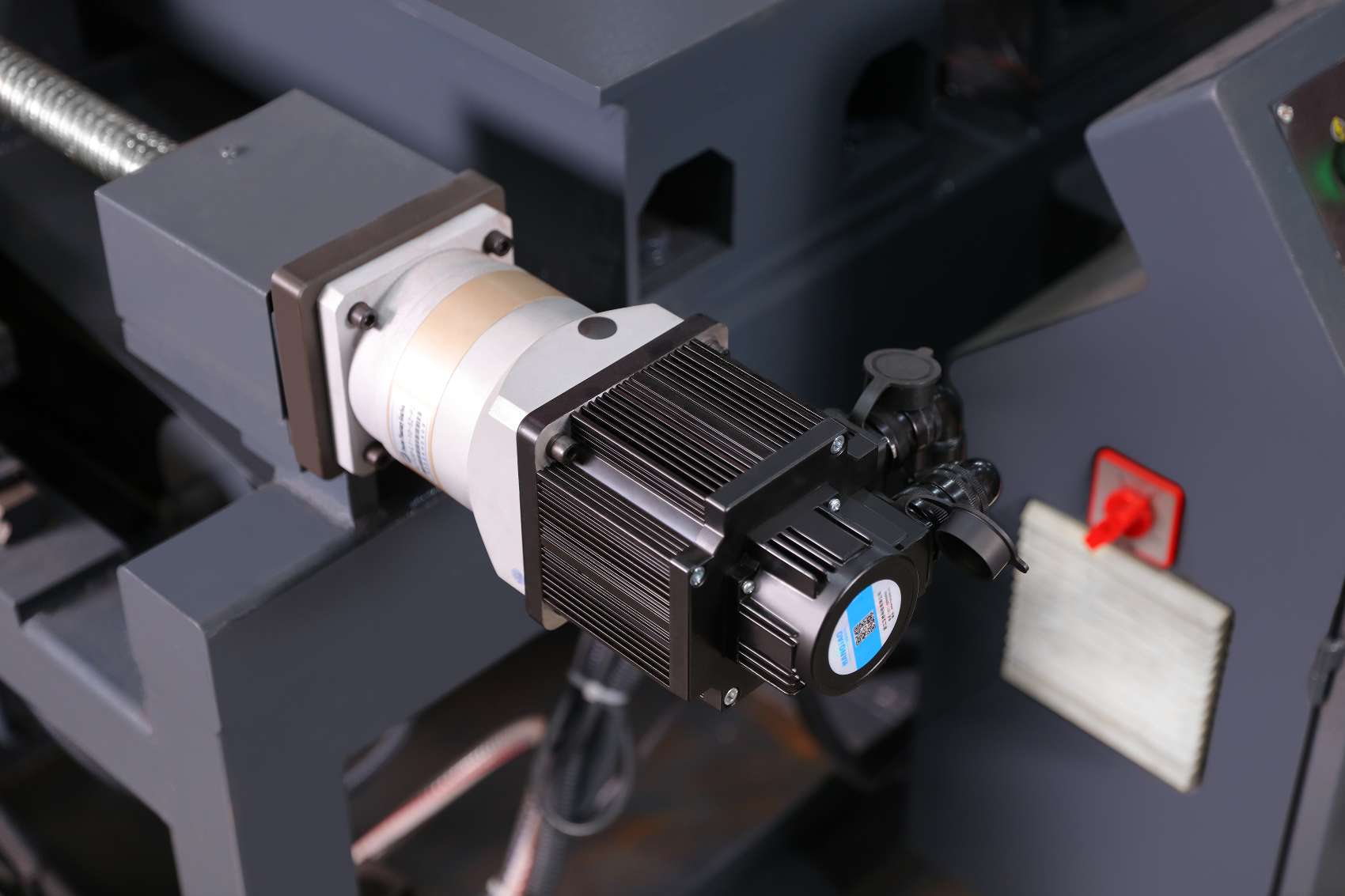

• Precision Servo Feed & Linear Guides: The horizontal feed of the heavy-duty bow-shaped saw frame is driven by a highly accurate servo motor paired with a precision ball screw. Guided by low-friction linear guide rails equipped with protective covers, it ensures flawless cutting straightness and stepless feed rate regulation.

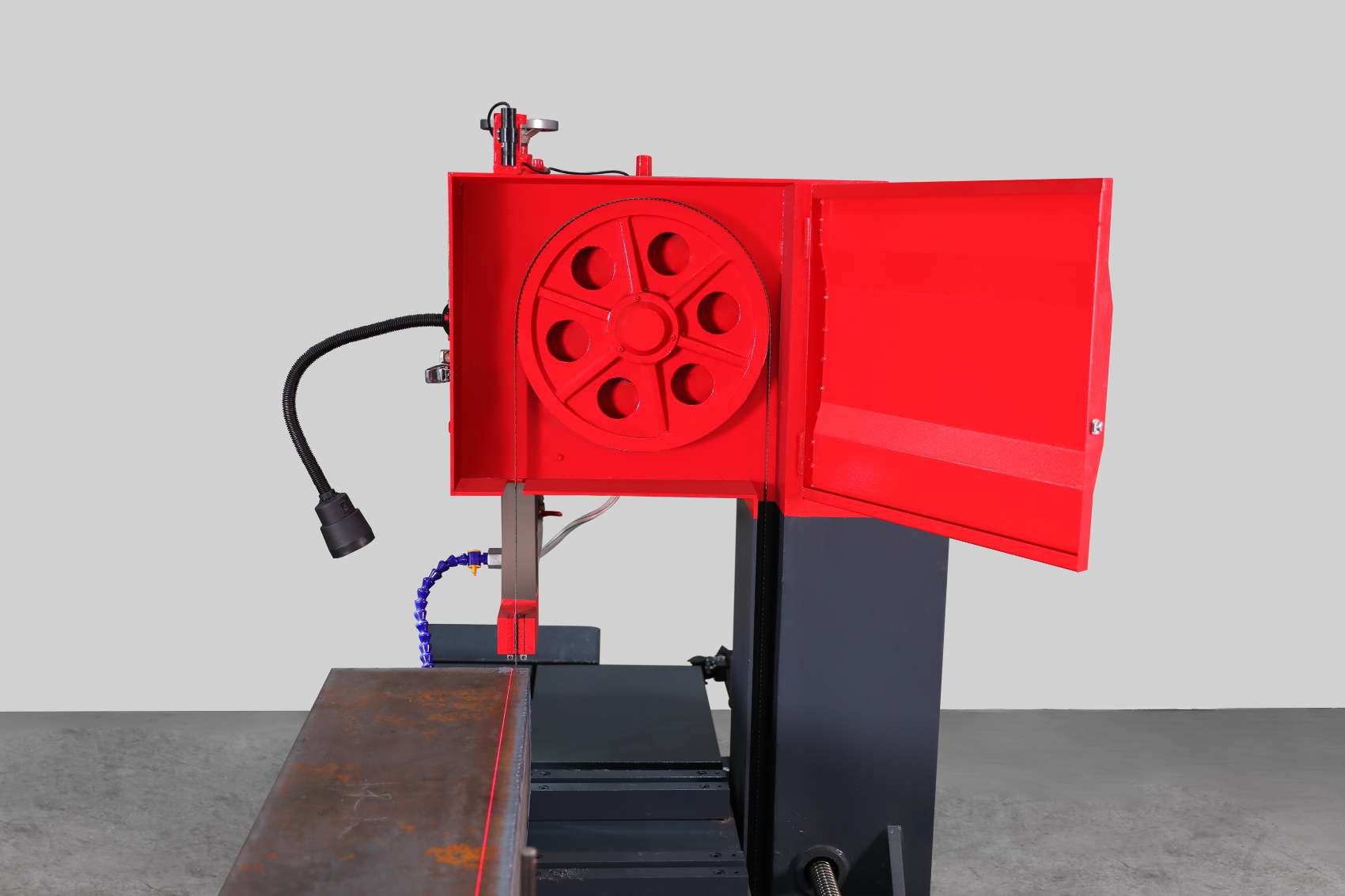

• Inverter-Driven Stepless Transmission: The main drive system utilizes a direct-connected special flange and pulley setup to eliminate impact. Governed by an advanced frequency converter, the blade speed is fully stepless, allowing operators to dial in the exact cutting speed required for different densities of graphite and metals.
• Pneumatic Dry-Cutting Cooling System: Specifically optimized for graphite machining. Instead of traditional liquid coolant which creates abrasive sludge, the blade is cooled using compressed air (supplied by the customer's shop air). This prevents blade overheating, ensures superior surface finish, and keeps your shop environment clean.
• Hydraulic Blade Tensioning & Carbide Guides: The machine utilizes a torque hydraulic cylinder to maintain optimal blade tension automatically via system pressure settings. The saw blade is guided by premium carbide inserts on both the fixed lower guide and the hydraulically adjustable upper guide arm, maximizing blade life and preventing deflection.
• Heavy-Duty Internal & External Worktables: Engineered with high-quality profiles and welded steel platforms, the dual-worktable design safely and securely carries massive, heavy workpiece loads during the cutting cycle.

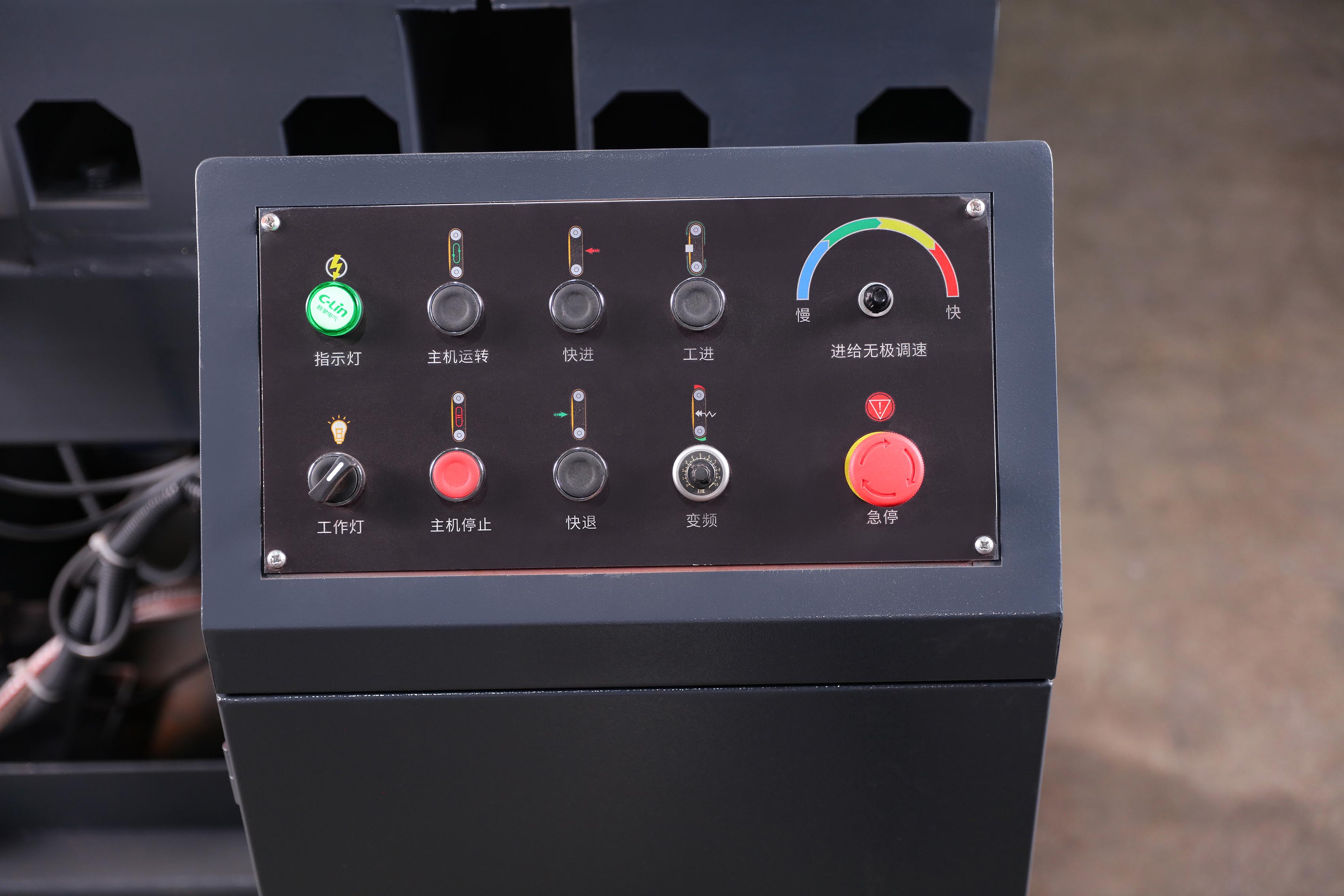

• Isolated Electrical Control: All electrical components are housed in an independent, well-ventilated control cabinet capable of operating perfectly in 0℃–40℃ environments. The relay-line and button-operated system features comprehensive safety interlocks to protect operators at every step.
