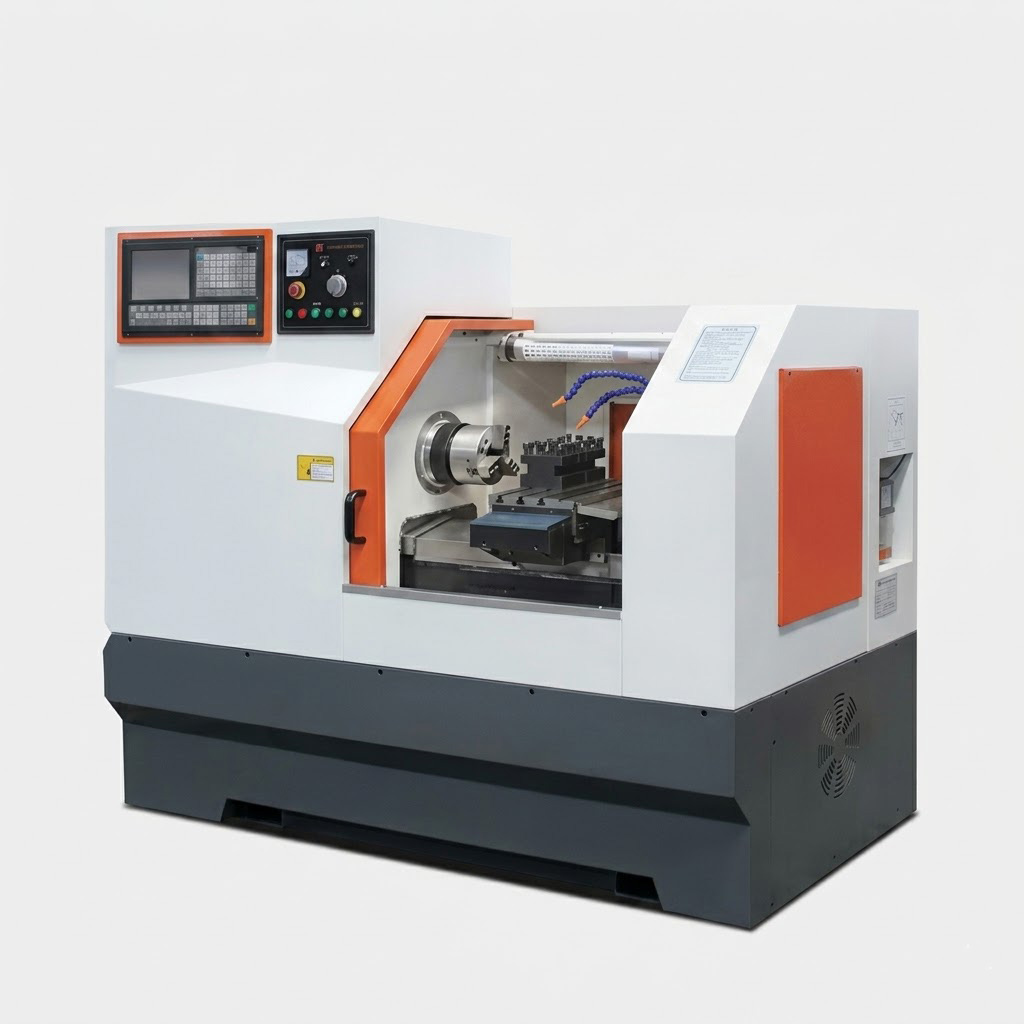

MFG Machinery H36 High-Speed Flat Bed CNC Lathe

Rapid Gang Tooling & Stepless Spindle for High-Efficiency Mass Production

Product Overview
The MFG Machinery H36 is a highly efficient, mechatronic flat bed CNC lathe specifically engineered for the high-speed, large-scale precision machining of shaft and disc components. Tailored for demanding industries such as automotive, aerospace, military, and electronics, this machine excels at high-speed cutting of both ferrous and non-ferrous metals. By utilizing an ultra-fast gang tooling system (row tool holder), it completely eliminates tool indexing time. Combined with a rigid, variable-frequency stepless spindle and precision servo-driven ball screws, the H36 effortlessly automates the processing of complex straight lines, arcs, spherical surfaces, and Metric/Imperial threads with uncompromising positioning accuracy and minimal noise.

Key Features & Engineering Advantages

• Rapid Gang Tooling System: Designed for ultimate efficiency. The machine features a row-style tool arrangement (gang tooling) that eliminates the mechanical indexing time of traditional turrets. Tools are switched instantly via axis movement, drastically slashing cycle times for mass production.
• VFD Stepless Spindle Drive: The highly rigid spindle system utilizes Variable Frequency Drive (VFD) technology for stepless speed regulation. With a large bore diameter and a comprehensive range of optional accessories, it seamlessly adapts to varying material hardness and complex part profiles.
• Precision Mechatronic Transmission: The X and Z axes are directly driven by high-response servo motors paired with precision ball screws. This superior transmission rigidity outclasses ordinary lathes, ensuring maximum power utilization, high positioning accuracy, and exceptional surface finishes.
• Universal CNC Control System: Highly accessible and globally compatible. The CNC system utilizes standard ISO international G-code programming via manual keyboard input. It comes fully equipped with an RS232 communication interface, robust power-off protection, and advanced self-diagnosis capabilities.
• Ergonomic & Centralized Operation: Features a modern, fully integrated mechatronic design. The machine’s layout concentrates operational controls for maximum flexibility and user-friendliness, reducing operator fatigue during high-volume production shifts.
• Versatile High-Speed Machining: A true multi-tasking workhorse. Automatically completes internal/external turning, grooving, end facing, spherical turning, and the precise threading of various metric and imperial cylinders or cones.
