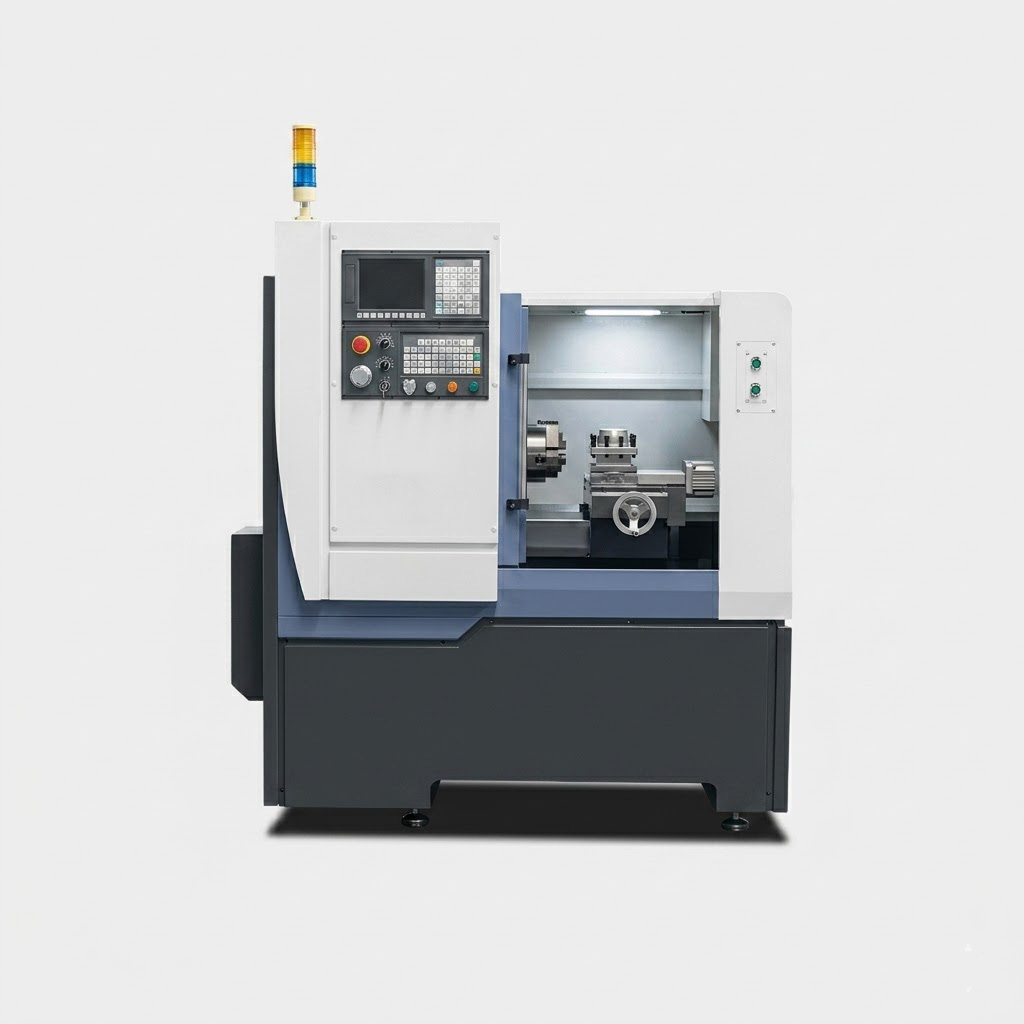

MFG Machinery H32i High-Speed Flat Bed CNC Lathe

Gang Tooling, Taiwan Linear Guides & Cartridge Spindle for High-Precision Rapid Machining

Product Overview
The MFG Machinery H32i is a high-speed, high-precision flat bed CNC lathe explicitly engineered for the rapid, continuous production of small to medium-sized precision components. Built upon a high-strength cast iron bed, this machine utilizes an ultra-fast gang tooling system and high-precision preloaded Taiwan linear rolling guideways to deliver lightning-fast cycle times with exceptional repeatability.

Manufactured under the strictest tolerances, both the cartridge-type spindle and the precision ball screws are assembled in a strict constant-temperature environment, followed by a rigorous 72-hour run-in test.

Designed for zero-compromise precision, the H32i effectively compensates for thermal deformation, making it the ultimate high-efficiency solution for drilling, reaming, tapping, and high-speed turning.

Key Features & Advanced Engineering

• High-Speed Cartridge Spindle Unit: Features a high-rigidity, shell-type (cartridge) spindle unit paired with a premium bearing group and a servo spindle motor. Assembled exclusively in a constant-temperature room, it undergoes a strict 72-hour constant-temperature run-in process and dynamic balancing. This ensures exceptionally high speeds, low noise, and unwavering reliability.
• Rapid Gang Tooling System: Replaces traditional indexing turrets with a highly efficient "tool arrangement" (gang tooling) layout. This design drastically reduces tool change times to mere fractions of a second, delivering flawless positioning accuracy and maximizing high-speed production output.
• Preloaded Taiwan Linear Guideways: Equipped with high-precision, 4-row roller-type linear guides featuring a 45° contact angle and high-rigid section design. This configuration offers immense load-carrying capacity, minimal friction, smooth chip removal, and superior vibration damping for high-speed feeds.
• Direct-Drive Precision Transmission: The servo motors are directly connected to the precision lead screws via high-torque, low-inertia elastic couplings. Processed and ground in a constant-temperature workshop, this system effectively minimizes thermal deformation, guaranteeing absolute positioning and repeat positioning accuracy during long continuous shifts.
• Drawback Collet Chuck System: Equipped with a standard-sized drawback collet chuck (rear pull chuck). This fast-acting workholding solution provides highly concentric, rapid clamping, making it perfectly suited for drilling, tapping, milling, and turning of bar stocks.
• Intelligent Auto-Lubrication & Full Enclosure: A forced automatic lubricating device delivers metered, fixed-point quantitative oil directly to the lead screws and guideways, complete with a low-oil warning alarm. The machine is wrapped in a visually appealing, fully enclosed safeguard design that provides highly reliable waterproof and chip-proof protection while remaining maintenance-friendly.
