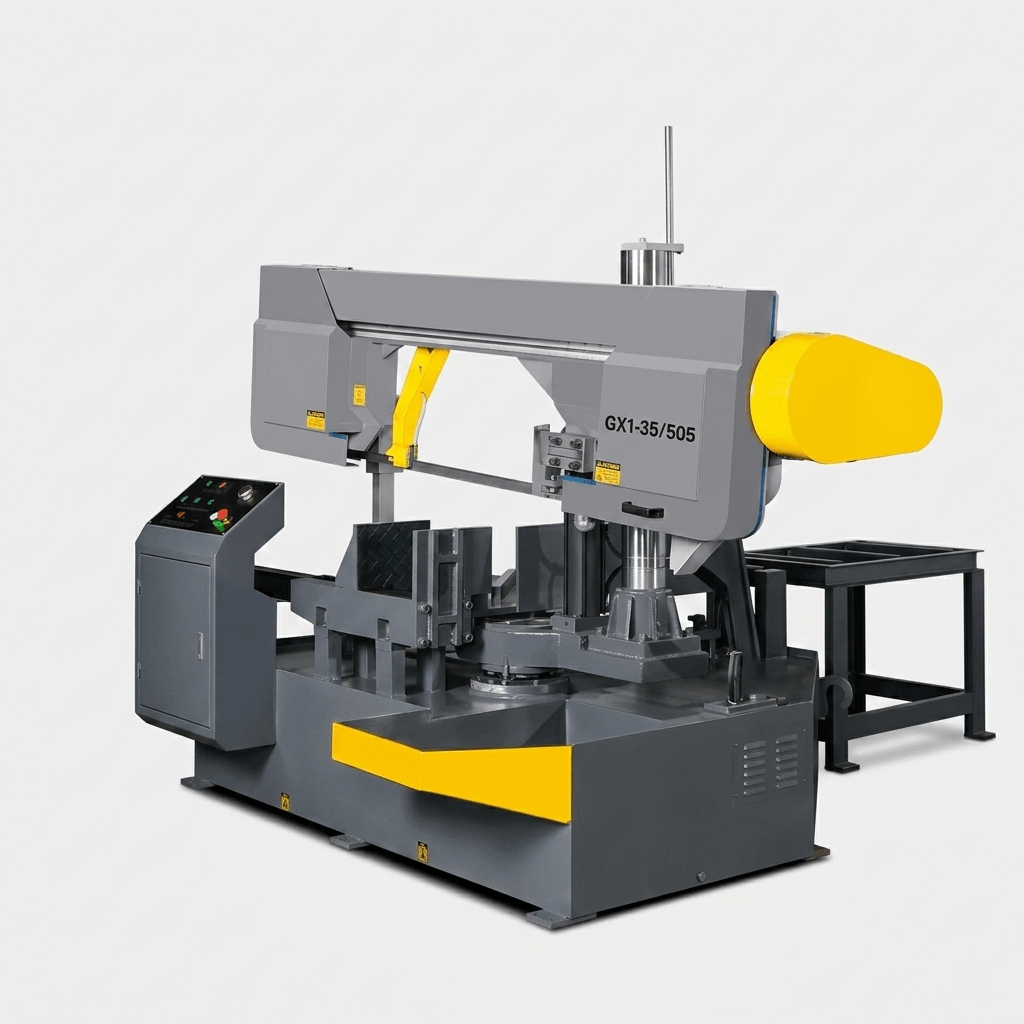

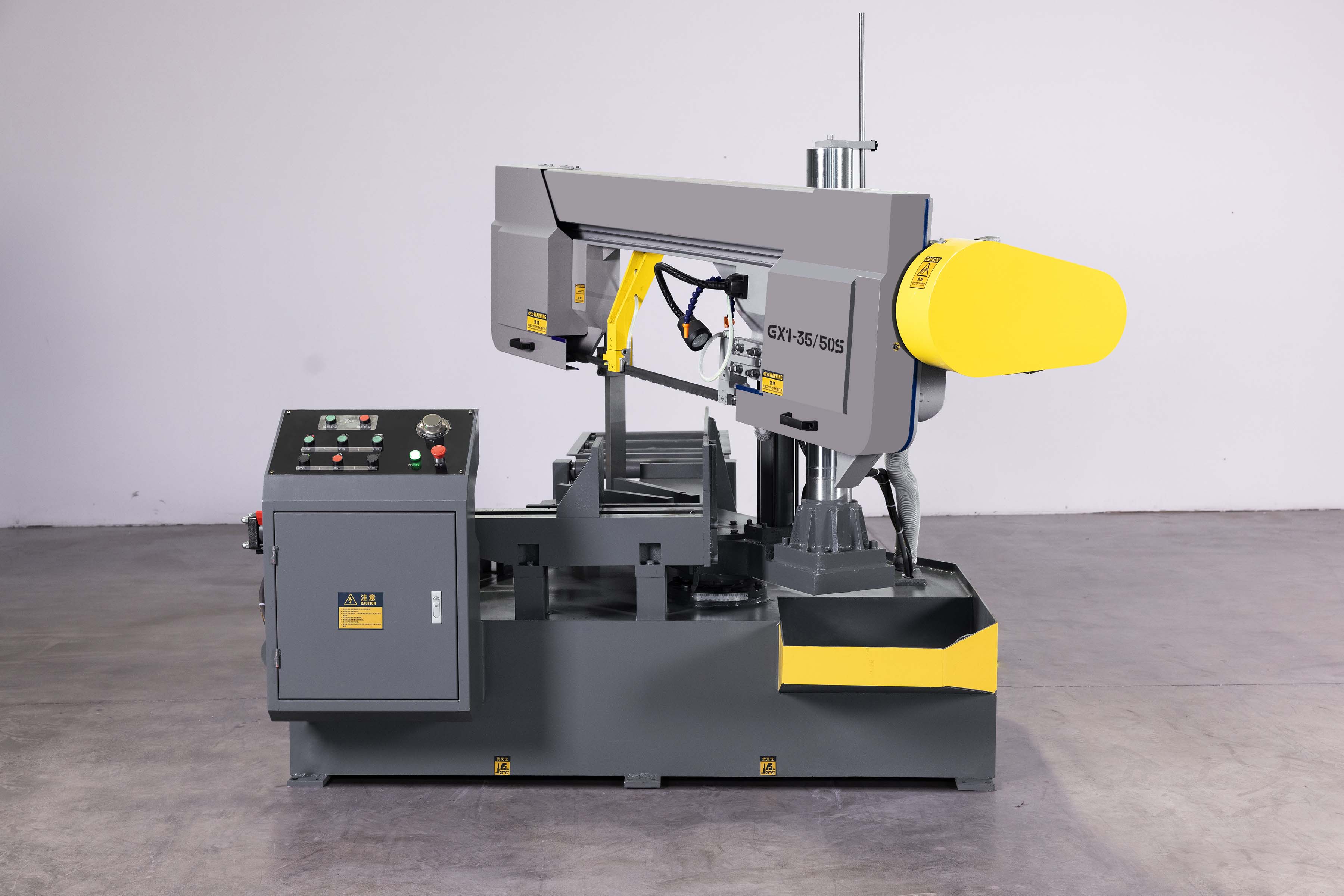

MFG GX1-3550S Semi-Automatic Double Column Rotary Band Saw

60° Miter Capacity, Dual-Column Frame & Friction-Free Hydraulic Clamping

Product Overview

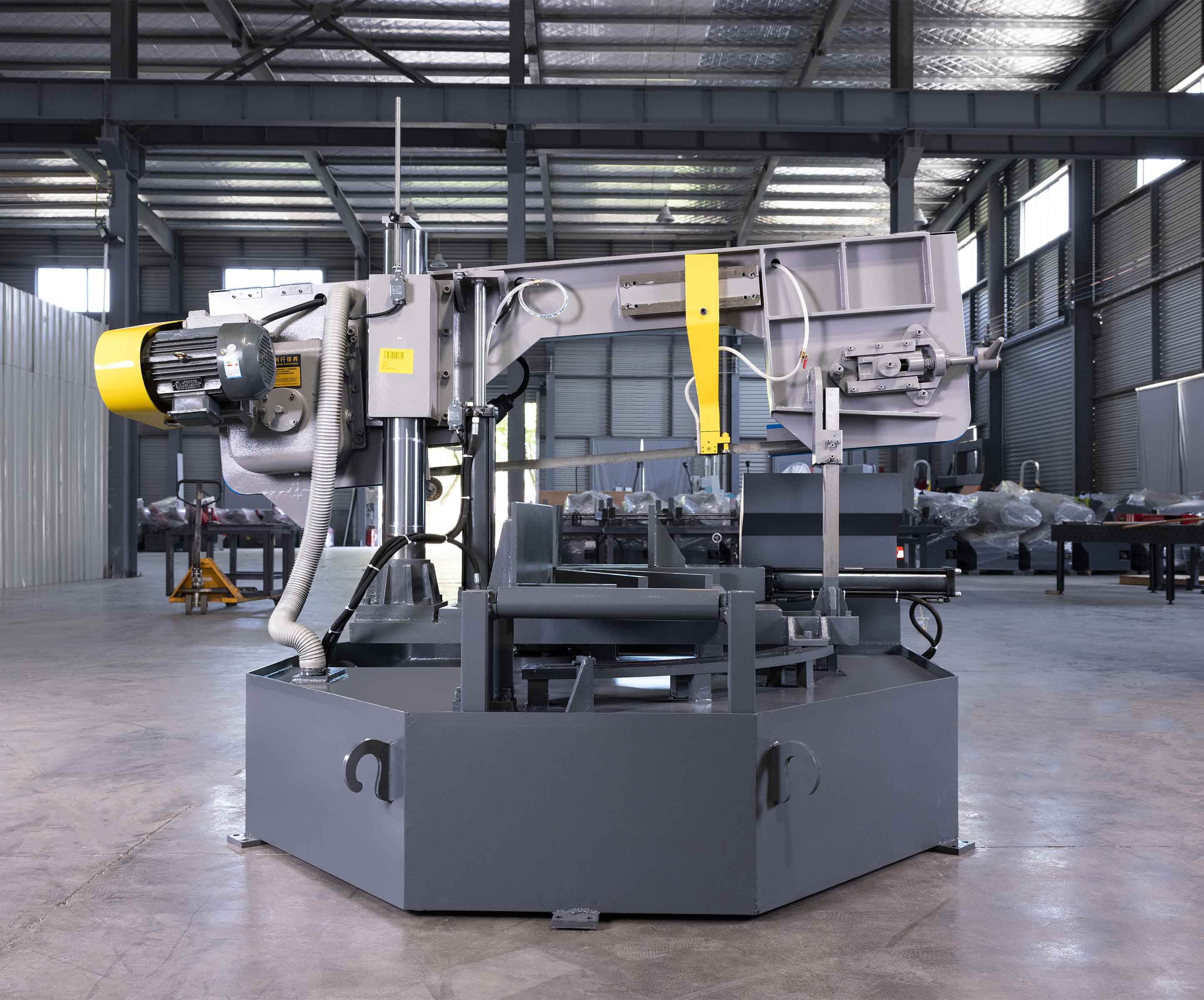

The MFG GX1-3550S is a high-performance, semi-automatic double-column horizontal band saw engineered for the precise cutting of ferrous and non-ferrous metal materials.

Built with a highly rigid dual-column architecture and a 60° rotary miter cutting capability, it is specifically designed to efficiently process long structural profiles.

The machine integrates a stepless worm gear transmission, a friction-avoiding hydraulic clamping system, and an independent electrical cabinet with comprehensive safety interlocks. It delivers stable cutting performance, narrow saw kerfs, and high dimensional accuracy for industrial fabrication.

Key Features & Engineering Details

• VSR-Treated Dual-Column Frame: The bow-shaped saw frame is constructed from premium welded steel plate. It undergoes strict Vibrational Stress Relief (VSR) to redistribute and eliminate internal welding stresses, ensuring absolute structural stability and preventing frame distortion during heavy cutting cycles.

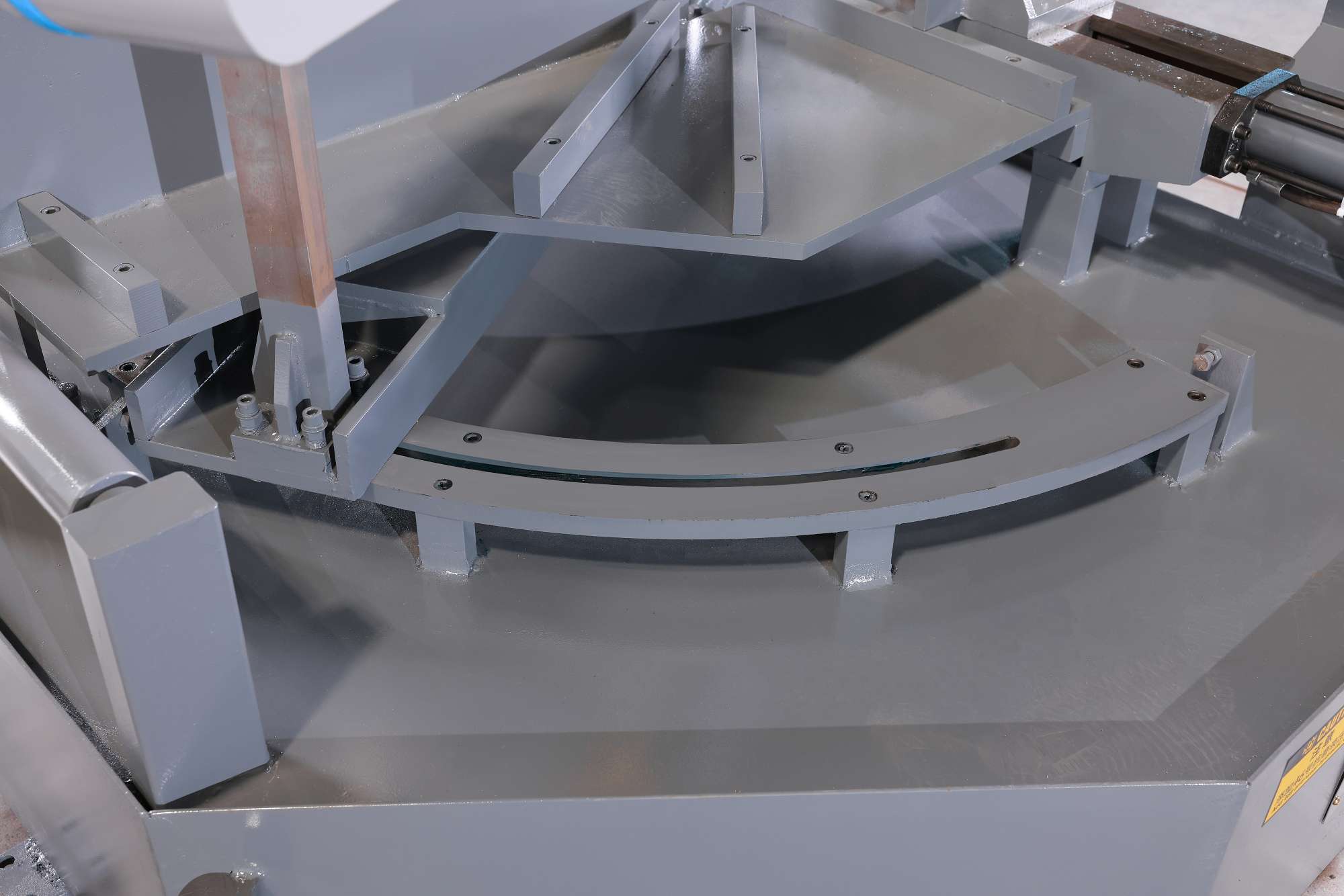

• 60° Rotary Miter Cutting: The machine head is designed to rotate up to 60°, allowing operators to execute precise angled cuts without the need to physically reposition long, heavy workpieces on the shop floor.
• Friction-Free Hydraulic Clamping: Workpiece clamping is managed by a hydraulic automatic vise system (featuring fixed and movable jaws). During the material feeding action, the movable vise intelligently loosens to completely avoid friction with the workpiece, improving feeding accuracy and protecting material surface finishes.

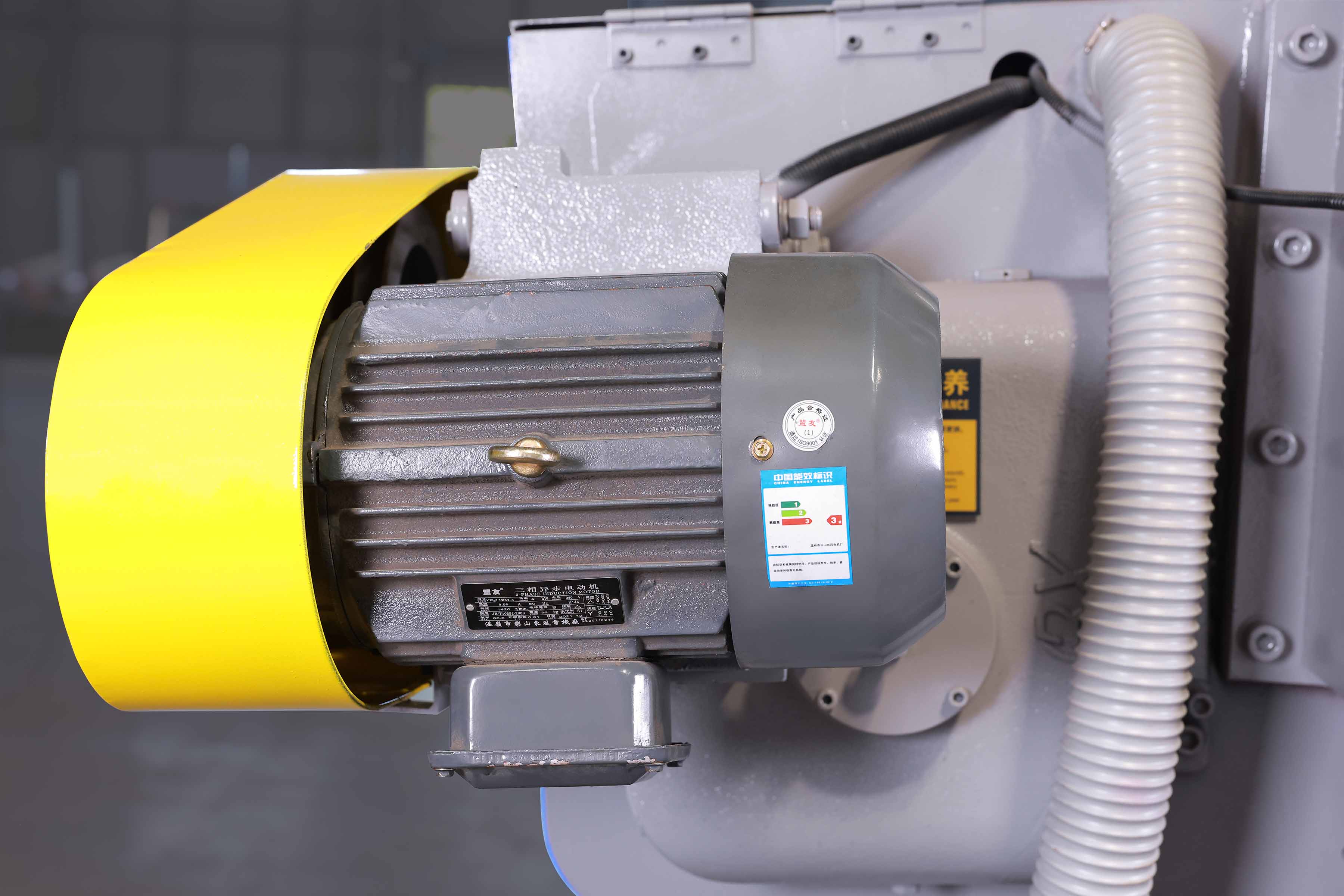

• Stepless Worm Gear Transmission: The main drive utilizes a direct-connected motor, belt wheel, and worm gear box. This system provides smooth, stepless speed regulation, enabling operators to achieve the exact band saw blade line speed required for different metal densities.
• Carbide Blade Guiding System: The blade is secured by fixed and manually adjustable movable guide arms, locked firmly in place via a dovetail block. The guide seats feature hard alloy (carbide) inserts on the top and sides, coupled with a pre-guiding device to eliminate blade wandering and prolong blade life.
• Rigorous Safety Standards: The separate electrical control cabinet operates on a safe 24V DC circuit. It is equipped with multiple mechanical interlocks, an open-door power cut-off switch, motor overload protection, and a dedicated blade-break safety sensor to instantly halt operation if the saw band fails.
• Centralized Hydraulics & Coolant: Features an independent hydraulic station with centralized valve blocks to control all automated movements. An auto-recovery coolant system recycles fluid to cool the blade and collect chips efficiently.
