MFG GHZ4240 Heavy-Duty Rotary Angle Metal Bandsaw

400mm High-Capacity Miter Cutting for Tough Alloys and Stainless Steel

Product Overview

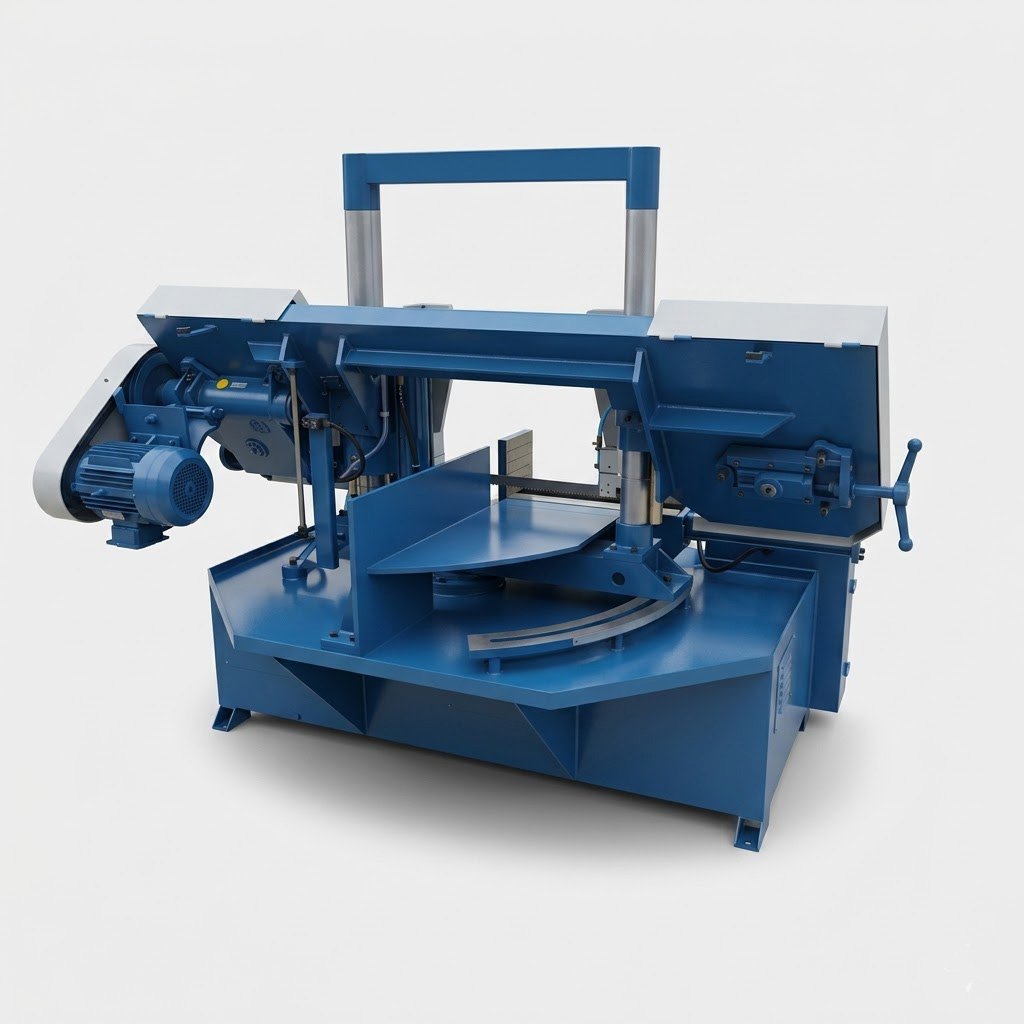

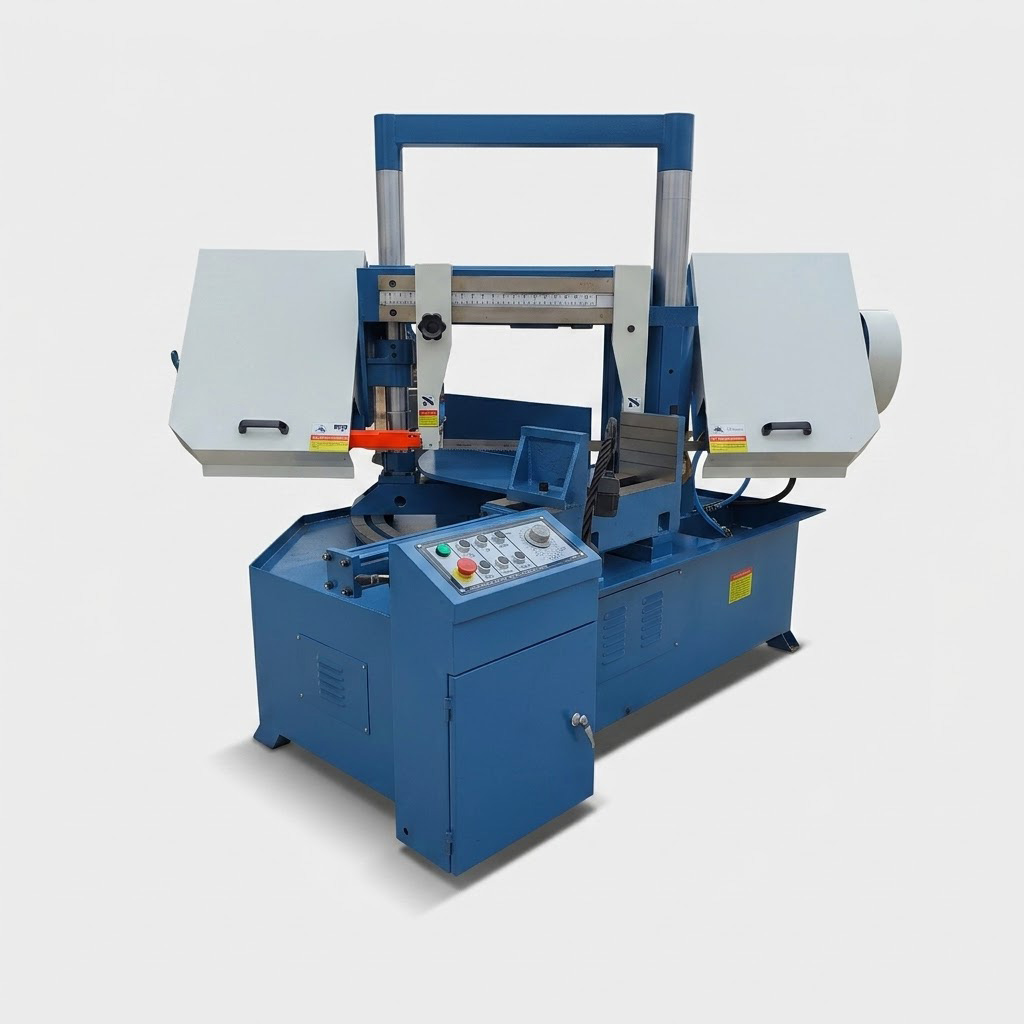

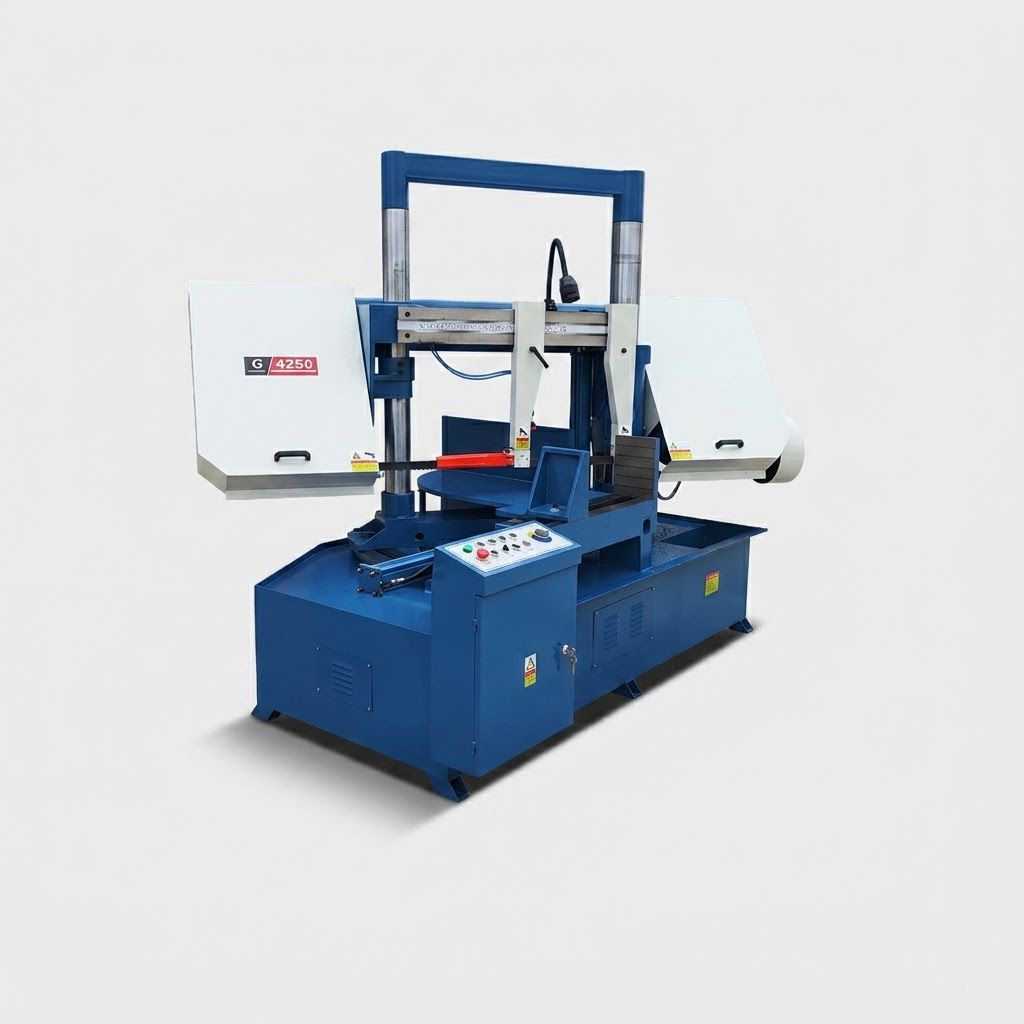

The MFG GHZ4240 is a robust, industrial-grade horizontal miter bandsaw specifically engineered to tackle the most demanding metalworking tasks. Designed to effortlessly process low/high alloy steels, special alloy steels, and stainless steel, this heavy-duty machine delivers a massive 400mm (15.7") cutting capacity at a 90° angle.

Its defining feature is the advanced rotary angle (miter) system, allowing operators to make precise angled cuts up to 45° without ever needing to move or reposition heavy workpieces. Backed by a powerful 4.0 kW main motor and a reliable hydraulic system, the GHZ4240 provides the ultimate combination of cutting power, stability, and workflow efficiency for professional fabrication shops.

Key Features & Benefits

• Specialized for Tough Materials: Constructed with industrial rigidity, the GH series is purposely designed to handle hard-to-cut metals, including high alloy steel, special alloys, and stainless steel, ensuring clean cuts and minimal blade wear.
• Massive 400mm Cutting Capacity: Built for large-scale structural processing, it offers an impressive 400mm (15.7") round and 400x400mm rectangular cutting capacity at a straight 90° angle.
• Convenient Rotary Angle System (Up to 45°): The saw frame can smoothly rotate to achieve miter cuts up to 45° (maintaining a huge 380mm round capacity at 45°). This eliminates the exhausting task of swinging heavy, long materials across your shop floor.
• 5-Step Variable Blade Speed: Equipped with a versatile 5-step speed adjustment system (25, 35, 45, 60, 80 m/min). This allows operators to precisely match the blade speed to the specific hardness of the alloy being cut, significantly maximizing the lifespan of the 41mm bimetallic blade.
• Dependable Hydraulic Processing: Features an independent 0.75 kW hydraulic motor that powers reliable workpiece clamping and smooth saw frame descent, ensuring vibration-free operation and enhanced workplace safety.
• Heavy-Duty Structural Stability: Weighing in at 1600 kg, the machine's sheer mass and rigid footprint (2500x1350x1700 mm) naturally dampen vibrations during heavy-load sawing, resulting in superior surface finishes.
