MFG GHSZ4260 CNC Fully Automatic Dual-Column Miter Bandsaw

Precision Heavy-Duty 600mm Cutting with Intelligent PLC Rotary Control

Product Overview
The MFG GHSZ4260 is a flagship-tier, fully automatic CNC bandsaw engineered for large-scale industrial metal processing. Combining the superior structural rigidity of a dual-column (double-post) frame with advanced CNC intelligence, this machine is built to handle workpieces up to a massive 600mm (23.6") in diameter. Featuring an automated rotary saw frame for precise miter cutting, the GHSZ4260 allows for complex angle machining (0-45°) without the need to reposition heavy materials. Controlled by a sophisticated PLC touchscreen interface, it streamlines high-volume batch production with uncompromising repeatability and dimensional accuracy.

Key Features & Benefits

• Massive 600mm (23.6") Cutting Capacity: Optimized for heavy-duty structural steel, cast iron, and large alloys. It delivers a reliable 600mm circular capacity and a massive 600x600mm rectangular capacity at 90°.
• Intelligent CNC & PLC Touchscreen Control: The centralized PLC system features a user-friendly touchscreen that simplifies complex operations. Operators can easily program batch quantities, feed lengths, and monitor real-time cutting data—drastically reducing setup times and labor costs.
• Automatic Rotary Angle (Miter) System: The innovative rotary saw bow design enables effortless angle cutting up to 45°. This feature is a major efficiency driver, as it allows long and heavy profiles to remain stationary while the machine adjusts the cutting angle.

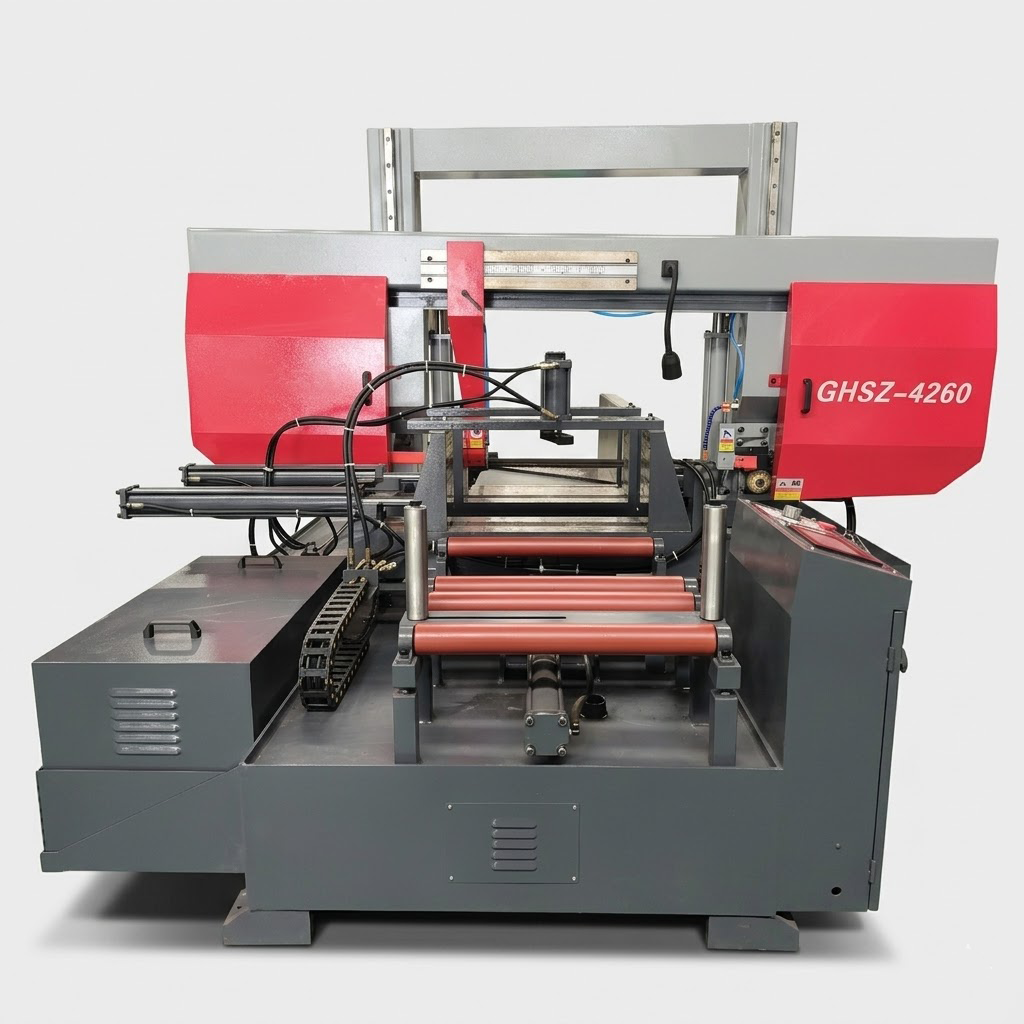

• Rigid Dual-Column Stability: Built with a heavy-duty double-post frame and precision column guides. This architecture minimizes vibration during heavy-duty cuts, ensuring a cleaner surface finish and significantly extending the lifespan of the 41mm wide bimetallic blade.
• Stepless Variable Blade Speed: Integrated with a high-performance inverter, the machine offers stepless speed adjustment (e.g., 20-80 m/min). This allows for perfect synchronization between blade speed and material hardness for optimal performance.
• Precision Hydraulic Clamping & Feed: Features a robust hydraulic vise clamping system and a high-torque automatic material feed. The system ensures high repeatability and dimensional accuracy for continuous, 24/7 industrial production cycles.
• Comprehensive Cooling & Safety Interlocks: Equipped with an industrial-duty coolant system to prevent thermal distortion. The electrical system includes smart interlocks, ensuring the machine only operates when workpieces are securely hydraulically clamped.
