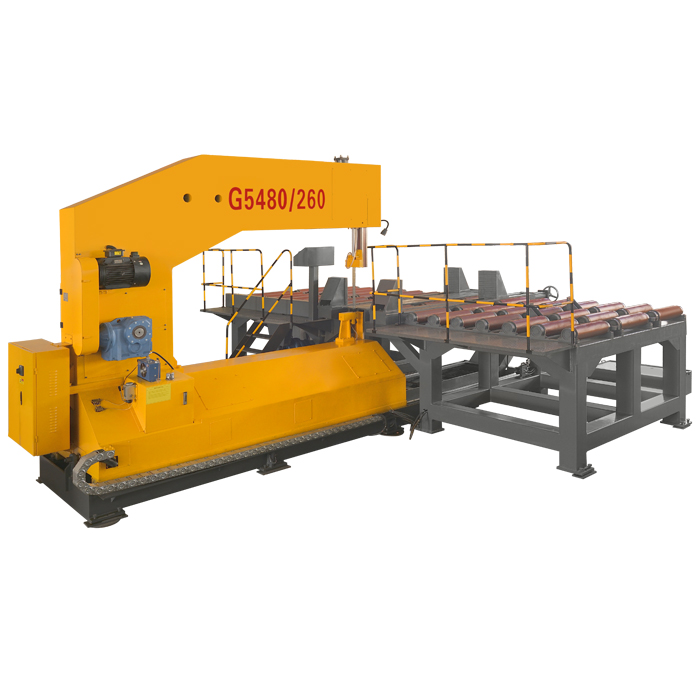

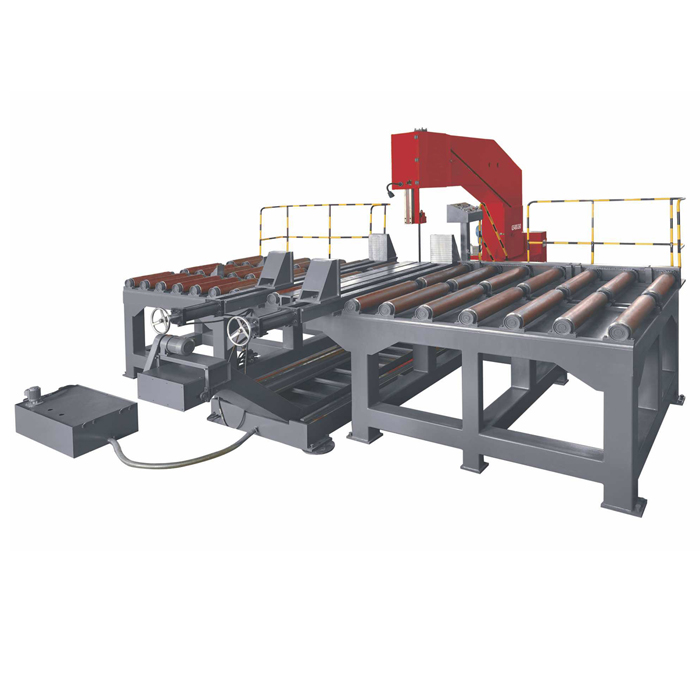

MFG G5480/260 Heavy-Duty Traveling Head Vertical Band Saw

2600mm Extra-Wide Throat & Up to 10,000mm Cutting Length for Massive Plates

Product Overview

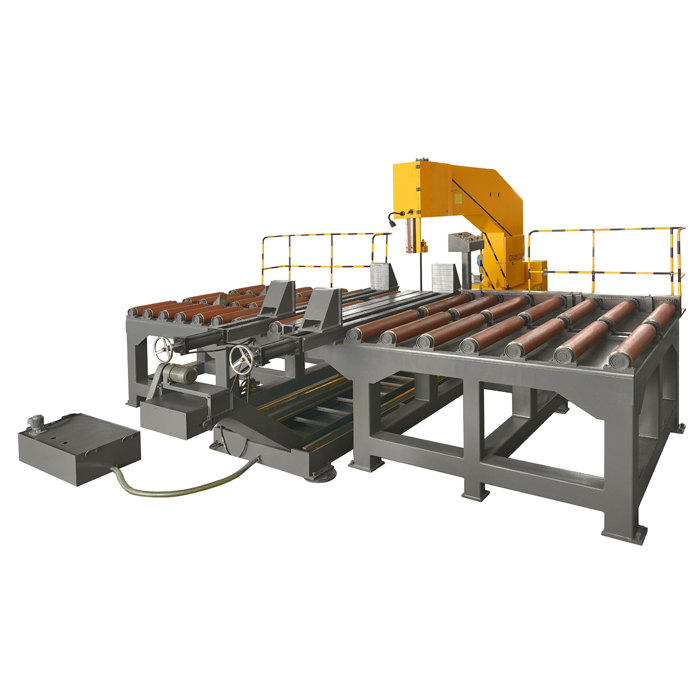

The MFG G5480/260 is a premier industrial solution for large-scale metal plate processing. Engineered with a sophisticated traveling head (mobile saw frame) and a fixed roller table, this machine is designed to cut massive workpieces that are too heavy or long for conventional moving-table saws. With a colossal 2600 mm throat depth and 800 mm cutting height, it effortlessly handles oversized steel plates and structural blocks. Its modular structure allows for standard cutting lengths of up to 10,000 mm (10 meters), ensuring that even the most ambitious industrial projects are completed with pinpoint accuracy, superior material savings, and maximum floor-space efficiency.

Key Features & Benefits

• Ultra-Wide 2600mm Throat Capacity: Designed for the largest industrial profiles, the G5480/260 offers a massive 2600mm throat depth, providing unmatched clearance for wide plates and irregular structural components.
• Space-Saving Traveling Head Design: The material remains stationary on the heavy-duty fixed roller table while the saw frame travels through it. This architecture drastically reduces the required floor space and ensures maximum stability when handling workpieces weighing several tons.
• Exceptional 800mm Cutting Height: Built for heavy-duty depth, the machine provides up to 800mm of vertical cutting clearance, making it the ideal choice for thick alloy blocks and heavy structural steel.
• Modular Length Options (Up to 10m): Tailor the machine to your production needs. Standard longitudinal stroke options include 2000, 4000, 6000, and a massive 10,000 mm, providing a flexible solution for any plate length.
• Powerful 11.0 kW Drive System: Driven by a robust 11.0 kW main motor and an industrial gearbox, it delivers consistent high-torque power to the 67mm wide heavy-duty blade, ensuring smooth cuts through the toughest materials.
• Stepless Variable Speed Control: Features a high-performance inverter for stepless blade speed adjustment (20-80 m/min), allowing operators to optimize the cutting process for different material grades and extend blade life.
• Industrial-Grade Reliability: Built with premium bearings and precision drive wheels for decades of trouble-free use. MFG covers this machine with a 1-year parts warranty and offers lifelong technical support from our experienced team.
