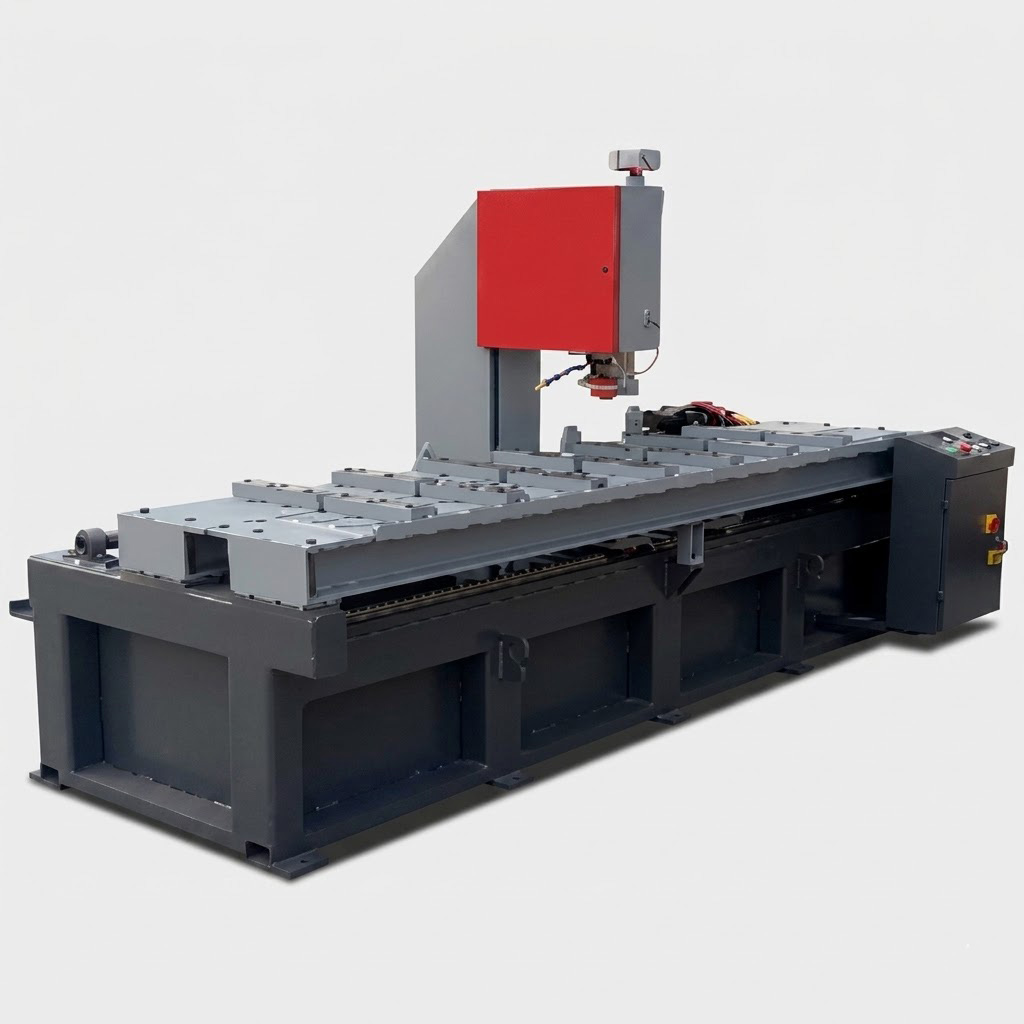

MFG CV-5080 Heavy-Duty Vertical Contour Bandsaw

Massive 500mm Throat Depth & Stepless Speed for Precision Industrial Contouring

Product Overview
The MFG CV-5080 is a professional-grade vertical contour bandsaw engineered to deliver ultimate versatility and cutting precision for metal fabrication, tool rooms, and mold-making workshops. Boasting a massive 500mm (19.7") throat depth, this machine provides an exceptionally spacious working area for maneuvering large plates, thick profiles, and complex irregular shapes. Equipped with a high-performance stepless variable speed drive (25-115 m/min) and a fully integrated blade welding station, the CV-5080 serves as the ultimate all-in-one workstation for processing steel, aluminum, tough alloys, and intricate internal contours.

Key Features & Benefits

• Massive 500mm Throat Depth: The expansive 500mm (19.7") throat capacity provides superior workpiece clearance, allowing operators to easily handle oversized materials and execute large-radius contour cuts without restriction.
• Precision Stepless Speed Control: Features a reliable frequency-driven system that allows for seamless, stepless speed adjustments from 25 to 115 m/min. Operators can instantly dial in the optimal blade speed based on material hardness, ensuring a perfect surface finish and significantly maximizing blade life.
• Integrated Blade Welding & Grinding Station: Built directly into the machine's column is a complete electric blade welder, shearer, and grinder. This empowers users to create custom-length blades from economical bulk stock or repair broken blades on the spot, drastically reducing tooling costs and production downtime.
• Bi-Directional Tilting Worktable: The robust 600x500mm cast iron worktable can independently tilt 15° to both the Left and Right. This dual-tilt functionality is absolutely essential for precise bevel cutting, miter joints, and complex compound angle contouring.
• Robust 2.0 HP Motor Output: Powered by a heavy-duty 1.5kW (2.0 HP) industrial motor, providing consistent, high-torque power to effortlessly cut through high-hardness alloy steels and thick solid blocks without stalling or vibrating.
• Heavy-Duty Structural Stability: Weighing in at 380kg, the substantial machine frame naturally absorbs and dampens cutting vibrations. This unmatched stability guarantees strict dimensional tolerances and smooth operation during continuous, heavy-duty industrial use.
